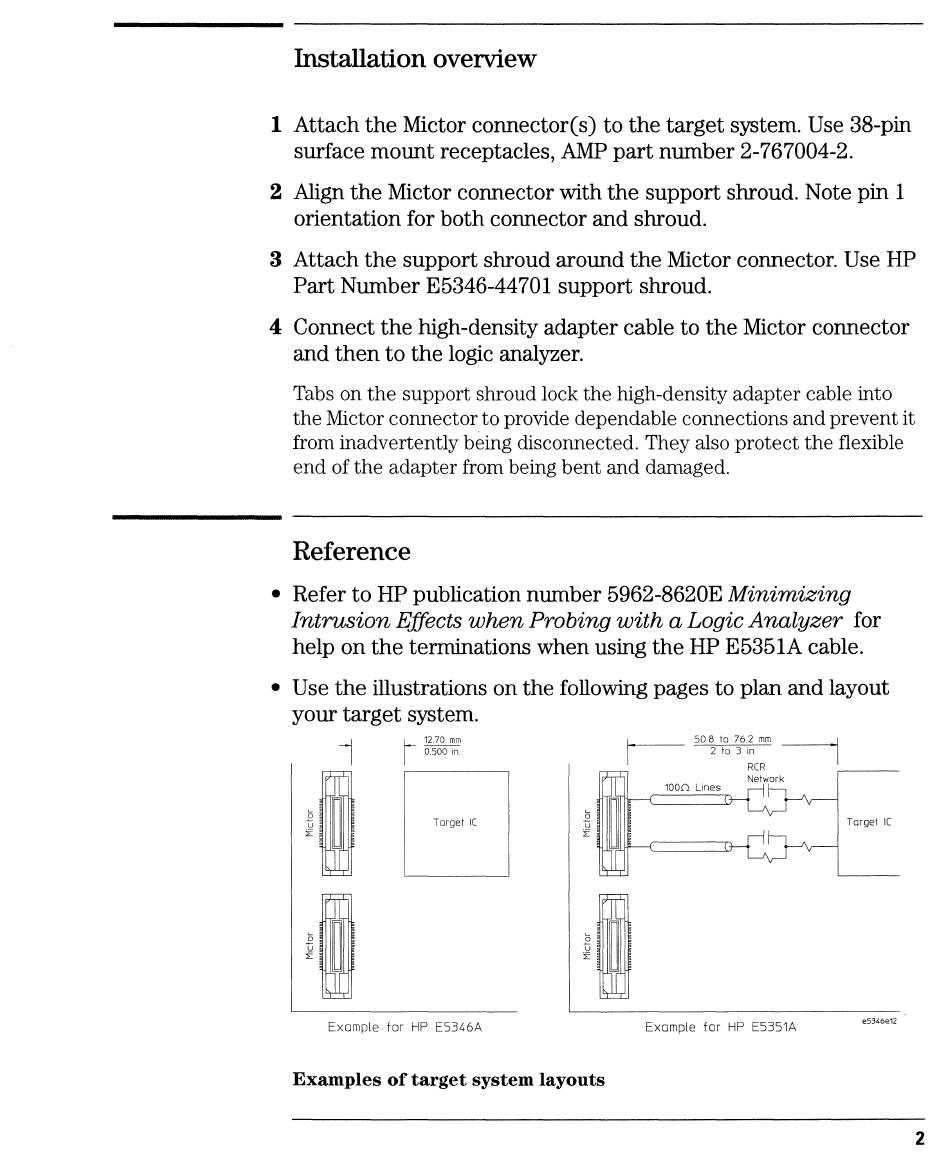

Installation overview
1 Attach the Mictor connector(s) to the target system. Use 38-pin
surface mount receptacles, AMP part number 2-767004-2.
2 Align the Mictor connector with the support shroud. Note pin 1
orientation for both connector and shroud.
3 Attach the support shroud around the Mictor connector. Use HP
Part Number E5346-44701 support shroud.
4 Connect the high-density adapter cable to the Mictor connector
and then to the logic analyzer.
Tabs on the support shroud lock the high-density adapter cable into
the Mictor connector to provide dependable connections and prevent it
from inadvertently being disconnected. They also protect the flexible
end of the adapter from being bent and damaged.
Reference
• Refer to HP publication number 5962-8620E Minimizing
Intrusion Effects when Probing with a Logic Analyzer for
help on the terminations when using the HP E5351A cable.
• Use the illustrations on the following pages to plan and layout
your target system.
~
12.70 mm
I
o soo
1n_
Example for HP ES346A
Examples of target system layouts
r-----
50 8 to 76 _ _ 2 mm
------1
I
2 to 3 1n
I
RCR - - -
Network
1000 Lines
Target IC
Example for HP ES351A
e5346e1Z
