Vulcan-Hart ScaleBlocker SPS600V Specifications page 2

NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32428 (6-04)
SPS600V
SPS620V
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
ScaleBlocker™
WATER FILTER SYSTEM
NOTES:

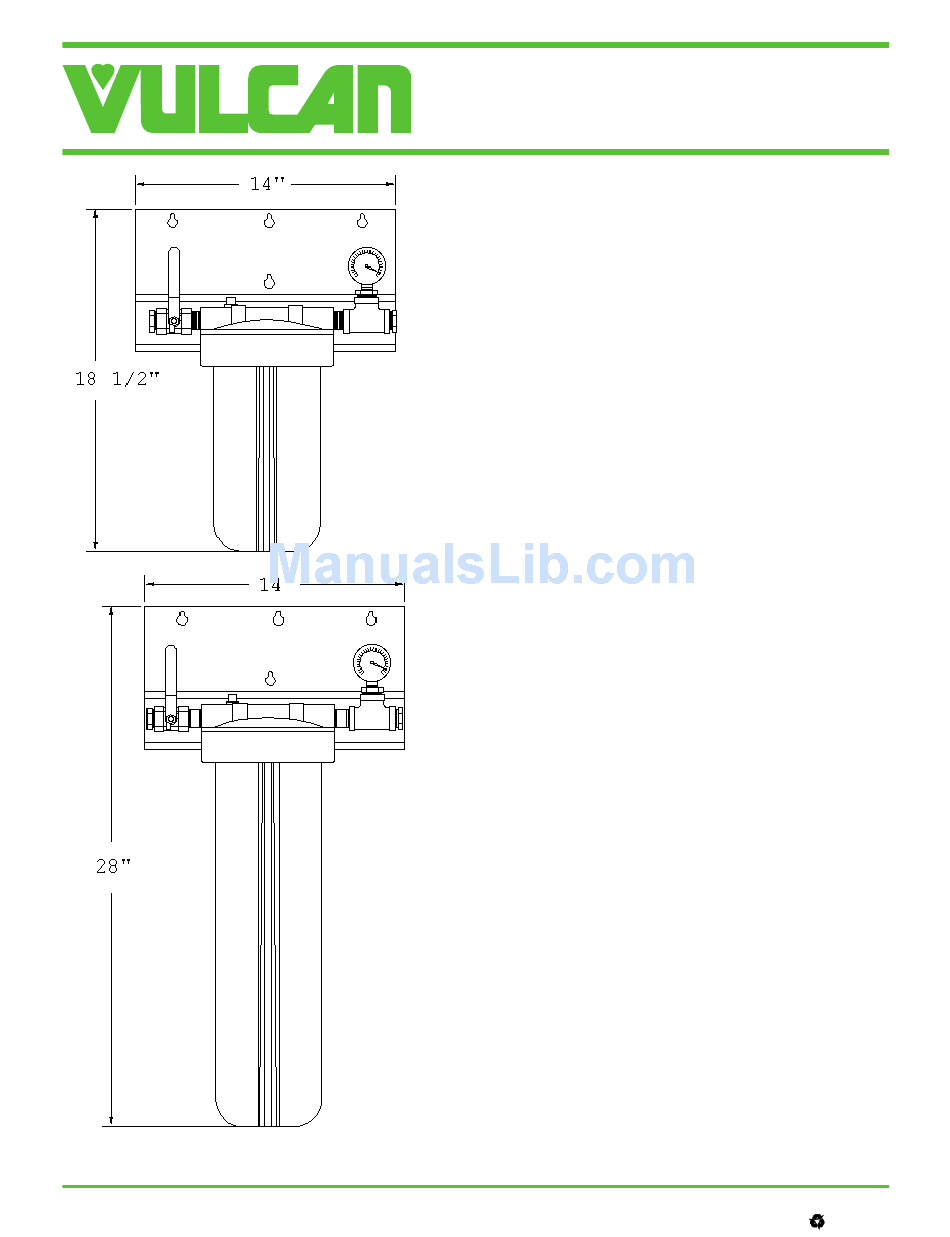

1. Dimensions which locate the below connections have a
tolerance of + or - 3" (+ or - 77mm).
SPS600V
Service Flow
Service Life
Inlet / Outlet
Inlet Min / Max Pressure
Min / Max Temperature
Weight, Operating
SPS620V
Service Flow
Service Life
Inlet / Outlet
Inlet Min / Max Pressure
Min / Max Temperature
Weight, Operating
2. Installation of backflow preventers, vacuum breakers, other
code requirements and local code compliance is the respon-
sibility of the owner and installer.
3. Filter clearance needed for access:
Front 13"
Bottom 4"
4. Plastic drains are not recommended due to inherent limited
temperatures of the plastic. Boiler purge temperatures
may exceed 180°F. The installer may be required to provide
means to reduce boiler purge water temperatures to be that
of condensate temperature of 140°F or below.
5. This appliance is manufactured for commercial installation
only and not intended for home use.
WATER QUALITY STATEMENT:
Water from ScaleBlocker™ System should only be connected
to the boiler / generator feed and not the condenser connection
of the steamer. Systems are not to be used where water is
microbiologically unsafe or with water of unknown quality without
adequate disinfections before and after use. Connecting to a
municipal water supply complies with this requirement.
0-2 GPM
7,500 Gal
3/4" NPT F
40-125 PSIG
45-100F (7-37C)
21 Lbs. (9.5 kg)
0-4 GPM
12,000 Gal
3/4" NPT F
40-125 PSIG
45-100F (7-37C)
32 Lbs. (15.5 kg)
Printed On Recycled Paper
