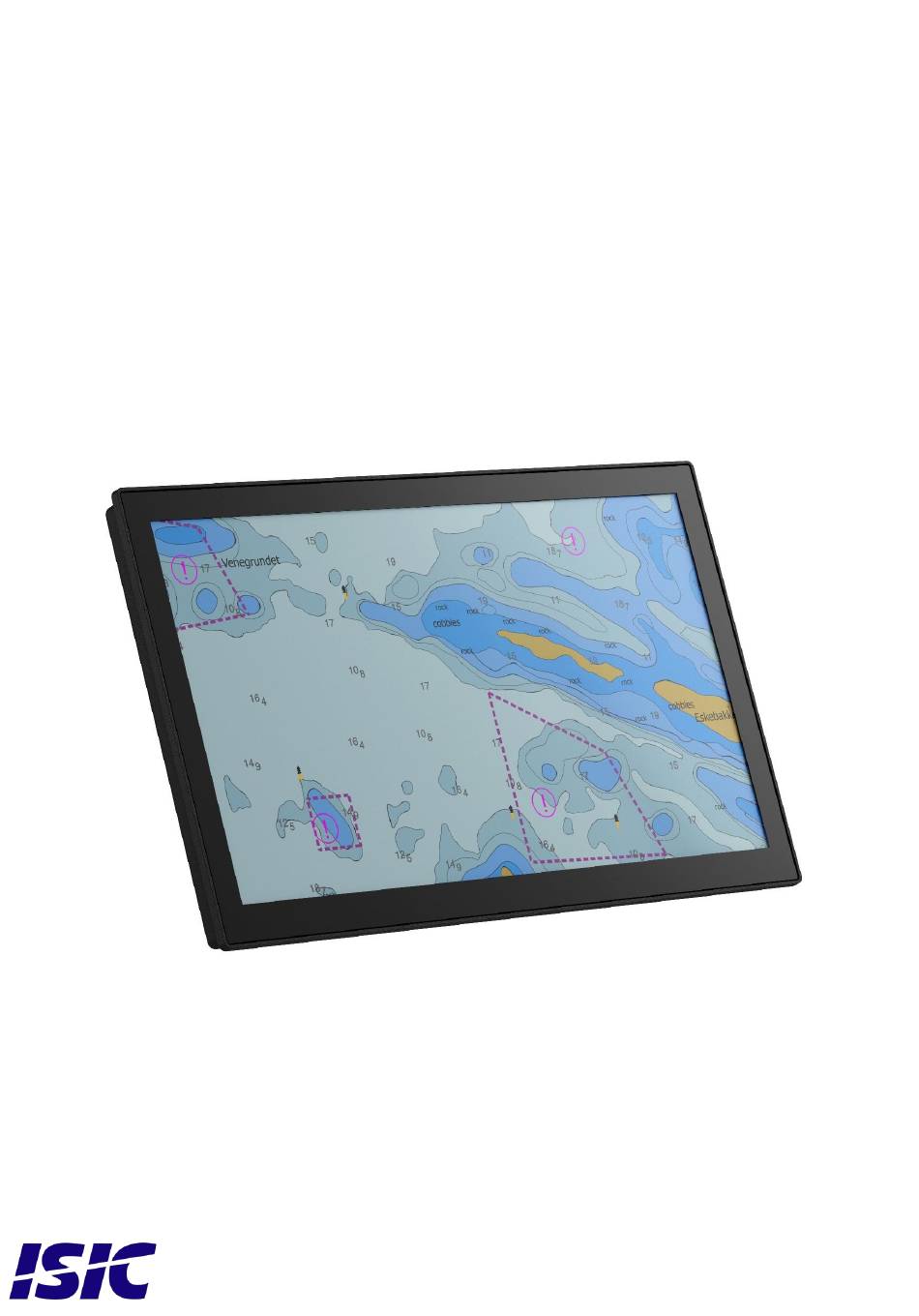

- Page 1 DuraMON10-24 S Series DuraMON10 S DuraMON15 S DuraMON22 S DuraMON24 S User Reference Manual User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 1...
- Page 2 Further, ISIC A/S reserves the right to revise this publication and to make changes to its content at any time, without obligation to notify any person or entity of such revisions or changes.
-
Page 3: Table Of Contents
12 TROUBLESHOOTING ................................15 13 SERVICING THE UNIT ................................15 14 TERMS, ACRONYMS AND ABBREVIATIONS ........................15 15 ISIC INFO / SUPPORT ................................16 16 REVISION HISTORY ................................17 User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 3... - Page 4 ) ......................22 DVANCED OLOR NOT AVAILABLE IN MODE 17.5 OSD ..................................23 SETTINGS 17.6 S .................................. 24 YSTEM SETTINGS 18 APPENDIX B: PIXEL POLICY .............................. 25 User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 4...
-
Page 5: Features
Congratulations on your product purchase of DuraMON10-24 S series. This short form manual is designed to get you started working with your new DuraMON10-24 S. DuraMON10-24 S series of monitors are all made as rugged monitors especially designed for the demanding operating conditions at sea. -
Page 6: General Considerations At Installation And Operation
General considerations at Installation and Operation DuraMON10-24 S series are designed to work at conditions according to IEC 60945. However, keeping the temperature and vibration level at a minimum will extend the lifetime of the product. ISIC recommend operating this product at normal room temperature (20-25°C), with the lowest level of vibration and humidity. -
Page 7: Compass Safe Distance
DuraMON 22 S 100A DuraMON 24 S 100A 2.2 Operation 2.2.1 Warm up To obtain correct display colors and luminance, a warm-up period of minimum 30 minutes is required. User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 7... -
Page 8: Duramon10-24 S Connections
Operating voltage range. Terminal Connection Wire compliance 0VDC Multicore AWG16-12 (1-4 mm +24VDC Multicore AWG16-12 (1-4 mm Mating part: Weidmüller BLZP5.08HC/02/180F Tool: mm slotted (flat headed) screwdriver 0.6x3.5 User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 8... -
Page 9: 110/230Vac Supply
115 / 230 VAC: Nominal input AC voltage. 90 - 264 VAC: Operating AC voltage range. 47 - 63 Hz: Operating frequency range IEC plug type C14 Mating connector: IEC type C13 User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 9... -
Page 10: Displayport 1.2 (Dp) Receptacle
3.5 2.5 mm jack (reserved for future use) Mating part: 2.5 mm Jack for half duplex RS-485 Description 5VDC (Only for ISIC applications) RS-485 A RS-485 B User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 10... -
Page 11: Technical Specifications Duramon10-24 S
Linux operating systems might come with the HID driver as part of the Linux kernel, compatibility is not guaranteed. Buzzer For models ordered with Buzzer only: Buzzer can be activated by serial command, please refer to Serial Communication Protocol 04924-002 User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 11... -
Page 12: Display Backlight Luminance (Dimming)
To setup ECDIS on the system a color token table must be downloaded from the monitor to the ECDIS application. USB interface: Please refer to Serial Communication Protocol 04924-002 for details. DDC interface: Please refer to DDC/CI VCP Command protocol 09370-002 for details. User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 12... -
Page 13: Duramon10-24 S Led Indicators
- Out of ECDIS range (DAY/DUSK/NIGHT) (for ECDIS models only) Green: LCD image + No light: OK - Normal operation no LCD image + No light: No power 10.2.2 Optional Power LED indicating color Blue: User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 13... -
Page 14: Front Panel Controls
On, press the standby button to activate the monitor and backlight. Standby can be activated by pressing the button for 5 seconds. User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 14... -
Page 15: Up And Down Buttons
Servicing the unit In case the unit still fails after following the troubleshooting send the unit to ISIC for repair. There are no user serviceable parts inside and to ensure ECDIS compliance the monitor must be recalibrated at ISIC. -
Page 16: Isic Info / Support
During office-hours (Mo-Fr: CET 0800 - 1500) at +45 70 20 70 77 Service: Before shipment for service Request Return Material Authorization number at homepage https://isic-systems.com/after-sales/tech-support-rma/ By mail to service@isic-systems.com User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 16... -
Page 17: Revision History
Rev A June 2021 First release Rev B September 2023 adding DuraMON 22 S + DuraMON 24 S (with front panel controls and ECDIS) and VA data User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 17... -
Page 18: Appendix A: Advanced Osd Menu
Advanced Color OSD Settings System Settings Custom info VGA Adjustments VGA Adjustments Auto Adjust Auto Adjust Clock Clock Phase Phase Hor. Position Hor. Position Ver. Position Ver. Position User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 18... - Page 19 VGA Adjustments Color Adjustments Advanced Color OSD Settings System Settings Custom info VGA Adjustments Auto Adjust Clock Phase Hor. Position Ver. Position Hor. Position Phase Value Value User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 19...
-
Page 20: Color Adjustments (Not Available In Ecdis Mode)
Auto Color Adjust press the “UP” or “DOWN” button to adjust the Brightness Backlight backlight level and then Value Value press “ENTER” afterwards. User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 20... - Page 21 OSD Settings OSD Settings System Settings System Settings Custom info Custom info Color Adjustments Backlight Brightness Contrast Saturation Auto Color Adjust Auto Color Adjust Auto Color Adjust Value User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 21...
-
Page 22: Advanced Color (Not Available In Ecdis Mode)
Note: These values are only Custom info adjustable when Color Temperature is set to ‘User’ Advanced Color Gamma Color Temperature Red Gain Green Gain Blue Gain Red Gain Value User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 22... -
Page 23: Osd Settings
OSD Settings Default is 50 (center of the Default is 2 System Settings display) Custom info OSD Settings Timeout Hor. Position Ver. Position Transparency Ver. Position Value User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 23... -
Page 24: System Settings
Input Select Default is Full. VGA Adjustments Color Adjustments Advanced Color OSD Settings System Settings Custom info System Settings Aspect Ratio Load Factory Defaults Aspect Ratio Full 16:9 User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 24... -
Page 25: Appendix B: Pixel Policy
TFT display. To regulate the acceptability of defects and protect the end user, ISIC A/S complies with the ISO 9241- 307:2008 standard. This standard recommends how many defects are considered acceptable in a display, before it should be replaced within the terms of the warranty. - Page 26 Pixels in a cluster area constantly dark Cluster pixel defect type 3a Cluster pixel defect type 3b Sub-pixels/dots in a cluster area constantly lit Sub-pixels/dots in a cluster area constantly dark User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 26...
- Page 27 2 type 1 and (2xN type 3 WVGA 800x480 384,000 1024x768 768,432 WXGA 1280x800 1,024,000 SXGA 1280x1024 1,310,720 UXGA 1600x1200 1,920,000 1920x1080 2,073,600 WUXGA 1920x1200 2,304,000 User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 27...
- Page 28 Edwin Rahrs Vej 54 DK-8220 Brabrand Denmark Web: http://www.isic-systems.com Email: service@isic-systems.com User Reference Manual – DuraMON10-24 S Series PN: 09330-000 Rev B Page 28...
