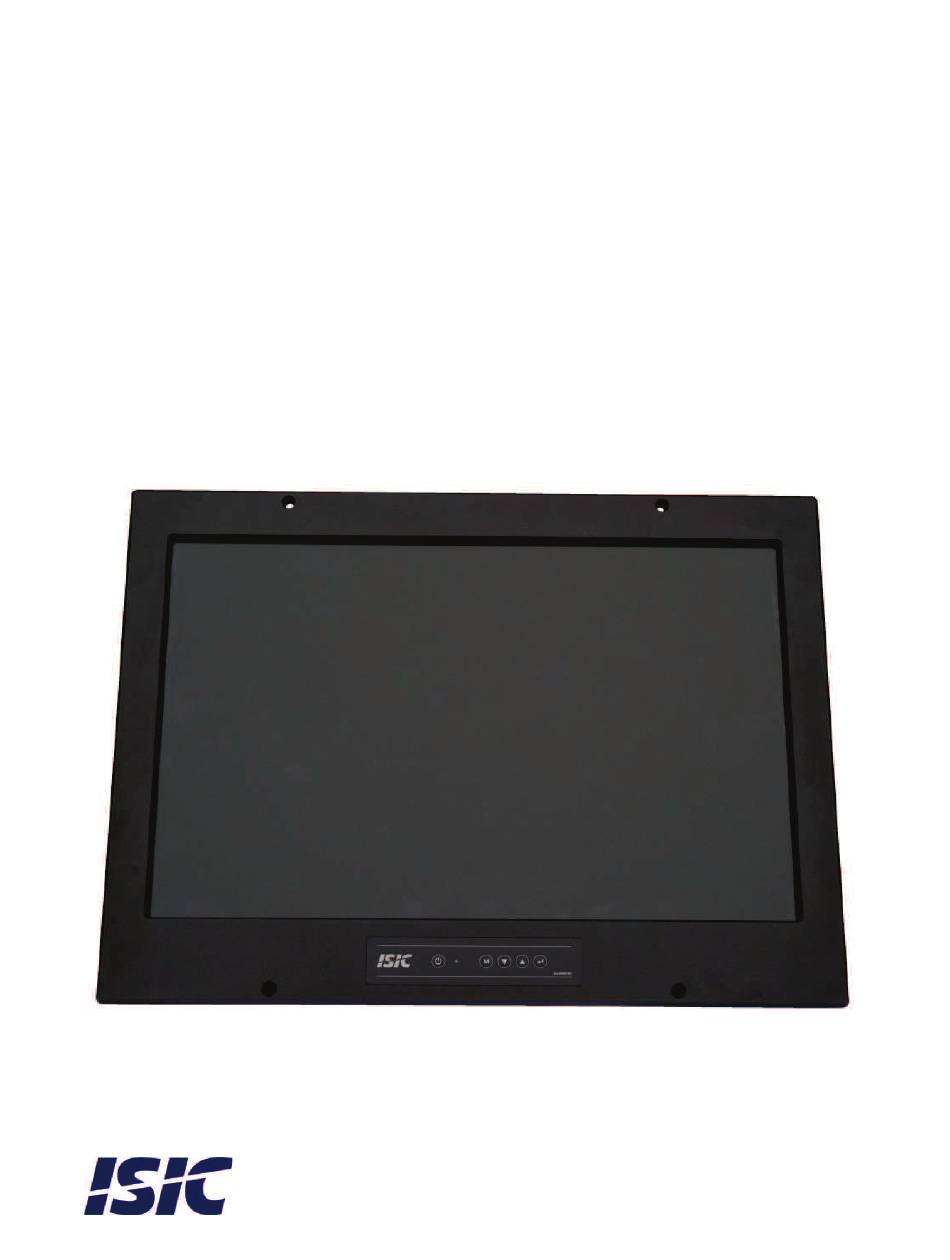

ISIC DuraMON15 User's Reference Manual

Hide thumbs Also See for DuraMON15:

Advertisement

Quick Links

DuraMON
DuraMON15
DuraMON19
DuraMON22
DuraMON24
DuraMON26
DuraMON27
User Reference Manual
User Reference Manual - DuraMON
PN: 05192-075 Rev B Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DuraMON15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ISIC DuraMON15

  • Page 1 DuraMON DuraMON15 DuraMON19 DuraMON22 DuraMON24 DuraMON26 DuraMON27 User Reference Manual User Reference Manual - DuraMON PN: 05192-075 Rev B Page 1...
  • Page 2 Disclaimer ISIC A/S makes no representation or warranties with respect to the contents or use of this manual, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Further, ISIC A/S reserves the right to revise this publication and to make changes to its content at any time, without obligation to notify any person or entity of such revisions or changes.
  • Page 3: Table Of Contents

    INRUSH CURRENT ............................28 TROUBLESHOOTING ............................. 29 SERVICING THE UNIT ........................... 29 TERMS, ACRONYMS AND ABBREVIATIONS ................... 29 ISIC INFO / SUPPORT ............................. 30 REVISION HISTORY ............................31 APPENDIX A: PIXEL POLICY ........................32 User Reference Manual - DuraMON PN: 05192-075 Rev B Page 3...
  • Page 4: Features

    Features Congratulations on your purchase of a DuraMON. This short form manual is designed to get you started working with your new DuraMON. The DuraMON series of monitors are all made as rugged monitors especially designed for the demanding operating conditions at sea. The DuraMON series are tested for full compliance to marine-standards IACS E10 and IEC 60945.
  • Page 5: General Considerations On Installation And Operation

    The DuraMON is designed to work at conditions according to IEC 60945. However, keeping the temperature and vibration level at a minimum will extend the life time of the product. ISIC recommend operating this product at normal room temperature (20-25 °C), with the lowest level of vibration and humidity.
  • Page 6: Duramon Connections

    DuraMON connections Below is a view of optional connections to the monitor. The default inputs are: power, RS-232, DP/HDMI, DVI and VGA. 15”: AC Power DC Power RS-422/485 RS-232 DP or HDMI 19”: AC Power DC Power RS-422/485 RS-232 DP or HDMI 22”: AC Power DC Power...
  • Page 7 24”: AC Power RS-422/485 RS-232 DP or HDMI 26”: AC Power RS-422/485 RS-232 DP or HDMI DVI VGA 27”: AC Power RS-422/485 RS-232 DP or HDMI To connect the DC power connector you need a screw driver Only use multicore cables from AWG16 to AWG12 (1.0 mm to 4 mm DC connector: Weidmüller, BLZP 5.08HC/02/180F SN BK BX, 1944330000 AC Connector: IEC 60320 type C13...
  • Page 8: Duramon Front Panel Controls

    DuraMON front panel controls The front panel is illuminated and will follow the brightness level of the monitor backlight. On/Off Menu Down Up Enter ON/OFF: This key is used to turn the product on or off. Pressing it will turn the power on, while holding it pressed for 5 seconds will turn the power off.
  • Page 9: Popup Menu

    Popup Menu Without entering the OSD menu it is possible to adjust brightness by pressing “up” or “down” key. Press “up” or It is now possible to Backlight “down” adjust the backlight level by pressing either up- or down key. Advanced OSD With the Advanced OSD (On Screen Display) you can modify the settings and control the special features of the DuraMON as described on the next pages.
  • Page 10: Input Select

    Input select Input Select – Main Picture Channel The Main Picture Channel Main Menu can be selected between all Input Select available inputs (VGA, VGA Adjustments Color Adjustments Display Port and DVI. Advanced Color OSD Settings System Settings Custom info Input Select Main Picture Channel Main Picture Channel...
  • Page 11 The phase of the display The horizontal position of Main Menu Main Menu can be set for VGA. the picture can be set Input Select Input Select here. VGA Adjustments VGA Adjustments Color Adjustments Color Adjustments Advanced Color Advanced Color OSD Settings OSD Settings System Settings...
  • Page 12: Color Adjustments (Not Available In Ecdis Mode)

    Color adjustments (not available in ECDIS mode) Color Adjustment – Backlight Color Adjustment – Brightness It is possible to set the It is possible to set the Main Menu Main Menu backlight level. brightness level. Input Select Input Select VGA Adjustments VGA Adjustments Color Adjustments Color Adjustments...
  • Page 13: Advanced Color (Not Available In Ecdis Mode)

    Advanced Color (not available in ECDIS mode) Adv. Color Settings – Gamma Adv. Color Settings – Color Temp It is possible to set the It is possible to set the Main Menu Main Menu Gamma Color Temperature. Input Select Input Select VGA Adjustments VGA Adjustments Color Adjustments...
  • Page 14: Osd Settings

    OSD settings OSD Settings – Menu Timeout OSD Settings – Menu Hor. Pos. The Menu Timeout period The Horizontal Position of Main Menu Main Menu can be set between 0 and the OSD can be set from 0 Input Select Input Select 60 seconds in steps of 5 (left margin) to 100 (right...
  • Page 15: System Settings

    System settings System Settings – Load Factory Defaults Reset the monitor to factory Main Menu settings. Input Select VGA Adjustments Color Adjustments Advanced Color OSD Settings System Settings Custom info System Settings Load Factory Defaults System info 1920x1080 User Reference Manual - DuraMON PN: 05192-075 Rev B Page 15...
  • Page 16: Serial Connection Pin-Out

    Serial connection pin-out RS-232 RS-232 RS-422/RS-485 RS-485 (2 wire) (Touch) (4 wire) SUB-D 9-pol female SUB-D 9-pol female SUB-D 9-pol female SUB-D 9-pol female B (RX-) B (D-) Y (TX+) A (RX+) A (D+) Z (TX-) Technical specifications DuraMON DuraMON I/O Video inputs: VGA : Analog 0.7 Vpp.
  • Page 17: Specification Dura Mon 15

    Specification DuraMON 15” Resolution: 1024 × 768 Active Area: 304.1mm x 228.1mm (15.0” diagonal) Pixel Pitch: 0.297mm x 0.297mm View angle: 85° (L/R/T/B) (typical) Luminance: 350 cd/m (typical) Contrast ratio: 1000:1 (typical) Colours: 16.7 mill. (24-bit) Response Time: 35 ms (GtG) (typical) Window: Anti-Reflective coated front glass Protection: IP65 front –...
  • Page 18 Specification DuraMON 24” Resolution: 1920 × 1080 Active Area: 521.28mm x 293,22mm (23.6” diagonal) Pixel Pitch: 0.2715mm x 0.2715mm View angle: 89° (L/R/T/B) (typical) Viewing distance: 1.02 m Luminance: 250 cd/m (typical) Contrast ratio: 3000:1 (typical) Colours: 16.7 mill. (24-bit) Response Time: 25 ms (GtG) (typical) Window: Anti-Reflective coated front glass Protection: IP65 front –...
  • Page 19: Mechanical Outline Duramon 15

    Sheet: 1 of 4 Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 29-04-2016 Approved by 29-04-2016 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Mechanical outline 15'' DuraMON LED Drawing no. Rev. Scale: 05536-001...
  • Page 20: Mechanical Outline Duramon 22

    Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 19-11-2015 Approved by 19-11-2015 1943 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Drawing no. Rev. Scale: 05537-000 Mechanical outline 19'' DuraMON LED DuraMon LED 19 Integrated...
  • Page 21: Mechanical Outline Duramon 26

    Angle, straightness and flatness: DS/ISO 2768-H n 12 x 8 Designed by 07-03-2016 Approved by 07-03-2016 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Drawing no. Rev. Subject: Scale: 05258-001 Mechanical outline DuraMON 22'' WS SB15 AC...
  • Page 22 Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 08-03-2016 Approved by 08-03-2016 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Drawing no. Rev. Scale: 05259-000 Mechanical outline DuraMON 24'' WS SB15 AC...
  • Page 23: Mechanical Outline Duramon 26

    Hole position: ` 0,1 Angle, straightness and flatness: DS/ISO 2768-H Designed by 19-11-2015 Approved by 19-11-2015 1945 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Drawing no. Rev. Scale: 05260-004 Mechanical Outline DuraMON 26" WS LED...
  • Page 24 Angle, straightness and flatness: DS/ISO 2768-H Designed by n 12 x 8 19-11-2015 Approved by 19-11-2015 1946 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Mechanical Outline DuraMON 27'' WS Subject: Drawing no. Rev. Scale: 05261-001...
  • Page 25: Touch Screen Option (19" Only)

    Touch screen option (19” only) The OSD menu on the DuraMON does NOT contain any special entries with respect to the touch functions, as no features are controllable from the monitor itself. All special functions has to be controlled from the PC For description of special touch functions and help section, please go to the touch program folder, and select Readme or Help.
  • Page 26 Calibration of Touch Screen The Touch Screen is calibrated from the factory and normally no recalibration is needed. If a Calibration is needed, go to the Programs/MT7 Software folder Select the Control program Press the Calibrate button, and place your finger at target points. If the calibration process was not satisfactory, please re-calibrate.
  • Page 27: Ecdis Mode

    ECDIS mode Be aware that use of the backlight, brightness or contrast controls in ECDIS mode may inhibit visibility of information particularly at night! To setup ECDIS on the system a color map must be downloaded from the monitor to the ECDIS application.
  • Page 28: Power Consumption

    Power Consumption Test object / condition Ptyp [W] Pmax [W] DuraMON 15 DuraMON 19 DuraMON 22 DuraMON 24 DuraMON 26 DuraMON 27 Inrush current Test object / condition [VDC] [VAC] [VAC] DuraMON 15 DuraMON 19 DuraMON 22 DuraMON 24 DuraMON 26 DuraMON 27 User Reference Manual - DuraMON PN: 05192-075 Rev B Page 28...
  • Page 29: Troubleshooting

    Servicing the unit In case that the unit still fails after following the troubleshooting send the unit to ISIC for repair. There are no user serviceable parts inside and to ensure ECDIS compliance the monitor has to be recalibrated at ISIC.
  • Page 30: Isic Info / Support

    Orders: By fax to +45 70 20 79 76 By mail to orders@isic-systems.com Support: Via homepage www.isic-systems.com under aftersales By mail to service@isic-systems.com During office-hours (Mo-Fr: CET 0800 - 1600) at +45 70 20 70 77 Service: Before shipment for service Request Return Material Authorisation number at homepage http://www.isic-systems.com/aftersales/tech-support-rma/...
  • Page 31: Revision History

    Revision history Rev A June 2016 First release Rev B Page 14, corrected vert position and transparency in bottom menu. Page 18, view distance for 27” changed to 1.08m User Reference Manual - DuraMON PN: 05192-075 Rev B Page 31...
  • Page 32: Appendix A: Pixel Policy

    TFT display. To regulate the acceptability of defects and protect the end user, ISIC A/S complies with the ISO 9241-307:2008 standard. This standard recommends how many defects are considered acceptable in a display, before it should be replaced within the terms of the warranty.
  • Page 33 Pixel Pixel defect type 1 Pixel constantly lit Pixel defect type 2 Pixel constantly dark Pixel defect type 3a Pixel defect type 3b Sub-pixel/dot constantly lit Sub-pixel/dot constantly dark (red, blue, green) (red, blue, green) Cluster A cluster consists of 5 x 5 pixels. Cluster pixel defect type 1 Cluster pixel defect type 2 Pixels in a cluster area constantly lit...
  • Page 34 Pixel faults accepted by ISIC A/S The maximum number of pixel faults that is considered acceptable at different screen resolutions is shown in the table below. This is the native resolution and not the resolution as adjusted by user. Class II...
  • Page 35 Edwin Rahrs Vej 54 DK-8220 Brabrand Denmark Web: http://www.isic-systems.com Email: service@isic.dk User Reference Manual - DuraMON PN: 05192-075 Rev B Page 35...
