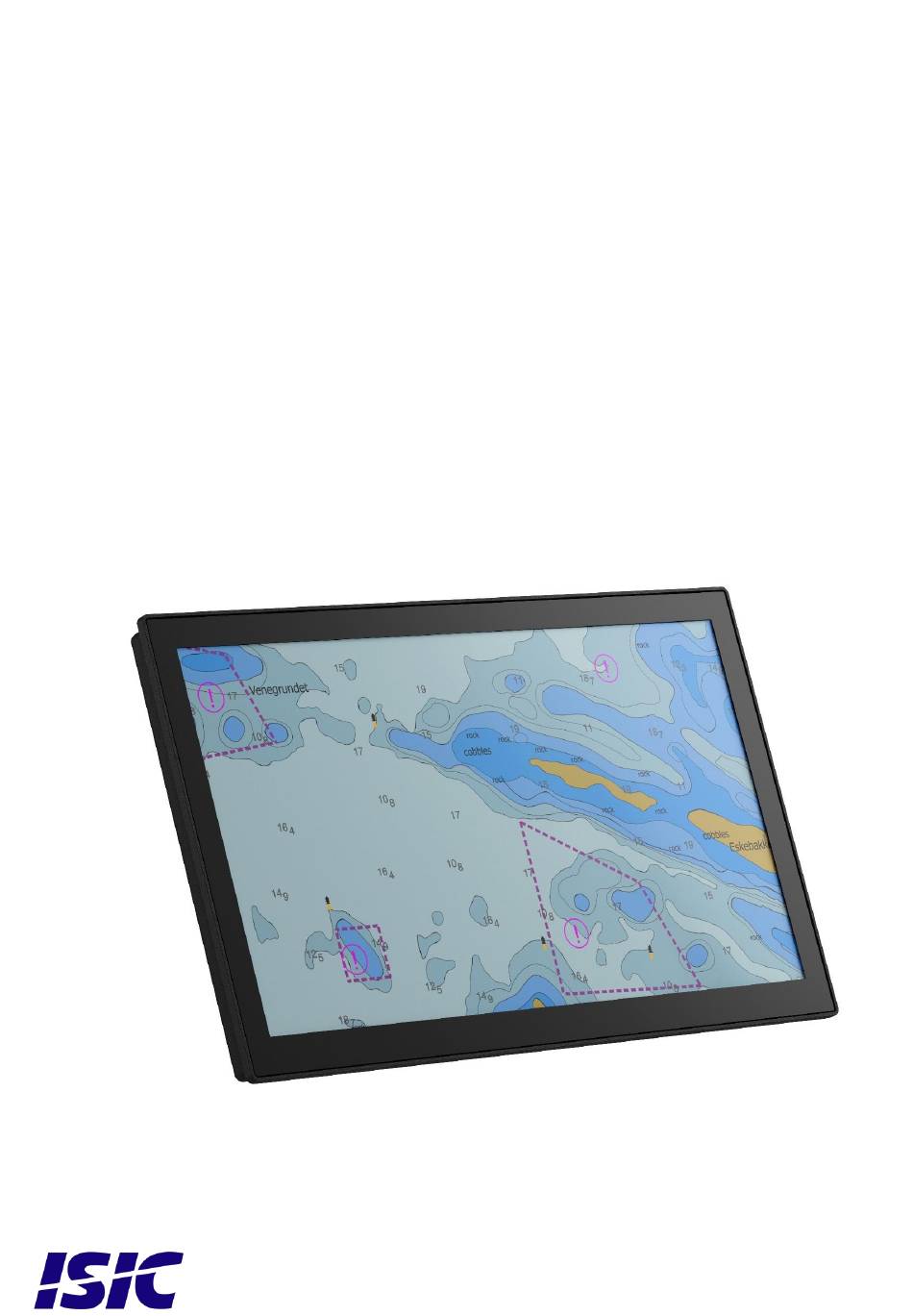

- Page 1 DuraMON10-27 S-Line Series DuraMON10.1 S-Line DuraMON15.6 S-Line User Reference Manual User Reference Manual – DuraMON10-27 S-Line Series PN: 09330-000 Rev A Page 1...
- Page 2 Disclaimer ISIC A/S makes no representation or warranties with respect to the contents or use of this manual, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Further, ISIC A/S reserves the right to revise this publication and to make changes to its content at any time, without obligation to notify any person or entity of such revisions or changes.
-
Page 3: Table Of Contents
SERVICING THE UNIT ........................... 10 TERMS, ACRONYMS AND ABBREVIATIONS ................... 10 ISIC INFO / SUPPORT ............................. 11 REVISION HISTORY ............................12 APPENDIX A: PIXEL POLICY ........................13 User Reference Manual – DuraMON10-27 S-Line Series PN: 09330-000 Rev A Page 3... -
Page 4: Features
Congratulations on your product purchase of DuraMON10-27 S-Line series. This short form manual is designed to get you started working with your new DuraMON10-27 S-Line. DuraMON10-27 S-Line series of monitors are all made as rugged monitors especially designed for the demanding operating conditions at sea. -
Page 5: General Considerations At Installation And Operation
General considerations at Installation and Operation DuraMON10-27 S-Line series are designed to work at conditions according to IEC 60945. However, keeping the temperature and vibration level at a minimum will extend the lifetime of the product. ISIC recommend operating this product at normal room temperature (20-25°C), with the lowest level of vibration and humidity. -
Page 6: Power Consumption
Operating voltage range. Terminal Connection Wire compliance 0VDC Multicore AWG16-12 (1-4 mm 24VDC Multicore AWG16-12 (1-4 mm Mating part: Weidmüller BLZP5.08HC/02/180F Tool: mm slotted (flat headed) screwdriver 0.6x3.5 User Reference Manual – DuraMON10-27 S-Line Series PN: 09330-000 Rev A Page 6... -
Page 7: Displayport 1.2 (Dp) Receptacle
Mating part: Plug USB type B 2.5 mm jack (reserved for future use) Mating part: 2.5 mm Jack for half duplex RS-485 Description 5VDC (Only for ISIC applications) RS-485 A RS-485 B User Reference Manual – DuraMON10-27 S-Line Series PN: 09330-000 Rev A Page 7... -
Page 8: Duramon10-27 S-Line Status Led
Status LED indicating color: No light + LCD picture: OK - Normal operation No light + LCD no picture: No power Orange: Standby (brightness follows the LCD backlight setting) User Reference Manual – DuraMON10-27 S-Line Series PN: 09330-000 Rev A Page 8... -
Page 9: Technical Specifications Duramon10-27 S-Line
DDC/CI VCP Command Please refer to DDC/CI VCP Command protocol 09370-002. Dimming curve The dimming curve is 12-bit squared from 1 cd to maximum brightness for display. User Reference Manual – DuraMON10-27 S-Line Series PN: 09330-000 Rev A Page 9... -
Page 10: Usb Touch
Servicing the unit In case that the unit still fails after following the troubleshooting send the unit to ISIC for repair. There are no user serviceable parts inside and to ensure ECDIS compliance the monitor has to be recalibrated at ISIC. -
Page 11: Isic Info / Support
During office-hours (Mo-Fr: CET 0800 - 1500) at +45 70 20 70 77 Service: Before shipment for service Request Return Material Authorization number at homepage https://isic-systems.com/after-sales/tech-support-rma/ By mail to service@isic-systems.com User Reference Manual – DuraMON10-27 S-Line Series PN: 09330-000 Rev A Page 11... -
Page 12: Revision History
Revision history Rev 0 April 2021 Preliminary Rev A June 2021 First release User Reference Manual – DuraMON10-27 S-Line Series PN: 09330-000 Rev A Page 12... -
Page 13: Appendix A: Pixel Policy
TFT display. To regulate the acceptability of defects and protect the end user, ISIC A/S complies with the ISO 9241-307:2008 standard. This standard recommends how many defects are considered acceptable in a display, before it should be replaced within the terms of the warranty. - Page 14 Pixels in a cluster area constantly dark Cluster pixel defect type 3a Cluster pixel defect type 3b Sub-pixels/dots in a cluster area constantly lit Sub-pixels/dots in a cluster area constantly dark User Reference Manual – DuraMON10-27 S-Line Series PN: 09330-000 Rev A Page 14...
- Page 15 2 type 1 and (2xN type 3 WVGA 800x480 384,000 1024x768 768,432 WXGA 1280x800 1,024,000 SXGA 1280x1024 1,310,720 UXGA 1600x1200 1,920,000 1920x1080 2,073,600 WUXGA 1920x1200 2,304,000 User Reference Manual – DuraMON10-27 S-Line Series PN: 09330-000 Rev A Page 15...
- Page 16 Edwin Rahrs Vej 54 DK-8220 Brabrand Denmark Web: http://www.isic-systems.com Email: service@isic-systems.com User Reference Manual – DuraMON10-27 S-Line Series PN: 09330-000 Rev A Page 16...
