INSTRUCTION MANUAL - Issue 1 - 02/2014
LED emergency exit signage
from Channel Safety Systems
INSTRUCTION MANUAL
t: 0845 884 7000 | w: www.channelsafety.co.uk
t: 0845 884 7000
f: 0845 884 6000
e: sales@channelsafety.co.uk
w: www.channelsafety.co.uk
| 1
Advertisement
Table of Contents
Related Manuals for Channel Safety Systems Vale
Summary of Contents for Channel Safety Systems Vale

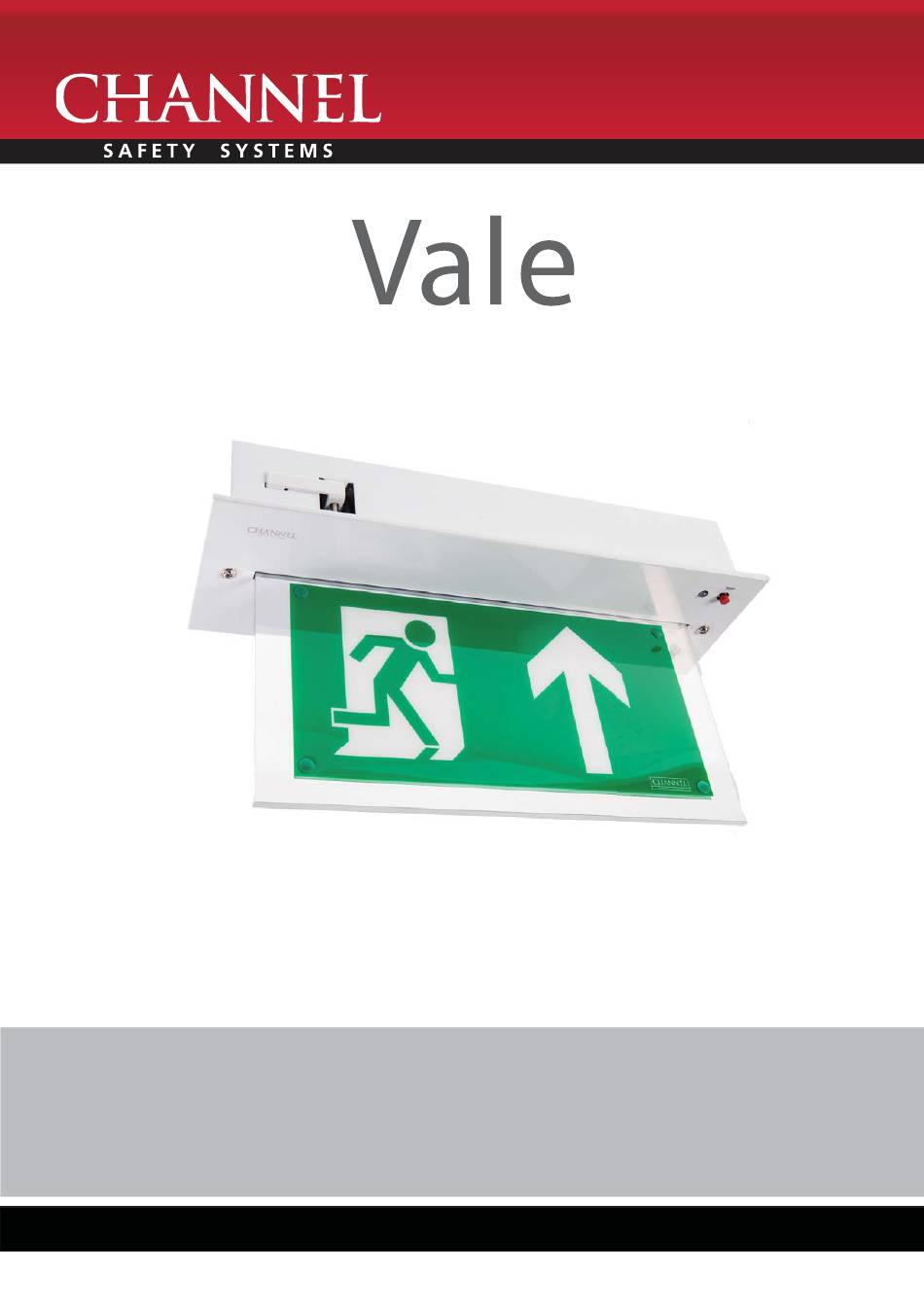

- Page 1 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk LED emergency exit signage from Channel Safety Systems CHANNEL SAFETY SYSTEMS t: 0845 884 7000 Petersfi eld Business Park f: 0845 884 6000 Bedford Road Petersfi eld Hampshire e: sales@channelsafety.co.uk GU32 3QA w: www.channelsafety.co.uk...
- Page 2 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk INSTALLATION Remove the diff user from the body by unscrewing the two retaining screws. Fix base ceiling, cut out required 95mm x 335mm. Minimum height clearance 55mm ISOLATE THE A.C. SUPPLY and connect unit. An unswitched 230V A.C. 10% supply must be connected to the local permanent live (L). Earth and neutral (N) terminals on the PCB block.
- Page 3 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk OPERATION Maintained Or Non-Maintained Operation The mode of operation can be chosen using the selection switch. This gives either maintained (LED’s always on) or non-maintained operation (LED’s off until a power failure).
- Page 4 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk TESTING Recommended Routine Test Procedure The unit is designed to carry out self testing in accordance with (EN 62034:2006 3.6), (EN 62034:2006 3.7) & (EN 62034:2006 5.1). The following test is designed to ensure the continued protection of your premises and occupants. Because of the possibility of a failure of the normal lighting supply occurring shortly after a period of testing, all tests should, whenever possible, be undertaken at times of least risk, e.g.
- Page 5 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk Meaning of the indicator LED Green The status display can only be cleared after the fault has been rectifi ed, mains voltage has been reapplied and a function test has been run.
- Page 6 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 Petersfi eld Business Park f: 0845 884 6000 Bedford Road Petersfi eld Hampshire e: sales@channelsafety.co.uk GU32 3QA w: www.channelsafety.co.uk INSTRUCTION MANUAL...
