CHANNEL SAFETY SYSTEMS
CHANNEL SAFETY SYSTEMS
Petersfi eld Business Park
Bedford Road
Petersfi eld
Hampshire
GU32 3QA
INSTRUCTION MANUAL - Issue 1 - 02/2014

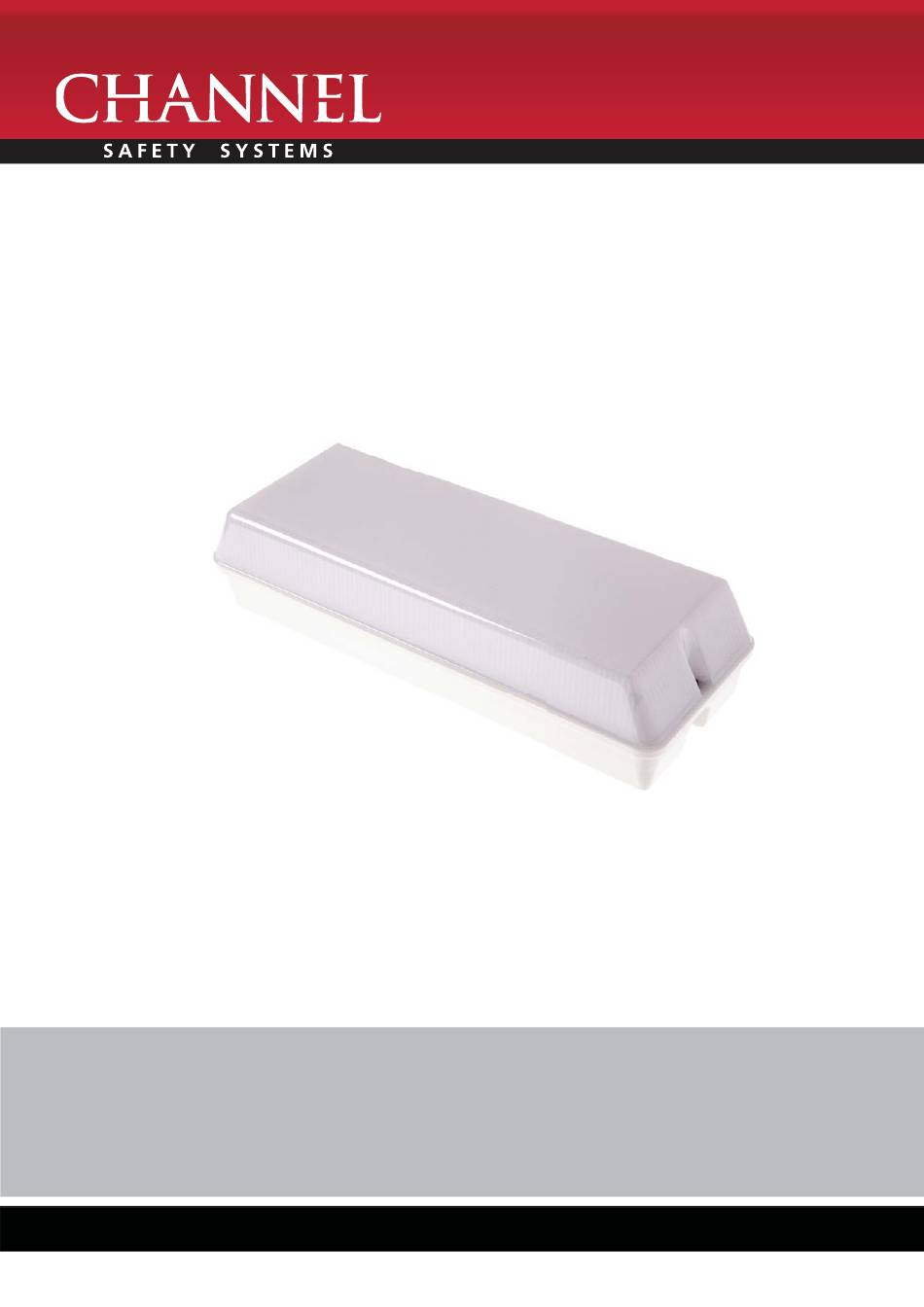

Wyvern
Conventional fl uorescent and
emergency luminaire
from Channel Safety Systems
INSTRUCTION MANUAL
t: 0845 884 7000 | w: www.channelsafety.co.uk
t: 0845 884 7000
f: 0845 884 6000
e: sales@channelsafety.co.uk
w: www.channelsafety.co.uk
| 1
Advertisement
Related Manuals for Channel Safety Systems Wyvern
Summary of Contents for Channel Safety Systems Wyvern
- Page 1 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk Wyvern Conventional fl uorescent and emergency luminaire from Channel Safety Systems CHANNEL SAFETY SYSTEMS t: 0845 884 7000 Petersfi eld Business Park f: 0845 884 6000 Bedford Road Petersfi eld Hampshire e: sales@channelsafety.co.uk...
-
Page 2: Mounting And Wiring
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk WYVERN CONVENTIONAL EMERGENCY LUMINAIRE SPECIFICATION IP Rating IP65 Battery Voltage 2.4V 4mAh Duration 3 hours Battery Format 1 x 2 cells (4.4AH Nickel-Cadmium) Lamp 8W 12" T5 Ballast Lumen Factor 0.25... - Page 3 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk MOUNTING AND WIRING CONTINUED... Connect to the terminals as follows; Safety earth conductor Live charge conductor (Permanent Live supply) Neutral conductor Live switched conductor (Switched Live supply) If Non-maintained operation is required, connect a permanent live supply to the Lch terminal only (See the diagram below for further guidance).
- Page 4 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk TESTING The luminaire must be checked periodically for correct operation, and to evaluate the remaining capacity in the battery at regular intervals during its life. The unswitched supply should be failed which will cause the luminaire to operate in the emergency mode.
- Page 5 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk INSTRUCTION MANUAL - Issue 1 - 02/2014...
- Page 6 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 Petersfi eld Business Park f: 0845 884 6000 Bedford Road Petersfi eld Hampshire e: sales@channelsafety.co.uk GU32 3QA w: www.channelsafety.co.uk INSTRUCTION MANUAL...
