CLUTCH/BRAKE PEDAL OPERATION
Refer to figure 11. Depressing pedal from position A to B
disengages transmission drive. Depressing pedal further
from position B to C will also apply tractor brake. Parking
brake is applied at position C when pedal is latched over foot
rest as shown in figure 11.

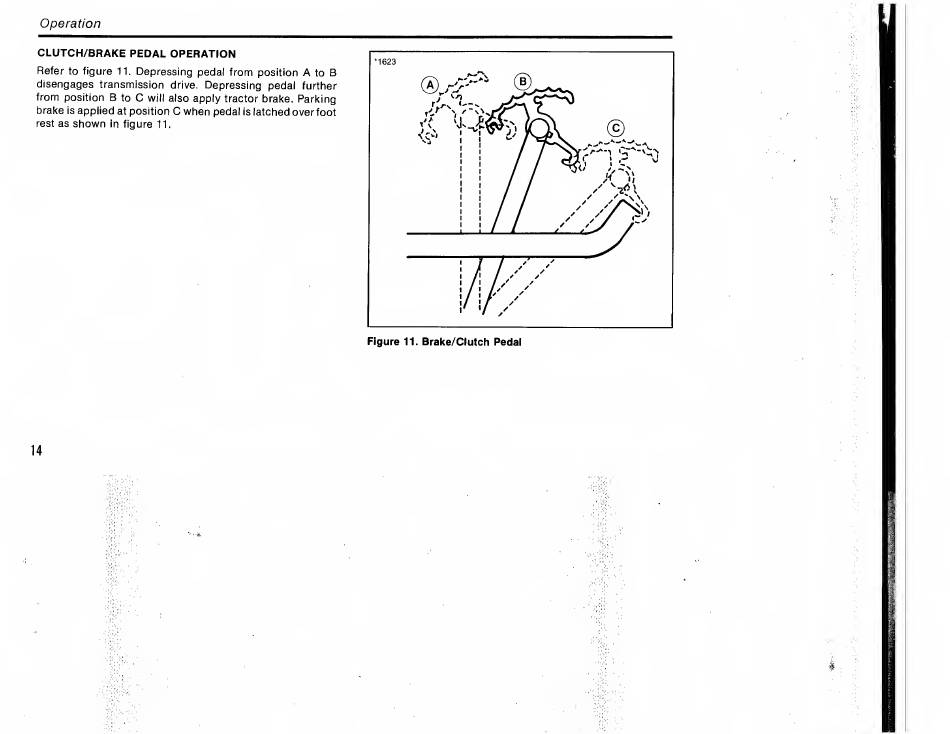

Figure 11. Brake/Clutch Pedal
