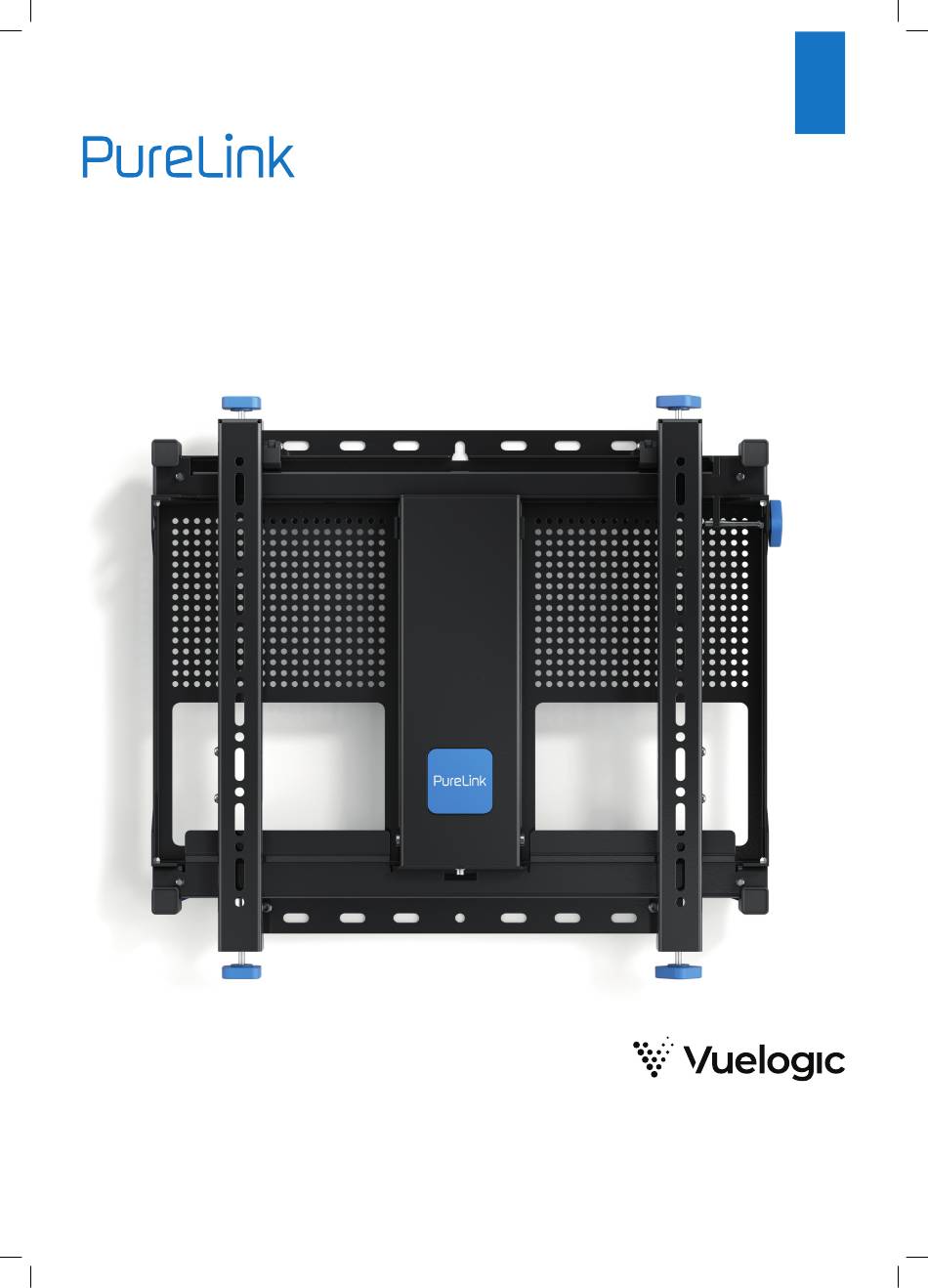

- Page 1 NO-TOUCH | WALL MOUNT INSTALLATION GUIDE & PARTS LIST PATENT PENDING WM-NT400 | WM-NT400W Please read all pages prior to installation!
-
Page 2: Parts List
Installation Guide PARTS LIST PART NAME PART NAME No-Touch Mount M6 Washers x 2mm Interface Arms Universal Controller VESA 600mm Extension Arms USB Male To Male Power Supply M6 x 10mm Screws Input: AC 100-240 V (50-60Hz) | Output: 12V-2A... - Page 3 www.purelink.de INTERFACE KIT PART NAME PART NAME M6 x 16mm Screws M8 x 5mm Spacers M6 x 25mm Screws M8 x 13mm Spacers M6 x 40mm Screws M8 x 25mm Spacers M8 x 16mm Screws M6 washers (for parts A-C) M8 x 25mm Screws M8 washers (for parts D-F) M8 x 40mm Screws...
-
Page 4: Installation Safety Instructions
Installation Guide INSTALLATION SAFETY INSTRUCTIONS This mount is intended for use with screens up to 40kg/88lbs. Exceeding this weight can result in insta- bility causing damage or injury. Always use caution when installing. Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. -
Page 5: Installation Tools Required
www.purelink.de Periodic Inspection Record: DATE INSPECTED BY LOCATION SIGNED Installation tools required Pencil Measuring tape Level Drill Drill bit Electric Wall Scanner... - Page 6 Installation Guide WARNING PureLink GmbH recomienda que un instalador de audio y video profesional u otra persona debidamente cualificada instalen este producto. PureLink GmbH, sus distribuidoresy concesionarios no se hacen cargo ni se responsabilizan de ningún daño o lesión provocados por una instalación inapropiada. Este producto se debe montar en una estructu- ra adecuada y se debe utilizar soportando solamentre hasta el peso máximo indicado.
-
Page 7: General Recommendations
www.purelink.de INSTALLATION GUIDE General recommendations Check the wall structure being mounted to. Use a level to ensure the wall is flat and note areas of concern. Use washers, shims or spacers between the wall and the mount to create a flat surface for mounting. A flat mount will make adjustments much easier and faster when aligning screens. -
Page 8: Installation Instructions
Installation Guide INSTALLATION INSTRUCTIONS Unpack and check all parts Step 1 Open top and bottom handwheels on Interface Arms (closed for shipment). Check depth and lateral adjustment knobs are centered in adjustment range. Control Box Center Open top and bottom Handwheels Center Keep area below... - Page 9 www.purelink.de Step 3 Connect the power supply to the control box and electrical socket Only use the power supply provided. If not possible, contact us to ensure the appropriate replacement is used. Note: The use of 3rd party power supplies will void warranty! Connect the power supply to the control box Note: Once the screens are installed aligned and closed, to prevent accidental movement of the...
- Page 10 Installation Guide Move Universal Controller with the Mounts Movement Once the Universal Controller is positioned below the light beam, the Mount will start moving. To keep the Mount moving, make sure you follow this movement also with the Universal Controller. If you leave the light beam, the Mount will STOP.
- Page 11 www.purelink.de Position of the light beam X = Depth of the screen Y = 85mm Z = X + Y + 10mm Z* = Depth controller needs to be from front of screen to operate the Mount. * some users mark the controller to show this distance for easier use Attach the Interface Arms to the screen (Landscape or Portrait) Step 5...
- Page 12 Installation Guide Connect screen to Mount Step 6 At slight angle, hook arms onto top of frame, then flatten screen onto Mount base until it clicks into position. Make Adjustment Step 7 A : Height adjustment B: Corner depth adjustment C: Lateral macro adjust D: Lateral micro adjustment E: Locking handwheels (must be loosened for any adjustments)
- Page 13 www.purelink.de Each time you add a screen to the video wall make needed adjustments. Corner depth adjustment 1) unlock lateral Smart-Lock, 2) slide screen into position, 3) slide Smart-Lock to interface arm, Lateral Smart-Lock 4) lock Smart-Lock. 1) After Smart-Lock is in position, the lateral micro adjustment can be used.
- Page 14 Installation Guide Locking handwheels *Note: Locking handwheels must be loosened before any adjustments can be made. Once all adjustments are done, the locking handwheels can be tightened. Lateral Smart- Lock Height adjustment Lateral micro adjustment Corner depth adjustment Tighten to secure (last step)
- Page 15 www.purelink.de RECESS FLAT SCREEN INSTALLATION Make a rectangular hole on the wall using the dimensions of the chosen screen by fol- Step 1 lowing the instructions below. • Please ensure minimum gaps between the screen and four edges of the recessed box is 2mm and that corners and four angles are 90 degrees.
- Page 16 Installation Guide Locate the mount’s back wall plate by using tape ruler and bubble level. Step 2 Important: The VESA holes position of a monitor is pre-defi ned by the manufacturer. • Must use Electric Wall Scanner to locate the position of electric wires before drilling into the wall. 2.1 If H1=H3, the position of the mount will be in the middle of the recessed box (H1, H3: See on pages 15).
- Page 17 www.purelink.de 2.2 If H1<H3, the center of mount will be higher than the center of the recessed box.(H1, H3: See on pages 15). • Calculate and mark the retangular box for the position of back wall plate by 3 dimensions as bellow A1, A2, B (Size of back wall plate HxW=468.5x380 mm) =>...
- Page 18 Installation Guide 2.3 If H1<H3, the center of mount will be lower than the center of the recessed box.(H1, H3: See on pages 15). • Calculate and mark the retangular box for the position of back wall plate by 3 dimensions as bellow A1, A2, B (Size of back wall plate HxW=468.5x480 mm) =>...
- Page 19 www.purelink.de CONNECTIVITY There are several different ways to control the mount 1. Universal Controller 2. USB 3. Wifi 4. Ethernet 5. Bluetooth Control box...
- Page 20 Installation Guide 1. Universal Controller To see how to control the mount using Universal Controller, go to pages 9-11. 2. USB There are 2 ways to control the mount via USB Port (USB button and PC via USB port) 2.1 USB Button •...
- Page 21 www.purelink.de 2.2 PC via USB Port • Plug one connector of the USB cable Male to Male to PC/USB port. • Plug the other connector side to PC Important: • Don’t put the cable into the X-arm movement at center. •...
- Page 22 Installation Guide 3. Wifi • The Mount connects to the Wireless Access Point via wireless connection. • Wireless Access Point connects to the Internet Server. • Laptop, PC or other devices connect to the Internet Server. Important: The Wireless Access Point needs to be as near the mount as possible Mount 02 Mount 01 Control box...
- Page 23 www.purelink.de 3. Ethernet 3.1 Local Network Controller (Without internet) • The Mount connects to the Switch • The Switch connects to computers/laptops. Note: Secure the LAN cable in place by tightening it to the hole panel. Mount 02 Mount 01 Control box Control box LAN cable...
-
Page 24: Disclaimer Of Liability
Installation Guide Disclaimer of Liability PureLink GmbH will not be held liable, nor provide any warranty for damage resulting from improper installation, assembly and use of the product, or failure to observe the operating instructions and/or safety instructions. CONFIRMATION OF CE CONFORMITY PureLink GmbH hereby declares that the device type WM- NT400 is in conformity with the Directives 2014/30/EU, 2019/1782/EU, 2011/65/EU and 2015/863/EU. -
Page 25: Self Help Guide
www.purelink.de Self help guide Issues Solutions Controller not remaining in correct location - if the Controller is on the edge of the light beam, as the controller moves forward and backward with the moving mount, it can move out of the beam and stop. Move the controller left and right to check the beam location. -
Page 26: Product Dimensions
Installation Guide PRODUCT DIMENSIONS 22.6” 9.8’’ (+/-0.3) 3.9’’ (+/-0.3) 574.5mm 295mm (+/-10mm) 100 mm (+/-10mm) 20.9’’ 531mm 18.4’’ 468mm FRONT SIDE VIEW OPEN SIDE VIEW CLOSED 23.6’’ 15.75’’ 600mm 400mm 23.6’’ 15.75’’ 600mm 400mm FRONT VIEW LANDSCAPE ADAPTOR FRONT VIEW PORTRAIT ADAPTOR VESA 600mm X 400mm VESA 400mm X 600mm w w w . - Page 27 www.purelink.de...
- Page 28 PureLink GmbH Von-Liebig-Str. 10 D - 48432 Rheine Germany +49 (0)5971 800 299-0 www.PureLink.de PureLink UK LTD. Carpenter Court 1 Maple Road Bramhall, Stockport Cheshire SK7 2DH United Kingdom All information without responsibility for errors in photography and typography. Specifications are subject to change without notice. ©...
