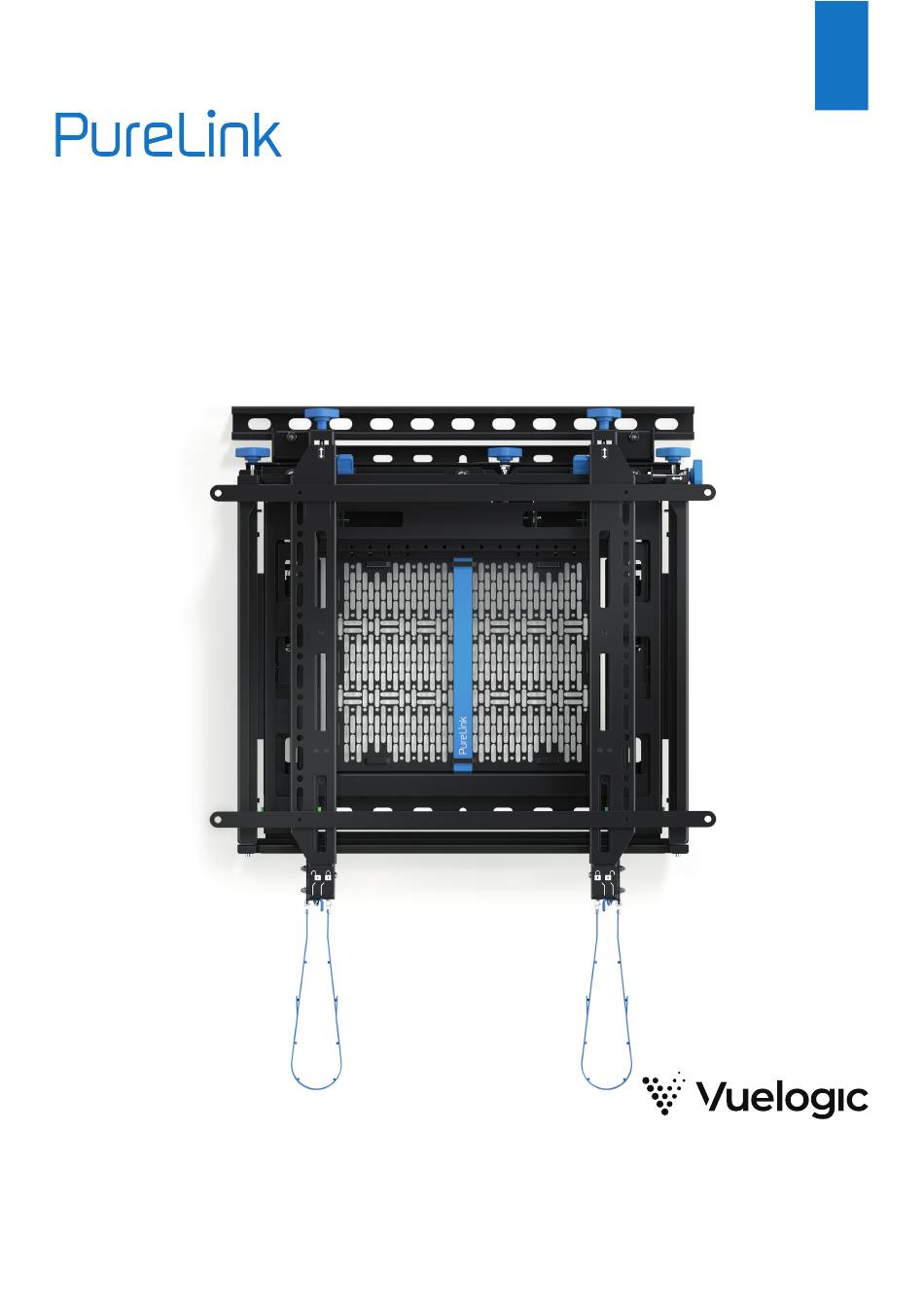

- Page 1 SOFT-TOUCH | WALL MOUNT INSTALLATION GUIDE & PARTS LIST WM-ST400 | WM-ST400W Please read all pages prior to installation!
-
Page 2: Parts List
Installation Guide PARTS LIST PART NAME PART NAME Wall Mount M6 x 10mm Screw Interface Arm M6 Washer x 2mm VESA 600mm Extension Arms Equipment Rack... - Page 3 www.purelink.de PARTS LIST INTERFACE KIT INTERFACE KIT M6 x 16mm Screw M8 x 5mm Spacer M6 x 25mm Screw M8 x 13mm Spacer M6 x 40mm Screw M8 x 25mm Spacer M8 x 16mm Screw M6 washer (for parts A-C) M8 x 25mm Screw M8 washer (for parts D-F) M6 thread insert...
-
Page 4: Installation Safety Instructions
Installation Guide INSTALLATION SAFETY INSTRUCTIONS This mount is intended for use with flat screens that do not exceed the maximum weight indicated of 40Kgs (88lbs.). Exceeding this weight limit will result in instability, causing possible injury. Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. -
Page 5: Installation Tools Required
www.purelink.de Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body Parts, exercise care and read all warnings. Particular attention to the nature of moving parts is always required, especially when assembling, installing and servicing. - Page 6 Installation Guide WARNING PureLink GmbH recomienda que un instalador de audio y video profesional u otra persona debidamente cualificada instalen este producto. PureLink GmbH, sus distribuidoresy concesionarios no se hacen cargo ni se responsabilizan de ningún daño o lesión provocados por una instalación inapropiada. Este producto se debe montar en una estructu- ra adecuada y se debe utilizar soportando solamentre hasta el peso máximo indicado.
- Page 7 www.purelink.de PREPARATION How to remove Equipment Rack. Step 1 1. Push the mount open 2. Unlock Equipment Rack 3. Pull out Equipment Rack 4. Lift up to take out Equipment Rack Note: The purpose of Equipment Rack is to mount electrical device(s) Push to open The mount closed The mount opened...
- Page 8 Installation Guide Lift up to remove the Equipment Rack How to assemble Equipment Rack. Step 2 Hang the equipment rack into 2 slots Press to lock the Equipment Rack...
- Page 9 www.purelink.de If the electrical socket is located in the center of the mount, the equipment rack can Step 3 not be used. Note: • Ensure that the electrical socket is always in a safe area (32 cm x 23 cm). •...
- Page 10 Installation Guide If the electrical socket is located outside the mount area, the equipment rack can be Step 4 used. Note: • Ensure that the electrical socket is always in the outside mount area (60 cm x 65 cm). • The total height of the electrical socket and the power plug must be lower than 76 mm. •...
-
Page 11: Installation Instructions
www.purelink.de INSTALLATION INSTRUCTIONS Step 1 Remove and check all parts. Check if depth and lateral adjustment knobs are centered in adjustment range. Tilt adjustment Depth adjustment Height adjustment Interface Arms VESA Extension Arms Mount... - Page 12 Installation Guide Attach the interface arms to the flat screen (The interface arms fit from VESA 200 x Step 2.1 100mm through 400 x 400mm). Importance: Use accesories in the assembly kit • Use suitable position of VESA holes on the screen •...
- Page 13 www.purelink.de VESA Lanscape 600x400 (Use M6x10 and washer M6 to assemble interface arms Step 2.2 with VESA extension bar) Importance: Use accesories in the assembly kit • Use suitable position of VESA holes on the screen • Use suitable length of screws and washers •...
- Page 14 Installation Guide VESA Portrait 400x600 (Use M6x10 and washer M6 to assemble interface arms with Step 2.3 VESA extension bar) Importance: Use accesories in the assembly kit • Use suitable position of VESA holes on the screen • Use suitable length of screws and washers •...
- Page 15 www.purelink.de OVERVIEW ADJUSTMENTS Top view...
- Page 16 Installation Guide Up and down Left / Right in and out Top view Front view Horizontal tilt Left and Right (rough) Side view Detail view Left and Right (fine) Front view...
-
Page 17: Overview Functions
www.purelink.de OVERVIEW FUNCTIONS Back side view... - Page 18 Installation Guide Unlock interface-arms Kickstand position twist lever to un/-lock Unlock Pull both loops to allow kickstand position Kickstand detail view Interface arms removal Unlock equipment panel Pull blue sides only to unlock for removal...
- Page 19 www.purelink.de SINGLE SCREEN INSTALLATION Mark to drill holes and mount the C-Channel. Step 1 Level Use minimum 2 wall bolts (3 recommended) Top and 2 wall bolts bottom of mount. Heavier screen should have 3 bolts on the top Note •...
- Page 20 Installation Guide Screen adjustment. Step 4 Lateral macro adjustment Height adjustment Tilt adjustment Depth adjustment Lateral micro adjustment Lateral Smart-Lock Lock/ Unlock interface arm 1) Unlock lateral Smart-Lock. 2) Slide screen into position. 3) Slide Smart-Lock to interface arm. 4) Lock Smart-Lock. 5) After Smart-Lock is in position.
- Page 21 www.purelink.de Screen adjustment Step 6 Height Adjustment Depth adjustment Lateral macro adjustment Lateral micro adjustment...
- Page 22 Installation Guide RECESS FLAT SCREEN INSTALLATION Make a rectangular hole on the wall using the dimensions of the chosen screen by fol- Step 1 lowing the instructions below. Please ensure minimum gaps between the screen and four edges of the recessed box is 2mm and that corners and four angles are 90 degrees.
- Page 23 www.purelink.de Locate C-Channel using tape ruler and bubble level. Step 2 Important: The VESA holes position of a monitor is pre-defined by the manufacturer. • Must use Electric Wall Scanner to locate the position of electric wires before drilling into the wall. 2.1 If H1=H3, the position of the mount will be in the middle of the recessed box.
- Page 24 Installation Guide 2.3 If H1>H3, the center of the mount will be lower than the center of the recessed box. • Locate the new center of the mount compared to the center of the recessed box by having H3 minus H1 following the image below.
- Page 25 www.purelink.de Extend Mount from wall and hang the screen. Step 4 • Install the interface arms according to VESA standard. Push on the mount so it extends forward in preparation for hanging the screen. • Hook the arms onto the frame from a slight angle. Afterwards, flatten the screen onto the mount base until it clicks into position.
- Page 26 Installation Guide Cable management. Step 5 • All electrical wires need to be connected before moving onto adjustment. Align the screen. Step 6 • Slowly close the mount to check 4 corners. • Use all handwheels to make sure the gaps between screen and the recessed box are identical •...
- Page 27 www.purelink.de MULTI- SCREEN INSTALLATION General recommendations Check the wall structure to which you are mounting the product. Use a level to ensure the wall is flat and take note of any areas of concern. Use washers, shims, or spacers between the wall and the mount to create a flat surface for mounting.
-
Page 28: Disclaimer Of Liability
Installation Guide Disclaimer of Liability PureLink GmbH will not be held liable, nor provide any warranty for damage resulting from improper installation, assembly and use of the product, or failure to observe the operating instructions and/or safety instructions. -
Page 29: Self Help Guide
www.purelink.de Self help guide Issues Solutions Controller not remaining in correct location - if the Controller is on the edge of the light beam, as the controller moves forward and backward with the moving mount, it can move out of the beam and stop. Move the controller left and right to check the beam location. -
Page 30: Product Dimensions
Installation Guide PRODUCT DIMENSIONS 23” 3.6” 13.4” 584,3 mm 340 (+/- 10 mm) 92 (+/- 10 mm) FRONT SIDE VIEW SIDE VIEW VIEW CLOSED OPENED 15.7” 23.6” 400 mm 600 mm FRONT VIEW PORTRAIT ADAPTER FRONT VIEW LANDSCAPE ADAPTER VESA 400mm X 600mm VESA 600mm X 400mm w w w . - Page 31 www.purelink.de...
- Page 32 PureLink GmbH Von-Liebig-Str. 10 D - 48432 Rheine Germany +49 (0)5971 800 299-0 www.PureLink.de PureLink UK LTD. Carpenter Court 1 Maple Road Bramhall, Stockport Cheshire SK7 2DH United Kingdom All information without responsibility for errors in photography and typography. Specifications are subject to change without notice. ©...
