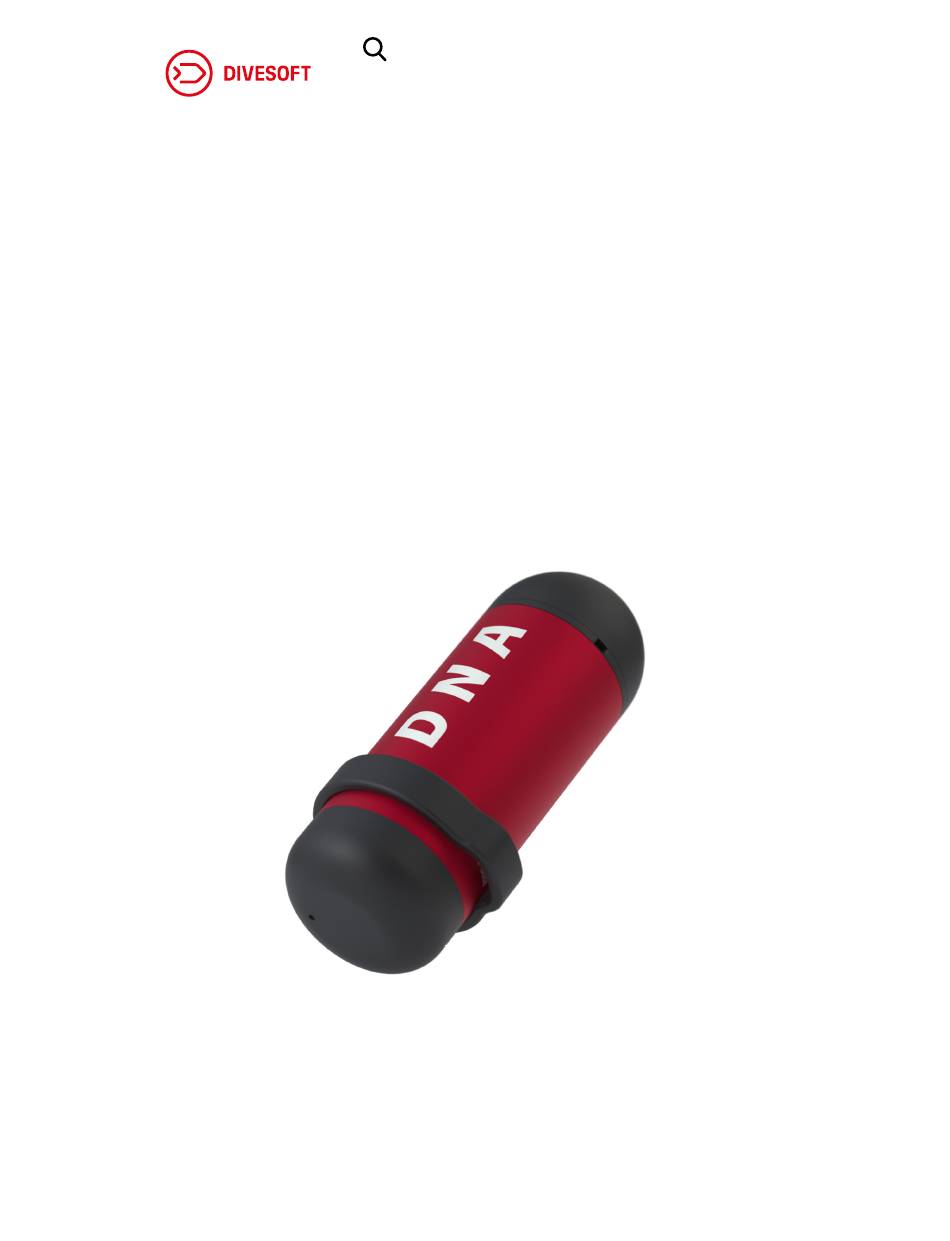

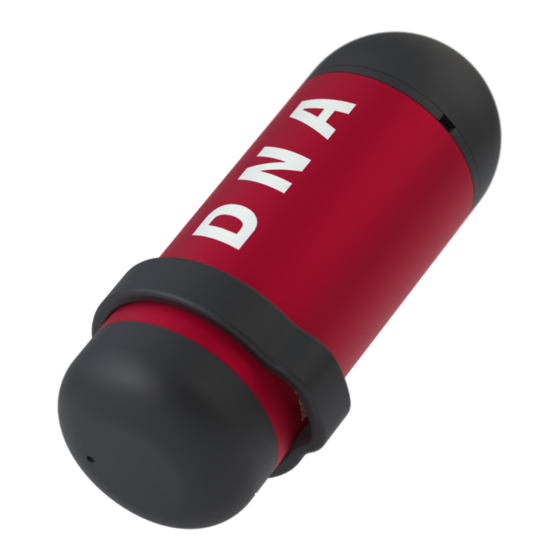

- Page 1 11/24/23, 1:33 PM #8460 DNA User Manual User manual Analyzer DNA version 2023/11/11 #8460 https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430 1/18...
- Page 2 NITROX. It cannot be used to analyze mixtures containing other gases than oxygen - nitrogen mixtures. For diving breathing mixtures containing helium use one of DIVESOFT’s trimix analyzers. ATTENTION: THE DEVICE IS NOT WATERPROOF. DO NOT EXPOSE THE ANALYZER TO WATER.
- Page 3 In addition, the measured value must be subject to critical assessment using a common-sense approach and if it differs from the allowable variation of mixing accuracy, it must be considered invalid. Content https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430 3/18...
-
Page 4: Technical Data
11/24/23, 1:33 PM #8460 DNA User Manual DISCLAIMER 1. TECHNICAL DATA 2. USE 2.1 Pairing 2.2 Calibration 2.3 Analyzing 3. MAINTENANCE 3.1 Battery Replacement 3.2 Changing the sensor 3.3 Firmware update 3.4 Used sensors and batteries 1. TECHNICAL DATA https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430 4/18... - Page 5 3.1 Battery Replacement 2.2 App Download To use the analyzer, you must download the Divesoft.App. This app is available for both Android and iOs phone operating systems. These versions are available here, or directly in the app stores: https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430...
- Page 6 4. The app will show you a measurement screen with the uncalibrated sensor and the sensor voltage value. Note - the next time you run the app, if the paired DNA analyzer is in range, the app will display the analyzer measurement directly. https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430 6/18...
- Page 7 11/24/23, 1:33 PM #8460 DNA User Manual https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430 7/18...
- Page 8 In the case of calibration to air, it must be ensured that the gas in contact with the sensor is guaranteed to be air. If there is a risk that the sensor has been purged with a gas other than air, https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430 8/18...
- Page 9 If calibrating on oxygen, a guaranteed source of pure oxygen is required. For oxygen calibration, we recommend the use of a professional DIVESOFT flow limiter with tubing for accurate and efficient calibration. 1. Select the calibration option using the button at the bottom of the app screen.
- Page 10 4. Press CONFIRM. NOTE: Ensure that the sensor voltage value is within the sensor manufacturer's parameters when exposed to the gas. DIVESOFT oxygen sensors have an air voltage range of 7 - 13 mV. It is advisable to verify that the sensor shows linear measurement https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430...
- Page 11 NOTE: For a more accurate and efficient measurement with minimal loss of measured gas, use the DIVESOFT professional limiter. The flow limiter tubing fits into the inlet hole in the front of the restrictor.
-
Page 12: Maintenance
1. Pull the bottom of the analyzer out. 2. Remove the battery - use your fingernail or a flat tool to flip the metal lever to the side and remove the battery. https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430 12/18... - Page 13 4. The LED will flash 8 times green if the battery has sufficient capacity. If the battery capacity is low, the LED will flash 8 times in red. The battery is included in the package. The battery is not covered by the warranty. https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430 13/18...
- Page 14 2. Remove the molex connector. To remove the molex connector, use a fingernail or flat tool to pry the white lever inside the sensor and gently pull on the connector cables. https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430 14/18...
-
Page 15: Firmware Update
The sensor is not included in the basic package. 3.3 Firmware update WARNING: Do not perform a firmware update with a low battery. Check battery status before updating firmware. 1. Download the new firmware to your smartphone from the DIVESOFT support site https://www.divesoft.com/en/support https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430 15/18... - Page 16 3.4 Used sensors and batteries Treat used oxygen sensors as hazardous waste. Use collection points or containers designed for the collection of used batteries. Dispose of used batteries in designated collection containers or take them to a collection point. https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430 16/18...
- Page 17 11/24/23, 1:33 PM #8460 DNA User Manual ANALYZER DNA - USER MANUAL Date of issue: 11 November 2023 HW 1.0, FW 2.4.0 Authors: Jakub Šimánek Published by Divesoft s. r. o. PRODUCTS CONTACTS CCR Liberty Contact us Instructors Analyzers Dealers...
- Page 18 11/24/23, 1:33 PM #8460 DNA User Manual EU Programme Subscribe for product updates! Your E-mail Subscribe Follow Us See our 13 reviews on Copyright © 2019 Divesoft LLC All rights reserved. https://www.divesoft.com/en/manuals/8460-dna-user-manual?_ga=2.264787596.209083188.1700850446-662384236.1700850430 18/18...
