PSC RF Multi Mini
• Diversity 1 x 3 Active RF Splitter
• Low Noise, High Current RF Amplifiers
• Compact Package
• Made in the U.S.A.
• "Single Band" 470-700Mhz
• "Dual Band" 470-618Mhz & 940-960Mhz
• "Wide Band" 470-960Mhz
Professional Sound Corporation
28085 Smyth Drive, Valencia, CA 91355 USA
Advertisement
Related Manuals for PSC RF Multi Mini
Summary of Contents for PSC RF Multi Mini

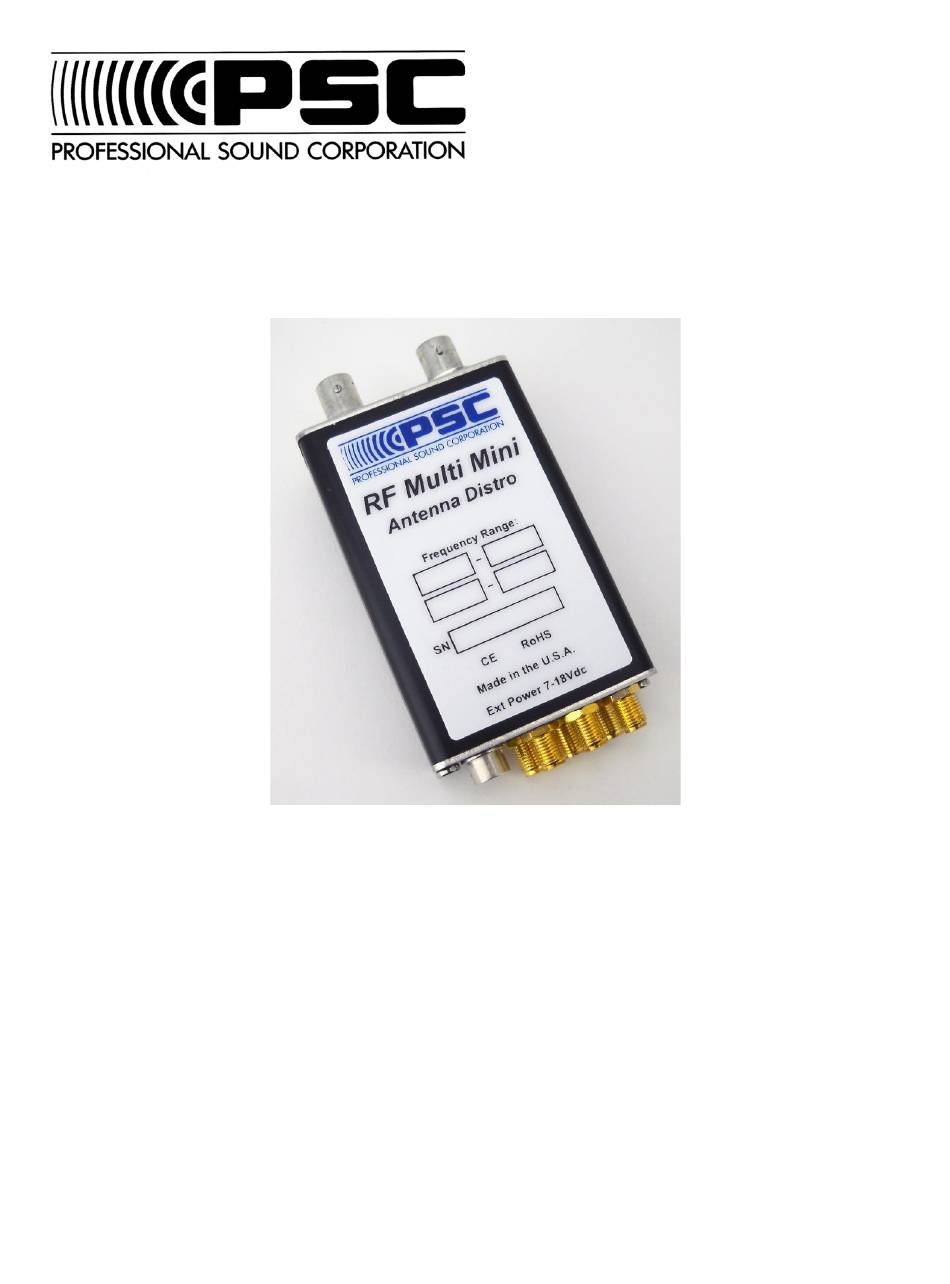

- Page 1 PSC RF Multi Mini • Diversity 1 x 3 Active RF Splitter • Low Noise, High Current RF Amplifiers • Compact Package • Made in the U.S.A. • “Single Band” 470-700Mhz • “Dual Band” 470-618Mhz & 940-960Mhz • “Wide Band” 470-960Mhz...
- Page 2 Thank you for purchasing your new PSC RF Multi Mini. This product is the result of more than a decade of experience in designing and manufacturing RF distribution systems. This compact, ruggedly built product should provide you with years of trouble-free service.
- Page 3 The PSC RF Multi Mini contains two, separate, active 1 x 3 RF splitters for use with up to three (3) diversity receivers. This compact, rugged device was developed using the latest super low noise, high current RF amplifiers and will operate over various frequency ranges based on which bandpass filter the unit is built with.
- Page 4 2. Connect your two receiver antennas to the RF input BNC connectors on the top of the unit. 3. Connect the PSC RF Multi Mini to your receivers using the appropriate cables from the RF output SMA connectors on the RF Multi Mini to the RF antenna connectors on your receivers.
-
Page 5: Specifications
SPECIFICATIONS: Housing Size: 3.2” x 2.1” x 0.9” (81mm x 53mm x 23mm) Weight: 6oz (172gm) Power: External DC, 7-18Vdc @ 120mA Frequency Range: 470-700 Mhz (Single Band Model) 470-618Mhz & 940-960Mhz (Dual Band Model) 470-960Mhz (Wide Band Model) Input Impedance: 50 Ohms Output Impedance: 50 Ohms... - Page 6 EN 60065.2012 Power, Safety EN 55032.2012 Part 1, Emissions EN55032.2012 Part 2, Immunity TRADE NAME: MODEL: RF Multi Mini RESPONSIBLE PARTY: Professional Sound Corp. 28085 Smyth Drive Valencia, CA 91355 USA CONTACT PERSON: Ronald Meyer (661) 295-9395 TYPE OF PRODUCT:...
