BLINK High-Speed Focuser
Chapter 3: Setup
The included 50-0198-24 cable assembly is labeled at each end either "MOTOR" or "AMP". The "MOTOR" side
connects to the BLINK focuser, while the "AMP" side connects to the J2 connector on the servo amplifier.

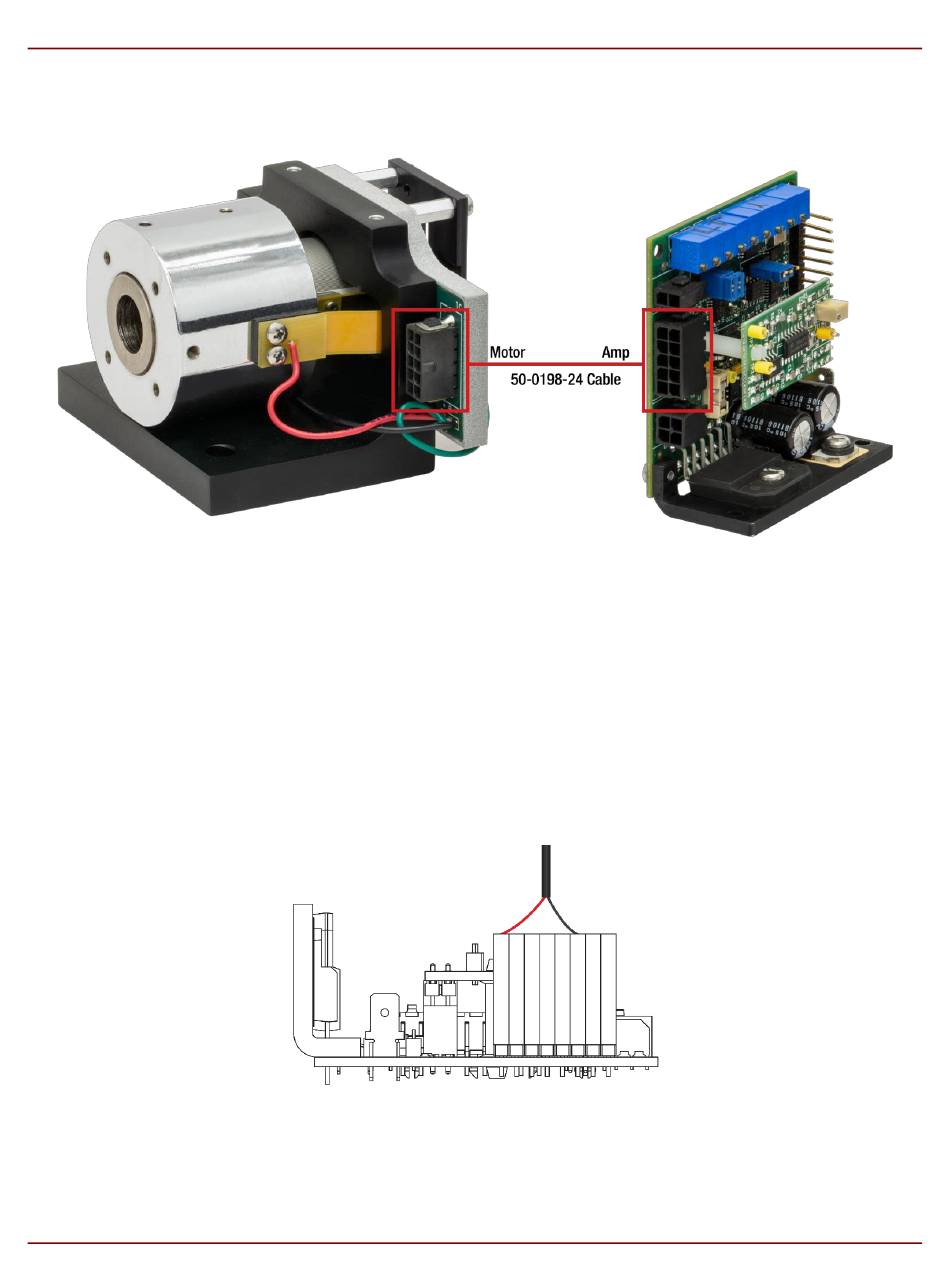

Figure 2
Illustration of 50-0198-24 Cable Connection
3.4.4

BLINK Pressure Switch Connection to Servo Amplifier

The included 50-0202-24 pressure switch cable assembly connects to the J4 connector on the servo amplifier
board. This connector is not keyed, so it is important to note the orientation of the wires, as detailed in the
image below. The wires connect to pins 3 and 8.
It is also important to verify that the pins are aligned, and no pins are uncovered.
CORRECT
All Pins are Covered
Black Wire Connects to Pin 3
Red Wire Connects to Pin 8
Rev. C, April 20, 2023
Page 5
