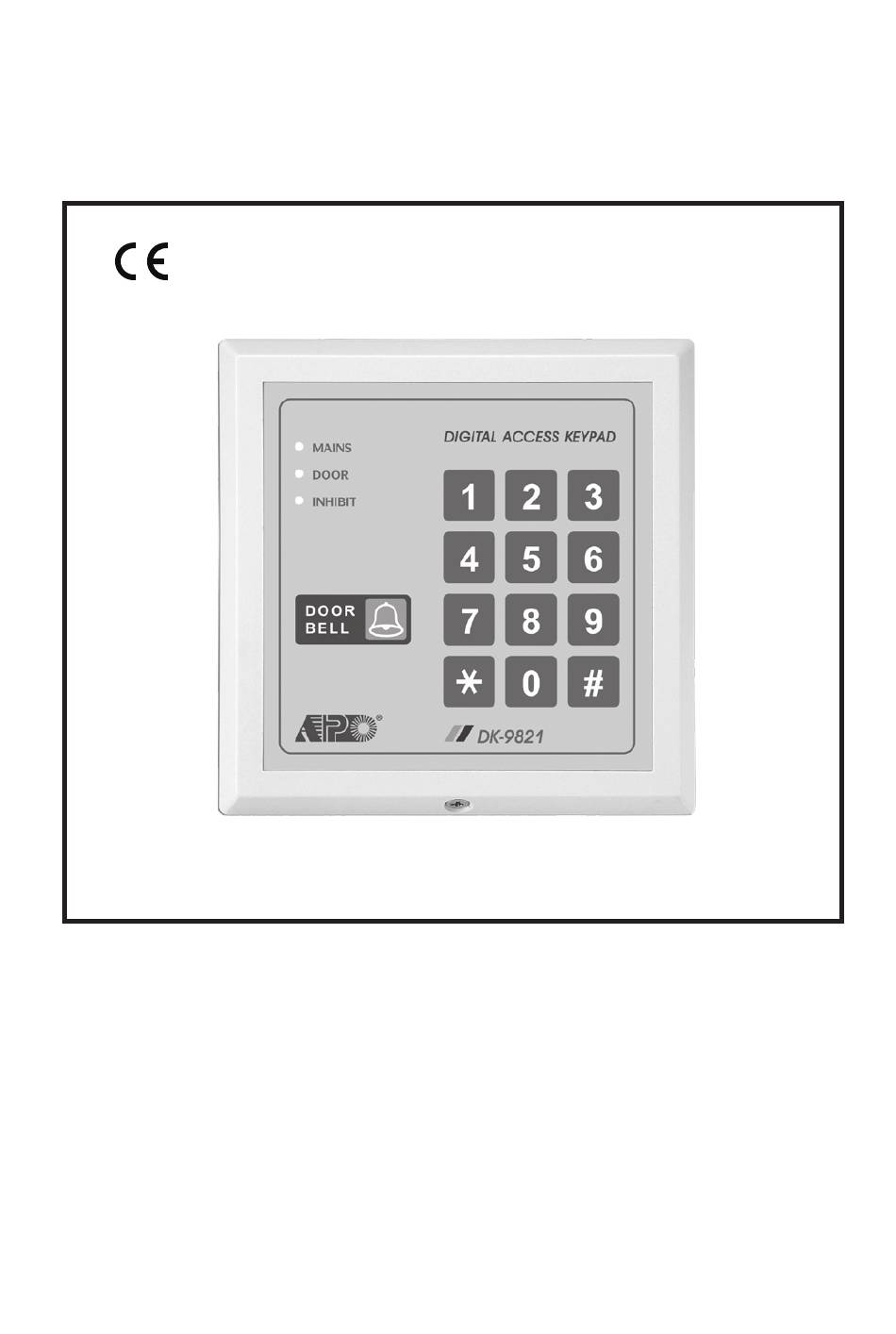

- Page 1 MULTI-PURPOSE DIGITAL ACCESS CONTROL KEYPAD DK-9821 MK-II Programming & Installation Manual FOR ELECTRIC LOCK AND INTER-LOCK SYSTEM INSTALLATIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ······························································································································· 3 DESCRIPTION OF CONNECTION TERMINALS & INDICATORS ······················································ 3-7 ················································································································· 4-6 Connec�on Terminals ························································································································· 6 The LED Indicators ··········································································· 6 The Pacifier Tones & The LED Indica�ng Signals ·········································································· 7-9 STANDARD PROGRAMMING SUMMARY CHART ······································································································ 10-26 SETTING &... -
Page 3: Introduction

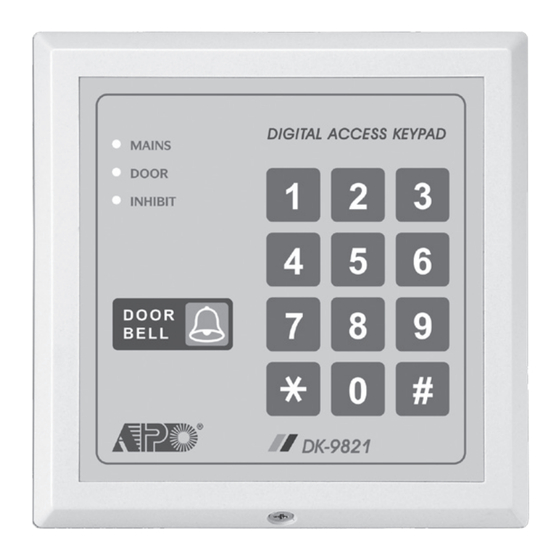

INTRODUCTION DK-9821 is a self-contained digital access control keypad that offers field proven reliability and cost effec�ve solu�ons for residen�al and commercial installa�ons. It is designed for stand alone electric lock opera�ng with 12V DC power supply. It employs a 3 Amp Solid State output contact and is virtually compa�ble with any Fail-safe or Fail-secure electric locking device. -
Page 4: Connec�On Terminals
CONNECTION TERMINALS 1 - 2 : DOOR BELL ● A Normally Open tact switch dry contact with maximum ra�ng of 50mA/24V prepared as the triggering point of a ba�ery operated door chime. 3 - 4 : 12V DC -- POWER INPUT ●... - Page 5 14 : DOOR SENS -- DOOR POSITION SENSOR INPUT ● A Normally Closed (N.C.) input terminal referring to (–) ground. With the help of a normally closed magne�c door switch, the system monitors the posi�on of open or closed of the door and will give the following func�ons: NOTE: Always connect this terminal to (–) ground if not used.
-
Page 6: The Led Indicators
THE LED INDICATORS MAINS (AMBER) ● This is a status indicator. It flashes during standby and other indica�ons in synchroniza�on with the pacifier tones. See the chart of LED indica�on signals below for the details. DOOR (GREEN) ● It lights up in green while output 1 is ac�ve (The door is open). INHIBIT (RED) ●... -
Page 7: Standard Programming Summary Chart
STANDARD PROGRAMMING SUMMARY CHART A) Enter Programming Mode with Master Code (Exit-Factory Master Code: 0 0 0 0) Entry of Master Code Confirm Comments Set system to Programming Mode NOTE: Factory has put a master code into the keypad before exit-factory, owner may take it for first �me use. - Page 8 E) Configura�on of Output 1 for Electric Lock – Installer Programming (Default: Fail-Secure) Loca�on Type of Lock Confirm Comments Fail-Secure electric lock (energized to unlock) Fail-Safe electric lock (de-energized to unlock) F) False Code Lock-up & Repor�ng – Installer Programming (Default: 10 tries / 30 seconds) Loca�on Lock-up Modes Confirm Comments...
- Page 9 K) Main LED Flashing ON-OFF – Installer Programming (Default: Flashing) Loca�on Func�on Codes Confirm Comments Main LED OFF during system standby, good for people do not like flashing LED at night Main LED flashing during system standby (default) L) Egress Delay &...
-
Page 10: Setting & Programming
SETTING & PROGRAMMING Criteria for Programming (1) The keypad MUST be in Programming Mode for making Se�ng and Data Changes. (2) Programming can be accomplished in workshop or at the installa�on site. All data are stored in a non-vola�le memory and will not be lost in power off. (3) DO NOT disconnect the keypad from power while in programming mode;... -
Page 11: Programming A New Master Code
Programming A New Master Code (Loca�on 0 ) Loca�on New Master Code Confirm NOTE: ● Loca�on is the storage loca�on for the master code. ● The master codes can be 4-8 digits long. ● User codes must have the same length as the master code if the keypad is in auto code entry mode. -
Page 12: Programming The User Codes
Programming The User Codes (Loca�on 1) The group of user codes can be programmed to operate output 1 for door open. The following are the programming procedures. Loca�ons User ID Entry of Code Confirm Output 1 00 - 99 4 -8 Digits NOTE: ●... -
Page 13: Programming The Super User Code
Programming The Super User Code (Loca�on 45) Super User Code is a mul�-task user code for ac�va�ng the output 1 and opera�ng the special func�ons of Output 1. Loca�ons Super User Code Confirm 4 - 8 Digits NOTE: ●... - Page 14 2) Overriding The Door Lock Controlled by Output 1 (Keep Door Un-locked) The Output 1 is usually for door lock control. In some circumstances, the door lock may be required to be un-locked for a period for people to enter-exit the premises conveniently without user code.
-
Page 15: Programming The Duress Codes
Programming The Duress Codes (Loca�on 46) Duress Code(s) is an important code to protect the user in case of forcing to open the door under duress. The duress code operates like a normal user code to ac�vate Output 1 for door opening and at the same �me it also ac�vates the Duress Output without any indica�on. -
Page 16: Programming The Visitor Codes
Programming The Visitor Codes (Loca�on 47) Visitor Codes are temporary user codes that can be assigned to visitors or temporary workers to ac�vate Output 1 (usually for door lock actua�on). They can be programmed for One-Time use or with Time-Limit in a valid dura�on. Loca�ons User ID Valid Dura�on... -
Page 17: Dele�Ng User Codes & Other Func�On Codes
Dele�ng User Codes & Other Func�on Codes (Loca�ons 1, 45, 46, & 47) To delete a user who has le� the company or who no longer has the authority to enter the protected area. Deleting Examples: 1. Set keypad to programming mode with master code and key. -
Page 18: Configura�On Of Output Modes For Output 1
Configura�on of Output Modes for Output 1 (Loca�ons 40–43) The output 1 can be programmed to trigger with the following op�ons. for a programmed length of �me from 1 to 999 seconds; or to trigger ON and OFF in toggle with a user code; or to trigger ON with an accelerated start code and OFF with an full digit user code. - Page 19 Programming Examples: 1. Set keypad to programming mode with master code and key. Taking the previous programmed master code 3 2 8 9 as example here: 2. Set Output 1 in momentary mode of 5 seconds: ...
-
Page 20: Configura�On Of Output 1 For Electric Lock
Configura�on of Output 1 for Electric Lock (Loca�on 66) There are two types of electric door locks on the market. They are Fail-Secure and Fail-Safe. It is necessary to select the right one for your applica�on environment. The keypad has been designed compa�ble with both types of lock with an appropriate code of the type of lock. -
Page 21: False A�Empt System Lock-Up Or Repor�Ng
False A�empt System Lock-up or Repor�ng (Loca�on 70) The keypad can be programmed to give system lock up or to report the event in order to secure the premises against unauthorized entry of mul�ple false codes are entered. The lock-up op�ons are represented by a 1 or 2 digits code for owner’s selec�on. -
Page 22: Door Forced-Open Warning
Door Forced-Open Warning (Loca�on 80) The keypad will give door forced-open warning if the door is opened without using a user code or pressing the egress bu�on. This func�on requires an op�onal Normally Closed (N.C.) door posi�on monitoring switch on the door (usually a magne�c contact or other door protec�on switch with N.C. contact). -
Page 23: User Code Entry Modes (Auto Or Manual)
User Code Entry Modes (Auto or Manual) (Location 82) Some users like to press key to confirm a code entry manually to prevent the unauthorized person to easily check out the digit length of the user code; but some people do not. They prefer the keypad to check the code automa�cally when the last number of digit is reached. -
Page 24: Egress Delay & Warning
Egress Delay & Warning (Location 85) Most of the keypads mainly controls “Going In” with user codes and controls “Going Out” simply pressing an egress bu�on. However, in some situa�ons, providing some warning and delay are desirable before the door is open a�er pressing the egress bu�on. For example, in hospitals or schools, it may be desirable to delay the egress opera�on and provide a warning to prevent pa�ents or young children from easily leaving the protected area. -
Page 25: Delay Time To Start Door-Propped-Up Warning
NOTE: For safety and to avoid confusion, when a delay is programmed, please post a no�ce near the egress bu�on to no�fy the users. Here are two example s�ckers for an egress bu�on with 5 seconds momentary delay or 5 seconds press-and-hold delay. Press The Bu�on Momentarily Press And Hold The Bu�on And Wait For 5 Seconds... -
Page 26: Set Keypad To Single User Mode (To Whom It May Require)
SET KEYPAD TO SINGLE USER MODE (to whom it may require) INTRODUCTION This keypad also consists of a simplified version so�ware for code entry. It is single user mode for those users only need one user code for each output and execu�ng each of the special func�ons. DK-9827 is an universal, self-contained, weatherproof digital access control keypad offers field proven reliability cost effective solutions for residential and commercial installations. -
Page 27: Programming Examples For "Single-User Mode
2) Recording Super User Code – User Programming (No Default Codes) Loca�on Entry of Code Confirm Comments 4 digits fixed Owner’s Mul�-task User Code 3) Recording Duress Codes – User Programming (No Default Codes) Loca�on Entry of Code Confirm Comments ... -
Page 28: Specifications
SPECIFICATIONS ● Opera�on Voltage: 12V DC, 11-15V DC ● Opera�on Current: Quiescent - 16mA Maximum - 78mA (Relays opera�ng) ● Opera�on Modes: a) Mul� User Mode -- 100 user codes for output 1 (user number 00-99), Auto or Manual Code Entry b) Single User Mode -- 1 user code for each output and the special func�ons, Auto or Manual Code Entry... -
Page 29: Application Example
APPLICATION EXAMPLES 1) BASIC WIRINGS OF A STAND ALONE DOOR LOCK DOOR BELL ( – ) ( + ) ( + ) ( – ) N.O. 12V DC DOOD LOCK 12V DC POWER SUPPLY 10 11 12 13 14 15 16 TAMPER ( –... - Page 30 2) BASIC WIRINGS OF AN INTER-LOCK SYSTEM USING TWO KEYPADS DOOR 1 DOOR BELL ( – ) ( + ) ( + ) ( – ) N.O. 12V DC DOOD LOCK 10 11 12 13 14 15 16 ELECTRIC LOCK TAMPER ( –...
-
Page 31: Application Hints For The Auxiliary Facilities
APPLICATION HINTS FOR THE AUXILIARY FACILITIES APPLICATION HINTS FOR THE AUXILIARY FACILITIES (A) TAMPER N.C. The tamper switch is Normally Closed while the keypad ALARM CONTROL PANEL is secured on gang box. It is open when the keypad is removed from the gang box. To prevent sabotage, connect these terminals in series with a 24 hour N.C. - Page 32 (D) DURESS OUTPUT +12V ALARM CONTROL PANEL (F) OUTPUT 3 1.5K LOW POWER PIEZO BUZZER +12V 24 HOUR N.O. PROTECTION Output 3 is an open collector output prepared for N.C. ZONE auxiliary controls. It may be used for arm-disarm of a security system, enable and disable of a keypad or a protection zone etc.;...
-
Page 33: Auxiliary Information
AUXILIARY INFORMATION DRY CONTACT ● A dry contact means that no electricity is connected to it. It is prepared for free connec�ons. The Relay Output contacts provided in this keypad system are dry contacts. ● N.C. Normally Closed, the contact is closed circuit at normal status. It is open circuit when ac�ve. N.O. - Page 34 AEI PROTECT-ON SYSTEMS LIMITED www.apo-hk.com VERSION: 160407_V1...
