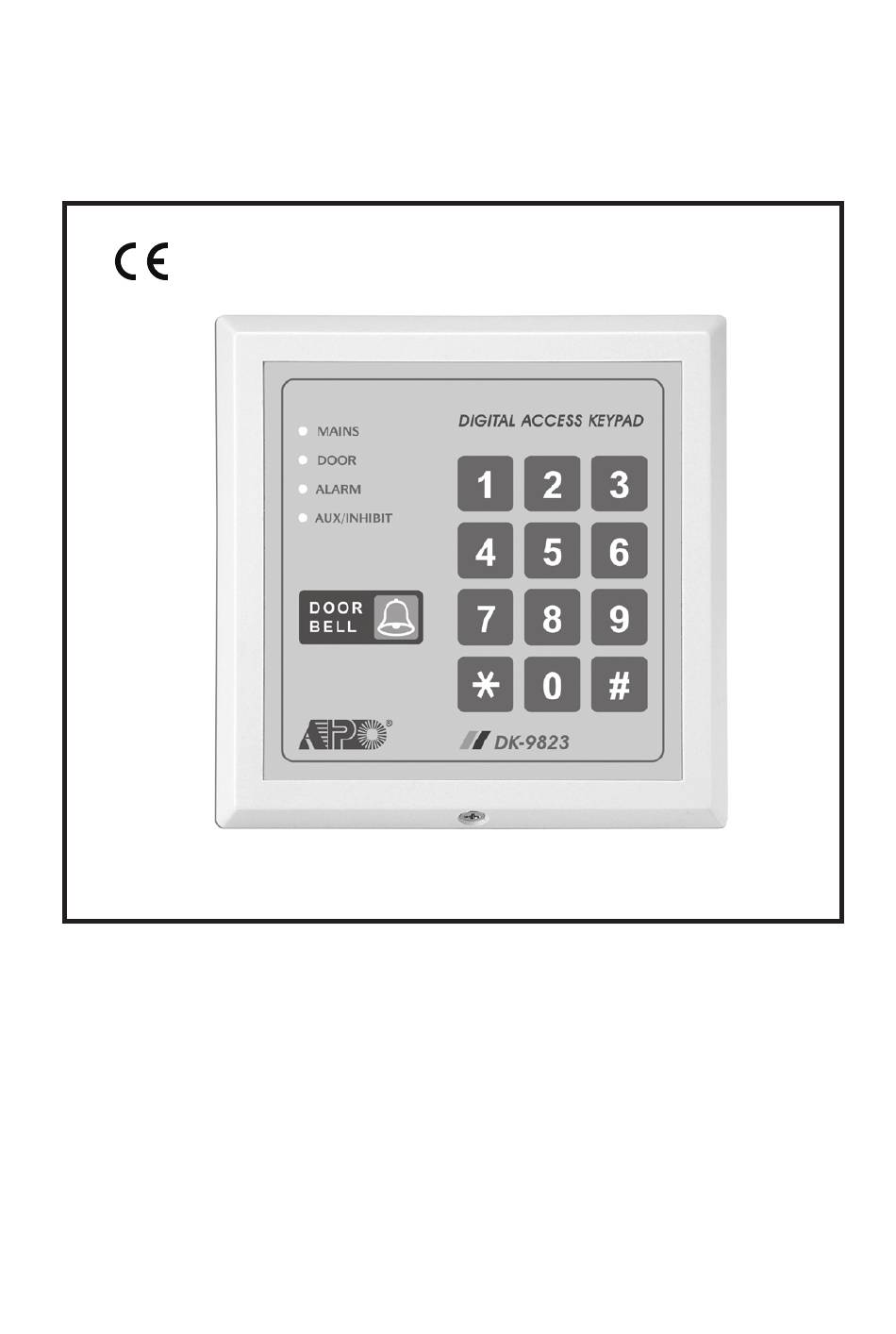

- Page 1 MULTI-PURPOSE DIGITAL ACCESS CONTROL KEYPAD DK-9823 MK-II Programming & Installation Manual FOR ELECTRIC LOCK, INTER-LOCK AND SECURITY SYSTEM INSTALLATIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ······························································································································· 3 DESCRIPTION OF CONNECTION TERMINALS & INDICATORS ······················································ 3-7 ··············································································································· 4 (I) Connec�on Terminals ························································································································· 5-6 (II) Wire Harness ·························································································································· 6 (III) LED Indicators (IV) Pacifier Tones & The LED Indica�ng Signals ··········································································· 7 STANDARD PROGRAMMING SUMMARY CHART ········································································... -
Page 3: Introduction
INTRODUCTION DK-9823 is a self-contained digital access keypad designed for residen�al and commercial installa�ons. It is mainly for stand alone electric lock and inter-lock systems opera�ng with 12V DC INTRODUCTION power supply. It is virtually compa�ble with any electric locking device. Apart from that it is also a DK-9823 is an universal, self-contained digital access keypad o ers eld proven reliability and cost e ective solution perfect choice for controlling security systems, automa�c operators and machinery. -
Page 4: (I) Connec�On Terminals
CONNECTION TERMINALS 1 - 2 : DOOR BELL ● A Normally Open dry contact with maximum ra�ng of 12VDC/50mA prepared as the triggering point of a low power electronic door chime. DO NOT use this contact as a power path of a door bell. 3 : DOOR SENS -- DOOR POSITION SENSOR INPUT ●... -
Page 5: (Ii) Wire Harness
(II) WIRE HARNESS NOTE: Always hold the circuit board �ghtly and pull the socket out gently to prevent damage of the electronic assembly of the keypad if the wire harness is required to pull out from the circuit board. 1 -2 : TAMPER N.C ●... -
Page 6: (Iii) Led Indicators
14 : INT. LOCK -- INTER-LOCK CONTROL OUTPUT ● An NPN transistor open collector output. It is OFF at normal condi�on and switches to (–) ground immediately for the first 5 seconds a�er keying in a valid user code or pressing the egress bu�on to operate output 1, then, it will keep tying to (–) ground during the �me that the door posi�on sensor is open circuit due to door opening. -
Page 7: (Iv) Pacifier Tones & The Led Indica�Ng Signals
(IV) PACIFIER TONES & THE LED INDICATING SIGNALS The built-in buzzer and the MAINS LED indicator give the following tones and signals for opera�on status: STATUS TONES* LED SIGNALS 1. In programming mode 2. Successful key entry 1 Beep 1 Flash 2 Beeps 2 Flashes 3. -
Page 8: Standard Programming Summary Chart
STANDARD PROGRAMMING SUMMARY CHART A) Enter Programming Mode with Master Code (Exit-Factory Master Code: 0 0 0 0) Entry of Master Code Confirm Comments Set system to Programming Mode NOTE: Factory has put a master code into the keypad before exit-factory, owner may take it for first �me use. - Page 9 D) Configura�on of Output Modes – Installer Programming (Default: Momentary, 1-second for all 3 outputs) Loca�on Code of Timing Confirm Comments Output 1, Momentary Mode from 1 to 999 seconds (default=1 second) (D) DURESS OUTPUT (WHITE/ORANGE WIRE) 1 to 999 ...
- Page 10 H) Output Ac�va�on (Door Open) Announcer – Installer Programming (Default: 1 long beep) Loca�on Func�on Codes Confirm Comments No no�fica�on. 2 short-beep is given when the door lock is opened. 1 second long beep no�fica�on is given when the door lock is ...
-
Page 11: Setting & Programming
SETTING & PROGRAMMING Criteria for Programming (1) The keypad MUST be in Programming Mode for making Se�ng and Data Changes. (2) Programming can be accomplished in workshop or at the installa�on site. All data are stored in a non-vola�le memory and will not be lost in power off. (3) DO NOT disconnect the keypad from power while in programming mode;... -
Page 12: Programming A New Master Code
Programming A New Master Code (Loca�on 0 ) Loca�on New Master Code Confirm NOTE: ● Loca�on is the storage loca�on for the master code. ● The master codes can be 4-8 digits long. ● User codes must have the same length as the master code if the keypad is in auto code entry mode. -
Page 13: Programming The User Codes
Programming The User Codes (Loca�ons 1, 2 & 3) Three groups of user codes can be programmed to operate output 1, 2 and 3 respec�vely. The following are the programming procedures. Loca�ons User ID Entry of Code Confirm Output 1 00 - 99 4 -8 Digits... -
Page 14: Programming The Super User Code
Programming The Super User Code (Loca�on 45) Super User Code is a mul�-task user code for ac�va�ng the three outputs 1, 2 & 3 and opera�ng the special func�ons of Output 1. Loca�ons Super User Code Confirm 4 - 8 Digits NOTE: ●... - Page 15 2) Overriding The Door Lock Controlled by Output 1 (Keep Door Un-locked) The Output 1 is usually for door lock control. In some circumstances, the door lock may be required to be un-locked for a period for people to enter-exit the premises conveniently without user code.
-
Page 16: Programming The Duress Codes
Programming The Duress Codes (Loca�on 46) Duress Code(s) is an important code to protect the user in case of forcing to open the door under duress. The duress code operates like a normal user code to ac�vate Output 1 for door opening and at the same �me it also ac�vates the Duress Output without any indica�on. -
Page 17: Programming The Visitor Codes
Programming The Visitor Codes (Loca�on 47) Visitor Codes are temporary user codes that can be assigned to visitors or temporary workers to ac�vate Output 1 (usually for door lock actua�on). They can be programmed for One-Time use or with Time-Limit in a valid dura�on. Loca�ons User ID Valid Dura�on... -
Page 18: Dele�Ng User Codes & Other Func�On Codes
Dele�ng User Codes & Other Func�on Codes (Loca�ons 1, 2, 3, 45, 46, & 47) To delete a user who has le� the company or who no longer has the authority to enter the protected area. Deleting Examples: 1. Set keypad to programming mode with master code and key. -
Page 19: Configura�On Of Output Modes For Outputs 1, 2
Configura�on of Output Modes for Outputs 1, 2 & 3 (Loca�ons 40–43, 50–53, & 60–63) The outputs 1, 2 & 3 can be programmed to trigger with the following op�ons. for a programmed length of �me from 1 to 999 seconds; or to trigger ON and OFF in toggle with a user code; or to trigger ON with an accelerated start code and OFF with an full digit user code. - Page 20 Programming Examples: 1. Set keypad to programming mode with master code and key. Taking the previous programmed master code 3 2 8 9 as example here: 2. Set Output 1 in momentary mode of 5 seconds: ...
-
Page 21: Configura�On Of Output 1 For Electric Lock
Configura�on of Output 1 for Electric Lock (Loca�on 66) There are two types of electric door locks on the market. They are Fail-Secure and Fail-Safe. It is necessary to select the right one for your applica�on environment. The keypad has been designed compa�ble with both types of lock with an appropriate code of the type of lock. -
Page 22: False A�Empt System Lock-Up Or Repor�Ng
False A�empt System Lock-up or Repor�ng (Loca�on 70) The keypad can be programmed to give system lock up or to report the event in order to secure the premises against unauthorized entry of mul�ple false codes are entered. The lock-up op�ons are represented by a 1 or 2 digits code for owner’s selec�on. -
Page 23: Door Forced-Open Warning & Alarm
Door Forced-Open Warning & Alarm (Loca�on 80) The keypad will give door forced-open warning and alarm if the door is opened without using a user code or pressing the egress bu�on. This func�on requires an op�onal Normally Closed (N.C.) door posi�on monitoring switch on the door (usually a magne�c contact or other door protec�on switch with N.C. -
Page 24: User Code Entry Modes (Auto Or Manual)
User Code Entry Modes (Auto or Manual) (Location 82) Some users like to press key to confirm a code entry manually to prevent the unauthorized person to easily check out the digit length of the user code; but some people do not. They prefer the keypad to check the code automa�cally when the last number of digit is reached. -
Page 25: Egress Delay & Warning
Egress Delay & Warning (Location 85) Most of the keypads mainly controls “Going In” with user codes and controls “Going Out” simply pressing an egress bu�on. However, in some situa�ons, providing some warning and delay are desirable before the door is open a�er pressing the egress bu�on. For example, in hospitals or schools, it may be desirable to delay the egress opera�on and provide a warning to prevent pa�ents or young children from easily leaving the protected area. -
Page 26: Delay Time To Start Door-Propped-Up Warning
NOTE: For safety and to avoid confusion, when a delay is programmed, please post a no�ce near the egress bu�on to no�fy the users. Here are two example s�ckers for an egress bu�on with 5 seconds momentary delay or 5 seconds press-and-hold delay. Press The Bu�on Momentarily Press And Hold The Bu�on And Wait For 5 Seconds... -
Page 27: Set Keypad To Single User Mode (To Whom It May Require)
SET KEYPAD TO SINGLE USER MODE (to whom it may require) CONNECTION TERMINALS This keypad also consists of a simplified version so�ware for code entry. It is single user mode for 1 - 2 : DOOR BELL those users only need one user code for each output and execu�ng each of the special func�ons. Once the keypad is in single user mode, there is no User ID required for the codes, just simply enter the code to each Loca�ons directly. -
Page 28: Programming Examples For "Single-User Mode
2) Recording Super User Code – User Programming (No Default Codes) Loca�on Entry of Code Confirm Comments 4 digits fixed Owner’s Mul�-task User Code 3) Recording Duress Codes – User Programming (No Default Codes) Loca�on Entry of Code Confirm Comments ... -
Page 29: Specifications
SPECIFICATIONS TABLE OF CONTENTS ● Opera�on Voltage: 12V DC, 11-15V DC INTRODUCTION ······························································································································· 3 DESCRIPTION OF CONNECTION TERMINALS & INDICATORS ······················································ 3-7 ● Opera�on Current: ··············································································································· 4 Quiescent - 16mA ························································································································· 5-6 (II) Wire Harness Maximum - 78mA (Relays opera�ng) ··························································································································... -
Page 30: Application Example
APPLICATION EXAMPLES 1) BASIC WIRINGS OF A STAND ALONE DOOR LOCK TERMINALS CONNECTION HARNESS 9 10 11 12 13 14 15 16 DOOR BELL DOOR (–) (–) N.O. SENS 12V DC DOOR LOCK N.C. DOOR SENS SWITCH (OPTIONAL) ELECTRIC LOCK IMPORTANT NOTE: See programming Location 66 for Fail-secure or Fail-safe electric lock... - Page 31 2) BASIC WIRINGS FOR DOOR LOCK OPEN AND ALARM ARM-DISARM CONTROL TERMINALS DOOR BELL DOOR (–) (–) N.O. SENS 12V DC DOOR LOCK ELECTRIC 12V DC LOCK POWER SUPPLY 1N4004 EGRESS BUTTON N.O. CONNECTION HARNESS 9 10 11 12 13 14 15 16 ALARM CONTROL PANEL N.O.
- Page 32 3) BASIC WIRINGS OF AN INTER-LOCK SYSTEM USING TWO KEYPADS CONNECTION HARNESS 9 10 11 12 13 14 15 16 TERMINALS DOOR BELL DOOR (–) (–) N.O. SENS 12V DC DOOR LOCK DOOR 1 N.C. DOOR 1 SENSING ELECTRIC LOCK 12V DC POWER 1N4004...
-
Page 33: Application Hints For The Auxiliary Facilities
APPLICATION HINTS FOR THE AUXILIARY FACILITIES APPLICATION HINTS FOR THE AUXILIARY FACILITIES (A) TAMPER N.C. (RED, BLACK WIRES) WIRE HARNESS The tamper switch is Normally Closed while the keypad ALARM CONTROL PANEL (1) RED is secured on gang box. It is open when the keypad is (2) BLACK removed from the gang box. - Page 34 (D) DURESS OUTPUT (WHITE/ORANGE WIRE) WIRE HARNESS WIRE HARNESS +12V ALARM CONTROL PANEL (10) (11) (10) (12) (11) (13) 1.5K (12) LOW POWER (14) 24 HOUR N.O. (13) (15) YELLOW GREEN PIEZO BUZZER PROTECTION (14) (16) WHITE/ORANGE (15) ZONE (16) WHITE/ORANGE The Duress Output will switch to ( ) ground when duress code is entered.
- Page 35 The Duress, Inter-lock, Key Active Outputs of the keypad are open collector output. N.O. CONTACT OPEN COLLECTOR OUTPUT ---- OUTPUT ---- EQUIVALENT Output switches to Output switches to ground when activates ground when activates AEI PROTECT - ON SYSTEMS LIMITED 40IN9823 M-120112 www.apo-hk.com...
-
Page 36: Auxiliary Information
Inter-lock and Key Ac�ve/Alarm Outputs of the keypad are open collector outputs. OPEN COLLECTOR N.O. CONTACT OUTPUT ---- OUTPUT ---- EQUIVALENT Output switches to Output switches to ground when activated ground when activated AEI PROTECT-ON SYSTEMS LIMITED www.apo-hk.com VERSION: 160425_V2...
