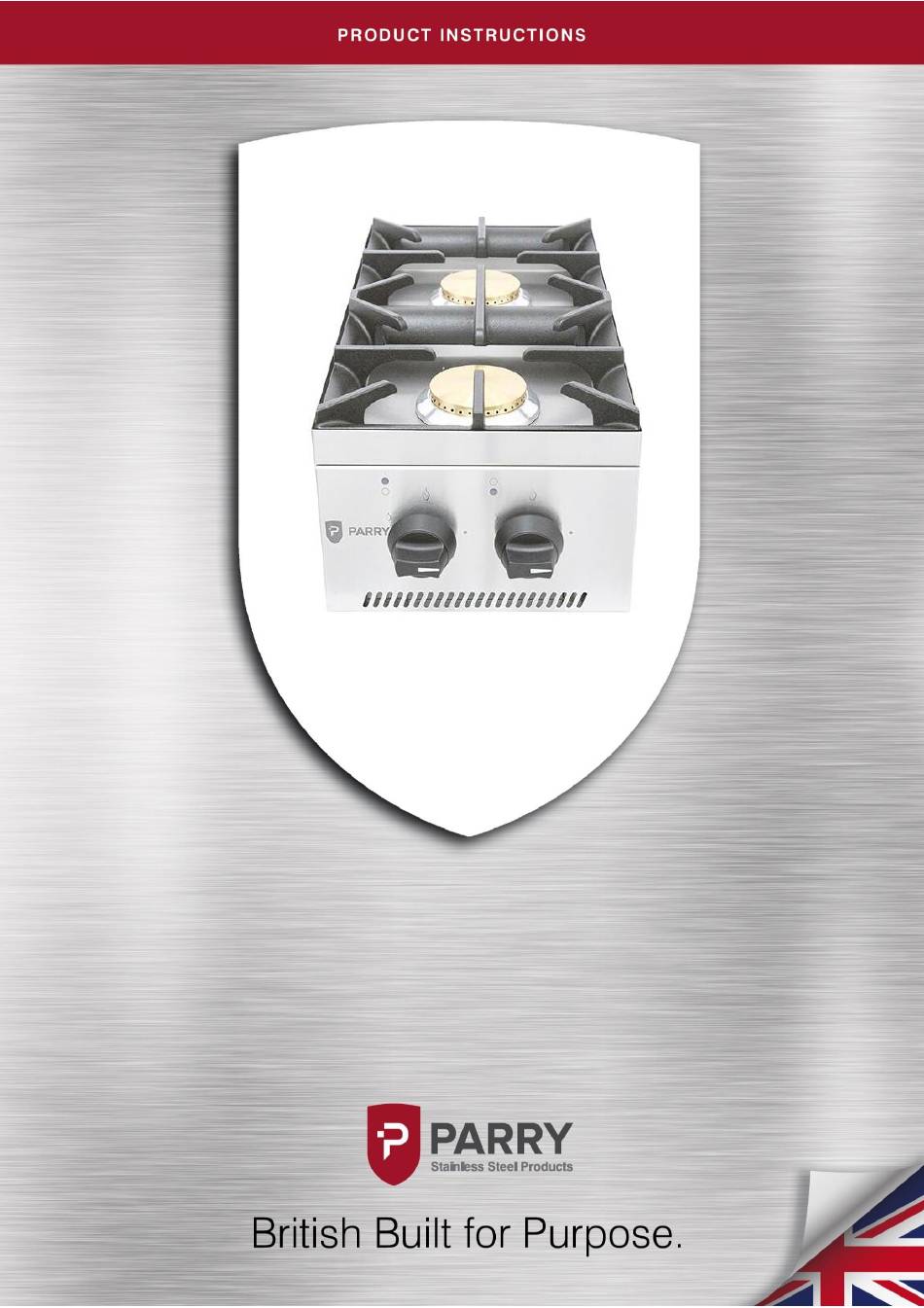

- Page 1 Instruction Manual AG2H / AG2HP 2 Burner Gas Boiling Hob...
- Page 2 That means you get exactly what you need when you need it. Our product information can be found here, in our brochure or on our website www.parry.co.uk. You have my personal commitment that Parry will exceed your expectations. Should you have any questions please contact your distributor.
-
Page 3: Table Of Contents
Service Information........................15 Exploded View ........................... 16 Parts List ........................... 17 Warranty Information ......................18-19 Disposal & Recycling ......................... 20 Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT. Sales Tel: 01332 875544 Parry-British Built for Purpose IN101-6... -
Page 4: Product Overview
Product Overview AG2H The Parry natural gas two-burner hob is small yet powerful, making it the perfect appliance for smaller commercial catering establishments. The heavy duty enamelled pan supports are ideal for heavy pots and pans, while the high grade stainless steel is both durable and easy to clean. - Page 5 GAS INPUT PRESSURE – Natural 20mbar GAS INPUT PRESSURE – Propane 37mbar GAS INPUT PRESSURE – Propane/Butane Can be converted using conversion kit? It leads the industry in: Design and aesthetic appeal Performance Power Functionality After sales support Parry-British Built for Purpose IN101-6...
-
Page 6: Safety Instructions
To avoid scratching the highly polished exterior surface of this equipment whilst in transit, the protective film on the exterior surfaces has NOT been removed. It is IMPORTANT that this protective film is peeled off before the equipment is used. Parry-British Built for Purpose IN101-6... -
Page 7: Installation Instructions
Sides 150mm (6”) Hotplate to combustible material 1525mm (60”) All local fire regulations should be observed. It is recommended that the appliance be sited below a ventilating hood preferably of the extractor type incorporating a grease filter. Parry-British Built for Purpose IN101-6... - Page 8 All units should have a restraining cable fitted preventing the unit from being pulled away from the wall and causing the gas hose to become disconnected accidentally. Parry-British Built for Purpose IN101-6...
-
Page 9: Operating Instructions
5. To turn burners off, turn knob clockwise all the way round. Parry recommends that the hob is used only with pans that have a minimum diameter of 120mm, and up to a maximum of 295mm diameter. This ensures that there is satisfactory combustion, and the pan is stable as it sits on the finger of the pan support. -
Page 10: Maintenance Instructions
SHOULD NOT BE ADJUSTED UNLESS BY A QUALIFIED ENGINEER IN WHICH CASE THE LOW RATE ADJUSTER SHOULD BE RE-SEALED. Parry recommends that this unit is serviced at least every 6 months As part of a full service we recommend the following checks are carried out. -
Page 11: Fault Finding
Check sealing washer and replace if necessary. Assemble in reverse order. HOB BURNER/THERMOCOUPLE – Remove Pan Supports and Burner caps. Remove the solid top tray. Disconnect thermocouple from rear of tap. Undo locknut on burner mounting channel. Assemble in reverse order. Replacement Parts Parry-British Built for Purpose IN101-6... -
Page 12: Natural Gas Conversion Instructions
Hob valve NAT GAS Hob valve bypass COPBPS - 85 bypass screw screw stamped with 85 Hob burner NAT GAS Hob Burner HOBINJECT185 injector Injector stamped with 185 Labels NAT. GAS ONLY + G20 Instructions CONVIN21-4 Parry-British Built for Purpose IN101-6... -
Page 13: Lpg Conversion Instructions
Please note conversion kits sold separately Product AG2H – 2 Burner Gas Boiling Hob These instructions can be used for converting from Natural Gas to LPG LPG units are designed and tested in accordance with all current regulations enforced to run on the following gases only Propane G31 @ 37mbar 14.8”... -
Page 14: Conversion Procedure
Conversion Procedure Conversion Procedure for AG2H Warning Ensure the appliance is isolated from the gas supply before commencing conversion Remove pan support and burner caps. Lift off aluminium burner plates. Remove the solid top plate. Using an 10mm spanner remove burner injector. - Page 15 Connect the unit back to the gas supply Test for gas soundness Replace the facia and knobs accordingly When comversion is complete addix new data label and gas type label supplied with the conversion kit, detailing type of gas and pressure. Parry-British Built for Purpose IN101-6...
-
Page 16: Technical Information
AIR FLOW RATE FOR COMBUSTION 12.24FT³/HR 20m³/HR BURNER LOW RATE FLOWRATE HEAT INPUT NATURAL G20 0.253 M³/HR 2.357 KW PROPANE G31 0.058 M³/HR 1.400 KW INJECTORS Natural G20 = HOBINJECT 185 Propane G31 = HOBINJECT 105 Parry-British Built for Purpose IN101-6... -
Page 17: Service Information
This appliance should be routinely serviced to prolong its lifetime. Parry recommends that the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service your product within the initial 12-month warranty period will cause the 24-month warranty to become void. -
Page 18: Exploded View
Exploded View Parry-British Built for Purpose IN101-6... -
Page 19: Parts List
Vinyl Round End Cap 26 mm PASCAP26MM ID 25mm Inside Height 15 - Nat Injector SP 8X100 185 HOBINJECT185 15 - LPG Type SP 8x100 -105 Injector HOBINJECT105 AEM Injector Carriage part of BURNRHOB BURNRHOB Parry-British Built for Purpose IN101-6... -
Page 20: Warranty Information
Parry and not the sale or installation date of the equipment. Please ensure you have referred to the manufacturer’s instruction before placing a warranty... - Page 21 Excessive carbon build-up on griddle plates or overuse of lava rock on chargrills. (Recommended use by Parry no more than 2kg.) Appliances that have been installed in mobile trailers are covered by parts only warranty for 24 months...
-
Page 22: Disposal & Recycling
Disposal & Recycling The packaging should be disposed of in accordance with the regulations in force. Parry-British Built for Purpose IN101-6...
