Summary of Contents for Sea Side PP100N

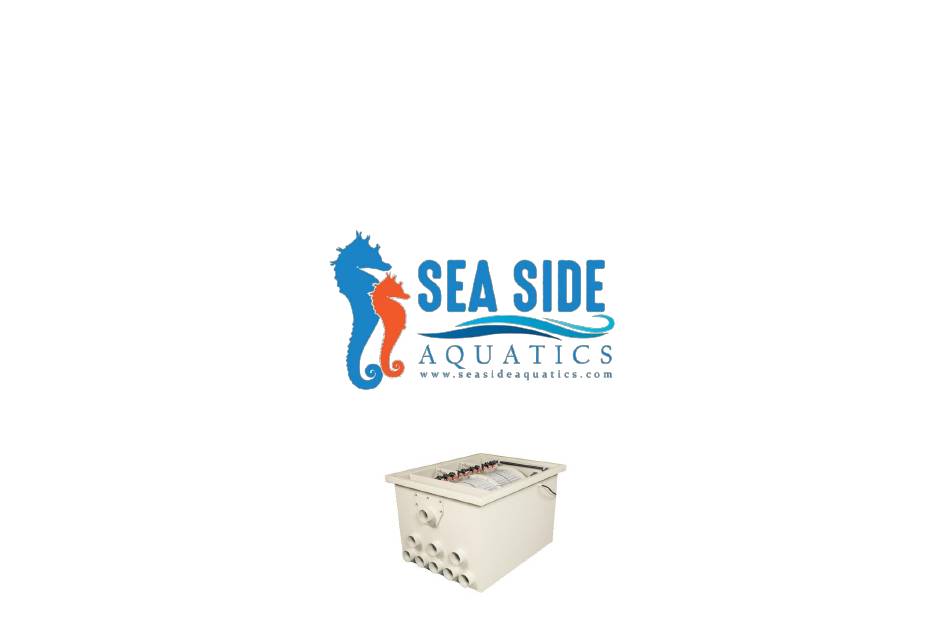

- Page 1 QUICK GUIDE v1.0 DRUMFILTER PP100N...
-
Page 2: Table Of Contents
QUICKGUIDE Index BASIC REQUIREMENTS ....................3 1.1 Control unit ......................4 A. GRAVITY-SYSTEM ....................6 2.1 Placing the filter system ..................6 2.2 Set level control: ...................... 8 B. PUMP FED SYSTEM ....................9 3.1 Placing filter system ....................9 3.2 Set level control: .................... -
Page 3: Basic Requirements
QUICKGUIDE 1 Basic requirements Basic requirements every filter system must meet: • The filter system should be placed on a ground surface with sufficient carrying capacity, for instance: − a well-vibrated sand bed of 10 cm, possibly with concrete tiles −... -
Page 4: Control Unit
QUICKGUIDE 1.1 Control unit Power Switch Manual Cleaning Plug Plug Sensor Motor Drumfilter Plug Plug Cleaning Pump Circulation Pump... - Page 5 QUICKGUIDE 1. Fuse (motor drumfilter) 2. Fuse (cleaning pump) 3. Fuse (pond pump) 4. Fuse (power supply) 5. Print level controller 6. Power supply 7. Timer 8. Relay 1 − Cleaning pump − motor drumfilter 9. Relay 2 − Pond pump Adjust cleaning time...
-
Page 6: Gravity-System
• Align the base plate horizontally (the filter should be placed fully level). • The filter should be placed the height of the installation height (fig. 2.1) above water level. (installation height is the distance from maximum water level to top of filter). Type filter Installation height [cm] PP100N... - Page 7 QUICKGUIDE GRAVITY Schematic setup of the drum filter Pic. 2.1 1. Water level with running pump after rinse (short pen 8 cm in water) 2. Start rinsing 3. Pond pump switches off 4. Installation height is 18 cm...
-
Page 8: Set Level Control
QUICKGUIDE GRAVITY 2.2 Set level control: • For the operation of the gravity system a constant water level in the pond is necessary. A tolerance of up to 20 mm below maximum water level is allowed. • Should the maximum water level in the pond exceed this, the water excess water will be disposed of via the waste water drain, until the maximum water level has been reached Position Jumpers... -
Page 9: Pump Fed System
QUICKGUIDE PUMP FED 3 B. Pump fed system 3.1 Placing filter system • Determine the maximum water level of the pond • Align the base plate horizontally (the filter should be completely level). • The installation height is 30 cm (installation height is the distance from maximum water level to the top of the filter) Schematic setup of the drum filter Pic. -
Page 10: Set Level Control
QUICKGUIDE PUMP FED 3.2 Set level control: Position Jumpers Pic. 3.2 Sensor 1. Water level with running pump after rinse 2. Start rinsing Position 3. Pond pump switches off purple cable black cable...
