【IMPORTANT: It is important to read these instructions carefully before using the appliance
for the first time. Keep the instructions safe so that you can refer to them later if necessary】

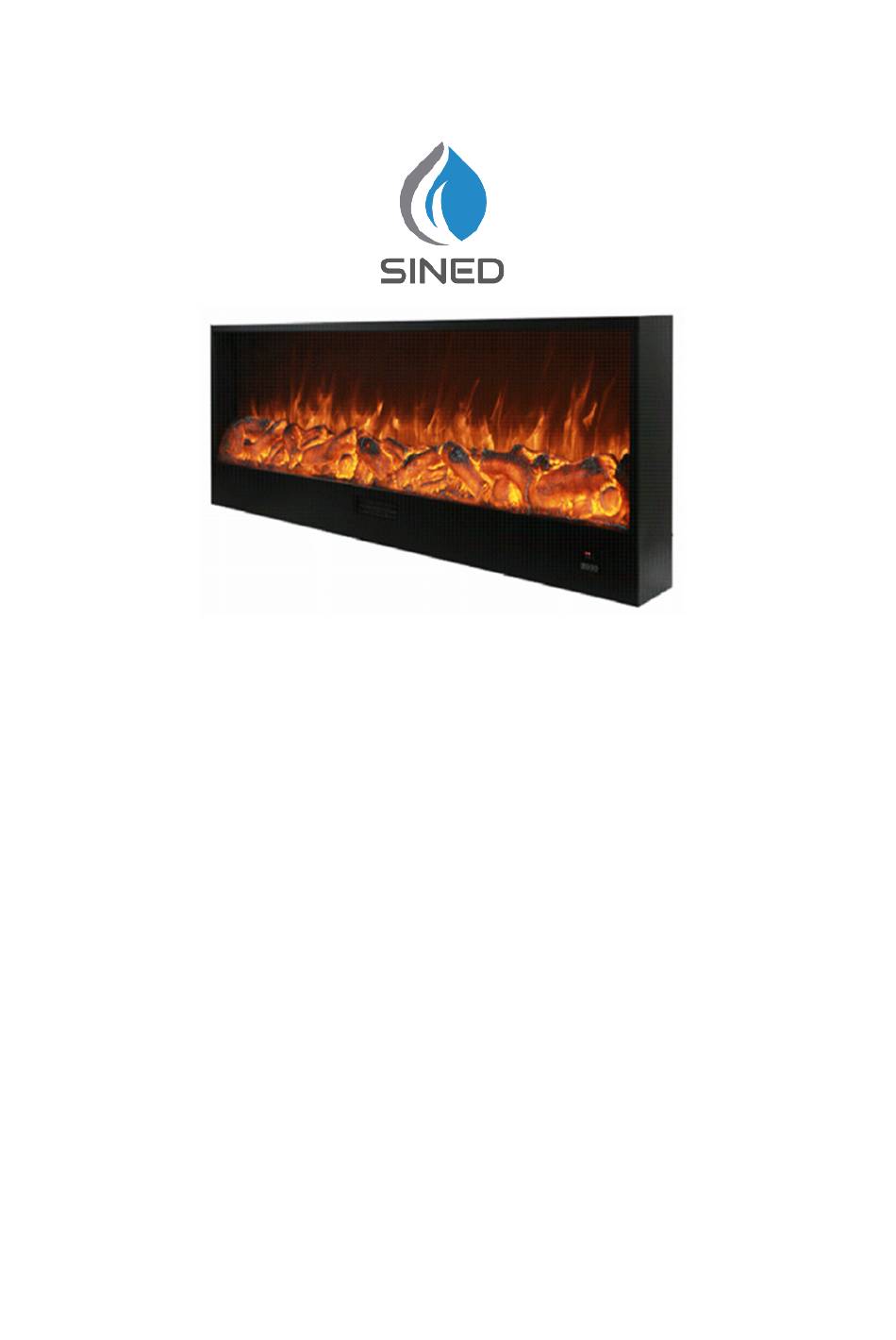

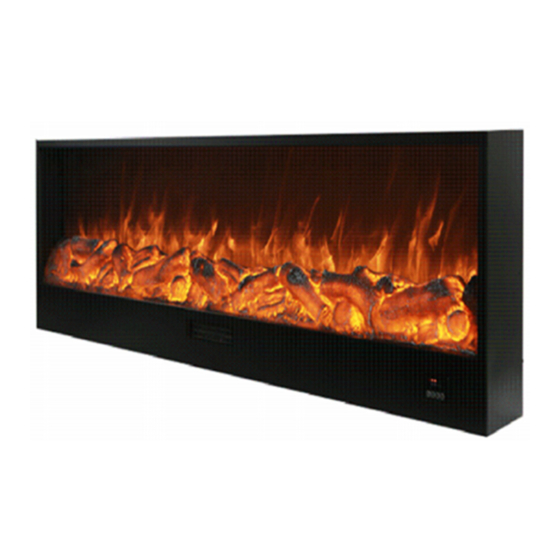

SINED Stromboli, 1.9 m recessed electric fireplace with flame effect made
of coloured LEDs and adjustable to 5 intensity levels.
Rating:
Rated Voltage: 220-240V~
Rated Power: High:1500W; Low: 750W
Rated Frequency: 50/60Hz
Supply Connection: Non-detachable cord with plug, Type Y attachment
This appliance is intended to be used in household and similar applications such as :
-staff kitchen areas in shops, offices and other working environments,
-farm houses,
-by clients in hotels , motels and other residential type environment,-
-bed and breakfast type environment
-areas for communal use in blocks or flats or in launderettes
Electric fireplace-User's Manual
CAMINETTO-STROMBOLI-190
Model :
1 / 15
Advertisement
Related Manuals for SINED CAMINETTO-STROMBOLI-190
Summary of Contents for SINED CAMINETTO-STROMBOLI-190
- Page 1 Keep the instructions safe so that you can refer to them later if necessary】 Electric fireplace-User's Manual Model : CAMINETTO-STROMBOLI-190 SINED Stromboli, 1.9 m recessed electric fireplace with flame effect made of coloured LEDs and adjustable to 5 intensity levels. Rating: Rated Voltage: 220-240V~ Rated Power: High:1500W;...
- Page 2 WARNING: 1. In avoid to overheating, do not cover the fireplace. 2. Do not use this heater in the immediate surroundings of a bath , a shower or a swimming pool.. 3. Do not use this heater if it has been dropped. 4.
- Page 3 or in any other liquids. 25. Components should only be serviced by an approved electro technician. 26. “If the supply cord is damaged, it must be replaced by the manufacturer, its service agentor similarly qualified persons in order to avoid a hazard.” Cleaning the exterior of the appliance Before cleaning the appliance, disconnect it from the socket and leave to cool.
- Page 4 Unpacking Operation 4 / 15...
- Page 5 Shape and Size (mm) Product size list (mm) Model Length Height Depth CAMINETTO-STROMBOLI-190 1900 5 / 15...
- Page 6 Installation Instructions Hole size (Find hole size symbol on product dimensions.) Note: Support platform need to be flat, complete and firm. Power socket should be connected with ground wire. Functional area on the front: 6 / 15...
- Page 7 Configuration Information Product Name Electric Fireplace Operation mode Manual/Remote control Rated Voltage 220-240V~ Rated Frequency: 50/60Hz Viewing Power 10W-300W Rated Power High:1500W; Low: 750W Infrared remote control Manual key Adjustable flame Basic Heating function Single-color flame Multi-color flame Crystal Optional Cobblestone DIY fake log Safety Certification...
- Page 8 Manual Key Operation Symbol Name Description On-off Turn on/off the machine Temper Adjust temperature 19-30℃ Timer Timing: 30min-1h-2h-3h-4h-5h-6h-7h-8h-30min Flame 1-6 levels flame 8 / 15...
- Page 9 Remote Control Function 9 / 15...
- Page 10 Digital Screen 10 / 15...
- Page 11 Remote Operation On/Off Press this button to turn on with F1 on screen. Press this button to turn off with nothing on screen. This button no function Adjust flame brightness Default F1. F1-F2-F3-F4-F5-F6-F1. The number corresponds to flame brightness. Display Brightness 100% Heater (Be off by default)
- Page 12 Timer It’s disabled by default. Short pressing will adjust the timer range from 30Min-1H-2H-3H-4H-5H-6H-7H-8H-30Min. The symbol light is on by default. This button no function Day timer There is a timing function. When turning on the fireplace, the timer icon light will be on.
- Page 13 Week timer It has a week timing switch function. 1. First press “WEEK TIME” button, the week icon will turn the current time to SUN(Sunday) and flash. The icon of clock and ON will flash at the same time. 2. Set the startup time of the day. Press “HOUR” button to set starting up hour, press “MIN”...
-
Page 14: Troubleshooting
alarm reminder. This button No function Troubleshooting Symptom Probable Causes Solution Poor contact between plug and Connect the plug correctly or change it socket Power is off Turn on Not Work Turn off power, natural cooling for Protector overheats 15min. Protector overheats and burned After-sale repairing Heating without... - Page 15 Made in China Importato in Italia da M.P.C. srl Via Tortona 20144 Milano Italia Tel +39 02 21117815 e-mail info@mpcshop.it sito web www.sinedtechnology.com Il marchio SINED e il logo SINED sono registrati da Sined Ventas Online S.L.U. EUTM 018196373 15 / 15...
