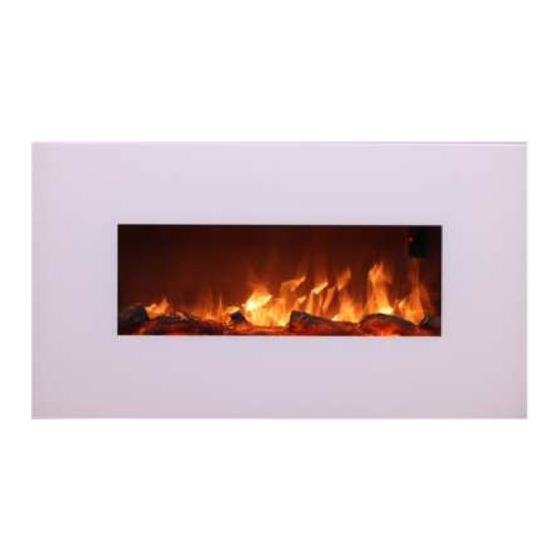

SINED CAMINETTO-PARETE-BIANCO User Manual

Sined wall-mounted electric fireplaces

Hide thumbs

page of 16

/ 16
Bookmarks

Quick Links

Download this manual

IMPORTANT: It is important to read these instructions carefully before using the

appliance for the first time. Keep the instructions safe so that you can refer to them

later if necessary

Sined Wall-mounted Electric Fireplaces - User

Manual

Models :

CAMINETTO-PARETE-BIANCO

CAMINETTO-PARETE-STELVIO

CAMINETTO-PARETE-APRICA

CAMINETTO-PARETE-PORDOI

1 / 16

Need help?

Do you have a question about the CAMINETTO-PARETE-BIANCO and is the answer not in the manual?

Questions and answers

Summary of Contents for SINED CAMINETTO-PARETE-BIANCO

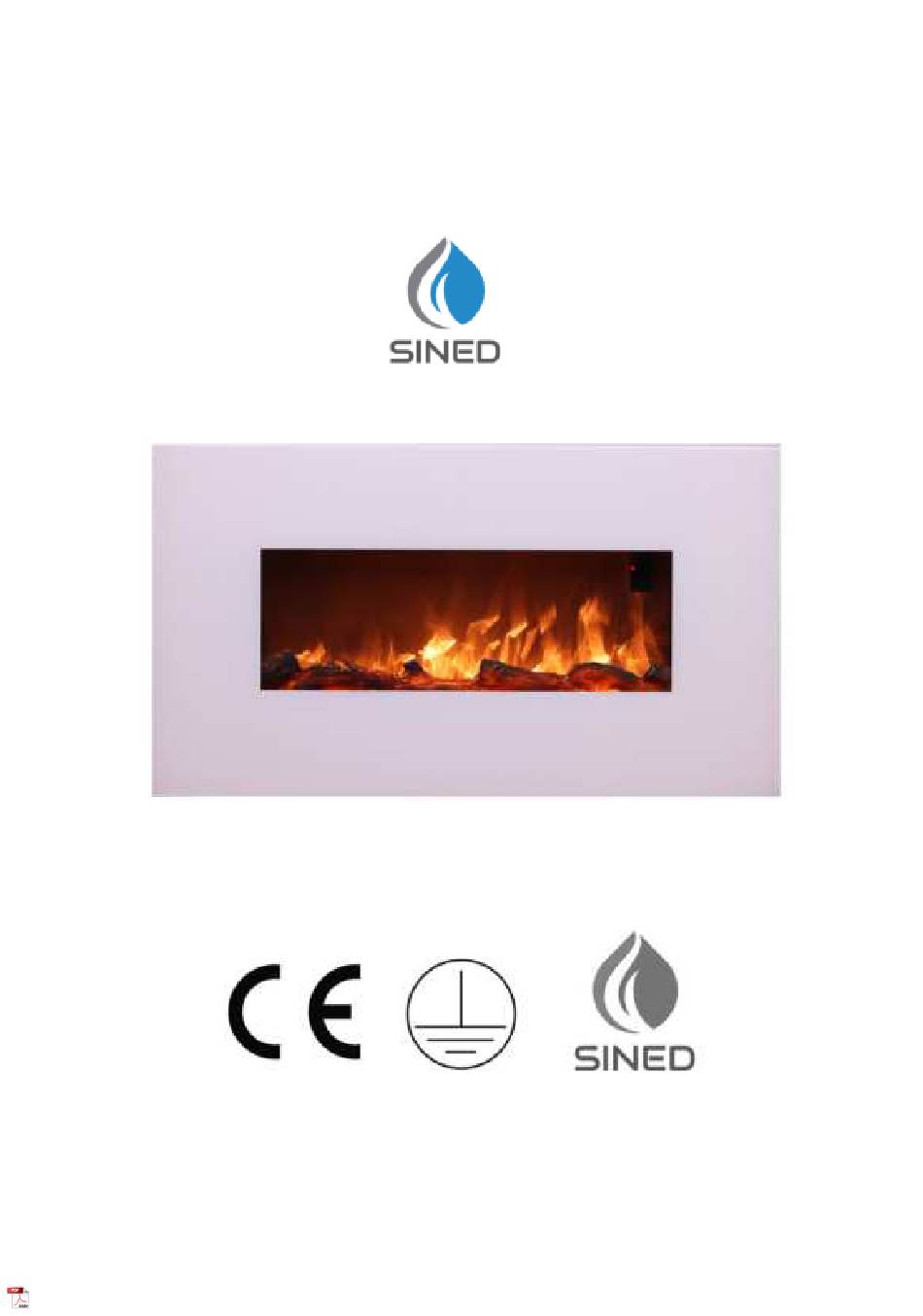

Page 1 IMPORTANT: It is important to read these instructions carefully before using the appliance for the first time. Keep the instructions safe so that you can refer to them later if necessary Sined Wall-mounted Electric Fireplaces - User Manual Models :...
Page 2 This appliance is intended to be used in household and similar applications such -staff kitchen areas in shops, offices and other working environments, -farm houses, -by clients in hotels, motels and other residential type environment,- -bed and breakfast type environment -areas for communal use in blocks or flats or in launderettes WARNING: 1.
Page 3 reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 21. Children should be supervised to ensure that they do not play with the appliance.
Page 4 Unpacking Operation 4 / 16...
Page 5 The product must be handled with care to avoid breaking the glass, we recommend placing the fireplace on a carpet during assembly and not directly on the floor Shape and dimensions (mm) Product size list (mm) Model Length Height Depth CAMINETTO-PARETE-BIANCO CAMINETTO-PARETE-STELVIO 1280 CAMINETTO-PARETE-APRICA 1520 CAMINETTO-PARETE-PORDOI 1830 5 / 16...
Page 6 Installation Instructions Check the position of the dowel holes in the wall to which the hearth is to be fixed, it is the responsibility of the installer to use dowels suitable for the type of wall and the weight of the hearth if necessary use dowels other than those supplied.
Page 7 Anterior functional area: Attention: this fireplace model is designed to be hung on a wall, it is not a built-in model! If you require a model to be embedded in a wall or cabinet we have specially designed and tested models available Safety tip: To avoid fire, do not place anything within 100 mm above the upper hot air outlet grille 7 / 16...
Page 8 Configuration Information Product Name Electric Fireplace Operation mode Manual/Remote control Rated Voltage 220-240V~ Rated Frequency: 50/60Hz Viewing Power 10W-300W Rated Power High:1500W; Low: 750W Infrared remote control Manual key Adjustable flame Basic Heating function Single-color flame Multi-color flame Crystal Optional Cobblestone DIY fake log Safety Certification...
Page 9 Manual button operation Manual button operation Symbol Name Description On-off Turn on/off the machine Temper Adjust temperature 19-30℃ Timer Timing: 30min-1h-2h-3h-4h-5h-6h-7h-8h- 30min Flame 1-6 levels flame 9 / 16...
Page 10 Remote Control Functions Attention: Remote control buttons with crossed out symbols \ are not active in these models 10 / 16...
Page 11 Digital control screen in the fireplace 11 / 16...
Page 12 Remote Control Operation On/Off Press this button to turn on with F1 on screen. Press this button to turn off with nothing on screen. This button no function Adjust flame brightness Default F1. F1-F2-F3-F4-F5-F6-F1. The number corresponds to flame brightness. Display Brightness 100%...
Page 13 Timer It’s disabled by default. Short pressing will adjust the timer range from 30Min-1H-2H-3H-4H-5H-6H-7H-8H-30Min. The symbol light is on by default. This button no function Day timer There is a timing function. When turning on the fireplace, the timer icon light will be on.
Page 14 Week timer It has a week timing switch function. 1. First press “WEEK TIME” button, the week icon will turn the current time to SUN(Sunday) and flash. The icon of clock and ON will flash at the same time. 2. Set the startup time of the day. Press “HOUR” button to set starting up hour, press “MIN”...
Page 15: Troubleshooting
alarm reminder. This button has No function Troubleshooting Symptom Probable Causes Solution Poor contact between plug and Connect the plug correctly or change it socket Power is off Turn on Not Work Turn off power, natural cooling for Protector overheats 15min.
Page 16 Made in China Imported into Italy by M.P.C. srl Via Tortona 20144 Milano Italia Tel +39 02 21117815 e-mail info@mpcshop.it sito web www.sinedtechnology.com The SINED trademark and the SINED logo are registered by Sined Ventas Online S.L.U. EUTM 018196373 16 / 16...

This manual is also suitable for:

Caminetto-parete-stelvio Caminetto-parete-aprica Caminetto-parete-pordoi
