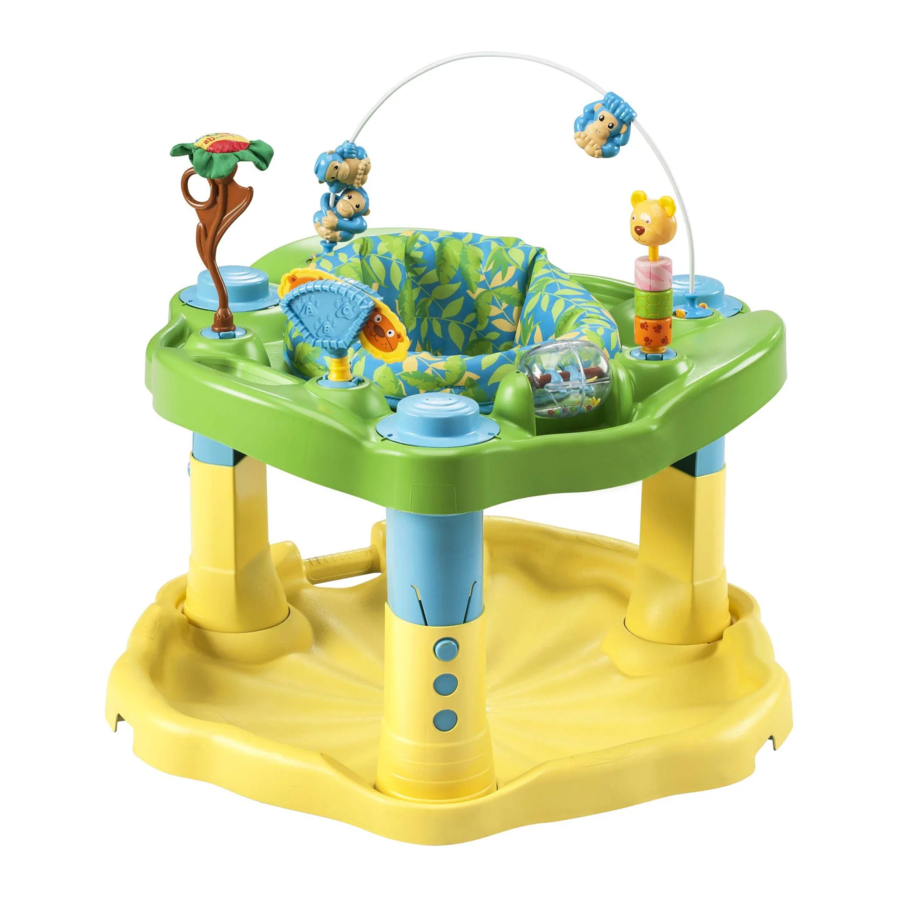

Evenflo Exersaucer ZOO FRIENDS - Activity Center Manual

Unpacking

(1) Hardware Kit Bag
1 Instructions
3 Large springs
6 Seat Wheels
3 Stabilizer Feet

(1) Toy Kit Bag
5 Toys
1 Mirror
3 Spring Domes

Assembling the ExerSaucer

1. Turn ExerSaucer base upside down and locate three (3) stabilizer feet . Insert one side of foot into the foot bracket hole and twist the foot until the other side snaps into the opposite hole . Repeat until all three (3) stabilizer feet are installed.

   To use stabilizer feet:
   Flip the three (3) stabilizer feet out from beneath base to prevent ExerSaucer from rocking.
2. Place seat ring upside down and locate the wheel holders . Snap six (6) seat wheels into wheel holders, as shown.

3. Turn seat ring right side up.
   Align the triangle on the back of the seat ring with the triangle on the seat pad label.
   Snap the plastic tabs on the pad over the pegs on the seat ring.
   Continue this process until all tabs are attached to all pegs, then push the seat pad down inside the seat ring.

4. Press assembled seat ring down firmly onto the top of the tray until it snaps into place and spins freely.

5. Locate three lower legs and the base . Align the tabs on the lower legs with the slots in the base, then snap the lower legs onto the base. Repeat for all three lower legs.

   Note: Make sure the tabs on the lower legs have locked completely into the base, as shown, by moving the legs from side-to-side. If they are not completely locked in place, repeat this step until they are locked securely.
6. Locate the tray and three spring domes . Place each spring dome onto the tray over each leg opening, as shown. Press the spring dome downward while turning until it locks into place.

   If you don't line up the alignment guides properly, the spring dome may come off of the tray and cause injury.
   Make sure the alignment guides line up properly, as shown.

7. Turn the tray over and place three large springs into the center of each spring dome .

8. Insert three upper legs over the springs and onto the tray. Twist each upper leg, as shown. Make sure height adjustment button is facing outward.
   After all three upper legs are installed, turn tray over to the upright position.

9. Align and start each upper leg into the lower leg . Push button and guide upper leg into lower leg until upper leg snaps into place.

   To adjust height:
   ALWAYS remove baby from ExerSaucer before adjusting. Push button until the desired height is obtained. Make sure that all three legs are adjusted to the same position.

   • During use, allow the baby's toes only to touch the base. DO NOT allow the baby to stand flat-footed on the base. As baby grows and becomes more active, raise the tray to the next level so that baby enjoys the most comfortable fit and maximum use of the rock, spin, and bounce features.
   • Stop using the ExerSaucer when your child can stand flat-footed when adjusted to its highest level.

Attaching the Toys

Care and Maintenance

Machine wash pad in cold water, delicate cycle. Tumble dry, low heat for 10 to 15 minutes. DO NOT use harsh detergents or bleach. DO NOT dry clean. Wipe plastic parts with mild soap and water.

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

• NEVER leave child unattended.
• ALWAYS keep child in view while in the ExerSaucer®.
• Read all instructions before assembly and use of the ExerSaucer.
• Keep instructions for future use.
• Keep children away from unassembled product.
• Adult assembly required. Take care when unpacking and assembling; contains small parts and some items with sharp edges.
• To prevent a possible choking hazard, remove and immediately discard packing material before using this product.
• STRINGS CAN CAUSE STRANGULATION!
  • DO NOT place the ExerSaucer anywhere near cords from window blinds, draperies, phone, etc.
  • DO NOT place items with a string around your child's neck such as hood strings or pacifier cords.
  • DO NOT suspend strings over product or attach strings to toys.
• NEVER use near stairs or steps.
• NEVER use ExerSaucer near ranges, radiators, space heaters, and fireplaces.
• NEVER use ExerSaucer in or near swimming pools or other bodies of water.
• DO NOT fill the ExerSaucer tray with water.
• DO NOT fold or adjust height while baby is sitting in ExerSaucer.
• DO NOT use the ExerSaucer if any parts are missing or broken.
• NEVER use as a sled.
• DO NOT allow child to sleep in ExerSaucer.
• DO NOT spin baby in seat. Only permit baby to rotate the seat.
• For use by children who are at least 4 months old AND can hold up their head and neck unassisted.
• Stop using ExerSaucer when your child reaches any of the following developmental stages:
  • Can walk by himself/herself.
  • Is over 30" (76 cm) tall.
  • Can climb out of the product.
  • Can stand flat-footed in the ExerSaucer in the highest adjustment level.
• Allow only the baby's toes to touch the base. DO NOT allow the baby to stand flat-footed on the base.
• DO NOT use or store this product outdoors.
• To avoid tip-over, place product on flat, level floor.

Registration Information

Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our online registration at: www.evenflo.com/registerproduct.
