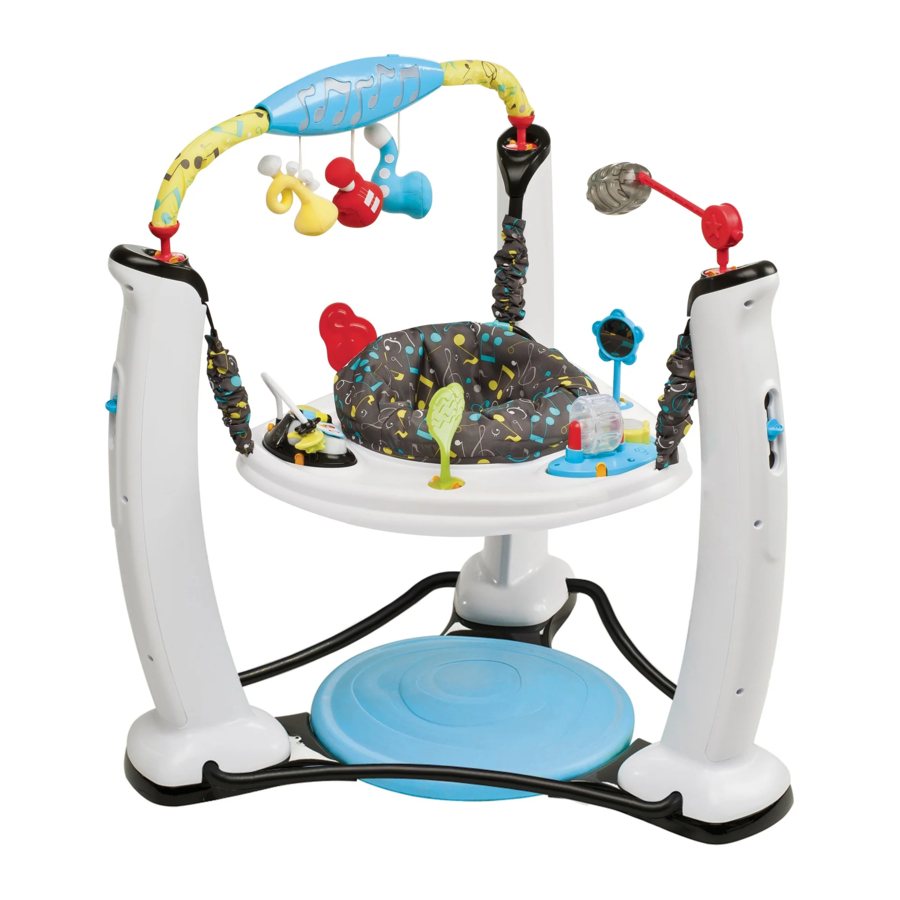

Evenflo Exersaucer Jam Session - Activity Center Manual

Unpacking

(1) Hardware Kit Bag
1 Instructions
3 8-16 x 75 mm Screws
15 8-16 x 18 mm Screws

(1) Toy Kit Bag
4 Bags of Toys

Tools Required

Phillips Screwdriver

Tighten all screws until snug; do not overtighten. Use only screws provided.
DO NOT USE POWER TOOLS.

Assembling the ExerSaucer

1. Locate two stabilizer tubes and one pylon . Turn the pylon upside down and insert one end of each stabilizer tube into the bottom of the pylon , as shown. Make sure both stabilizer tubes are fully inserted into the bottom of the pylon.

2. Insert a foot into the bottom of the pylon , as shown. Secure with one 8-16 X 75 mm screw and five 8-16 X 18 mm screws . Tighten all five screws securely but do not overtighten. DO NOT USE POWER TOOLS.


   The foot MUST sit completely flat in the bottom of the pylon. If it is raised on either end, then one of the stabilizer tubes is not installed correctly or is not fully inserted. If this is the case, remove the stabilizer tube and reinstall until the foot fits over it correctly.
3. Locate the other two pylons . One at a time, turn them upside down and completely insert the end of a stabilizer tube in each pylon, as shown.

   Make sure the stabilizer tubes are fully inserted into the bottom of each pylon.
4. Locate the third stabilizer tube and insert into both pylons , as shown.

   Make sure the stabilizer tube is fully inserted into the bottom of each pylon.

5. Insert a foot into the bottom of each pylon , as shown. Secure each foot with one 8-16 X 75 mm screw and five 8-16 X 18 mm screws . Tighten all 12 screws securely but do not overtighten. DO NOT USE POWER TOOLS.

   Each foot MUST sit completely flat in the bottom of the pylon. If it is raised on either end, then one of the stabilizer tubes is not installed correctly or is not fully inserted. If this is the case, remove the stabilizer tube and reinstall until the foot fits over it correctly.
6. Turn the pylon assembly upright, as shown.
   Locate the base and place it in the center of the ExerSaucer. Insert each tab on the base into each foot , as shown.

7. Place seat ring upside down and locate the wheel holders . Snap four seat wheels I into wheel holders, as shown.

8. Turn seat ring right side up. Align the two triangles on the back of the seat ring with the two triangles on the label on the seat pad .
   Snap the plastic tabs on the pad over the pegs on the seat ring. Continue this process until all tabs are attached to all pegs.

9. Press assembled seat down firmly onto the top of the tray until it snaps into place and spins freely.

10. Lean the tray assembly against one of the pylons, as shown.

11. Insert a strap through a strap slot in the tray . Pull the strap completely through the tray making sure the strap anchor lies flat against the bottom of the tray, as shown. Repeat for the other two straps.


To prevent injury, make sure all three strap anchors are completely inserted and resting against the bottom of the tray.

Attaching the Toys

During use, allow the baby's toes only to touch the base. DO NOT allow the baby to stand flat-footed on the base. As baby grows and becomes more active, raise the tray to the next level so that baby enjoys the most comfortable fit and maximum use of the spin, and bounce features. Discontinue use when baby can stand flat-footed at the highest setting.

ALWAYS remove baby from ExerSaucer before adjusting. Unlock the adjustment knob by turning to the right, then moving until the desired height is obtained (there are three positions). Turn the adjustment knob to the left to lock in place. Repeat the adjustment on the other two pylons. Note: Make sure that all three legs are adjusted to the same position.

Always make sure the adjustment knobs are locked in position before placing the child in the activity center.

Care and Maintenance

For Plastic Parts:
Wipe surface clean with cloth slightly moistened with mild soap and water. Allow to air dry.

For Seat Pad:
Machine Wash Separately, Cold Water – Delicate Cycle. NO CHLORINE BLEACH.
Tumble Dry: 10 – 15 Minutes on Low Heat – Remove Immediately.
If musical toys fail to operate, check the batteries. Note: ONLY the AAA batteries are replaceable. Dispose of old batteries safely.
DO NOT use this product if any parts are damaged, broken, or missing and call Evenflo ParentLink at 1-800-233-5921 (U.S.A.), 1-937-773-3971 (Canada), or 01-800-706-12-00 (Mexico).

Battery Information

Battery life varies with use. For best results, use alkaline batteries. Safety Information: Batteries are small objects. Batteries must be replaced by adults. Follow the polarity (+/-) diagram in the battery compartment.

• DO NOT mix old and new batteries.
• DO NOT mix alkaline and standard (carbon-zinc) batteries. Use only batteries of the same or equivalent type.
• DO NOT dispose of batteries in fire, as batteries may explode or leak.
• DO NOT use rechargeable batteries.
• DO NOT recharge non-rechargeable batteries.
• Promptly remove old batteries from the toy.
• Remove batteries before storing unit for a prolonged period of time.
• The supply terminals are not to be short-circuited.

Troubleshooting

Toy does not turn on or does not respond

• Make sure batteries are installed correctly.
• Make sure battery cover is correctly secured.
• Install new batteries.

Toy makes improper responses

• Check or install new batteries.

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

FALL HAZARD!
Babies can FALL from product resulting in head injuries.

• NEVER leave child unattended. Always keep child in view while in product.
• NEVER use near stairs, ranges, space heaters, fireplaces, swimming pools, or anything else that could hurt your child.
• To avoid tip over, place product on a flat, level surface.
• DO NOT use with children who can walk.
• DO NOT allow baby to stand flat-footed on the base or on the floor.

STRANGULATION HAZARD!
Strings can cause STRANGULATION.

• DO NOT place items with a string around child's neck, such as hood strings or pacifier cords.
• DO NOT suspend strings over product or attach strings to toys.

For use with children who can hold up head and neck unassisted (at least 4-5 months of age).
DO NOT fill this product with water.

• Read all instructions before assembly and use of the ExerSaucer.
• Keep instructions for future use.
• Keep children away from unassembled product.
• Adult assembly required. Take care when unpacking and assembling; contains small parts and some items with sharp edges.
• To prevent a possible choking hazard, remove and immediately discard packing material before using this product.
• DO NOT adjust height while baby is sitting in ExerSaucer.
• DO NOT use the ExerSaucer if it is damaged, broken, or is missing any parts.
• NEVER use as a sled.
• DO NOT allow child to sleep in ExerSaucer.
• DO NOT spin baby in seat. Only permit baby to rotate the seat.
• For use by children who are at least 4 months old AND can hold up their head and neck unassisted.
• Stop using ExerSaucer when your child reaches any of the following developmental stages:
  • Is over 30" (76 cm) tall;
  • Can stand flat-footed in the ExerSaucer in the highest adjustment level;
  • Can climb out of the product.
• DO NOT use or store this product outdoors.
• To avoid tip over, place product on flat, level floor.
• DO NOT mix old and new batteries.
• DO NOT mix alkaline and standard (carbon-zinc) batteries. Use only batteries of the same or equivalent type.
• DO NOT dispose of batteries in fire, as batteries may explode or leak.
• DO NOT use rechargeable batteries.
• DO NOT recharge non-rechargeable batteries.
• Promptly remove old batteries from the toy.
• Remove batteries before storing unit for a prolonged period of time.

Registration Information

Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our on-line registration at
http://plweb.evenflo.com/productreg.aspx

www.evenflo.com
USA: 1-800-233-5921 8 AM – 5 PM E.T.
Canada: 1-937-773-3971
México: 01-800-706-12-00
