USE AND CARE GUIDE

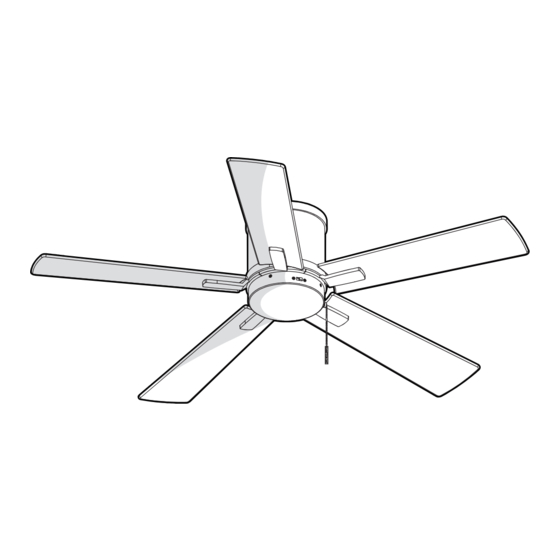

INDOOR/COVERED OUTDOOR CEILING FAN
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Hampton Bay!
48 IN. GRANTWAY
call Hampton Bay Customer Service
1-855-HD-HAMPTON
HAMPTONBAY.COM
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
THANK YOU
Item #1009 701 722
1009 757 063
1009 697 761
Model #RD5114B-BN
RD5114B-MBK
RD5114B-MWH
Advertisement
Related Manuals for HAMPTON BAY GRANTWAY 48 RD5114B-BN
Summary of Contents for HAMPTON BAY GRANTWAY 48 RD5114B-BN
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........Assembly . -
Page 3: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut Blade attachment screw and ber washer Pull chain and fob...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting plate Blade arm Fan motor assembly Switch housing mounting plate Motor housing Switch housing Blade HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
-
Page 6: Installation
Installation MOUNTING OPTIONS Hanger Bar WARNING: To reduce the risk of re, electric shock, or personal injury, mount the fan to an outlet box marked acceptable for fan support using the screws provided with the outlet box. An outlet box commonly used for the support of lighting xtures may not be acceptable for fan support and may need to be replaced. -
Page 7: Assembly
Assembly — Hanging the Fan Attaching the mounting plate to the Hanging the fan from the mounting electrical box plate Carefully lift the fan motor assembly (B) up to the WARNING: To reduce the risk of re, electric shock or mounting plate (A) and hang the fan on the hook (DD) other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and... - Page 8 Assembly — Hanging the Fan (continued) Making the electrical connections Ground WARNING: To avoid possible electrical shock, be sure Neutral conductor electricity is turned off at the main fuse box before wiring. Black White WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
- Page 9 Assembly — Hanging the Fan (continued) Attaching the motor housing to the Finishing the fan installation mounting plate Move the fan motor assembly (B) into position over the four Raise the motor housing (C) up against the mounting plate (A). mounting plate studs (FF) and secure with the provided nuts The four supports (HH) inside the motor housing (C) should and washers (GG).
- Page 10 Assembly — Attaching the Fan Blades Attaching the blades to the blade Fastening the blade assemblies to the arms motor NOTE: Your fan blades are reversible. Select the blade side WARNING: To reduce the risk of personal injury, do not bend nish which best accentuates your decor.
- Page 11 Assembly — Installing the Switch Housing Attaching the switch housing Attaching the switch housing to the mounting plate to the mounting ring switch housing mounting plate CAUTION: Before starting installation, disconnect the power CAUTION: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at the by turning off the circuit breaker or removing the fuse at the fuse box.
-
Page 12: Operation
Operation Installation PULL CHAIN OPERATING INSTRUCTIONS Attach the pull chain and fob (CC) to the pull chain located on the switch housing (G). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off. -
Page 13: Care And Cleaning
Care and Cleaning Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling. Clean your fan periodically. - Page 14 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
