Connecting Connecting a a a a Cable or Satellite Box
Connecting Connecting

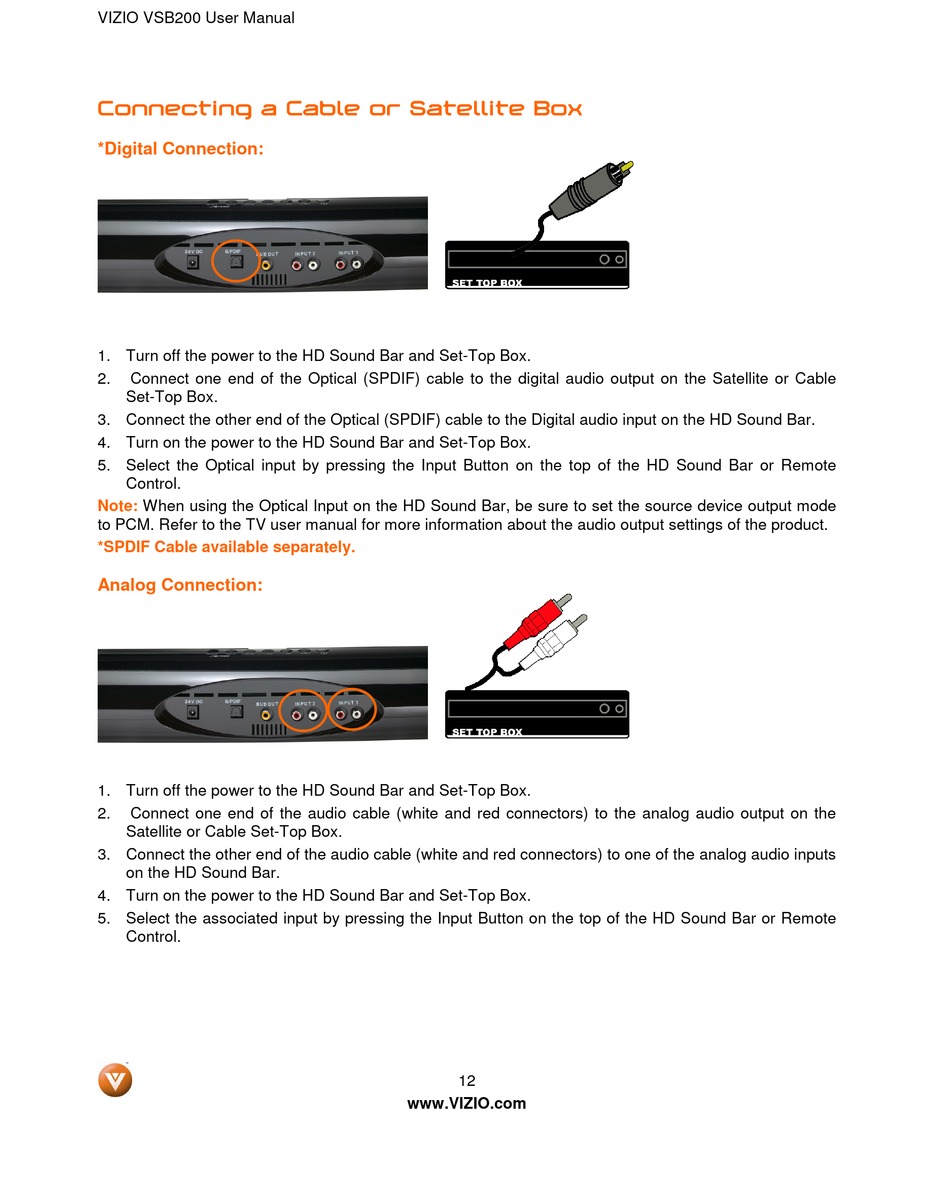

*Digital Connection:
1. Turn off the power to the HD Sound Bar and Set-Top Box.
2. Connect one end of the Optical (SPDIF) cable to the digital audio output on the Satellite or Cable
Set-Top Box.
3. Connect the other end of the Optical (SPDIF) cable to the Digital audio input on the HD Sound Bar.
4. Turn on the power to the HD Sound Bar and Set-Top Box.
5. Select the Optical input by pressing the Input Button on the top of the HD Sound Bar or Remote
Control.
Note: When using the Optical Input on the HD Sound Bar, be sure to set the source device output mode
to PCM. Refer to the TV user manual for more information about the audio output settings of the product.
*SPDIF Cable available separately.
Analog Connection:
1. Turn off the power to the HD Sound Bar and Set-Top Box.
2. Connect one end of the audio cable (white and red connectors) to the analog audio output on the
Satellite or Cable Set-Top Box.
3. Connect the other end of the audio cable (white and red connectors) to one of the analog audio inputs
on the HD Sound Bar.
4. Turn on the power to the HD Sound Bar and Set-Top Box.
5. Select the associated input by pressing the Input Button on the top of the HD Sound Bar or Remote
Control.
Cable or Satellite Box
Cable or Satellite Box Cable or Satellite Box
