Connecting a TV

Connecting

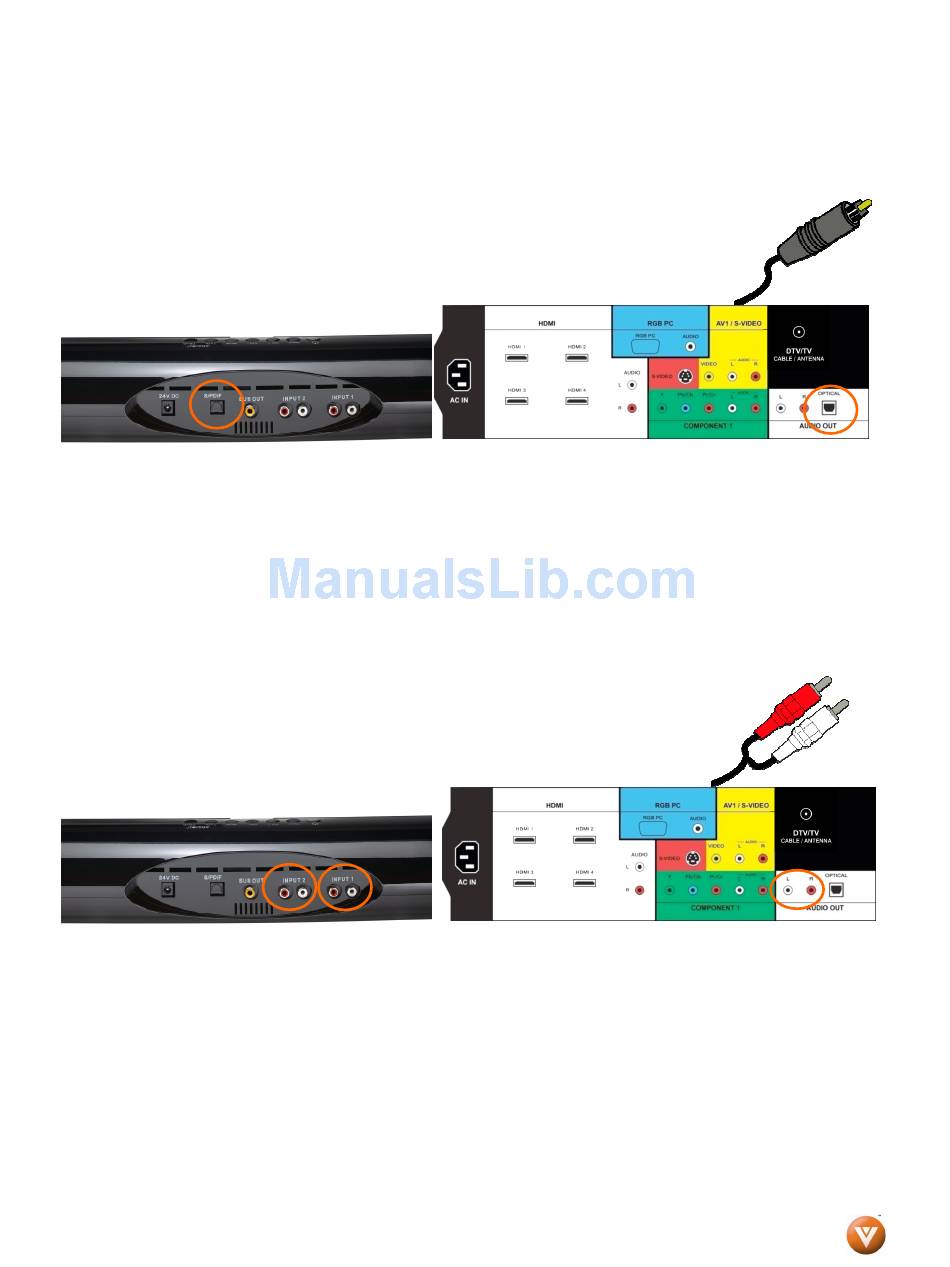

*Digital Connection:
If your TV has a SPDIF (optical) digital audio output, you can connect it to the OPTICAL AUDIO IN on the
HD Sound Bar
1. Turn off the power to the HD Sound Bar and TV.
2. Connect one end of the Optical (SPDIF) cable to the digital audio output on the TV.
3. Connect the other end of the Optical (SPDIF) cable to the Digital audio input on the HD Sound Bar.
4. Turn on the power to the HD Sound Bar and TV.
5. Select the Optical input by pressing the Input Button on the top of the HD Sound Bar or Remote
Control.
Note: When using the Optical Input on the HD Sound Bar, be sure to set the source device output mode
to PCM. Refer to the TV user manual for more information about the audio output settings of the product.
*SPDIF Cable available separately.
Analog Connection:
1. Turn off the power to the HD Sound Bar and TV.
2. Connect one end of the audio cable (white and red connectors) to the analog audio output on the TV.
3. Connect the other end of the audio cable (white and red connectors) to one of the analog audio inputs
on the HD Sound Bar.
4. Turn on the power to the HD Sound Bar and TV.
5. Select the associated input by pressing the Input Button on the top of the HD Sound Bar or Remote
Control.
