  • Page 1 OPERATION MANUAL AI-JU SERIES TUNNEL FANS...

  • Page 2: Table Of Contents

    SPECIAL WARRANTY CONDITIONS .............. 9 USER RESPONSIBILITIES AND WARRANTY ..........10 PRODUCT INFORMATION ................11 PRODUCT DESCRIPTION ................ 11 AIRONN AIR-JU SERIES FAN LABEL ............12 AREA OF USE ..................13 PACKAGING CONTENT ................13 GENERAL NOTES ABOUT THE MACHINE ..........14 ABBREVIATIONS ..................
  • Page 3 STORAGE OF THE PRODUCT ..............26 ASSEMBLY INSTRUCTIONS ................ 28 ELECTRICAL CONNECTION INSTRUCTIONS ..........31 ELECTRICAL CONNECTION DIAGRAM ............ 35 PRODUCT USE ................... 36 1-MANUAL OPERATION ................ 36 2-USE WITH AUTOMATION ..............36 MAINTENANCE INFORMATION ..............37 PERIODIC MAINTENANCE ..............37 POSSIBLE FAULTS AND REMEDY ............

  • Page 4: List Of Figures

    LIST OF FIGURES Figure 1: Tunnel Fan Series ____________________________________ 12 Figure 2: Example of Tunnel Fan Series Label _____________________ 12 Figure 3: Warning labels on the machine ________________________ 16 Figure 4 : Detail of Tunnel Fan Suspension Apparatus _______________ 29...

  • Page 5: Company Information

    COMPANY INFO AIRONN HAVALANDIRMA VE KLİMA SİSTEMLERİ SAN. DIŞ TİC. LTD. ŞTİ HEAD OFFICE : ÇAMLIK MAH. SENOL GÜNEŞ BULVARI NO: 28/A ÜMRANİYE/İSTANBUL FACTORY : KARATEPE MAH. CUMHURIYET CAD. MERA SOK. N0:13 KARTEPE/KOCAELİ TEL / FAX : +90 216 594 5696 / +90 216 594 5717 www.aironn.com.tr...

  • Page 6: Warranty And Service

    Document validated by an Authorized Retailer. 2. Follow the instructions in the user manual while using your product. This warranty provided by AIRONN Ventilation does not cover the elimination of malfunctions caused by using the product other than the instructions specified in the user manual. In addition, the following situations are also excluded from the warranty: 1.
  • Page 7 6. Any alterations made to the Warranty Document, removal or modification of the original serial number on the product renders the Warranty Document invalid. A I R - A U S E R I E S Page 6...

  • Page 8: Warranty Conditions

     All parts on the product are under warranty under the assurance of AIRONN Ventilation.  In case of a possible malfunction of the product, the repair cannot exceed 20 working days and the repair period is added to the warranty period.
  • Page 9  In the event that it fails at least 4 (four) times within a year, or 6 (six) times within the warranty period determined by the manufacturer or importer, provided that it is within the specified warranty period from the moment it is delivered to...

  • Page 10: Special Warranty Conditions

    SPECIAL WARRANTY CONDITIONS 1. Our company is not responsible for the damage that may occur during the transportation and installation of the customer. 2. Failures that may occur during the warranty period are only repaired by our company's service personnel or service personnel who have received the necessary training and are authorized by us.

  • Page 11: User Responsibilities And Warranty

    USER RESPONSIBILITIES AND WARRANTY AIRONN cannot be held responsible in any way for the following, except for those included in this user manual.  From any use not permitted by laws and norms.  Inappropriate and unsuitable area and structure where the machine will be used ...

  • Page 12: Product Information

    PRODUCT INFORMATION PRODUCT DESCRIPTION In tunnels, jet fans serve in 2 situations as daily ventilation and emergency (fire) moment ventilation. In the event of a fire, jet fans are to carry the smoke generated at the fire source out of the tunnel and help the people inside to evacuate during this time.

  • Page 13: Aironn Air-Ju Series Fan Label

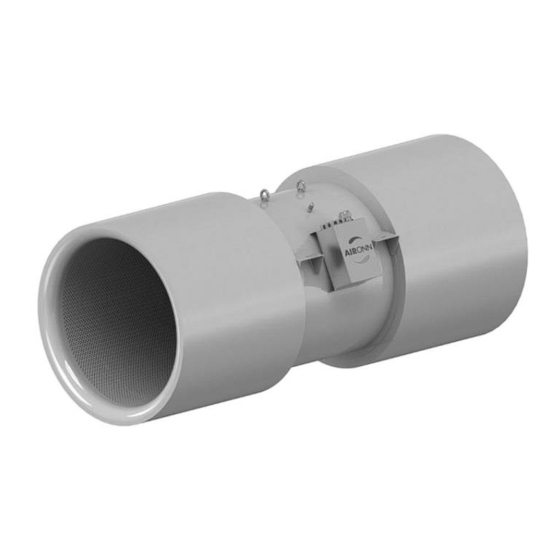

    Figure 1: Tunnel Fan Series AIRONN AIR-JU SERIES FAN LABEL Figure 2: Tunnel Fan Series Label Example A I R - A U S E R I E S Page 12...

  • Page 14: Area Of Use

    AREA OF USE AIR-JU Series Tunnel Fans serve in 2 situations as daily ventilation and emergency (fire) moment ventilation. In the event of a fire, jet fans are to carry the smoke generated at the fire source out of the tunnel and help the people inside to evacuate during this time.

  • Page 15: General Notes About The Machine

    GENERAL NOTES ABOUT THE MACHINE All modification works on the machine other than authorized personnel are prohibited. The manufacturer does not allow any misuse without its permission. If the instructions given in the user manual are not followed, no danger, damage or any situation will occur.

  • Page 16: Abbreviations

    ABBREVIATIONS AIR – XX / XXX – XX – XX / XX – X – XX / – XXX-X Fire Resistance Class Motor Frequency (Hz) Number of Motor Poles (P) Motor Power (kW) Fan Blade Angle (⁰) Number of Blades...

  • Page 17: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS **In this section, the safety instructions that must be followed during the transportation, installation, use, maintenance and scrapping of the machine are given. WARNING LABELS ON THE MACHINE Electricity Attention Rotating Available Machine Alert Handtrapping Grounding...

  • Page 18: During Handling And Shipping

    DURING HANDLING AND SHIPPING In order for your product not to suffer any damage during transportation;  While packaging the product, care was taken to ensure that it was suitable for normal transportation conditions. It should always be transported in its original package to avoid possible damage or injury.
  • Page 19  The product should be checked for damage during transportation. If there are missing or damaged part(s), immediately verbally and in writing to the shipping company and Aironn Logistics Department officer should be informed.  When receiving the devices in the field, check on the delivery note that the parts (vibration mount, counter flange, etc.) that are shipped separately...
  • Page 20 4- After all safety conditions are met, the removal process should be started. 5- Never stand under or near the lifted load. 6- Any protruding part on the device should not be used as a fulcrum to carry the device to the platform. To transport the device to the platform, only the eyebolts fixed to the device for the purpose of carrying it or the large holes in the base base should be used.
  • Page 21 PLACING ANY MATERIAL, TOOLS OR LOAD ON THE PRODUCTS IS PROHIBITED! ** AIRONN cannot be held responsible for any negative situation that may arise during the transportation of the product. A I R - A U S E R I E S...

  • Page 22: During Installation And Placement

    DURING INSTALLATION AND PLACEMENT Follow the safety instructions below during installation and placement;  The products should be transported safely to the place where they will be used in the enterprise with suitable vehicles.  Products should be lowered to the floor slowly and in the correct position.

  • Page 23: During The Operation

     When the machine is decommissioned and shipped to another location, it must be handled in accordance with the handling and shipping instructions. DURING THE OPERATION The machine described in the user manual has been manufactured according to the appropriate principles, taking into account the applicable law.

  • Page 24: During Maintenance

    DURING MAINTENANCE During the periodical maintenance of the machine, signs with the warning statement 'machine is in maintenance' should be placed on the machine and in the area where the maintenance is performed. Maintenance operations should only be carried out by trained and competent personnel.
  • Page 25 THE ELECTRICAL CONNECTION OF THE MACHINE MUST BE DISCONNECTED COMPLETELY BEFORE STARTING THE MAINTENANCE PROCESS! MAINTENANCE OR REPAIR SHOULD NEVER BE DONE WHILE THE MACHINE IS WORKING! ** While some parts of the machine are routinely checked and maintained, the machine may need to be in working condition. In this case, if the engineer, maintenance person or technician leaves the machine, the machine must be shut down.

  • Page 26: During Scrap

    DURING SCRAPING All parts of the machine are made from recyclable materials. Thus, all parts can be reused as raw materials. No materials that could harm human health were used in the production of the machine. When the machine has completed its service life, it can be separated down to the smallest component and safely sent to the relevant recycling facilities.

  • Page 27: Storage Of The Product

    STORAGE OF THE PRODUCT Follow the instructions below when storing the product after receipt.  It should be ensured that the product is protected against all weather conditions by covering it with a tarpaulin.  The product should be stored in a closed area without being unpacked until it is time for assembly.
  • Page 28 General warning; The product is shipped from our factory either wrapped in stretch film on a pallet or in a box. If water enters between the stretch film on the product delivered to the customer or stored in the assembly area, the product faces the risk of corrosion.

  • Page 29: Assembly Instructions

    Installing the fan in its place and bringing it to its balance must be done by qualified personnel only. Incorrect mounting or fan base may cause malfunctions. In these cases, the products are not commissioned by Aironn authorized personnel and the products are excluded from the warranty. ...

  • Page 30: Figure 4: Detail Of Tunnel Fan Suspension Apparatus

    Figure 4: Detail of Tunnel Fan Suspension Apparatus A I R - A U S E R I E S Page 29...

  • Page 31: Figure 5: Installation Detail Of Tunnel Fan Connection Apparatus

    Figure 5: Installation Detail of Tunnel Fan Connection Apparatus Figure 6: Tunnel Fan Connection Type A I R - A U S E R I E S Page 30...

  • Page 32: Electrical Connection Instructions

    ELECTRICAL CONNECTION INSTRUCTIONS  Before electrical wiring is connected, the existing electricity must be disconnected directly from the source.  When mounting the apparatus, it must be ensured that the assembly elements have the capacity to carry the weight of the product and that all connections are made correctly.
  • Page 33  Before connecting the apparatus, it should be checked that the main power supply is turned off, even if the product is not working.  The electrical connection information (frequency, voltage, power, etc.) specified on the product must match the electrical connection information at the place of installation.
  • Page 34 When you run your product for the first time;  After disconnecting the electricity from the source, make sure that the electrical connections of the product are made safely and correctly.  Carefully check if the safety equipment is properly connected.

  • Page 35: Figure 7: ∆ Connection

    Motor power PN ≤ 3 kW PN > 3 kW Way of Giving 3 ~ 400V 3 ~ 400V Direct Connection Y - Connection (15b) ∆ - Connection (15a) Y / ∆ - Connection Impossible Remove bridges (15c) Table 1: Electrical connection table according to engine power Figure 7: ∆...

  • Page 36: Electrical Connection Diagram

    ELECTRICAL WIRING DIAGRAM A I R - A U S E R I E S Page 35...

  • Page 37: Product Use

    USE OF THE PRODUCT Tunnel Fans have easy-to-use features. These usage features vary according to the wishes of the users. These; 1- Manual operation 2- Use with automation 1-MANUAL USE With manual use, it is possible to use the product by operating from a switch or fuse.

  • Page 38: Maintenance Information

    MAINTENANCE INFORMATION PERIODIC MAINTENANCE Simple anomalies may require simple maintenance interventions while the machine is starting to separate. Although these interventions are simple, they can be done by the operator. More complex interventions should be performed by trained caregivers. Other complex interventions must be carried out by the manufacturer's technical service.
  • Page 39  The product should never come into direct contact with water or pressurized water. **AIRONN company does not take any responsibility for malfunctions and personnel safety caused by a reason contrary to this booklet . A I R - A U S E R I E S...

  • Page 40: Possible Faults And Remedy

    **Electrical maintenance of the machine must be carried out regularly by trained specialist personnel on a daily, weekly, monthly and semi-annual basis. POSSIBLE FAULTS AND THEIR REMEDIES MEKANİK ARIZALAR ARIZA NEDEN ÇÖZÜM Civata ve somunların torkla sıkılması Civata ve somun gevşemeleri Vibrasyona maruz kalmak kendinden flanşlı...

  • Page 41: Table 3: Possible Electrical Faults And Their Elimination

    ELEKTRİKSEL ARIZALAR ARIZA NEDEN ÇÖZÜM Düzensiz elektrik, istenilen düzeyde genlik İşletme görevlisinin enerji nakil hattını sağlanamaması. Motor elektrik klemens Voltaj arızası regüle etmesi veya faz dağılımını eşit bağlantılarında gevşeme, pano ve panodan dağıtması sonraki hatlarda düzensizlik Motorun devreye girmemesi Yıldız veya üçgen bağlantılarının olmaması...

  • Page 42: Warranty Document

    WARRANTY CERTIFICATE MANUFACTURER OR IMPORTER COMPANY AIRONN HAVALANDIRMA VE KLİMA SİSTEMLERİ TITLE SAN. DIŞ TİC. LTD. ŞTİ ÇAMLIK MAH. SENOL GÜNEŞ BULVARI NO: 28/A ADDRESS ÜMRANİYE/İSTANBUL TEL / FAX (0216) 594 5696 / (0216) 594 5717 SIGNATURE AND STAMP OF THE...
