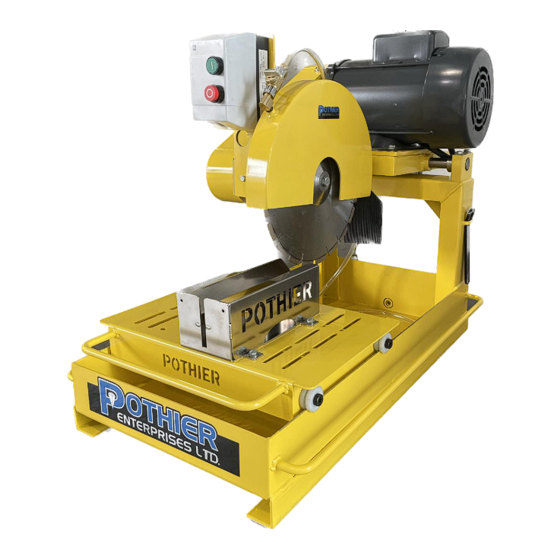

14” core cutting saws
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATING INSTRUCTIONS, PARTS
LIST & USER MANUAL
PE2 – 14" Core Cutting Saws

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PE2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pothier PE2

Summary of Contents for Pothier PE2

  • Page 1 OPERATING INSTRUCTIONS, PARTS LIST & USER MANUAL PE2 – 14” Core Cutting Saws...
  • Page 2 CORE CUTTING PROCEDURE (ELECTRIC MOTOR) (#PE2 - 14” CORE CUTTING SAW) A) MOUNT SAW BLADE SO IT TURNS IN DIRECTION OF ARROW. B) LOWER BLADE SO CUTTING EDGE IS BELOW THE OPEN SLOT IN THE CORE CUTTING BRACKET. C) TURN SAW SWITCH TO ON POSITION.
  • Page 3 APPLICATION CHART FOR CORE CUTTING BLADES MODEL #VHC24 SEGMENTED USED FOR CUTTING VERY HARD CORE, SUCH AS CHERT, JASPERITE, QUARTZITE, HARD GRANITES, ETC. IF YOU USE THIS BLADE FOR CUTTING SOFTER CORE, IT MAY WEAR OUT PREMATURELY. MODEL #HC44 SEGMENTED OR #CCRB14P CONTINUOUS RIM USED FOR CUTTING HARD CORE, SUCH AS RHYOLITE, GRANITE, SILICIFIED VOLCANICS, ETC.

  • Page 4: Fitting The Blade

    NOTICE WARNING! Note that Blade Shaft Cap screw (BB) has RIGHT • Pothier “Wet” diamond blades MUST be used HAND THREADS. Installation of the wrong cap screw could damage the blade shaft! with water! • If cutting without water, use only diamond blades that are intended to be used dry (without water).

  • Page 5: Stopping The Machine

    OPERATION Start / STOP of Machine: • Start the electric motor by turning the Power Switch (RR) To the “ON” position. • Open the Water Valve (T) fully, and check the water flow before cutting. • Cut the material using one of the Cutting Methods described In the above section.
  • Page 6 ITEM QTY PART NO DESCRIPTION PS00100 TURNBUCKLE PS00101 SHEAVE 4.25 In O.D. DOUBLE PULLEY PS00108 SHOULDER BOLT, 3/4” LONG SHOULDER LENGTH PS00109 SHOULDER BOLT, 1” LONG SHOULDER LENGTH PS00111 CART WHEEL ASSEMBLY c/w 3/8” JAMB NUT PS00113-1 Electric MOTOR: 3 HP 3450, 208-230/1/60 PS00113-2 Electric MOTOR: 3 HP 3450, 230-460/3/60 PS00113-3...
  • Page 7 ITEM QTY PART NO DESCRIPTION 1 PS00101 SHEAVE 4.25 In O.D. DOUBLE PULLEY 1 PS00102 SHEAVE 3.05 In O.D. DOUBLE PULLEY 2 PS00103 FLANGE BEARING WITH SETSCREW 2 PS00108 SHOULDER BOLT, 3/4” LONG SHOULDER LENGTH 2 PS00109 SHOULDER BOLT, 1” LONG SHOULDER LENGTH 4 PS00111 CART WHEEL ASSEMBLY c/w 3/8”...
  • Page 8 ITEM PART NO DESCRIPTION PS00100 TURNBUCKLE PS00126 ARBOUR BLADE BOLT – ½” – 20 NF X 1” (BOLT ONLY) PS00128 STARTER MOUNTING PLATE PS00131 HEX SOCKET HEAD CAP SCREW BOLT PS00133 WRENCH PS00135 REAR RUBBER SPLASH GUARD PS00135-1 STARTER SWITCH BOX, 3 HP 3450, 208-230/1/60 PS00135-2 STARTER SWITCH BOX, 3 HP 3450, 230-460/3/60 PS00135-3...

  • Page 11: Safety Instructions

    SAFETY INSTRUCTIONS The operator must WARNING! wear protective clothing appropriate Before starting up the machine make sure you to the work he is completely read these instructions. Be familiar with operation of the machine before operation! doing. INDICATION Any person not involved in the work should MANDATORY INFORMATION leave the area.
  • Page 12 SAFETY INSTRUCTIONS WARNING! DUST WARNING! HEARING HAZARD! Cutting, especially when DRY cutting, generates dust that comes from the material being cut, which DURING NORMAL USE OF THIS MACHINE, frequently contains silica. Silica is a basic component OPERATOR MAY BE EXPOSED TO A NOISE of sand, quartz, brick clay, granite and numerous other LEVEL EQUAL OR SUPERIOR TO 85 dB (A) minerals and rocks.

  • Page 13: Safety First

    Pothier diamond blades manufactured for use on core cutting saws. use only blades marked with a maximum operating speed greater than the blade shaft speed. Verify speed by checking blade shaft rpm and pulley diameters and blade flange diameters.
  • Page 14 SAFETY FIRST! WARNINGS DO’s AND DO NOT’s WARNING: FAILURE TO COMPLY WITH THESE WARNINGS AND OPERATING INSTRUCTIONS COULD RESULT IN DEATH OR SERIOUS BODILY INJURY. clean the machine after each day’s use. remove adjusting keys and wrenches from tool before turning it on. keep the handles dry, clean and free of oil and dirt.
  • Page 15 SAFETY FIRST! WARNINGS DO’s AND DO NOT’s WARNING: FAILURE TO COMPLY WITH THESE WARNINGS AND OPERATING INSTRUCTIONS COULD RESULT IN DEATH OR SERIOUS BODILY INJURY. DO NOT operate this machine unless you have read and understood this operator’s manual. DO NOT DO NOT operate this machine without the blade guard, or other protective guards in place.
  • Page 16 For Warranty Information on your Baldor motor or for the nearest service center please go to: www.emotorsdirect.ca/warranty...

  • Page 17: Warranty Registration Card

    2. Pothier Enterprises Ltd.’s obligation under this warranty is expressly limited to the replacement or repair at Pothier Enterprises Ltd. in Surrey, BC or at a service facility designated by Pothier Enterprises Ltd., of such part or parts as inspection shall disclose to have been defective.
