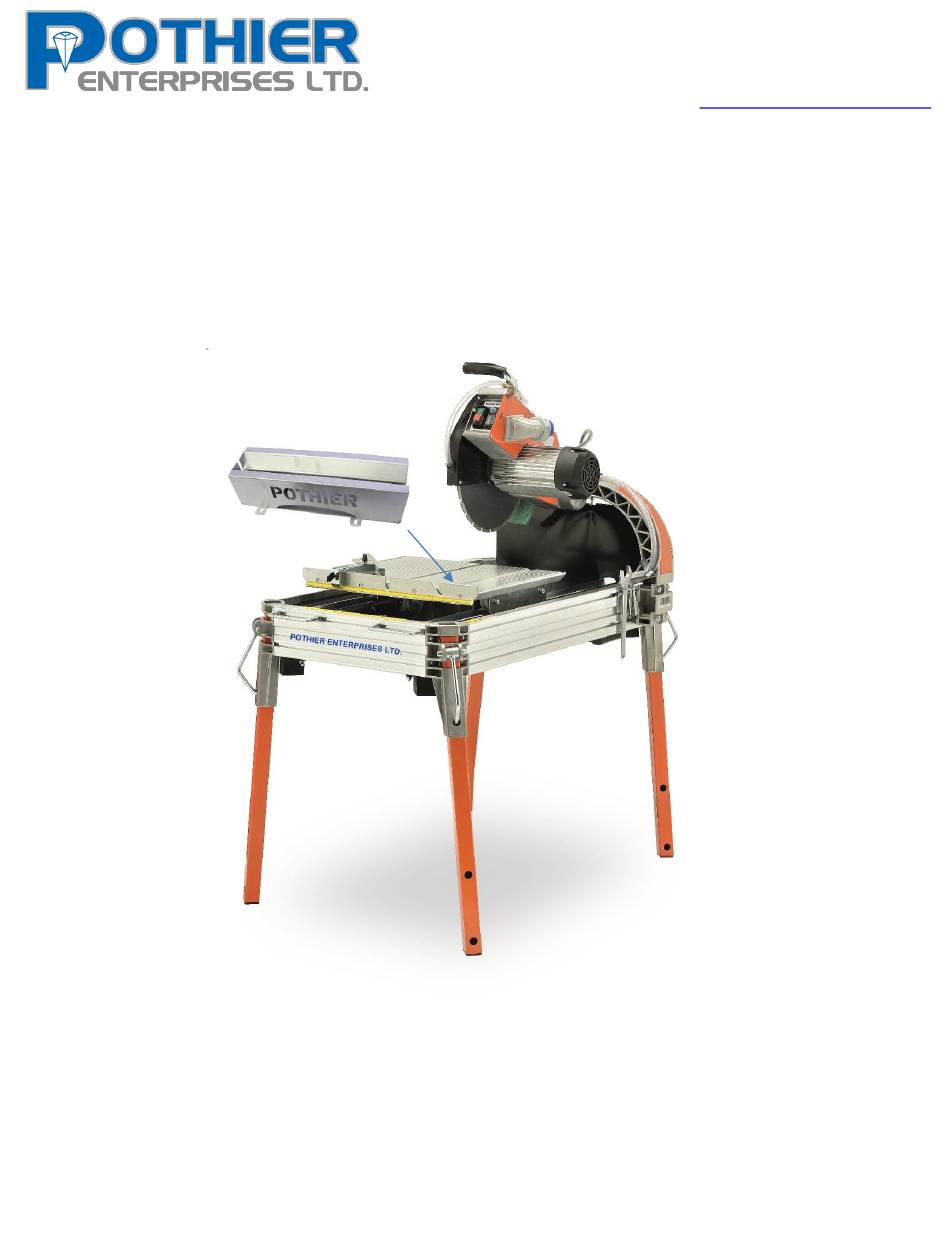

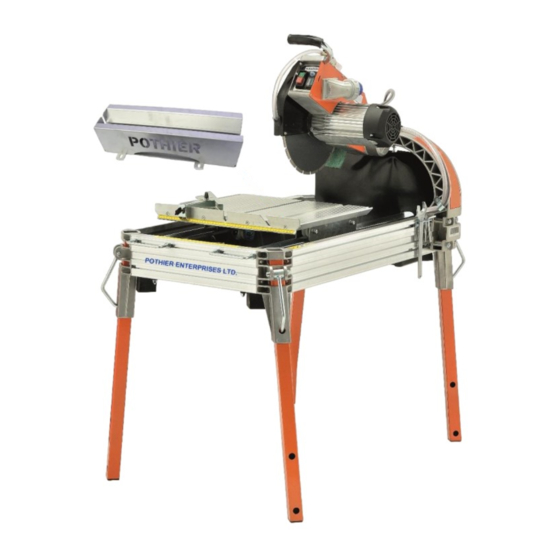

- Page 1 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com OPERATING INSTRUCTIONS, PARTS LIST & USER MANUAL #PEB1431 14” CORE CUTTING SAW C/W 3 H.P., 230 VOLTS, 60 HZ., 1 PHASE MOTOR...
- Page 2 CORE CUTTING PROCEDURE (ELECTRIC MOTOR) (#PEB1431 - 14” CORE CUTTING SAW) A) MOUNT SAW BLADE SO IT TURNS IN DIRECTION OF ARROW. B) LOWER BLADE SO CUTTING EDGE IS BELOW THE OPEN SLOT IN THE CORE CUTTING BRACKET AND LOCK CARRIAGE WITH HANDLE AT REAR.
- Page 3 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com IF THE MOTOR DOES NOT GET ENOUGH AMPS, IT WILL EVENTUALLY BURN UP THE START WINDINGS AND FAIL. APPLICATION CHART FOR CORE CUTTING BLADES MODEL #VHC24 SEGMENTED USED FOR CUTTING VERY HARD CORE, SUCH AS CHERT, JASPERITE, QUARTZITE, HARD GRANITES, ETC.
- Page 4 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com...
- Page 5 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com...
- Page 6 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com...
- Page 7 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com...
- Page 8 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com POTHIER Wheels are optional.
- Page 9 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com...
- Page 10 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com...
- Page 11 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com...
- Page 12 Installation TRANSPORT The PEB1431 Saw can be easily moved by using the transport handles. Before transporting the machine, ensure that: • The sliding carriage is fixed by locking the carriage; • The motor head is completely down by the lever to recovery;...
- Page 13 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com BLADE ASSEMBLY / DISASSEMBLY Before performing any operation or adjustment, disconnect the machine from the supply mains. Loosen the 5 (five) nuts located on the blade cover guard and remove it. Remove the blade fixing nut using the 30 mm spanner and the 5 mm Allen wrench.
- Page 14 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com...
- Page 15 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com...
- Page 16 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com...
