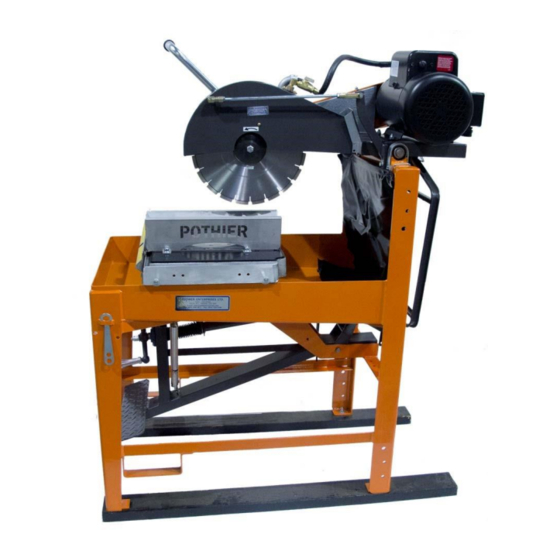

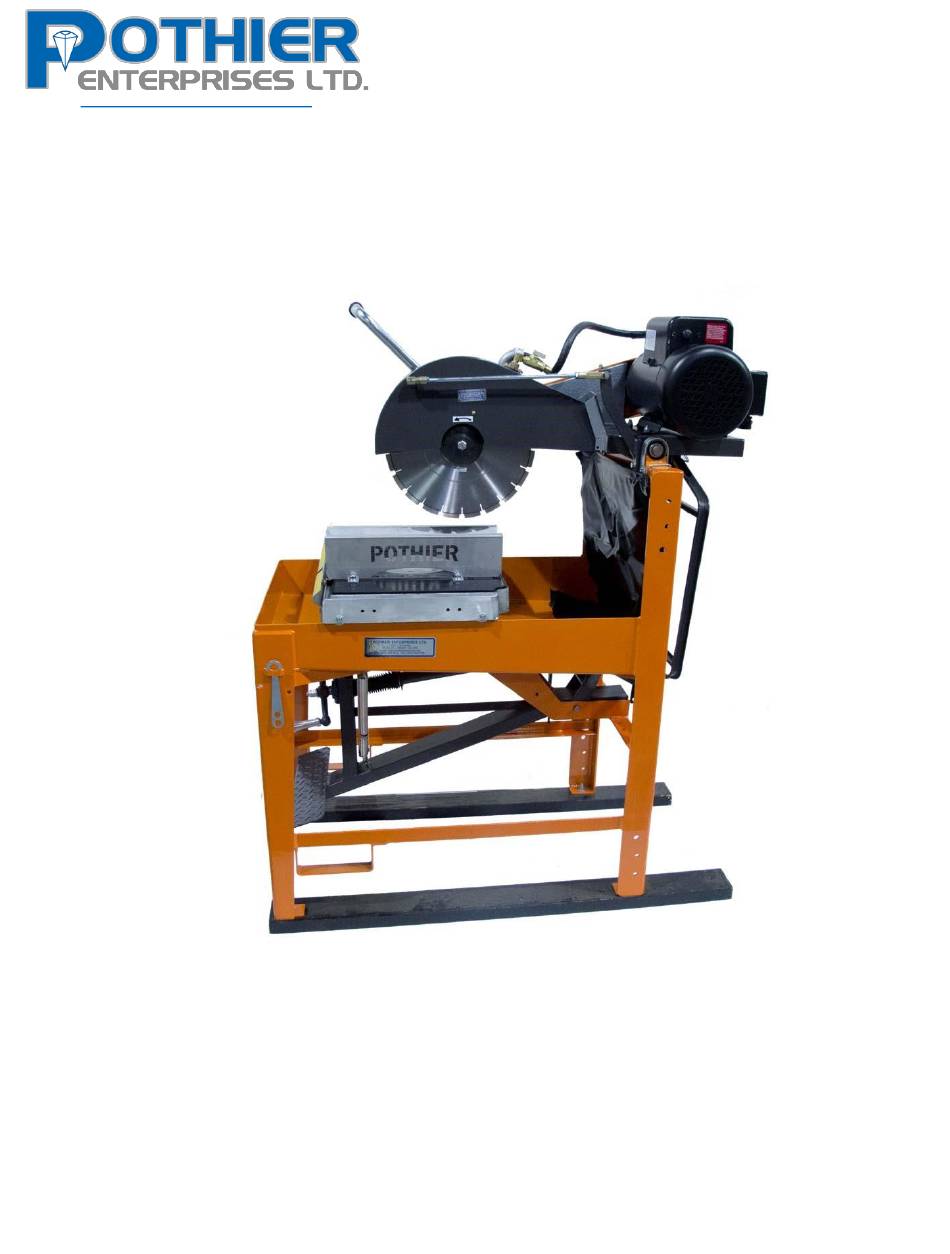

- Page 1 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com OPERATING INSTRUCTIONS, PARTS LIST & USER MANUAL 14” Core Cutting Saw Model #PEF1451...
- Page 2 CORE CUTTING PROCEDURE (ELECTRIC MOTOR) (#PEF1451 - 14” CORE CUTTING SAW) A) MOUNT SAW BLADE SO IT TURNS IN DIRECTION OF ARROW. B) LOWER BLADE SO CUTTING EDGE IS BELOW THE OPEN SLOT IN THE CORE CUTTING BRACKET. C) TURN SAW SWITCH TO ON POSITION.
- Page 3 5511 – 192 Street, Unit 207 Surrey, BC, Canada V3S 8E5 P: 604.946.3811 sales@pothierenterprises.com MODEL #VHC24 SEGMENTED USED FOR CUTTING VERY HARD CORE, SUCH AS CHERT, JASPERITE, QUARTZITE, HARD GRANITES, ETC. IF YOU USE THIS BLADE FOR CUTTING SOFTER CORE, IT MAY WEAR OUT PREMATURELY.
-
Page 4: Operation
Diamond Blade (DD) is aligned over the top of the wooden insert, then re-tighten the Bearing (H) setscrews. • WARNING! • Pothier “Wet” diamond blades MUST be used with water! • If cutting without water use only diamond blades that are intended to be used dry (without water). -
Page 6: Stopping The Machine
OPERATION Start / STOP of Machine: • Start the electric motor by turning the Power Switch (RR) to the "ON" position. • Open Water Valve fully, check the before cutting. water flow • Cut the material using one of the Cutting Methods de - scribed in the above section. -
Page 7: Head Assembly
Head Assembly ITEM PART NO DESCRIPTION 030822 CART WHEEL 169622 MOTOR: 5HP 3450 208-230/60/1 169623 MOTOR: 5HP 3450 208-230/460/60/3 169624 MOTOR: 5HP 2850 220/50/1 169625 MOTOR: 5HP 2850 220-380/50/3 030831 BELT GUARD 510154301 INNER BRACKET, BELT GUARD 030900 PULLEY, 2G3V 3.35 - .750 BORE 030905 PULLEY, 2G3V 2.25 - .875 BORE 020062... - Page 8 Upper Platform ITEM PART NO DESCRIPTION 510166001 SHAFT, 1” COUNTER DRIVE 510262101 BEARING, 1.00” DIA. 2-BOLT FLANGE 510161907 PLATFORM WELDMENT 195021 BLADESHAFT W/ HSG, GM, B/M 030951 FLANGE, OUTER 510260301 HANDLE 542139568 HANDLE GRIP 506386012 VALVE ASSY 537204201 CONDUIT, GREY PVC 030822 CART WHEEL 541200467...
- Page 9 Lower Platform ITEM PART NO DESCRIPTION 510154813 FRAME 510140802 CART RAIL 542205352 FOOT PEDAL WELDMENT 510190601 YOKE, TILT 510190201 LINKAGE, ADJUSTMENT 542195274 TILT FRAME WELDMENT 510179604 BRACKET, STAY LEVEL ANCHOR 510179301 END, R.H. ROD 510179401 ROD, LINK 060460 YOKE, EBERHARD 4A.375 TAP X .375 521950902 SPLASH CURTAIN 542190434...
- Page 10 Conveyor Cart Assembly & Accessories ITEM PART NO DESCRIPTION 437323 CART, CONVEYOR, COMPLETE 186000 CART, CONVEYOR W/ MOLDED TOP 186057 BACK STOP 030822 CART WHEEL 542193951 CART STOP 542177894 WOOD INSERT, 15.88” LG 170038 VINYL TUBING, 3/8” I.D. 177976 DECAL, RULER 177383 WRENCH, 3/4”, 9/16”...
-
Page 11: Blade Guard Assembly
Blade Guard Assembly... -
Page 12: Blade Shaft Assembly
Blade Shaft Assembly ITEM PART NO DESCRIPTION 205437 BLADE SHAFT ASSEMBLY, COMPLETE 195020 HOUSING, BLADE SHAFT 030004 WASHER, SPRING, FINGER LOAD 139273 BEARING W/ SEAL 195017 BLADE SHAFT 177973 COLLAR, INNER 030951 COLLAR, OUTER 020378 CAPSCREW, HEX HD .500-20UNF X 1.00 (ELECTRIC) 020742 WASHER, FLAT, .313 DIA 020785... -
Page 14: Safety Instructions
SAFETY INSTRUCTIONS WARNING! The operator must wear protective clothing Before starting up machine make sure you appropriate to the work he completely read these instructions. Be familiar is doing. with operation of the machine before operation! Any persons not involved in the work should INDICATION MANDATORY leave the area. -
Page 15: Dust Warning
SAFETY INSTRUCTIONS WARNING! HEARING HAZARD! DURING NORMAL USE OF THIS MACHINE, OPERATOR MAY BE EXPOSED TO A NOISE LEVEL EQUAL SUPERIOR TO 85 dB (A) DUST WARNING Cutting, especially when DRY cutting, generates dust that comes from the material being cut, which frequently contains silica. Silica is a basic component of sand, quartz, brick clay, granite and numerous other minerals and rocks. - Page 16 Pothier diamond blades manufactured for use on core cutting saws. use only blades marked with a maximum operating speed greater than the blade shaft speed. Verify speed by checking blade...
-
Page 17: Safety First
SAFETY FIRST! WARNINGS DO’s AND DO NOT’s WARNING: FAILURE TO COMPLY WITH THESE WARNINGS AND OPERATING INSTRUCTIONS COULD RESULT IN DEATH OR SERIOUS BODILY INJURY. DO NOT operate this machine unless you have read and understood this operator’s manual. DO NOT DO NOT operate this machine without the blade guard, or other protective guards in place. - Page 18 For Warranty Information on your Baldor motor or for the nearest service center please go to: www.baldor.com/support...
- Page 19 Pothier Enterprises Ltd. New Equipment Warranty Except as noted below, Pothier Enterprises Ltd. warrants that its new equipment will be free from manufacturing defects for a period of 1 year from the date of purchase by the original consumer purchaser.
