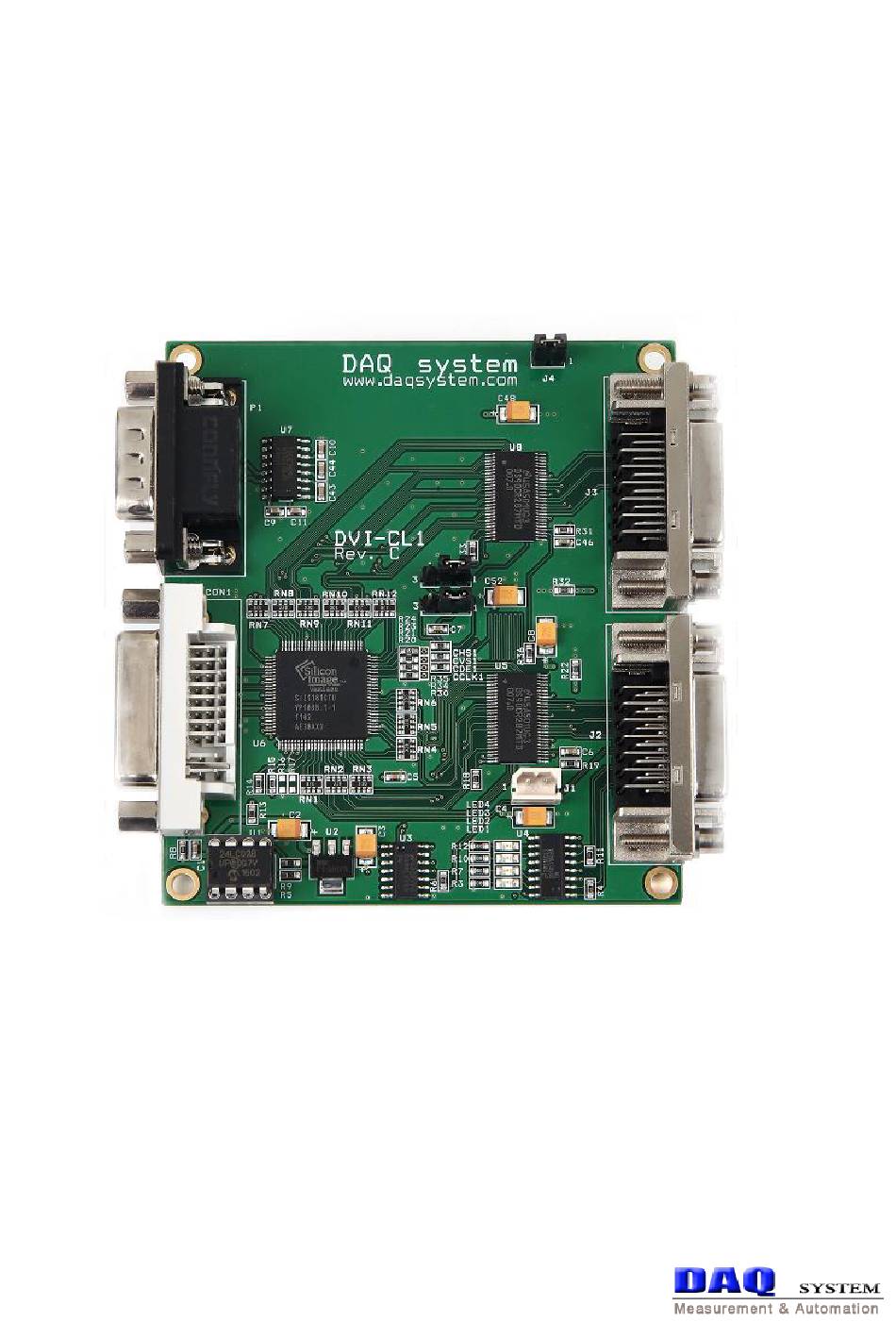

DVI-CL01
User Manual
Version 1.0
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVI-CL01 and is the answer not in the manual?

Questions and answers

Summary of Contents for DAQ DVI-CL01

  • Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
  • Page 2: Table Of Contents

    DVI-CL01 User’s Manual Contents 1. DVI-CL01 Introduction ---------------------------------------------------------- 2. DVI-CL01 Function ------------------------------------------------------------------ 3. Connector Pin Map 3-1 CON1(DVI) Connector ---------------------------------------------------------------------- 3-2 P1(DB-9) Connector ----------------------------------------------------------------------- 3-3 J2(MDR) Connector ----------------------------------------------------------------------- 3-4 J3(MDR) Connector ---------------------------------------------------------------------- J1 Jumper ----------------------------------------------------------------------------- J4 Jumper ------------------------------------------------------------------------------ 3-7 J5,J6 Jumper...
  • Page 3: Dvi-Cl01 Introduction

    DVI-CL01 User’s Manual 1. DVI-CL01 Introduction The DVI-CL01 board functions to convert DVI data received from a DVI output device (PC, etc.) into CAMERA LINK. Image Base Or Medium Camera Link Image DVI Video Source DVI-CL01 Frame Grabber Serial Terminal...
  • Page 4: Dvi-Cl01 Function

    DVI-CL01 User’s Manual 2. DVI-CL01 Function DVI-CL01 interfaces the image data received through the DVI cable to the Base or Medium camera link, and each name and function description is as follows. Frame Data RS-232 DVI Connector DB-9 MDR- 26 Conn.
  • Page 5 (1) Connect the DVI cable that receives the image to the DVI connector. For power inside the board, use the 5V power supplied from the DVI connector when no external resources are used.다. [Figure 2-2. DVI-CL01 Case Input Port] (2) After setting the desired resolution, connect one or two camera link cables. That is, the DVI output is holed, It can be output by dividing it into even pixels.
  • Page 6 DVI-CL01 User’s Manual In Medium Mode, even pixels are output from the left Single Output Connector (J2) of [Figure 2-1] and odd pixels are output from the remaining right connector (J3), and the pixel clock frequency is half of that of Base mode.
  • Page 7: Connector Pin Map

    DVI-CL01 User’s Manual 3. Connector Pin Map DVI-CL01 has all 4 connectors and 2 jumpers. This chapter describes the description of connectors and the functions of jumpers. 3-1 CON1(DVI) Connector [Figure 3-1] below shows the pin map of the CON1 connector of the board.
  • Page 8: P1(Db-9) Connector

    3-2. P1(DB-9) Connector [Figure 3-2] below shows the pin map of the P1 connector, which is the RS-232 port of the DVI-CL01 board. GROUND [Figure 3-2. DVI-CL01 D-sub9 Connector핀] [Table 4. DVI-CL01 D-sub 9Pin Connector] Pin No. Name Description Remark...
  • Page 9: J2(Mdr) Connector

    All pin specifications are input/output based on the Camera Link standard, so please refer to the Camera Link standard document for details. Frame Grabber Inner shield Inner shield CC4- CC4+ CC3- CC3+ CC2- CC2+ CC1+ CC1- SerTFG+ SerTFG- SerTC- SerTC+ Xclk- Xclk+ Inner shield Inner shield [Figure 3-3. DVI-CL01 J2 Connector Pin-out]...
  • Page 10 DVI-CL01 User’s Manual [Table 5. J2 Connector] Name Description Remark Inner Shield Cable shield Camera link LVDS transmit data0- Camera link LVDS transmit data1- Camera link LVDS transmit data2- Xclk- Camera link LVDS transmit clock- Camera link LVDS transmit data3-...
  • Page 11: J3(Mdr) Connector

    All pin specifications are input/output based on the Camera Link standard, so please refer to the Camera Link standard document for details. Frame Grabber Inner shield Inner shield Xclk- Xclk+ Inner shield Inner shield [Figure 3-4. DVI-CL01 J3 Connector Pin-out]...
  • Page 12 DVI-CL01 User’s Manual [Table 6. J3 Connector] Name Description Remark Inner Shield Cable shield Camera link LVDS transmit data0- Camera link LVDS transmit data1- Camera link LVDS transmit data2- Xclk- Camera link LVDS transmit clock- Camera link LVDS transmit data3-...
  • Page 13: J1 Jumper

    DVI-CL01 User’s Manual 3-5 J1 Jumper Setup External Power Connector [Figure 3-5. J1 Connector Pin-out] (Note) When using an external power supply, apply 3.3V. It is optimal to use a DVI standard power supply. 3-6 J4 Jumper Setup Open : Use Two Pixels (48-bits). Used as Medium Camera Link.
  • Page 14: Appendix

    DVI-CL01 User’s Manual Appendix A-1 Board Size The external sizes of the board are as follows. Please contact the person in charge for detailed figures.
  • Page 15: Repair Regulations

    (3) All DAQ SYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty.
  • Page 16 DVI-CL01 User’s Manual...
  • Page 17 DVI-CL01 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
