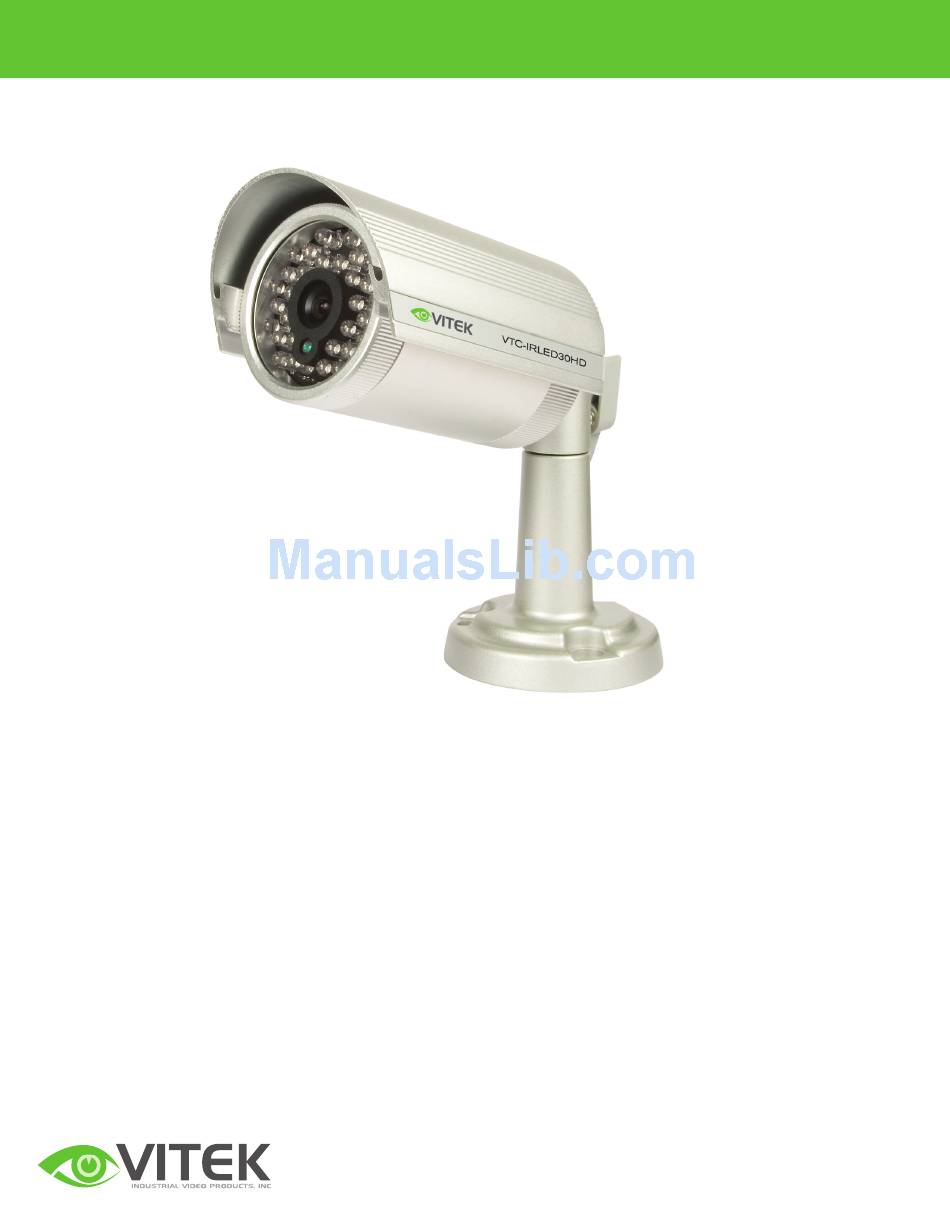

VTC-IRLED30HD
The VTC-IRLED30HD employs a 1/3" High Resolution
Color CCD image device that provides extremely long life
and high reliability. 30 Infrared LED's offer a 80' range
and provide clear images, even in total darkness. This
camera comes complete with a 4.3mm lens, sun shield
and a heavy duty mount ready to install in almost any
environment.
High Resolution Color Bullet Camera
w/30 IR LEDs & 480 TV Lines
FEATURES
•
1/3" Color CCD with 480 TV Lines of
Resolution
•
30 Infrared LEDs enable Viewing in Total
Darkness up to 80 Feet
•
Heavy Duty Weather/Vandal Resistant
Aluminum Construction
•
Sunshield and Mounting Bracket Included
•
Dual Voltage Operation: 12VDC / 24VAC
•
Standard 4.3mm Lens Included. Accepts
optional 3.6mm~25mm Lenses.
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-IRLED30HD
Summary of Contents for Vitek VTC-IRLED30HD
- Page 1 VTC-IRLED30HD The VTC-IRLED30HD employs a 1/3" High Resolution Color CCD image device that provides extremely long life and high reliability. 30 Infrared LED’s offer a 80’ range and provide clear images, even in total darkness. This camera comes complete with a 4.3mm lens, sun shield and a heavy duty mount ready to install in almost any environment.
- Page 2 Standard 4.3mm (6mm, 8mm Optional) 30 850nm IR LED’s 14°~122° F (-10°~50° C) Dual Voltage: 12VDC/24VAC IR Off: 160 mA / IR On: 340 mA (At Power Input) 2.36" x 3.94" (60mm x 100mm) (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355...
