V-TAC VT-768 Instruction Manual

TECHNICAL DATA
MODEL
SKU
LUMENS
POWER
SOLAR PANEL
BATTERY
CHARGING TIME
WORKING TIME
WORKING MODE
LED TYPE
DETECTION ANGLE
SENSOR RANGE
COLOR TEMPERATURE
LAMP DIMENSION
BODY TYPE
INSTALLATION HEIGHT
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product. The products
are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This
product is warranted for manufacturing defects only.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
INSTRUCTION MANUAL

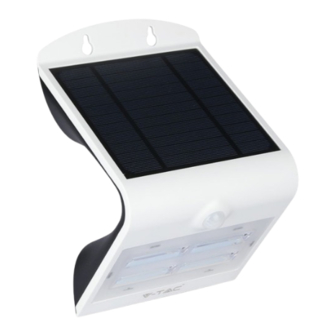

LED SOLAR WALL LIGHT
VT-768
7523, 7528
500 Lm
4 W
2.4W, DC 5.5V, Mono with Tem-
pered glass
Li-ion, 2000mAh, 7.4 Wh (Re-
peatable)
12-15 Hours
Maximum 24 Hours
2 Optional working modes
SMD 2835x56Pcs (Front 54
Pcs+Back 2 Pcs)
120°
2-6 M
4000K
211.1x140x114.8 mm
ABS+PC, Anti UV
2-4 M
