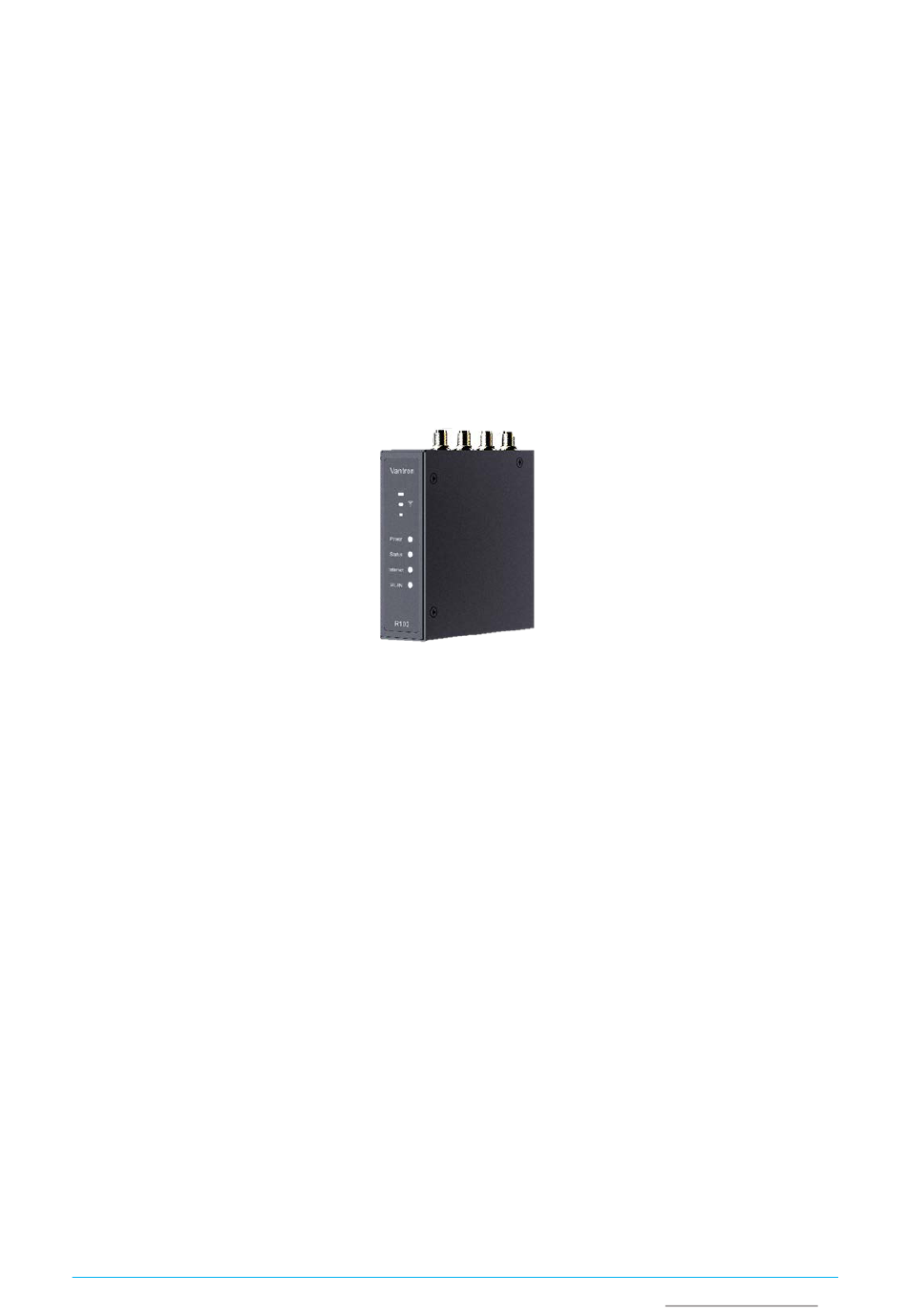

Page 1 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions R102 Industrial Router User Manual Version: 1.5 © Vantron Technology, Inc. All rights reserved. R102 Industrial Router | User Manual www.vantrontech.com...
Page 2 System integration, updated file accordingly Mar. 14, 2023 1. Deleted the Networking section under quick V1.5 V200R003 start as per system change; Nov. 14, 2023 2. Modified the wording as per the system change R102 Industrial Router | User Manual www.vantrontech.com...
Page 3: Table Of Contents
Setting up the Router ....................13 Router Login ....................... 15 Password Change ......................16 Language Change ......................16 Interfacing with Vantron Gateway Management Platform ........... 17 CHAPTER 3 ROUTER SETUP VIA VANTRONOS ................18 Introduction to VantronOS ..................19 Status ......................... 20 Quick Start—...
Page 4 3.11.6 Backup/Flash Firmware .................... 104 3.11.7 Reboot ........................107 Logout ........................107 3.12 CHAPTER 4 DISPOSAL AND PRODUCT WARRANTY ..............108 Disposal ........................109 Warranty ........................110 Appendix Regulatory Compliance Statement ................111 R102 Industrial Router | User Manual www.vantrontech.com...
Page 5: Foreword
World-leading provider of embedded/IoT products and solutions Foreword Thank you for purchasing R102 Industrial Router (“the Router” or “the Product”). This manual intends to provide guidance and assistance necessary on setting up, operating or maintaining the Product. Please read this manual and make sure you understand the structure and functionality of the Product before putting it into use.
Page 6 Symbology This manual uses the following signs to prompt users to pay special attention to relevant information. Caution for latent damage to system or harm to personnel Attention to important information or regulations R102 Industrial Router | User Manual www.vantrontech.com...
Page 7 The use or placement of the operation tools shall comply with the code of practice of • such tools to avoid short circuit of the Product. • Cut off the power before inspection of the Product to avoid human injury or product damage. R102 Industrial Router | User Manual www.vantrontech.com...
Page 8 • Clean with a damp cloth • Do not try to clean exposed electronic components unless with a dust collector Power off and contact Vantron technical support engineer in case of the following faults: The Product is damaged • •...
Page 9: Chapter 1 Hardware Description
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 1 HARDWARE DESCRIPTION R102 Industrial Router | User Manual www.vantrontech.com...
Page 10: Product Overview
R102 industrial router applies a communication tactic that uses multiple channels with failover protocol, which together with the high-reliability watchdog maintains a secure and stable network access. As is compact in size, R102 supports panel mount, DIN rail mount, and wall mount to meet the requirements of varying sites.
Page 11: Unpackaging
1 x DIN rail 2 x 4G LTE antenna mounting bracket Actual accessories might vary slightly from the list above as the customer order might be different from the standard configuration options. R102 Industrial Router | User Manual www.vantrontech.com...
Page 12: Specifications
Dual backup, automatic switch IP application Ping, Traceroute, DHCP Server/Client, DDNS IP Routing Static routing Supported Operating: -20℃~+60℃ Temperature Storage: -40℃~+70℃ Environment Humidity Storage: RH 5%~95% (non-condensing) Condition Certification CCC, CE, FCC, PTCRB R102 Industrial Router | User Manual www.vantrontech.com...
Page 13: Definition Of Interfaces
The indicator blinks System running properly The indicator turns solid green System upgrade or settings clear-up The indicator blinks 4. Internet indicator Network connectivity of the Router Description The indicator blinks The indicator is off R102 Industrial Router | User Manual www.vantrontech.com...
Page 14 Micro SD card slot (reserved) WLAN antenna connector 2 Reset button Press the button and hold for 3-10 seconds, the Router will be factory reset. The system will reboot after the factory reset. R102 Industrial Router | User Manual www.vantrontech.com...
Page 15: Serial Port Introduction
RS485 A signal /dev/ttyS1 COM1 RS485 B signal Isolated ground Input the following command line to open the serial port with a serial port communication program (e.g., microcom): ~# microcom /dev/ttyS1 -s 115200 R102 Industrial Router | User Manual www.vantrontech.com...
Page 16: Chapter 2 Getting Started
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 2 GETTING STARTED R102 Industrial Router | User Manual www.vantrontech.com...
Page 17: Setting Up The Router
LTE antenna connectors, then tighten the rotating heads to secure the antennas in proper position; 6. Connect one end of an Ethernet cable to the WAN port of the Router and the other to a live Ethernet port; R102 Industrial Router | User Manual www.vantrontech.com...
Page 18 8. Connect the terminal end of the female DC power connector to the power terminal of the Router and the round end to the adapter; If you are using the power connector supplied by Vantron: Red wire: PWR (+) Black wire: GND (-) 9.
Page 19: Router Login
The web login address coincides with the LAN port IP address of the Router, so you might have to change the login address when you reset the IP address. SSH login is disabled by default, refer to SSH Access included in 3.10.3 for more details. R102 Industrial Router | User Manual www.vantrontech.com...
Page 20: Password Change
You can change the system language by navigating to System > System > Language and Style. Auto: System language based on the browser language (default) English: English interface Simplified Chinese: Simplified Chinese interface R102 Industrial Router | User Manual www.vantrontech.com...
Page 21: Interfacing With Vantron Gateway Management Platform
GWM, organizations can streamline device setup, ensure real-time visibility into device performance, and effortlessly control device configurations. This contributes to enhanced operational efficiency and improved decision-making. Before you can use the BlueSphere GWM for remote management of Vantron IoT devices, please make sure the following prerequisites are met: •...
Page 22: Chapter 3 Router Setup Via Vantronos
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 3 ROUTER SETUP VIA VANTRONOS R102 Industrial Router | User Manual www.vantrontech.com...
Page 23: Introduction To Vantronos
World-leading provider of embedded/IoT products and solutions Introduction to VantronOS VantronOS is an intelligent operating system developed by the Vantron team, featuring independent system and function development. It is built upon the Linux system and optimized for embedded hardware. The operating system follows a modular design and...
Page 24: Status
1. Firmware version and auto refresh on/off 2. Stable running time of the Router since network connection 3. Current working status of Ethernet ports (Both the LAN port and WAN port are connected in this case) R102 Industrial Router | User Manual www.vantrontech.com...
Page 25 14. Application layer protocols HTTPS, HTTP, and POP3S represent the top 3 protocols for data download and upload. HTTPS, HTTP and DNS represent the top 3 protocols for device connection. R102 Industrial Router | User Manual www.vantrontech.com...
Page 26: Quick Start- Auto Routing
6. Customized IP address detection (heartbeat or gateway address) 7. Edit the auto routing rule of a specific network interface (refer to the details below) 8. Link status 9. Link detection log and service running log R102 Industrial Router | User Manual www.vantrontech.com...
Page 27 3. If you have selected “Detect customized IP addresses” but have not provided any IP address, it will automatically switch to gateway detection. 4. Refer to the next page on editing the routing rules for more details. R102 Industrial Router | User Manual www.vantrontech.com...
Page 28 (10s by default) Enable/disable gateway detection Select the default IP addresses (‘factory default’) or customized IP addresses (‘custom’) for IP detection Save & Apply the settings Go back to the automatic routing page R102 Industrial Router | User Manual www.vantrontech.com...
Page 29: Virtual Tunnel
3. Select a protocol; TCP provides an ordered delivery of data from user to server (and vice versa), whereas UDP is not dedicated to end-to-end communications, nor does it check the readiness of the receiver. R102 Industrial Router | User Manual www.vantrontech.com...
Page 30 Advanced Setting allows you to set the authentication method, certificate authentication options, and renew the system certificate. Run Log displays the details after the server setup. R102 Industrial Router | User Manual www.vantrontech.com...
Page 31: Vpn Client
6. Select the local .ovpn file for configuration 7. Upload the local profile 8. Select to use a certification or username & password for the authentication The mode will update automatically, leave it as is. R102 Industrial Router | User Manual www.vantrontech.com...
Page 32: Ipsec Connection
14. Status of the VPN client after the setup 3.5 IPSec Connection Prerequisites 3.5.1 An R102 industrial router (‘G1’ for short) • • A supporting device (gateway/router) that runs on VantronOS and supports IPSec (‘G2’ for short) Certificates for the router and the supporting device: •...
Page 33: Certificate Setup
4. Select the public key; 5. Click OK to upload the certificates for G1. The above screenshot only illustrates how to upload the certificates for G1. Please follow the same way to upload the certificates for G2. R102 Industrial Router | User Manual www.vantrontech.com...
Page 34 Description of the numbered areas 1. Input a file name for the keys 2. Click Generate to generate the keys 3. Newly generated private key 4. Newly generated public key R102 Industrial Router | User Manual www.vantrontech.com...
Page 35: Secret Setup
2. Select Enabled from the dropdown list to enable the secret; 3. Select PSK as the secret type; 4. Input the PSK ID: 192.168.9.78 (WAN IP of G1); 5. Input a password; 6. Click OK to save the secret. R102 Industrial Router | User Manual www.vantrontech.com...
Page 36 5. Input a password; 6. Click OK to save the secret. The local secret of G1 acts as the remote secret of G2, and the remote secret of G1 acts as the local secret of G2. R102 Industrial Router | User Manual www.vantrontech.com...
Page 37: Ipsec Connection Setup
Scenario 3: Remote access (Server), D connects to G1 via IPSec with access to subnets of G1 • Scenario 4: Remote access (Client), A connects to G2 via IPSec with access to subnets of G2 R102 Industrial Router | User Manual www.vantrontech.com...
Page 38 1. Navigate to Virtual Tunnel > IPSEC > IPSEC Setting > IPSEC Setting 2. Enable IPSec settings 3. Click OK to save the setting After the settings are loaded, the status of IPSec will change to ‘running’ as follows. R102 Industrial Router | User Manual www.vantrontech.com...
Page 39 2. Assign a name to the policy 3. Select Enabled from the dropdown list to enable the policy 4. Input the local address: 192.168.9.82 5. Input the remote address: 192.168.9.78 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 40 6. Click Advanced to access the advanced settings 7. Click Virtual IP Pools 8. Select ‘Responder’ as the role of G1 9. Double click the available ‘to_82’ IP to select it 10. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 41 6. Click Advanced to access the advanced settings 7. Click Virtual IP Pools 8. Select ‘Initiator’ as the role of G2 9. Input a virtual IP (0.0.0.0) 10. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 42 3. Select Enabled from the dropdown list to enable the policy 4. Select Tunnel as the transport mode 5. Input the local address: 192.168.9.82 6. Input the remote address: 192.168.9.78 7. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 43 4. Select Tunnel as the transport mode 5. Input the local address: 172.18.3.1/24 (LAN IP of G2) 6. Input the remote address: 172.18.2.1/24 (LAN IP of G1) 7. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 44 2. Assign a name to the policy (to_82_server) 3. Select Enabled from the dropdown list to enable the policy 4. Select Tunnel as the transport mode 5. Input the local address: 10.10.7.0/24 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 45 2. Assign a name to the policy (to_78_client) 3. Select Enabled from the dropdown list to enable the policy 4. Select Tunnel as the transport mode 5. Input the remote address: 10.10.7.0/24 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 46 2. Assign a name for the certificate (local_cert) 3. The certificate is Enabled by default 4. Certificate is the default authentication method 5. Double click the available ’78.cert’ certificate to select it 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 47 2. Assign a name for the certificate (remote_cert) 3. The certificate is Enabled by default 4. Certificate is the default authentication method 5. Double click the available ’78.cert’ certificate to select it 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 48 2. Assign a name for the certificate (local_cert) 3. The certificate is Enabled by default 4. Certificate is the default authentication method 5. Double click the available ’82.cert’ certificate to select it 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 49 2. Assign a name for the certificate (remote_cert) 3. The certificate is Enabled by default 4. Certificate is the default authentication method 5. Double click the available ’82.cert’ certificate to select it 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 50 3. The certificate is Enabled by default 4. Input the ID same as that set in Secret Management (192.168.9.78) 5. Select PSK (Pre-shared key) from the drop-down list as the authentication method 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 51 3. The certificate is Enabled by default 4. Input the ID same as that set in Secret Management (192.168.9.82) 5. Select PSK (Pre-shared key) from the drop-down list as the authentication method 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 52 3. The certificate is Enabled by default 4. Input the ID same as that set in Secret Management (192.168.9.78) 5. Select PSK (Pre-shared key) from the drop-down list as the authentication method 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 53 2. Assign a name for the certificate (local_cert) 3. The certificate is Enabled by default 4. Select Public key from the drop-down list as the authentication method 5. Double click to select ’78.pub.key’ 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 54 2. Assign a name for the certificate (remote_cert) 3. The certificate is Enabled by default 4. Select Public key from the drop-down list as the authentication method 5. Double click to select ’82.pub.key’ 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 55 2. Assign a name for the certificate (local_cert) 3. The certificate is Enabled by default 4. Select Public key from the drop-down list as the authentication method 5. Double click to select ’82.pub.key’ 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 56 2. Assign a name for the certificate (remote_cert) 3. The certificate is Enabled by default 4. Select Public key from the drop-down list as the authentication method 5. Double click to select ’78.pub.key’ 6. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 57 6. Double click a previously created remote authentication policy (‘remote_cert’ in this case) to select the policy 7. Double click a previously created IPSec policy (‘to_82’ in this case) to select the policy 8. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 58 6. Double click a previously created remote authentication policy (‘remote_cert’ in this case) to select the policy 7. Double click a previously created IPSec policy (‘to_78’ in this case) to select the policy 8. Click OK to save the settings R102 Industrial Router | User Manual www.vantrontech.com...
Page 59 1. Navigate to Virtual Tunnel > IPSEC > IPSEC Status> Connection list 2. Select the connection setting and click Up When the connection is added to IPSEC IKE SAS, the connection is established successfully. R102 Industrial Router | User Manual www.vantrontech.com...
Page 60: Network
7. Add a new interface (available only when you log in as a root user) The interfaces may differ from what is shown above as certain devices do/do not have the module that makes corresponding interface available. R102 Industrial Router | User Manual www.vantrontech.com...
Page 61: Lan
Description of the numbered areas 1. MAC address cloning 2. Set the MTU (keep the default setting) 3. Set a gateway metric (keep the default setting) Be sure to save the settings before you exit the page. R102 Industrial Router | User Manual www.vantrontech.com...
Page 62 Description of the numbered areas 1. Enable the interface for network bridge 2. Enable STP protocol 3. Select the interface for bridge connection Be sure to save the settings before you exit the page. R102 Industrial Router | User Manual www.vantrontech.com...
Page 63 Normally it is calculated from the subnet that is served 4. Add different DNS servers for clients Be sure to save the settings before you exit the page. Clicking on Back or Refresh will get you back to WAN interface settings. R102 Industrial Router | User Manual www.vantrontech.com...
Page 64: Wan
1. Status of the WAN port 2. Select a WAN protocol (DHCP client by default) 3. Input a hostname of the Router for requesting DHCP Be sure to save the settings before you exit the page. R102 Industrial Router | User Manual www.vantrontech.com...
Page 65 If this option is disabled, you will need to define a DNS server. 5. Set a gateway metric 6. MAC address cloning 7. Set the MTU Be sure to save the settings before you exit the page. R102 Industrial Router | User Manual www.vantrontech.com...
Page 66 5. Set a custom DNS server (can be provided by the carrier or self-defined) 6. DNS re-binding protection (if enabled, parsing of private IP data will be refused) 7. Disable DHCP service (keep the default settings) R102 Industrial Router | User Manual www.vantrontech.com...
Page 67 There is a Firewall Settings tab next to the Physical settings tab when you log in with the root account, allowing you to create or designate a firewall zone. When ‘unspecify or create’ is selected, you can remove the interface from the associated firewall zone or create a new zone. R102 Industrial Router | User Manual www.vantrontech.com...
Page 68: Wireless (Wifi)
3. Select an encryption method (the following options vary with the encryption method) 4. Select an encryption algorithm 5. Assign a Wi-Fi password (no less than 8 characters) 6. List of currently connected devices Be sure to save the settings before you exit the page. R102 Industrial Router | User Manual www.vantrontech.com...
Page 69: Wi-Fi - Ap Mode (Advanced Setting)
6. As modification of field 2 will have impact on the Wi-Fi signal, the web interface will return to the general settings page upon a click of the switch button. 7. Be sure to save the settings before you exit the page. R102 Industrial Router | User Manual www.vantrontech.com...
Page 70: Wi-Fi - Client Mode
6. Click Scan WIFI to refresh the Wi-Fi list if the target SSID is not identified When the Router is successfully connected as a client, there will be the network information next to the Scan WIFI button. R102 Industrial Router | User Manual www.vantrontech.com...
Page 71 6. Click Advanced Setting for more configuration options Leave the field as is if not applicable. PAP/CHAP username and password are to be specified only if your carrier has setup APN with user name and password. R102 Industrial Router | User Manual www.vantrontech.com...
Page 72 6. Select AT&T/TMO/Canada or Verizon from the drop-down list for AT&T SIM cards and Verizon SIM cards, respectively 7. Default MTU value (1500) Remember to save the settings to have the configurations take effect. R102 Industrial Router | User Manual www.vantrontech.com...
Page 73: Lte
AT&T with the pre-certified module name VT-MOB-MPCIE-4G. ° After installation, the 4G signal indicators on the Router will light up to indicate the signal strength. Navigate to Network > 4G/LTE for more settings. R102 Industrial Router | User Manual www.vantrontech.com...
Page 74 PAP/CHAP username and password are to be specified only if your carrier has setup APN with user name and password. If you have inserted a SIM card into SIM slot 2, you can click the SIM2 Card Setting tab for more settings. R102 Industrial Router | User Manual www.vantrontech.com...
Page 75 6. Select AT&T/TMO/Canada or Verizon from the drop-down list for AT&T SIM cards and Verizon SIM cards, respectively 7. Default MTU value (1500) Be sure to save the settings before you exit the page. R102 Industrial Router | User Manual www.vantrontech.com...
Page 76 Description of the numbered areas 1. Real-time traffic 2. Data used in the current month Data used in the day Time interval for submitting the temporary database to the persistent database R102 Industrial Router | User Manual www.vantrontech.com...
Page 77: Static Routes
Gateway metric (The smaller the number, the higher the priority) Set the MTU 7. Select a route type (refer to the details next page) Be sure to save the settings before you exit the page. R102 Industrial Router | User Manual www.vantrontech.com...
Page 78 The destinations are any cast addresses assigned to this host. They are Anycast mainly equivalent to local with one difference that such addresses are invalid when used as the source address of any packet. R102 Industrial Router | User Manual www.vantrontech.com...
Page 79: Firewall
Default value Description INPUT chain default strategy Input String ACCEPT (ACCEPT, REJECT, DROP) FORWARD chain default strategy Forward String REJECT (ACCEPT, REJECT, DROP) OUTPUT chain default strategy Output String ACCEPT (ACCEPT, REJECT, DROP) R102 Industrial Router | User Manual www.vantrontech.com...
Page 80: Firewall - Zones
7. MSS clamping 8. Zone editing A click of the Edit button following each zone will direct you to the detailed zone setting page where general settings, advanced settings and forwarding rules are available. R102 Industrial Router | User Manual www.vantrontech.com...
Page 81: Firewall - Port Forwards
Custom rules allow you to execute arbitrary iptables commands which are not otherwise covered by the firewall framework. The commands are executed after each firewall restart, right after the default rule settings have been loaded. R102 Industrial Router | User Manual www.vantrontech.com...
Page 82: Vtshark
2. The measurement by which the data packets are captured (by seconds or by packet counts as explained below) 3. The filter for capturing the designated packets (more details are available at https://www.tcpdump.org/manpages/pcap-filter.7.html for advanced filtering) 4. Start the data capturing R102 Industrial Router | User Manual www.vantrontech.com...
Page 83 The capture stops after reaching this limit, even if it has not reached the preset packet counts. In the following scenario, the capture targets at all interfaces for the http packets from ‘tcp port 80’ for 30 seconds. R102 Industrial Router | User Manual www.vantrontech.com...
Page 84 Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions Clicking the result will download it to the local directory and you can open it with wireshark. R102 Industrial Router | User Manual www.vantrontech.com...
Page 85: User Management
After creating the user, it will be added to the user list. The Edit and Delete buttons behind a user allow you to enable/disable certain functions for this user or delete this user. R102 Industrial Router | User Manual www.vantrontech.com...
Page 86: Customization
5. Enable the script, and it will run next time when the router starts up 6. If more than one script is uploaded, you can move any of them up or down to rearrange the script order, and edit/delete the script R102 Industrial Router | User Manual www.vantrontech.com...
Page 87: Ipk Installer
Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 3.8.2 IPK Installer With IPK Installer, customers can install self-compiled IPK packages to the Router. Vantron industrial protocol packages are also uploaded from here. Description of the numbered areas 1.
Page 88: Manufacturer Info Customization
Mode Description Vantron All the information displayed in VantronOS will be Vantron-related Some of the information displayed in VantronOS will be “Gateway” by Standard default, and some information like the copyright will be left blank. All the information displayed will be user tailored R102 Industrial Router | User Manual www.vantrontech.com...
Page 89: Dmp Agent
If you wish to activate it again on the GWM, please click Clear Agent in the VantronOS portal, then enable the agent and wait a moment to allow the device to come online on the BlueSphere GWM platform. R102 Industrial Router | User Manual www.vantrontech.com...
Page 90: Hardware
Prerequisites An R102 router ° ° An Ubuntu host A USB to TTL serial adapter ° ° A DuPont cable Connect the serial port of the router to the host as follows ° R102 Industrial Router | User Manual www.vantrontech.com...
Page 91 1. Click Add to add a conversion rule 2. Select Enable from the drop-down 3. Set the Baud rate to 115200 4. Save the settings 5. Click Edit after the rule to enter the advanced settings page R102 Industrial Router | User Manual www.vantrontech.com...
Page 92 Save and Apply above settings before you exit. (2) The Ser2net process is running as follows: uart2net -c -d 192.168.93.1 -p 8888 -t /dev/ttyS1 -b 115200 -a 8 -r none -s 1 -o 20 R102 Industrial Router | User Manual www.vantrontech.com...
Page 93 -s 115200 Monitor the designated port (8888 as assigned in prior steps) ° tcpudp_test tcp server:tcpudp_test -p 8888 ° Input data in terminal A and receive in terminal B (the topology is as follows) R102 Industrial Router | User Manual www.vantrontech.com...
Page 94 1. Click Add to add a conversion rule 2. Select Enable from the drop-down 3. Set the Baud rate to 115200 4. Save the settings 5. Click Edit after the rule to enter the advanced settings page R102 Industrial Router | User Manual www.vantrontech.com...
Page 95 8. Select “8 bits” for the data bit 9. Select “None” for parity 10. Select “1” as the stop bit Save and Apply above settings before you exit. (2) The Ser2net process is running as follows: /usr/sbin/ser2net -n -c /tmp/ser2net.conf R102 Industrial Router | User Manual www.vantrontech.com...
Page 96: Protocol Comparison
Rawlp: enables the port and transfers all input data to a gateway that is open without any Termios settings, allowing to use /dev/lpx devices and printers connected. Telnet: enables the port and runs the telnet protocol on the port to set up telnet parameters (less used). R102 Industrial Router | User Manual www.vantrontech.com...
Page 97: Services
7. Connect the PLC device to a LAN port of R2 and set a static IP address for the PLC (see details below) 8. Connect the PLC device to the Windows PC via Ethernet and control the PLC with the PLC programming software (STEP7) R102 Industrial Router | User Manual www.vantrontech.com...
Page 98 5. Input a virtual IP for the PLC (on the same IP network as the one assigned by the OpenVPN server and not occupied by other clients) Be sure to save above settings to allow them to take effect. R102 Industrial Router | User Manual www.vantrontech.com...
Page 99: System
1. Synchronize the router time with the browser (local) time 2. Change the name of the host 3. Select a time zone 4. Enable NTP online time adjustment 5. Start the NTP server 6. NTP online time server R102 Industrial Router | User Manual www.vantrontech.com...
Page 100 3. Port of the log server 4. Protocol used by the log server 5. Path of the file for the system log 6. Output level of the console log 7. Cron log level R102 Industrial Router | User Manual www.vantrontech.com...
Page 101: Netlink Bandwidth Monitor (Nbm) Setting
1. Set how long you would like the monitoring activities to be reported 2. Specify a date in a month for restarting another round of monitoring activities Applicable when Day of month is selected in 1 3. Select the interfaces to monitor 4. Local subnets R102 Industrial Router | User Manual www.vantrontech.com...
Page 102 Protocol Mapping can be used to distinguish traffic types per host. Each mapping takes one line, with the first value being the IP protocol, the second value being the port number, and the third value being the name of the mapping protocol. R102 Industrial Router | User Manual www.vantrontech.com...
Page 103: Administration
1. Select a port to access (LAN by default) When “unspecified” is selected, all the ports will be monitored. 2. Specify a port for monitoring (port 22 by default) 3. Allow SSH password authentication 4. Add SSH-Keys for public key authentication R102 Industrial Router | User Manual www.vantrontech.com...
Page 104 Step 6: Set the session name and Save, keep the other settings unchanged, then click Open; Step 7: Log in to the root account (password same as the router login password as shown above), and start an SSH remote session. R102 Industrial Router | User Manual www.vantrontech.com...
Page 105: Terminal
After the web Terminal is enabled, the Terminal tab will be available next to the Setting tab. Login name: root Login password: rootpassword (invisible while typing) R102 Industrial Router | User Manual www.vantrontech.com...
Page 106: Mount Points
6. If you have previously mounted a file to the device, you can manually unmount the file here To manually mount a file, click the Click Disable Automount button first and then proceed with the settings. R102 Industrial Router | User Manual www.vantrontech.com...
Page 107 3. Check the box to enable the mount point after creation 4. Select the UUID of the device 5. Select the mount point Then click the Advanced Settings tab to access advanced settings. R102 Industrial Router | User Manual www.vantrontech.com...
Page 108: Backup/Flash Firmware
3. Upgrade the Router and keep the existing settings unchanged 4. If the cloud version is shown Failure, the Router is not activated from the cloud, please contact your sales executive for solution. R102 Industrial Router | User Manual www.vantrontech.com...
Page 109 It will take some time for the upgrade and DO NOT power off the Router when firmware upgrading is in process; The login page will be refreshed once the upgrading finishes and you can login to check the firmware version on the homage. R102 Industrial Router | User Manual www.vantrontech.com...
Page 110 Factory reset the Router (user configurations will be cleared) Select the backup file from the local directory to restore the backup settings Upload the file R102 Industrial Router | User Manual www.vantrontech.com...
Page 111: Reboot
You will exit the web interface with a click on the Logout tab. If you need make changes to any of your settings, you can log in the web again with default password: admin. Make sure you have saved the changes before logout. R102 Industrial Router | User Manual www.vantrontech.com...
Page 112: Chapter 4 Disposal And Product Warranty
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 4 DISPOSAL AND PRODUCT WARRANTY R102 Industrial Router | User Manual www.vantrontech.com...
Page 113: Disposal
& electronic waste recycling/disposal center. Proper disposal of this sort of waste helps avoid harm and adverse effect upon surroundings and people’s health. Please contact local organizations or recycling/disposal center for more recycling/disposal methods of related products. R102 Industrial Router | User Manual www.vantrontech.com...
Page 114: Warranty
Any Product found to be defective and covered under warranty pursuant to Clause above, shall be returned to VANTRON only upon the CUSTOMER’s receipt of and with reference to a VANTRON supplied Returned Materials Authorization (RMA) number. VANTRON shall supply an RMA, when required within three (3) working days of request by the CUSTOMER.
Page 115: Appendix Regulatory Compliance Statement
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate this equipment. R102 Industrial Router | User Manual www.vantrontech.com...

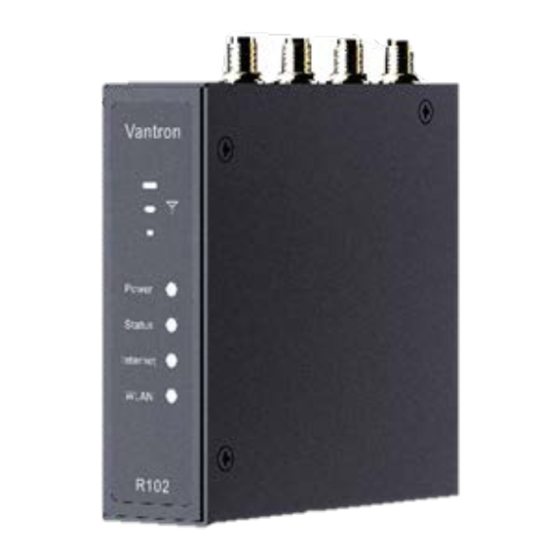

Vantron R102 User Manual
