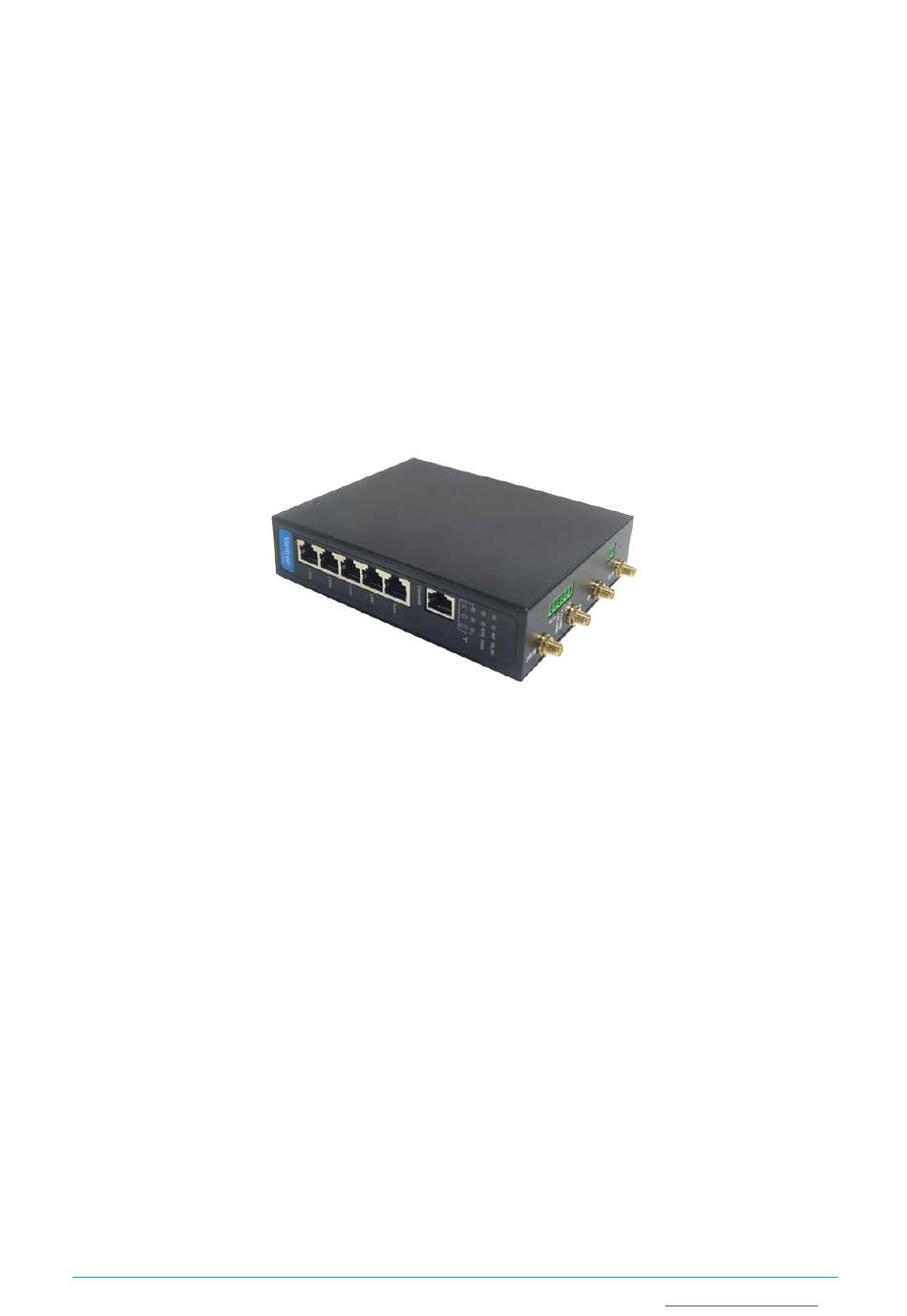

Page 1 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions R105 Industrial Router User Manual Version: 1.2 © Vantron Technology, Inc. All rights reserved. R105 Industrial Router | User Manual www.vantrontech.com...
Page 2 1. Modified Overview menu description; 2. Deleted Quick Start for networking; 3. Modified Auto routing description; V1.2 V200R004 Jul. 11, 2023 4. Updated 4G/LTE description; 5. Added Diagnostic description; 6. Added IPSec setup description. R105 Industrial Router | User Manual www.vantrontech.com...
Page 3: Table Of Contents
Setting up the Router ......................15 Router Login ........................19 Password Change ....................... 20 Language Change ....................... 20 Interfacing with Vantron Gateway Management Platform ..........21 ROUTER SETUP VIA VANTRONOS ................ 22 CHAPTER 3 Introduction to VantronOS ....................23 Status ..........................24 Quick Start—...
Page 4 3.13.6 Backup/Flash Firmware ....................108 3.13.7 Reboot ..........................111 3.14 Logout ..........................111 DISPOSAL AND PRODUCT WARRANTY ..............112 CHAPTER 4 Disposal ..........................113 Warranty ........................... 114 Appendix Regulatory Compliance Statement ................ 115 R105 Industrial Router | User Manual www.vantrontech.com...
Page 5: Foreword
World-leading provider of embedded/IoT products and solutions Foreword Thank you for purchasing R105 Industrial Router (“the Router” or “the Product”). This manual intends to provide guidance and assistance necessary on setting up, operating or maintaining the Product. Please read this manual and make sure you understand the structure and functionality of the Product before putting it into use.
Page 6 Symbology This manual uses the following signs to prompt users to pay special attention to relevant information. Caution for latent damage to system or harm to personnel Attention to important information or regulations R105 Industrial Router | User Manual www.vantrontech.com...
Page 7 The use or placement of the operation tools shall comply with the code of practice of such tools to avoid short circuit of the Product. Cut off the power before inspection of the Product to avoid human injury or product • damage. R105 Industrial Router | User Manual www.vantrontech.com...
Page 8 • Clean with a damp cloth Do not try to clean exposed electronic components unless with a dust collector • Power off and contact Vantron technical support engineer in case of the following faults: The Product is damaged • •...
Page 9: Chapter 1 Hardware Description
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 1 HARDWARE DESCRIPTION R105 Industrial Router | User Manual www.vantrontech.com...

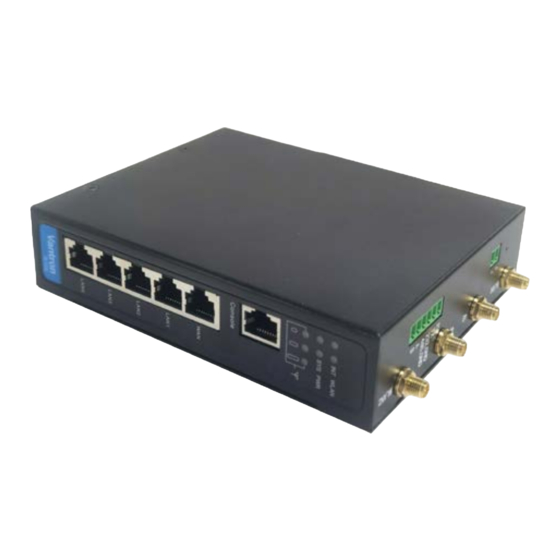

Page 10: Product Overview
It implements 5 gigabit Ethernet jacks, including one LAN port that offers the PoE option to supply up to 30W of power to client devices. With Wi-Fi IEEE 802.11 b/g/n/ac supported, R105 offers IEEE 802.11ax (Wi-Fi 6) as an option to customers to meet higher communication needs.
Page 11: Unpackaging
2 x 4G LTE antenna (rubber stick) (magnetic sucker) 1 x DIN rail mounting bracket (attached) Actual accessories might vary slightly from the list above as the customer order might be different from the standard configuration options. R105 Industrial Router | User Manual www.vantrontech.com...
Page 12: Specifications
PPTP, L2TP, GRE, IPSec, OpenVPN Wi-Fi security 64/128-bit WEP, TKIP, WPA, WPA2, WPA3, AES, WPS Temperature Operating: -20℃~+60℃ Storage: -40℃~+70℃ Environment Humidity Storage: RH 5%~95% (non-condensing) Condition Certification FCC, IC, PTCRB, AT & T, Verizon, T-Mobile R105 Industrial Router | User Manual www.vantrontech.com...
Page 13: Definition Of Interfaces
Console port for debugging the device (baud rate: 57600) WAN port, mapped as eth0.2 in VantronOS, working in the WAN area by default 4 x LAN port, mapped as eth0.1 in VanrteonOS, working in the LAN area by default R105 Industrial Router | User Manual www.vantrontech.com...
Page 14 0.3 seconds 4G LTE signal strength indicator Signal strength Description >67% The three indicators turn solid green Between 38% and 67% The bottom two indicators turn solid green <38% The bottom indicator blinks R105 Industrial Router | User Manual www.vantrontech.com...
Page 15: Left Side View
2. A long press of the button for 3 ~ 6 seconds will factory reset the Router. 3. A long press of the button for 6 ~ 10 seconds will factory reset the Router with all user data cleared. R105 Industrial Router | User Manual www.vantrontech.com...
Page 16: Right Side View
Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 1.4.3 Right side view Interface Description Micro SIM slot 1 Micro SIM slot 2 Grounding screw 1.4.4 Back view Interface Description DIN rail bracket R105 Industrial Router | User Manual www.vantrontech.com...
Page 17: Serial Port Description
For RS485 port connection: A-A, B-B, GND-GND Input the following command to open the serial port with a serial port communication program (e.g., microcom): COM1: ~# microcom /dev/ttyS1 -s 115200 COM2: ~# microcom /dev/ttyS2 -s 115200 R105 Industrial Router | User Manual www.vantrontech.com...
Page 18: Chapter 2 Getting Started
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 2 GETTING STARTED R105 Industrial Router | User Manual www.vantrontech.com...
Page 19: Setting Up The Router
2. Place the Router on the DIN rail at an angle; 3. Fit one side of the DIN rail to the clip at the top of the DIN rail bracket, behind the triangle fixer; 4. Push the Router down to compress the bracket; R105 Industrial Router | User Manual www.vantrontech.com...
Page 20 7. Insert an activated Micro SIM card into either of the SIM slots with the gold-colored contacts facing up and the clipped side inward; 8. Push the Micro SIM card in to secure it; 9. Install the Wi-Fi antennas (rubber stick) to the WLAN antenna connectors; R105 Industrial Router | User Manual www.vantrontech.com...
Page 21 Skip this step if you choose wireless network connection. 13. Connect one end of another Ethernet cable to a LAN port of the Router and the other to a host computer or client device depending on your use; R105 Industrial Router | User Manual www.vantrontech.com...
Page 22 14. Connect the terminal end of the DC power connector to the power terminal of the Router and the round end to the adapter; If you are using the power connector supplied by Vantron: Red wire: PWR (+) Black wire: GND (-) 15.
Page 23: Router Login
The web login address coincides with the LAN port IP address of the Router, so you might have to change the login address when you reset the IP address. SSH login is disabled by default, refer to SSH Access included in 3.13.3 for more details. R105 Industrial Router | User Manual www.vantrontech.com...
Page 24: Password Change
You can change the system language by navigating to System > System > Language and Style. Auto: System language based on the browser language (default) English: English interface Simplified Chinese: Simplified Chinese interface R105 Industrial Router | User Manual www.vantrontech.com...
Page 25: Interfacing With Vantron Gateway Management Platform
GWM, organizations can streamline device setup, ensure real-time visibility into device performance, and effortlessly control device configurations. This contributes to enhanced operational efficiency and improved decision-making. Before you can use the BlueSphere GWM for remote management of Vantron IoT devices, please make sure the following prerequisites are met: •...
Page 26: Chapter 3 Router Setup Via Vantronos
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 3 ROUTER SETUP VIA VANTRONOS R105 Industrial Router | User Manual www.vantrontech.com...
Page 27: Introduction To Vantronos
World-leading provider of embedded/IoT products and solutions Introduction to VantronOS VantronOS is an intelligent operating system developed by the Vantron team, featuring independent system and function development. It is built upon the Linux system and optimized for embedded hardware. The operating system follows a modular design and...
Page 28: Status
1. Firmware version and auto refresh on/off (click to switch the mode) 2. Stable running duration of the Router since network connection 3. Current working status of the Ethernet ports (LAN2, LAN4, and the WAN port are connected in this case) R105 Industrial Router | User Manual www.vantrontech.com...
Page 29 14. Traffic of application layer protocols HTTPS, HTTP, and QUIC represent the top 3 protocols for data download and upload. HTTPS, HTTP and DNS represent the top 3 protocols for device connection. R105 Industrial Router | User Manual www.vantrontech.com...
Page 30: Quick Start- Auto Routing
6. Customized IP address detection (heartbeat or gateway address) 7. Edit the auto routing rule of a specific network interface (refer to the details below) 8. Link status 9. Link detection log and service running log R105 Industrial Router | User Manual www.vantrontech.com...
Page 31 3. If you have selected “Detect customized IP addresses” but have not provided any IP address, it will automatically switch to gateway detection. 4. Refer to the next page on editing the routing rules for more details. R105 Industrial Router | User Manual www.vantrontech.com...
Page 32 (10s by default) Enable/disable gateway detection Select the default IP addresses (‘factory default’) or customized IP addresses (‘custom’) for IP detection Save & Apply the settings Go back to the automatic routing page R105 Industrial Router | User Manual www.vantrontech.com...
Page 33: Virtual Tunnel
3. Select a protocol (TCP by default); TCP provides an ordered delivery of data from the user to server (and vice versa), whereas UDP is not dedicated to end-to-end communications, nor does it check the readiness of the receiver. R105 Industrial Router | User Manual www.vantrontech.com...
Page 34 12. Status of the OpenVPN server after the setup. Advanced Setting allows you to set the authentication method, certificate authentication options, and renew the system certificate. Run Log displays the details after the server setup. R105 Industrial Router | User Manual www.vantrontech.com...
Page 35: Vpn Client
6. Select the .ovpn file from the local directory for configuration 7. Upload the file 8. Select to use a certificate or username & password for the authentication The mode will update automatically, leave it as is. R105 Industrial Router | User Manual www.vantrontech.com...
Page 36: Ipsec Connection
Save & Apply the settings 14. Status of the VPN client after the setup IPSec Connection 3.5.1 Prerequisites An R105 industrial router (‘G1’ for short) • • A supporting device (gateway/router) that runs on VantronOS and supports IPSec (‘G2’ for short) Certificates for the router and the supporting device: •...
Page 37: Certificate Setup
4. Select the public key; 5. Click OK to upload the certificates for G1. The above screenshot only illustrates how to upload the certificates for G1. Please follow the same way to upload the certificates for G2. R105 Industrial Router | User Manual www.vantrontech.com...
Page 38 Description of the numbered areas 1. Input a file name for the keys 2. Click Generate to generate the keys 3. Newly generated private key 4. Newly generated public key R105 Industrial Router | User Manual www.vantrontech.com...
Page 39: Secret Setup
2. Select Enabled from the dropdown list to enable the secret; 3. Select PSK as the secret type; 4. Input the PSK ID: 192.168.9.78 (WAN IP of G1); 5. Input a password; 6. Click OK to save the secret. R105 Industrial Router | User Manual www.vantrontech.com...
Page 40 5. Input a password; 6. Click OK to save the secret. The local secret of G1 acts as the remote secret of G2, and the remote secret of G1 acts as the local secret of G2. R105 Industrial Router | User Manual www.vantrontech.com...
Page 41: Ipsec Connection Setup
Scenario 3: Remote access (Server), D connects to G1 via IPSec with access to subnets of G1 • Scenario 4: Remote access (Client), A connects to G2 via IPSec with access to subnets of G2 R105 Industrial Router | User Manual www.vantrontech.com...
Page 42 1. Navigate to Virtual Tunnel > IPSEC > IPSEC Setting > IPSEC Setting 2. Enable IPSec settings 3. Click OK to save the setting After the settings are loaded, the status of IPSec will change to ‘running’ as follows. R105 Industrial Router | User Manual www.vantrontech.com...
Page 43 2. Assign a name to the policy 3. Select Enabled from the dropdown list to enable the policy 4. Input the local address: 192.168.9.82 5. Input the remote address: 192.168.9.78 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 44 6. Click Advanced to access the advanced settings 7. Click Virtual IP Pools 8. Select ‘Responder’ as the role of G1 9. Double click the available ‘to_82’ IP to select it 10. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 45 6. Click Advanced to access the advanced settings 7. Click Virtual IP Pools 8. Select ‘Initiator’ as the role of G2 9. Input a virtual IP (0.0.0.0) 10. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 46 3. Select Enabled from the dropdown list to enable the policy 4. Select Tunnel as the transport mode 5. Input the local address: 192.168.9.82 6. Input the remote address: 192.168.9.78 7. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 47 4. Select Tunnel as the transport mode 5. Input the local address: 172.18.3.1/24 (LAN IP of G2) 6. Input the remote address: 172.18.2.1/24 (LAN IP of G1) 7. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 48 2. Assign a name to the policy (to_82_server) 3. Select Enabled from the dropdown list to enable the policy 4. Select Tunnel as the transport mode 5. Input the local address: 10.10.7.0/24 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 49 2. Assign a name to the policy (to_78_client) 3. Select Enabled from the dropdown list to enable the policy 4. Select Tunnel as the transport mode 5. Input the remote address: 10.10.7.0/24 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 50 2. Assign a name for the certificate (local_cert) 3. The certificate is Enabled by default 4. Certificate is the default authentication method 5. Double click the available ’78.cert’ certificate to select it 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 51 2. Assign a name for the certificate (remote_cert) 3. The certificate is Enabled by default 4. Certificate is the default authentication method 5. Double click the available ’78.cert’ certificate to select it 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 52 2. Assign a name for the certificate (local_cert) 3. The certificate is Enabled by default 4. Certificate is the default authentication method 5. Double click the available ’82.cert’ certificate to select it 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 53 2. Assign a name for the certificate (remote_cert) 3. The certificate is Enabled by default 4. Certificate is the default authentication method 5. Double click the available ’82.cert’ certificate to select it 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 54 3. The certificate is Enabled by default 4. Input the ID same as that set in Secret Management (192.168.9.78) 5. Select PSK (Pre-shared key) from the drop-down list as the authentication method 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 55 3. The certificate is Enabled by default 4. Input the ID same as that set in Secret Management (192.168.9.82) 5. Select PSK (Pre-shared key) from the drop-down list as the authentication method 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 56 3. The certificate is Enabled by default 4. Input the ID same as that set in Secret Management (192.168.9.78) 5. Select PSK (Pre-shared key) from the drop-down list as the authentication method 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 57 2. Assign a name for the certificate (local_cert) 3. The certificate is Enabled by default 4. Select Public key from the drop-down list as the authentication method 5. Double click to select ’78.pub.key’ 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 58 2. Assign a name for the certificate (remote_cert) 3. The certificate is Enabled by default 4. Select Public key from the drop-down list as the authentication method 5. Double click to select ’82.pub.key’ 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 59 2. Assign a name for the certificate (local_cert) 3. The certificate is Enabled by default 4. Select Public key from the drop-down list as the authentication method 5. Double click to select ’82.pub.key’ 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 60 2. Assign a name for the certificate (remote_cert) 3. The certificate is Enabled by default 4. Select Public key from the drop-down list as the authentication method 5. Double click to select ’78.pub.key’ 6. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 61 6. Double click a previously created remote authentication policy (‘remote_cert’ in this case) to select the policy 7. Double click a previously created IPSec policy (‘to_82’ in this case) to select the policy 8. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 62 6. Double click a previously created remote authentication policy (‘remote_cert’ in this case) to select the policy 7. Double click a previously created IPSec policy (‘to_78’ in this case) to select the policy 8. Click OK to save the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 63 1. Navigate to Virtual Tunnel > IPSEC > IPSEC Status> Connection list 2. Select the connection setting and click Up When the connection is added to IPSEC IKE SAS, the connection is established successfully. R105 Industrial Router | User Manual www.vantrontech.com...
Page 64: Network
7. Add a new interface (available only when you log in as a root user) The interfaces may differ from what is shown above as certain interfaces are related to your prior settings and the communication modules available on the device. R105 Industrial Router | User Manual www.vantrontech.com...
Page 65: Lan
Description of the numbered areas 1. MAC address cloning 2. Set the MTU (keep the default setting) 3. Set a gateway metric (keep the default setting) Be sure to save the settings before you exit the page. R105 Industrial Router | User Manual www.vantrontech.com...
Page 66 Description of the numbered areas 1. Enable the interface for network bridge 2. Enable STP protocol 3. Select the interfaces for bridge connection Be sure to save the settings before you exit the page. R105 Industrial Router | User Manual www.vantrontech.com...
Page 67 4. Add different DNS servers for client devices Be sure to save the settings before you exit the page. Clicking on Back or Refresh will get you back to the general information of the network interface. R105 Industrial Router | User Manual www.vantrontech.com...
Page 68: Wan
1. Status of the WAN port 2. Select a WAN protocol (DHCP client by default) 3. Input a hostname of the Router for requesting DHCP Be sure to save the settings before you exit the page. R105 Industrial Router | User Manual www.vantrontech.com...
Page 69 If this option is disabled, you will need to define a DNS server. 5. Set a gateway metric 6. MAC address cloning 7. Set the MTU Be sure to save the settings before you exit the page. R105 Industrial Router | User Manual www.vantrontech.com...
Page 70 5. Set a custom DNS server (can be provided by the carrier or self-defined) 6. DNS re-binding protection (if enabled, parsing of private IP data will be refused) 7. Disable DHCP service (keep the default settings) R105 Industrial Router | User Manual www.vantrontech.com...
Page 71 There is a Firewall Settings tab next to the Physical settings tab when you log in with the root account, allowing you to create or designate a firewall zone. When ‘unspecify or create’ is selected, you can remove the interface from the associated firewall zone or create a new zone. R105 Industrial Router | User Manual www.vantrontech.com...
Page 72: Wireless (Wifi)
3. Select an encryption method (the following options vary with the encryption method) 4. Select an encryption algorithm 5. Assign a Wi-Fi password (no less than 8 characters) 6. List of currently connected devices Be sure to save the settings before you exit the page. R105 Industrial Router | User Manual www.vantrontech.com...
Page 73: Wi-Fi - Ap Mode (Advanced Setting)
As modification of field 2 will have impact on the Wi-Fi signal, the web interface will return to the general settings page upon a click of the switch button. Be sure to save the settings before you exit the page. R105 Industrial Router | User Manual www.vantrontech.com...
Page 74: Wi-Fi - Client Mode
6. Click Scan WIFI to refresh the Wi-Fi list if the target SSID is not identified Be sure to save the settings before you exit the page. When the Router is successfully connected as a client, there will be the network information next to Scan WIFI button. R105 Industrial Router | User Manual www.vantrontech.com...
Page 75: Wi-Fi - Ap + Client Mode
Click Scan WIFI to refresh the Wi-Fi list if the target SSID is not identified. Be sure to save the settings before you exit the page. Status of the connectivity is as follows when the settings take effect. R105 Industrial Router | User Manual www.vantrontech.com...
Page 76: Lte
AT&T with the pre-certified module name VT-MOB-MPCIE-4G. ° After installation, the 4G signal indicators on the Router will light up to indicate the signal strength. Navigate to Network > 4G/LTE for more settings. R105 Industrial Router | User Manual www.vantrontech.com...
Page 77 2. Time interval for automatic restart of the 4G module when it is offline Time interval for auto refresh of the cellular information Be sure to save the settings before you exit the page. R105 Industrial Router | User Manual www.vantrontech.com...
Page 78 Description of the numbered areas 1. Real-time traffic 2. Data used in the current month Data used in the day Time interval for submitting the temporary database to the persistent database R105 Industrial Router | User Manual www.vantrontech.com...
Page 79: Static Routes
Gateway metric (The smaller the number, the higher the priority) Set the MTU 7. Select a route type (refer to the details next page) Be sure to save the settings before you exit the page. R105 Industrial Router | User Manual www.vantrontech.com...
Page 80 The destinations are any cast addresses assigned to this host. They are Anycast mainly equivalent to local with one difference that such addresses are invalid when used as the source address of any packet. R105 Industrial Router | User Manual www.vantrontech.com...
Page 81: Firewall
4. Select ‘drop’ as the action for the target address 5. Click Add to add the address to the access control list Be sure to save the settings before you exit the page. R105 Industrial Router | User Manual www.vantrontech.com...
Page 82 5. Select ‘drop’ as the action for the target IP and port 6. Click Add to add the IP and port to the access control list Be sure to save the settings before you exit the page. R105 Industrial Router | User Manual www.vantrontech.com...
Page 83 4. Select ‘accept’ as the action for the target IP 5. Click Add to release the IP from the access control list Be sure to save the settings before you exit the page. R105 Industrial Router | User Manual www.vantrontech.com...
Page 84 5. Select ‘accept’ as the action for the target IP and port 6. Click Add to release the IP and port from the access control list Be sure to save the settings before you exit the page. R105 Industrial Router | User Manual www.vantrontech.com...
Page 85 Custom rules allow you to execute arbitrary iptables commands which are not otherwise covered by the firewall framework. The commands are executed after each firewall restart, right after the default rule settings have been loaded. R105 Industrial Router | User Manual www.vantrontech.com...
Page 86: Diagnostics
2. The measurement by which the data packets are captured (by seconds or by packet counts as explained below) 3. The filter for capturing the designated packets (more details are available at https://www.tcpdump.org/manpages/pcap-filter.7.html for advanced filtering) 4. Start the data capturing R105 Industrial Router | User Manual www.vantrontech.com...
Page 87 The capture stops after reaching this limit, even if it has not reached the preset packet counts. In the following scenario, the capture targets at all interfaces for the http packets from ‘tcp port 80’ for 30 seconds. R105 Industrial Router | User Manual www.vantrontech.com...
Page 88 Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions Clicking the result will download it to the local directory and you can open it with wireshark. R105 Industrial Router | User Manual www.vantrontech.com...
Page 89: User Management
2. Select a group for the new user 3. Enable SSH access or not for the new user 4. Expand the menus to enable specific functions for the new user 5. Save the settings before you exit R105 Industrial Router | User Manual www.vantrontech.com...
Page 90: Customization
5. If more than one script is uploaded, you can move any of them up or down to rearrange the script order, and edit/delete the scripts 6. Check the script log Save & Apply the settings R105 Industrial Router | User Manual www.vantrontech.com...
Page 91: Ipk Installer
Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 3.10.2 IPK Installer With IPK Installer, customers can install self-compiled IPK packages to the Router. Vantron industrial protocol packages are also uploaded from here. Description of the numbered areas 1.
Page 92: Manufacturer Info Customization
Mode Description Vantron All the information displayed in VantronOS will be Vantron-related Some of the information displayed in VantronOS will be “Gateway” by Standard default, and some information like the copyright will be left blank. All the information displayed will be user tailored R105 Industrial Router | User Manual www.vantrontech.com...
Page 93: Dmp Agent
If you wish to activate it again on the GWM, please click Clear Agent in the VantronOS portal, then enable the agent and wait a moment to allow the device to come online on the BlueSphere GWM platform. R105 Industrial Router | User Manual www.vantrontech.com...
Page 94: Hardware
A USB to TTL serial adapter ° A DuPont cable Connect the serial port of the Router to the host computer as follows (refer to ° for the connection, RS232 mode for demonstration here) R105 Industrial Router | User Manual www.vantrontech.com...
Page 95 1. Click Add to add a conversion rule 2. Select Enable from the drop-down 3. Set the Baud rate to 115200 4. Save the settings 5. Click Edit after the rule to access the advanced settings page R105 Industrial Router | User Manual www.vantrontech.com...
Page 96 Save and Apply above settings before you exit. (2) The Ser2net process is running as follows: uart2net -c -d 192.168.93.1 -p 8888 -t /dev/ttyS1 -b 115200 -a 8 -r none -s 1 -o 20 R105 Industrial Router | User Manual www.vantrontech.com...
Page 97 -s 115200 Monitor the designated port (8888 as assigned in prior steps) ° tcpudp_test tcp server:tcpudp_test -p 8888 ° Input data in terminal A and receive in terminal B (the topology is as follows) R105 Industrial Router | User Manual www.vantrontech.com...
Page 98 1. Click Add to add a conversion rule 2. Select Enable from the drop-down 3. Set the Baud rate to 115200 4. Save the settings 5. Click Edit after the rule to access the advanced settings page R105 Industrial Router | User Manual www.vantrontech.com...
Page 99 9. Select “None” for parity 10. Select “1” as the stop bit Be sure to save above settings before you exit. (2) The Ser2net process is running as follows: /usr/sbin/ser2net -n -c /tmp/ser2net.conf R105 Industrial Router | User Manual www.vantrontech.com...
Page 100: Protocol Comparison
Raw: enables the port and transfers all data as-is between the port and the long integer. Telnet: enables the port and runs the telnet protocol on the port to set up telnet parameters. R105 Industrial Router | User Manual www.vantrontech.com...
Page 101: Services
For remote access and control of PLC devices via OpenVPN protocol, you will need two R105 routers and a Windows host computer (‘Windows PC’) that are on the same network. One router (‘R1’) is for building an OpenVPN server, and the other (‘R2’) is for connecting the OpenVPN server built by R1.
Page 102 5. Input a virtual IP for the PLC (on the same IP network as the one assigned by the OpenVPN server and not occupied by other clients) Be sure to save above settings to allow them to take effect. R105 Industrial Router | User Manual www.vantrontech.com...
Page 103: System
2. Change the name of the host 3. Select a time zone 4. Enable NTP online time adjustment 5. Start the NTP server (the Router is used as the NTP server) 6. NTP online time server R105 Industrial Router | User Manual www.vantrontech.com...
Page 104 3. Port of the log server 4. Protocol used by the log server 5. Path of the file for the system log 6. Output level of the console log 7. Cron log level R105 Industrial Router | User Manual www.vantrontech.com...
Page 105: Netlink Bandwidth Monitor (Nbm) Setting
1. Set how long you would like the monitoring activities to be reported 2. Specify a date in a month for restarting another round of monitoring activities Applicable when Day of month is selected in 1 3. Select the interfaces to monitor 4. Local subnets R105 Industrial Router | User Manual www.vantrontech.com...
Page 106 Protocol Mapping can be used to distinguish traffic types per host. Each mapping takes one line, with the first value being the IP protocol, the second value being the port number, and the third value being the name of the mapping protocol. R105 Industrial Router | User Manual www.vantrontech.com...
Page 107: Administration
1. Select a port to access (LAN by default) When “unspecified” is selected, all the ports will be monitored. 2. Specify a port for monitoring (port 22 by default) 3. Allow SSH password authentication 4. Add SSH-Keys for public key authentication R105 Industrial Router | User Manual www.vantrontech.com...
Page 108 Step 6: Set the session name and Save, keep the other settings unchanged, then click Open; Step 7: Log in with the root account and password (same as those in the prior step), and start an SSH remote session. R105 Industrial Router | User Manual www.vantrontech.com...
Page 109: Terminal
Setting tab and Save & Apply the setting to enable the web terminal for router debugging. After the web Terminal is enabled, the Terminal tab will be available next to the Setting tab. Login name: root Login password: rootpassword (invisible while typing) R105 Industrial Router | User Manual www.vantrontech.com...
Page 110: Mount Points
6. If you have previously mounted a file to the device, you can manually unmount the file here To manually mount a file, click the Click Disable Automount button first and then proceed with the settings. R105 Industrial Router | User Manual www.vantrontech.com...
Page 111 3. Check the box to enable the mount point after creation 4. Select the UUID of the device 5. Select the mount point Then click the Advanced Settings tab to access advanced settings. R105 Industrial Router | User Manual www.vantrontech.com...
Page 112: Backup/Flash Firmware
2. Upgrade the Router and reset to default settings 3. Upgrade the Router and keep the user settings unchanged If the version from the cloud is shown Failure, please check if the Router has internet access. R105 Industrial Router | User Manual www.vantrontech.com...
Page 113 It will take some time for the upgrade and DO NOT power off the Router when firmware upgrading is in process; The login page will be refreshed once the upgrading finishes and you can login to check the firmware version on the homage. R105 Industrial Router | User Manual www.vantrontech.com...
Page 114 Factory reset the Router (user configurations will be cleared) Select the backup file from the local directory to restore the backup settings Upload the file R105 Industrial Router | User Manual www.vantrontech.com...
Page 115: Reboot
You will exit the web interface with a click on the Logout tab. If you need make changes to any of your settings, you can log in the web again with default password: admin. Make sure you have saved the changes before logout. R105 Industrial Router | User Manual www.vantrontech.com...
Page 116: Chapter 4 Disposal And Product Warranty
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 4 DISPOSAL AND PRODUCT WARRANTY R105 Industrial Router | User Manual www.vantrontech.com...
Page 117: Disposal
& electronic waste recycling/disposal center. Proper disposal of this sort of waste helps avoid harm and adverse effect upon surroundings and people’s health. Please contact local organizations or recycling/disposal center for more recycling/disposal methods of related products. R105 Industrial Router | User Manual www.vantrontech.com...
Page 118: Warranty
CUSTOMER’s location and no Product so inspected shall be returned to VANTRON unless the cause for the rejection or defect is determined to be the responsibility of VANTRON. VANTRON shall in turn provide the CUSTOMER turnaround shipment on defective Product within fourteen (14) working days upon its receipt at VANTRON.
Page 119: Appendix Regulatory Compliance Statement
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate this equipment. R105 Industrial Router | User Manual www.vantrontech.com...
Page 120 électrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. R105 Industrial Router | User Manual www.vantrontech.com...
