Summary of Contents for Vantron R102

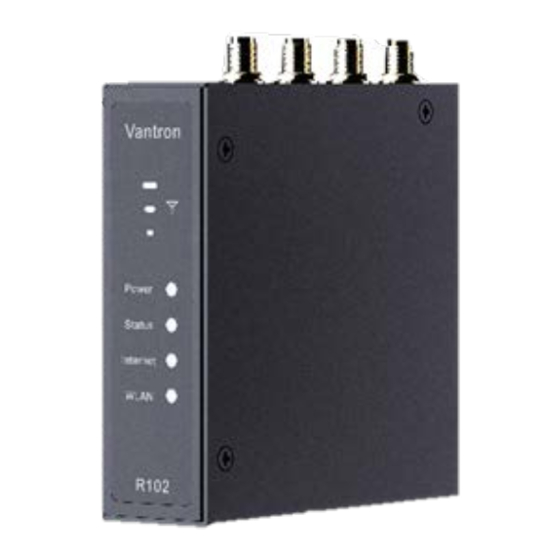

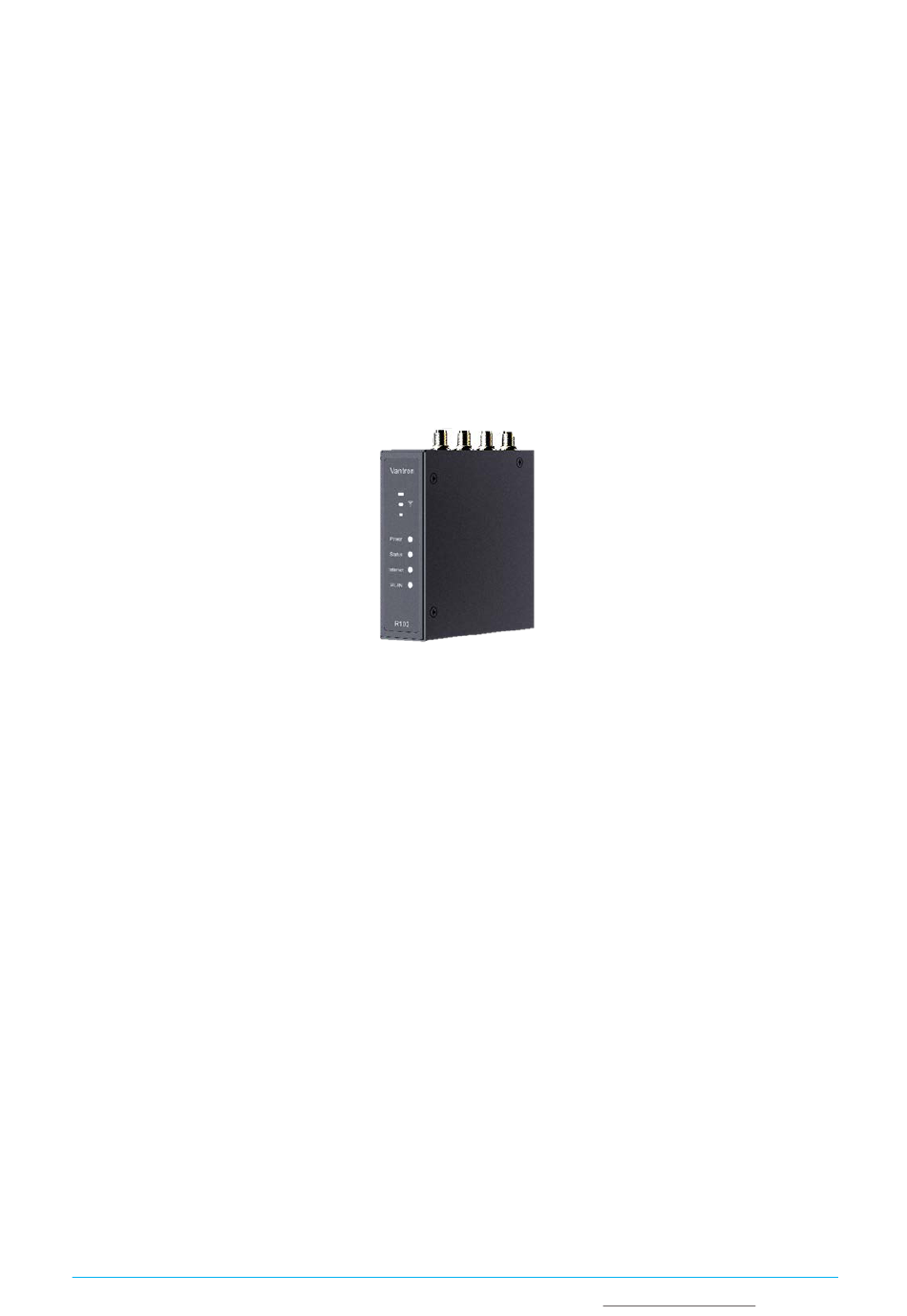

- Page 1 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions R102 Industrial Router User Manual Version: 1.2 © Chengdu Vantron Technology Co., Ltd. All rights reserved. Vantron | R102 User Manual www.vantrontech.com...
- Page 2 First release, software version: V200R003 V1.0 Feb. 10, 2022 Replace screenshots V1.1 Add 3.6.2 Manufacturer Info Customization Mar. 9, 2022 Add more details for configuration of the pre- V1.2 certified 4G module in 3.5.3 Mar. 23, 2022 Vantron | R102 User Manual www.vantrontech.com...
-
Page 3: Table Of Contents
3.5.3 4G/LTE ............................37 3.5.4 Static Routes ..........................40 3.5.5 Firewall ............................41 Customization ..........................43 3.6.1 DMP Agent ..........................44 3.6.2 Manufacturer Info Customization ....................45 Hardware ........................... 46 3.7.1 Ser2TCP ............................46 Vantron | R102 User Manual www.vantrontech.com... - Page 4 3.9.4 Backup/Flash Firmware ....................... 48 3.9.5 Reboot ............................49 3.10 Logout ............................49 CHAPTER 4 DISPOSAL AND PRODUCT WARRANTY ................50 4.1 Disposal ............................51 4.2 Warranty ............................52 Appendix A Regulatory Compliance Statement ................... 53 Vantron | R102 User Manual www.vantrontech.com...
-
Page 5: Foreword
World-leading provider of embedded/IoT products and solutions Foreword Thank you for purchasing R102 Industrial Router (“the Router” or “the Product”). This manual intends to provide guidance and assistance necessary on setting up, operating or maintaining the Product. Please read this manual and make sure you understand the structure and functionality of the Product before putting it into use. - Page 6 Address: 440 Boulder Court, Suite 300 Pleasanton, CA 94566 Tel: 916-202-7042 Email: sales@vantrontech.com China Office: Chengdu Vantron Technology Co., Ltd. Address: 6th Floor, 1st Building, No.9, 3rd WuKe East Street, WuHou District, Chengdu, P.R. China 610045 Tel: 86-28-8512-3930/3931, 86-28-8515-7572/6320 Email: sales@vantrontech.com.cn...
- Page 7 The Product is designed to use 9-36V DC. Always check whether the Product is DC powered before applying power. Place the cables properly at places without extrusion hazards. Use only approved antenna(s). Non-approved antenna(s) may produce spurious or excessive RF transmitting power which may violate FCC limits. Vantron | R102 User Manual www.vantrontech.com...
- Page 8 Clean with a damp cloth Do not try to clean exposed electronic components unless with a dust collector Power off and contact Vantron technical support engineer in case of the following faults: The Product is damaged The temperature is excessively high...
-
Page 9: Chapter 1 Introduction
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 1 INTRODUCTION Vantron | R102 User Manual www.vantrontech.com... -
Page 10: Product Overview
R102 industrial router applies a communication tactic that uses multiple channels with failover protocol, which together with the high-reliability watchdog maintains a secure and stable network access. As is compact in size, R102 supports panel mount, DIN rail mount, and wall mount to meet the requirements of varying sites. -
Page 11: Packaging Checklist
2 x 4G LTE antenna 1 x DIN rail mounting bracket 1 x wall mount bracket Actual accessories might vary slightly from the list above as the customer order might be different from the standard configuration options. Vantron | R102 User Manual www.vantrontech.com... -
Page 12: Specifications
Dual SIM switch Dual backup, automatic switch IP application Ping, Traceroute, DHCP Server/Client, DDNS IP Routing Static routing Supported Operating: -20℃~+60℃ Temperature Storage: -40℃~+70℃ Environment Condition Humidity Storage: RH 5%~95% (non-condensing) Certification CCC, CE, FCC, PTCRB Vantron | R102 User Manual www.vantrontech.com... -
Page 13: Definition Of Interfaces
The indicator blinks System running properly The indicator turns solid green System upgrade or settings clearing The indicator blinks 4. Internet indicator Network connectivity of the Router Description The indicator blinks The indicator is off Vantron | R102 User Manual www.vantrontech.com... - Page 14 4G LTE antenna connector 2 (reserved) Micro SD card slot (reserved) WLAN antenna connector 2 Reset button Press the button and hold for 3-10 seconds, the Router will be factory reset. The system will reboot after the factory reset. Vantron | R102 User Manual www.vantrontech.com...
-
Page 15: Serial Port Introduction
The serial port is RS485 by default, and check the order guide in the datasheet to make sure you have the port configured as you desire. Input the following command line for communication: ~# microcom /dev/ttyS1 -s 115200 Vantron | R102 User Manual www.vantrontech.com... -
Page 16: Chapter 2 Getting Started
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 2 GETTING STARTED Vantron | R102 User Manual www.vantrontech.com... -
Page 17: Setting Up The Router
Ethernet port. 6. Connect one end of an Ethernet cable to the LAN port of the Router and the other to your PC. (Skip steps 5 & 6 if you choose wireless network connection) Vantron | R102 User Manual www.vantrontech.com... -
Page 18: Router Login
Router from VantronOS interface. 1. Input the default web login address of VantronOS in your browser: http://172.18.1.1/. Default user name: admin ° Default password: admin ° Vantron | R102 User Manual www.vantrontech.com... -
Page 19: Connection To Bluesphere Iiot
The latest version of Google Chrome or Firefox is recommended. 2.3 Connection to BlueSphere IIoT With Vantron BlueSphere IIoT, a cloud platform for remote management of IIoT devices, the Router can be monitored and managed remotely. Users can also configure the Router with the platform, including network connectivity, failover, and custom settings. -
Page 20: Custom Settings
2.5 Custom Settings As Vantron provides an SDK, users can upload their own scripts or programs or IPK packages to the Router and set them to run at startup or to support certain protocols. -
Page 21: Chapter 3 Router Configuration
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 3 ROUTER CONFIGURATION Vantron | R102 User Manual www.vantrontech.com... -
Page 22: Introduction To Vantronos
3.1 Introduction to VantronOS Featuring independent development of system and functions, VantronOS is an intelligent operating system that interprets the joint efforts of Vantron team based on Linux system and embedded hardware. It employs modular design and plug-in expansion design ideas, running Linux kernel with firewall to secure Internet connection of devices without being attacked. - Page 23 ARP scan is disabled by default, and it can be enabled when you click on arplist icon and toggle on ARP scan in the pop-up. 11. Details of the access port The image illustration varies when the Router has cellular connection. 12. Default route currently used by the Router Vantron | R102 User Manual www.vantrontech.com...
-
Page 24: Quick Start
3.3.2 WAN setting – DHCP DHCP: ETH0.1 and WiFi AP are bounded with the network bridge (br-lan). ETH0.2 is designed as the WAN port to connect the higher-level network. 4G/LTE port does not work under this mode. Vantron | R102 User Manual www.vantrontech.com... -
Page 25: Wan Setting - Client
Step 7: Confirm if the Wi-Fi network is accessible. If not, select No as the heartbeat detection method might be different; Step 8: Select the protocol for IP addressing (DHCP by default); Step 9: Click Save & Apply. Vantron | R102 User Manual www.vantrontech.com... -
Page 26: Wan Setting - 4G/Lte
3g-4g which is the WAN port. When using a pre-certified 4G module provided by Vantron, the device port for 4G/LTE communication displayed under the protocol will be eth2 which is the WAN port. -
Page 27: Wan Setting - Pppoe
Step 1: Select PPPoE for WAN Protocol; Step 2: Click to switch the protocol to PPPoE; Step 3: Enter the username for PAP/CHAP authentication; Step 4: Enter the password for PAP/CHAP authentication; Step 5: Click Save & Apply. Vantron | R102 User Manual www.vantrontech.com... -
Page 28: Wan Setting - Static
Step 4: Specify the subnet mask; Step 5: Specify the IPv4 gateway; Step 6: Specify the IPv4 broadcast; Step 7: Set the DNS server; Step 8: Click Save & Apply. Leave the field as is if not available. Vantron | R102 User Manual www.vantrontech.com... -
Page 29: Auto Routing
Traceable IP (heartbeat server) Use spaces to separate multiple IP addresses. If you don’t have internet access or private network, set the traceable IP to that of the upper layer device. Edit rules Delete rules Vantron | R102 User Manual www.vantrontech.com... - Page 30 10. Traceable IP (heartbeat server) Use spaces to separate multiple IP addresses. If you don’t have internet access or private network, set the traceable IP to that of the upper layer device. Save & Apply the settings Vantron | R102 User Manual www.vantrontech.com...
-
Page 31: Virtual Tunnel
6. If you selected OpenVPN as the WAN protocol, you’ll have to continue with the configuration using a .ovpn file 7. Select the local profile for configuration 8. Upload the local profile 9. Select to use a certification or username & password as for authentication Vantron | R102 User Manual www.vantrontech.com... -
Page 32: Network
The settings will be overridden if you make changes in the Network Guide page under Quick Start tab later. 3.5.1 Interfaces All the network interfaces currently available and configurable are displayed under Network > Interfaces. Vantron | R102 User Manual www.vantrontech.com... -
Page 33: Lan
Click on the Edit button behind LAN to enter common configuration, and click General Setup. Description of the numbered areas 1. Status of the interface 2. Enter the IP address of the LAN interface 3. Select a LAN interface subnet mask Vantron | R102 User Manual www.vantrontech.com... - Page 34 1. Disable the DHCP service If disabled, the DHCP service will not take effect to this interface. 2. DHCP start address 3. Maximum number of leased addresses (up to 150) 4. Expiry time of leased addresses (min. 2m) Vantron | R102 User Manual www.vantrontech.com...
-
Page 35: Wan
You’ll be redirected to 4G LTE configuration page upon a click of the Edit button behind 4G interface. Refer to 3.4.3 4G/LTE for details. General and advanced settings of WAN interface are configured here. Vantron | R102 User Manual www.vantrontech.com... - Page 36 1. Enable Use default gateway 2. Enable Use DNS server advertised by peer 3. Router metric 4. MAC address cloning 5. Network MTU Be sure to save the settings before you exit the page. Vantron | R102 User Manual www.vantrontech.com...
- Page 37 The advanced settings are basically same as those for DHCP protocol. WAN – PPPoE The general and advanced PPPoE settings for the WAN port are literally the same as those above. Clicking on Back or Refresh will return to interface settings. Vantron | R102 User Manual www.vantrontech.com...
-
Page 38: Wireless (Wifi)
3. Select an encryption method (the following options vary with the encryption method) 4. Select an encryption algorithm 5. Assign a Wi-Fi password (no less than 8 characters) 6. List of currently connected devices Vantron | R102 User Manual www.vantrontech.com... -
Page 39: Wi-Fi - Ap Mode (Advanced Setting)
4. Set Wi-Fi band 5. Wi-Fi transmission power Fields 2-5 will depend on the functions of the Wi-Fi module, for example, RTL8188 wireless module does not have such options. 6. The network interface to which Wi-Fi belongs Vantron | R102 User Manual www.vantrontech.com... -
Page 40: Wi-Fi - Client Mode
6. Input the password of the Wi-Fi 7. Confirm that the target Wi-Fi has internet connection When the Router is successfully connected as a client, there will be the network information next to Scan WIFI button. Vantron | R102 User Manual www.vantrontech.com... -
Page 41: Lte
3. Input the APN provided by the carrier 4. Enter the username provided by the carrier for PAP/CHAP authentication 5. Enter the password provided by the carrier for PAP/CHAP authentication 6. Click Advanced Setting for more configuration options Vantron | R102 User Manual www.vantrontech.com... - Page 42 6. Select AT&T/TMO/Canada or Verizon from the drop-down list for AT&T SIM card and Verizon SIM card, respectively 7. Default MTU value (1500) Remember to save the settings to have the configurations take effect. Vantron | R102 User Manual www.vantrontech.com...
- Page 43 4G module. You can keep the default values of the fields unchanged. The Run Log next to the Advanced Setting tab provides the last 50 log entries of the module. Under 4G traffic tab, information about real-time traffic, monthly traffic, and daily traffic is available. Vantron | R102 User Manual www.vantrontech.com...
-
Page 44: Static Routes
It is not present in normal routing tables. The destinations are unreachable. Packets are discarded and the ICMP Unreachable message of host unreachable is generated. The local senders will receive an EHOSTUNREACH error. Vantron | R102 User Manual www.vantrontech.com... -
Page 45: Firewall
Default value Description INPUT chain default strategy Input String ACCEPT (ACCEPT, REJECT, DROP) FORWARD chain default strategy Forward String REJECT (ACCEPT, REJECT, DROP) OUTPUT chain default strategy Output String ACCEPT (ACCEPT, REJECT, DROP) Vantron | R102 User Manual www.vantrontech.com... - Page 46 7. MSS clamping 8. Zone editing A click of the Edit button following each zone will direct you to the detailed zone setting page where general settings, advanced settings and forwarding rules are available. Vantron | R102 User Manual www.vantrontech.com...
-
Page 47: Customization
The commands are executed after each firewall restart, right after the default rule settings have been loaded. 3.6 Customization Customization is supported depending on the device model. For R102, certain function may not be available. Vantron | R102 User Manual... -
Page 48: Dmp Agent
World-leading provider of embedded/IoT products and solutions 3.6.1 DMP Agent DMP Agent is designed for communication with Vantron gateway management platform, a console where multiple gateways could be managed in groups to provide required information of a target workplace. With the platform, devices connected to each gateway will be displayed with detailed information, including variables, date collection status, edge computing information, etc. -
Page 49: Manufacturer Info Customization
There are three modes that customers can choose from the drop-down list based on their needs. Vantron: All the information included in the files will be about Vantron. Standard: Some of the fields included in the files will be “Gateway” by default, and some information like the copyright will be left blank. -
Page 50: Hardware
3) Telnet: enables the port and runs the telnet protocol on the port to set up telnet parameters (less used). 3.8 Services – Dynamic DNS Dynamic DNS is a technology in domain name system (DNS) that automatically updates the Vantron | R102 User Manual www.vantrontech.com... -
Page 51: System
For log-related settings, click Logging tab next to the General settings tab. If you want to change the interface language, just navigate to Language and Style tab following behind. 3.9.2 NBM Setting General Settings Vantron | R102 User Manual www.vantrontech.com... -
Page 52: Administration
On this page, you can set a password for accessing the Router. 3.9.4 Backup/Flash Firmware On this page, you can backup/restore parameters, restore factory settings (clear user settings), and update firmware from local or with OTA. Vantron | R102 User Manual www.vantrontech.com... -
Page 53: Reboot
You will exit the web interface with a click on the Logout tab. If you need make changes to any of your settings, you can log in the web again with default password: admin. Make sure you have saved the changes before logout. Vantron | R102 User Manual www.vantrontech.com... -
Page 54: Chapter 4 Disposal And Product Warranty
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 4 DISPOSAL AND PRODUCT WARRANTY Vantron | R102 User Manual www.vantrontech.com... -
Page 55: Disposal
& electronic waste recycling/disposal center. Proper disposal of this sort of waste helps avoid harm and adverse effect upon surroundings and people’s health. Please contact local organizations or recycling/disposal center for more recycling/disposal methods of related products. Vantron | R102 User Manual www.vantrontech.com... -
Page 56: Warranty
Any Product found to be defective and covered under warranty pursuant to Clause above, shall be returned to VANTRON only upon the CUSTOMER’s receipt of and with reference to a VANTRON supplied Returned Materials Authorization (RMA) number. VANTRON shall supply an RMA, when required within three (3) working days of request by the CUSTOMER. -
Page 57: Appendix A Regulatory Compliance Statement
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate this equipment. Vantron | R102 User Manual www.vantrontech.com...
