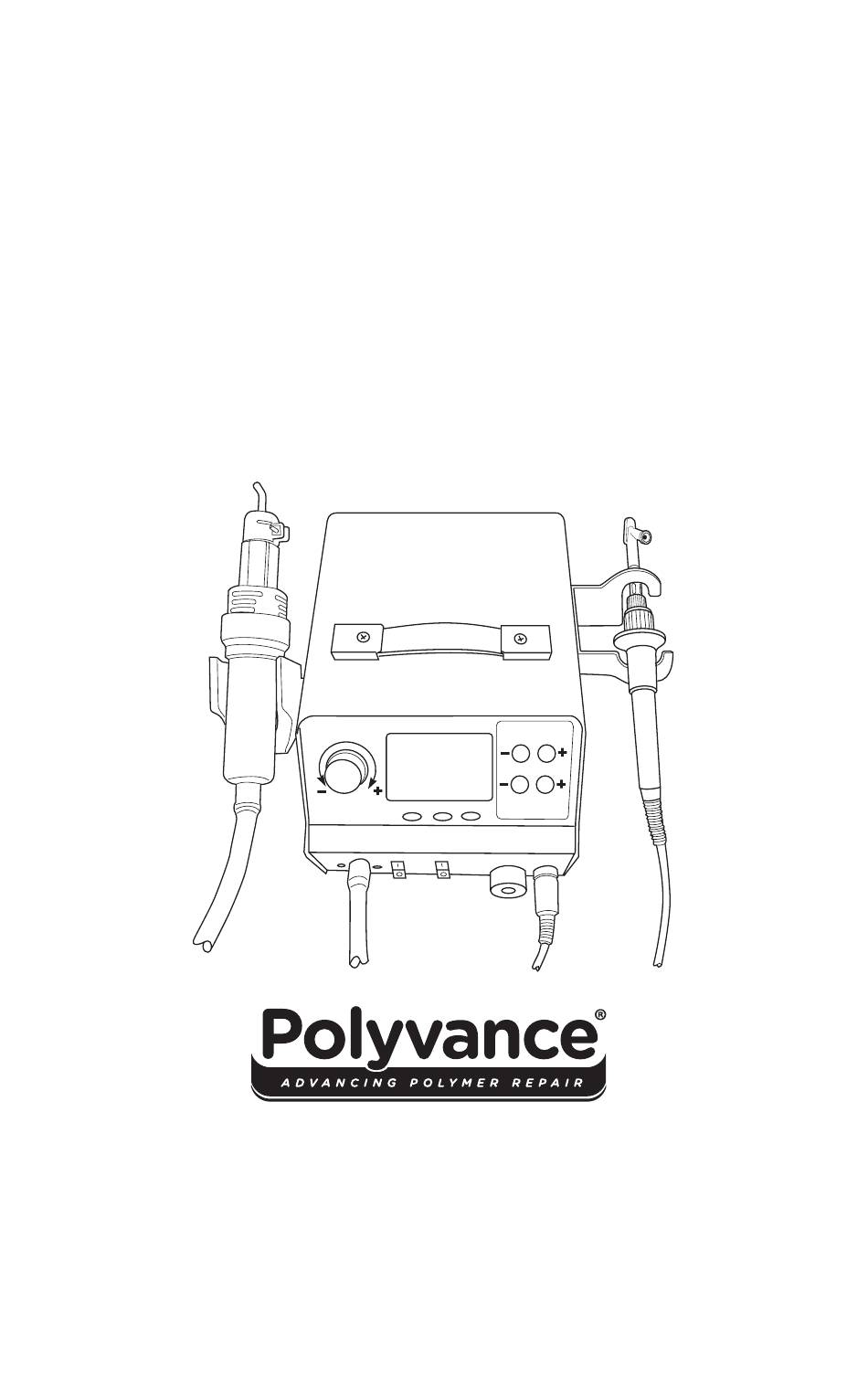

MINI-FUZER HOT AIR PLASTIC WELDING STATION
Thank you for purchasing the Polyvance 6180 Mini-Fuzer Hot Air Plastic Welding
Station. This product has both a hot air welder torch and an airless welder iron.
The hot air torch has adjustable airflow and temperature, and the airless welder
iron has adjustable temperature. This product is designed for welding plastic
parts.
Please read this manual before operating the Polyvance 6180 Mini-Fuzer. Keep
this manual readily accessible for reference
POLYVANCE
PART NO. 6180
USER MANUAL
M1
M2
Polyvance
1128 Kirk Rd
Rainsville, AL 35986 USA
Phone: +1-256-638-4103
info@polyvance.com
www.polyvance.com
Revision Date: July 2023 - PB01
Page 1
M3
Advertisement
Table of Contents
Related Manuals for Polyvance 6180
Summary of Contents for Polyvance 6180
- Page 1 MINI-FUZER HOT AIR PLASTIC WELDING STATION USER MANUAL Thank you for purchasing the Polyvance 6180 Mini-Fuzer Hot Air Plastic Welding Station. This product has both a hot air welder torch and an airless welder iron. The hot air torch has adjustable airflow and temperature, and the airless welder iron has adjustable temperature.
-
Page 2: Table Of Contents
The owner of this tool is solely responsible for its safe use. Poly- vance recommends that all users read and understand the information in this manual prior to using the equipment. Polyvance will not be held liable for injury or property damage from negligence, improper training, machine modification, or misuse. -
Page 3: Tool Schematic
Unplug tool before servicing. Never attempt to service the tool while it is plugged into a power source. Warning: Electric shock hazard, where the appliance is used without the ground (earth) connection. 警告：機器を接地しないで使用すると感電する危険がある。 2.0 TOOL SCHEMATIC Main Power Hot Air Switch (on Reduction Airless... -
Page 4: Initial Setup
Display Type Hot Air Welder Specifications Air Pump Type Diaphragm pump Airflow 0 - 28 liters per minute (0 - 1 CFM) Temperature Range 100 - 480°C (212 - 896°F) Temperature Stability ±1°C Torch Hose Length 1.8 – 2.1 m (71 - 82 in) Airless Welder Specifications Temperature Range 100 - 480°C (212 - 896°F) -
Page 5: Control Panel
5.0 CONTROL PANEL Airless welder Airless Hot air welder temperature airflow control knob adjustment buttons Hot air welder Flow temperature Hot Air adjustment buttons Push - Cool / Heat Memory buttons Airless Hot Air Air Inlet Do Not Block Hot air welder Airless welder power switch power switch... -
Page 6: Setting Memory Buttons
When you return the torch to the holster, the welder will start its automatic cooldown pro- cess. The air pump remains on to cool the heating element. You will see the temperature reduce. Once it returns to 100°C (212°F), the air pump will automatically turn off. The LCD screen will return to showing three dashes and the words “HOT AIR”, indicating that the torch is ready to use once you pick it up from the holster. -
Page 7: Welder Function Setup
The torch will also heat up automatically when the torch Push and hold is removed from the holster. Polyvance these two buttons recommends that you leave it in Auto mode simultaneously to... -
Page 8: Plastic Welding
until a beep is heard. You will see the “SLEEP” indicator begin to flash. While the Sleep indicator is flashing, press the right button to increase the sleep time and the left button to reduce the sleep time. Sleep time may be varied in one minute increments from 0 to 99 minutes. - Page 9 See instructional videos on www.polyvance.com or search for Polyvance on YouTube. 9.2 Airless Welder - Welding Thermoplastics “Thermoplastics” are plastics that melt when heated and resolidify when cooled. Look for an identification symbol molded into the part, or do test welds with various welding rods to see which one sticks best.
-
Page 10: Troubleshooting
See instructional videos on www.polyvance.com or search Polyvance on YouTube. 9.4 Airless Welder - Melting in Reinforcing Wire Mesh Thermoplastic (i.e. meltable) plastics may be reinforced by melting stainless steel wire mesh into the plastic. -
Page 11: Limited Warranty
10.2 Airless Welder Barrel is Bent The 6180 Mini-Fuzer is not designed for heavy-duty, professional, or industrial use. The air- less plastic welder, in particular, cannot withstand heavy downward pressure on the handle. Use only a light downward pressure on the airless heating element. Bending of the airless plastic welder’s barrel is excluded from the one-year warranty on this product (see below,... - Page 12 Scansiona il codice QR per scaricare i Manuali Utente in altre lingue. Scannen Sie den QR-Code, um Bedienungsanleitungen in anderen Sprachen herunterzuladen. 他の言語でのユーザーマニュアルをダウンロードするには、QRコードをスキャンしてください 请扫描QR码以下载其他语言的用户手册。 Quét mã QR để tải xuống Hướng dẫn sử dụng trong các ngôn ngữ khác nhau. Polyvance 1128 Kirk Rd Rainsville, AL 35986 USA Phone: +1-256-638-4103 info@polyvance.com www.polyvance.com...
