SPECIFICATION: HEATSTORE TORNADO PRO
Electrical: 800W/1650W; 220/240V; 50Hz;
Air Speed: 95m/s; 220mph
Drying Time: 5-10 seconds;
Dimensions/Weight: 730(h) x 300(w) x 222 mm; 14kG
Sound level: 75dB
This marking indicates that this product should not be disposed with other
household wastes throughout the EU and UK. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for
environmental safe recycling.
Telephone: 0117 923 5375
Unit 12, Access 18, Bristol BS11 8HT
www.heatstore.co.uk
enquiries@heatstore.co.uk
ISSUE 1/07/23

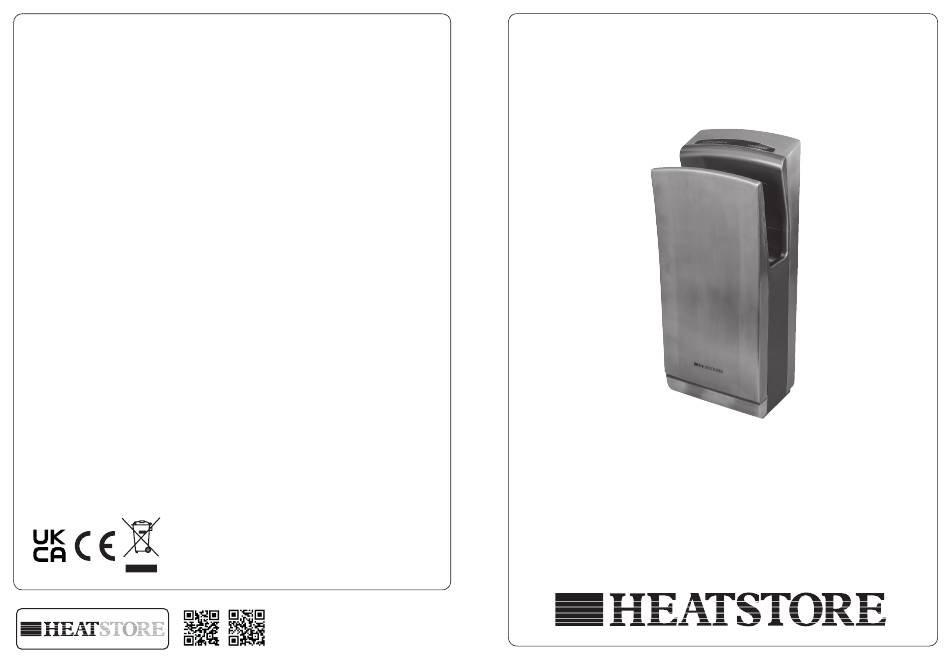

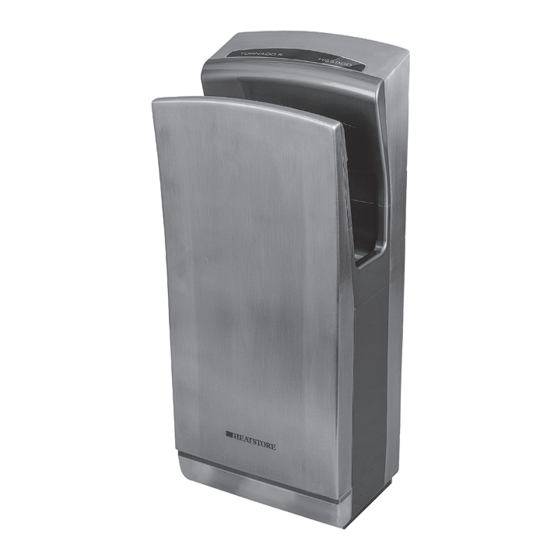

HS5910 Tornado Pro
Hi-Speed Hand Dryer
Operating Instructions
IMPORTANT SAFEGUARDS
WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY
AND RETAIN FOR FUTURE REFERENCE
IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF THIS
PRODUCT, CONSULT A COMPETENT ELECTRICIAN.
Advertisement
Table of Contents
Related Manuals for Heatstore TORNADO PRO
Summary of Contents for Heatstore TORNADO PRO
- Page 1 HS5910 Tornado Pro Hi-Speed Hand Dryer Operating Instructions SPECIFICATION: HEATSTORE TORNADO PRO Electrical: 800W/1650W; 220/240V; 50Hz; Air Speed: 95m/s; 220mph IMPORTANT SAFEGUARDS Drying Time: 5-10 seconds; Dimensions/Weight: 730(h) x 300(w) x 222 mm; 14kG WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
- Page 2 9. To avoid the risk of fire, do not cover the unit or pull the power supply. Heatstore will not be held liable for any damage to property or personal injury as a 10. To avoid the risk of electrical shock, please do not isolate the unit with wet hands.
- Page 3 Installation: Technical Data: Rated voltage AC 220-240V WATERPROOF IPX4 GRADE Rated frequency 50/60HZ Heating conditions Ambient temperature <21 Rated power 1650W Air speed 95m/s Motor power 800W Drying time 5-10s Weight 14.0KG Overall size(mm) 300x222x730 Components: Body Power Switch Cover Wall Bracket Screws Drainage...
- Page 4 Installation: Installation: Before installation Be sure to select a suitable position where the unit is easy to use, and away from direct sunlight, high condensation or corrosive elements. Choose a flat surface, away from high traffic. The unit is IPX4 rated. Make sure that you have all the parts and appropriate tools for installation.
- Page 5 Terms of guarantee: Drying your hands: 1. The product is covered by a two year exchange warranty. 2. The warranty period starts on the dat the unit is purchased. 3. Warranty exemptions: - Improper use, alteration, or modification of the unit. - Any faults caused by natural disasters or abnormal supply voltages.
