HS5810_instructions
19/4/13
08:47
Page 1

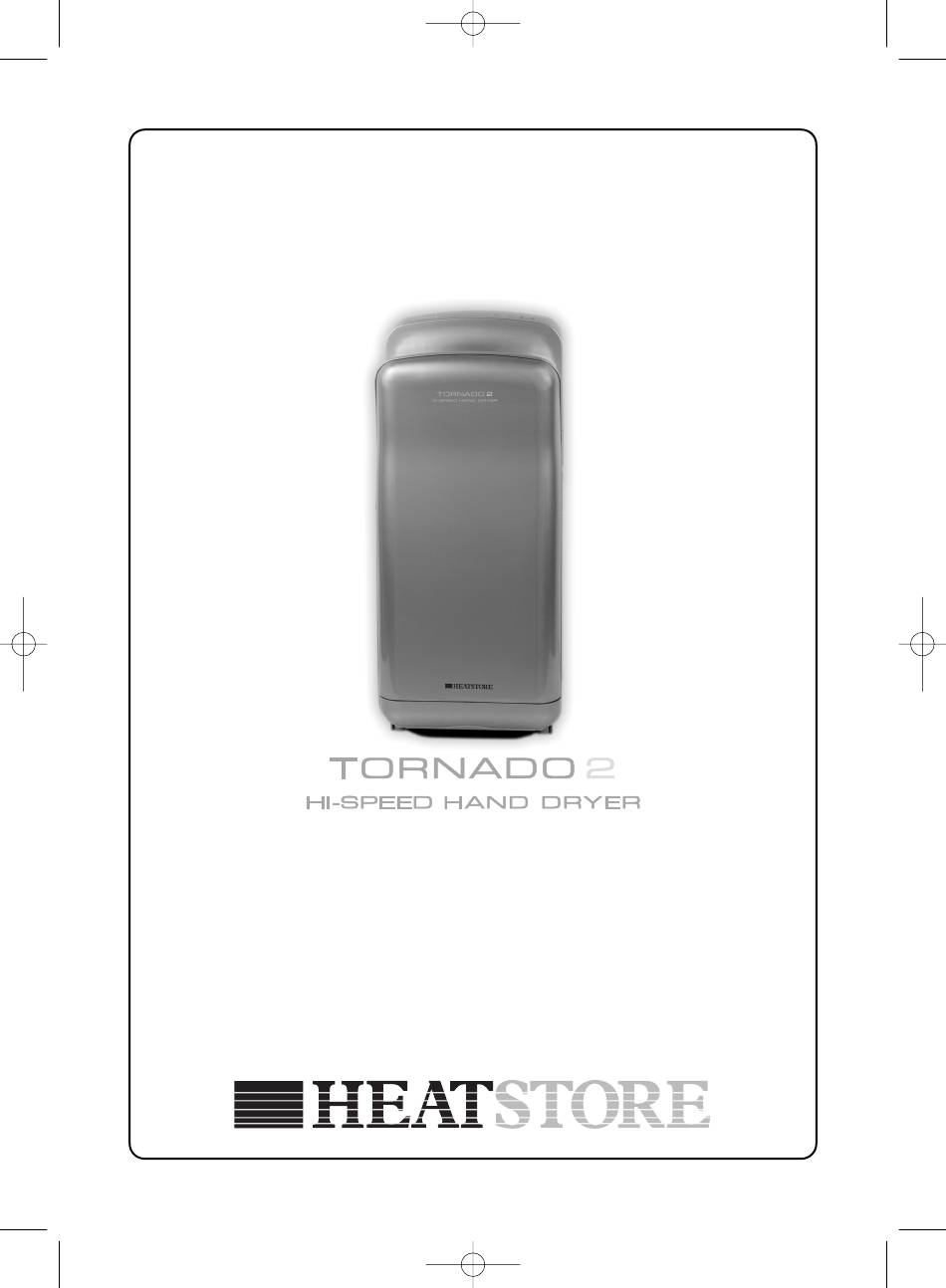

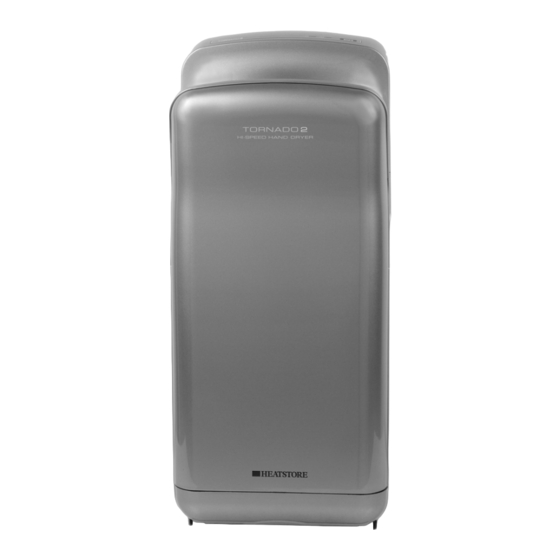

HS5810 Tornado 2
Hi-Speed Hand Dryer
Installation and Operating Instructions
IMPORTANT SAFEGUARDS
WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY
AND RETAIN FOR FUTURE REFERENCE.
IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF THIS
PRODUCT, CONSULT A COMPETENT ELECTRICIAN.
Advertisement
Table of Contents
Related Manuals for Heatstore Tornado2 HS5810
Summary of Contents for Heatstore Tornado2 HS5810
-
Page 1: Important Safeguards
HS5810_instructions 19/4/13 08:47 Page 1 HS5810 Tornado 2 Hi-Speed Hand Dryer Installation and Operating Instructions IMPORTANT SAFEGUARDS WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED. PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE. IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF THIS PRODUCT, CONSULT A COMPETENT ELECTRICIAN. - Page 2 Failure to accurately follow these instructions may result in the incorrect operation of the unit, damage to property and/or personal injury. Heatstore will not be held liable for any damage to property or personal injury as a result of failure to comply with the instructions contained herein.
-
Page 3: Before Installation
HS5810_instructions 19/4/13 08:47 Page 3 Before installation Be sure to select a suitable position where the unit is easy to use, and away from direct sunlight, high condensation or corrosive elements. Choose a flat surface, away from high traffic. The unit is IPX4 rated. Make certain that you have all the parts and appropriate tools for installation. - Page 4 HS5810_instructions 19/4/13 08:47 Page 4 Offer up the separate backplate to the wall and mark the position of the four holes and drill to a suitable depth – see figure 4. loosely fix the backplate to the wall and pull the fixed power cord through to the backbox.
-
Page 5: Operation
HS5810_instructions 19/4/13 08:47 Page 5 Use the top left hand switch to select AUTO or OVERRIDE. • Setting AUTO provides hot blowing when the ambient temperature is below 23°C – above 23°C it blows cool. • Setting OVERRIDE provides hot blowing at all Figure 6a: Cool blowing times when the right hand switch is set to hot. -
Page 6: Maintenance And Cleaning
Figure 10 General cleaning It is recommended that all surfaces of the Heatstore HS5810 Tornado2 Hi-Speed Hand Dryer are cleaned regularly using a soft cloth and a non-abrasive/non- caustic cleaning fluid to avoid damaging the antibacterial coating. -
Page 7: Troubleshooting
If the indicator still lights up or flashes, turn off the unit, disconnect the unit from the power, and contact Heatstore Technical. Troubleshooting There are some basic actions you can take should your hand dryer malfunction. - Page 8 HS5810_instructions 19/4/13 08:47 Page 1 SPECIFICATION Heatstore Tornado 2 HS5810 Electrical: Cool: 800W or hot:1900W; 230/240V; 50Hz; Air Speed: 95m/s ±5%; Drying Time: 5-10 seconds; Dimensions/Weight: 687(h) x 300(w) x 220 mm; 11kG Sound level: 75dB Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Need help?
Do you have a question about the Tornado2 HS5810 and is the answer not in the manual?
Questions and answers
Fan in dryer not working, has number 18 on the display, if you enter your hands, it counts down from 10 as usual, then goes to 18??
