Operation

G
After washing hands shake off excess water droplets.
G
Place hands approx 120mm under the air outlet, the infra-red sensor will
automatically activate the unit.
G
During drying, rub your hands to aid the drying time. The nearer your
hands are to the unit, the more efficient the drying will be.
G Remove hands when dry.
After 3 seconds, the unit will automatically stop running.
G After 60 seconds continuous drying, the unit will stop and will need to be
reactivated if further drying is required.

Cleaning and maintenance

It is recommended that all surfaces of the HS5610 hand dryer are cleaned
regularly using a soft cloth and a non-abrasive/non-caustic cleaning fluid.
If the unit malfunctions, consult a competent electrician or the Heatstore
Technical department for advice where the unit is under warranty.
SPECIFICATION: HS5610
Electrical: 220-240V, 1800W, ~50/60Hz;
Air Speed: 90 m/s;
Drying Time: 10 seconds;
Dimensions/Weight: 320 x 290 x 170 mm; 5.5kG
IP ZONE
X1 U
E X C H A N G E
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authority or retailer for recycling advice.
Page 1
HS5610
Telephone: 0117 923 5375 Fax: 0117 923 5374
Victoria Road, Avonmouth, Bristol BS11 9DB
www.heatstore.co.uk
Issue 1 0216

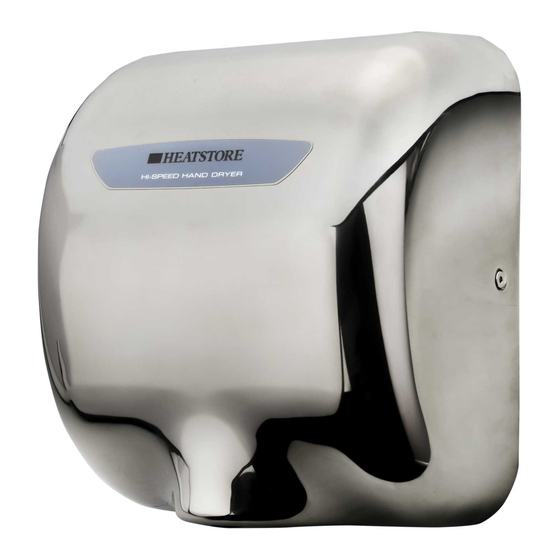

HS5610 Hi-Speed Hand Dryer
Installation and Operating Instructions

IMPORTANT SAFEGUARDS

WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY
AND RETAIN FOR FUTURE REFERENCE
IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF THIS
PRODUCT, CONSULT A COMPETENT ELECTRICIAN.
