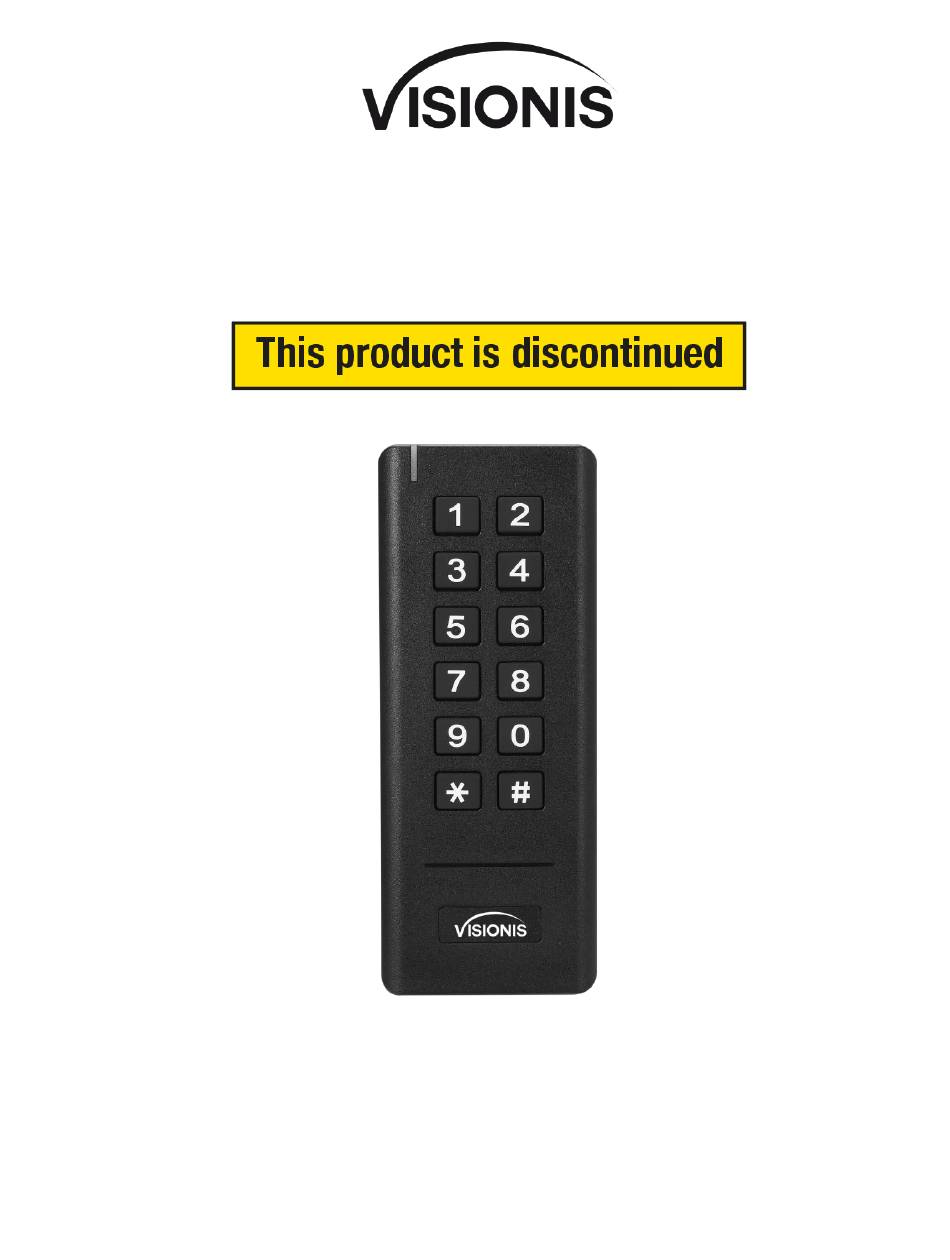

- Page 1 2.4GHz Indoor Wireless Keypad / Reader Access Control 500 Users Range of 50 Feet Delay and On/Off Toggle Mode Battery Operated Standalone No Software VIS-8009 / VIS-8010 User Manual...
- Page 2 INTRODUCTION The keypad is wireless ABS keypad, which operated by 3units of AAA batteries, it can work as long as one year (bases on 30 times/day) Specifications Operating Voltage 3units of AAA batteries (Not included) Current ≤10uA Idle Current ≤50mA Working Current Communication Frequency 2.4G...
- Page 3 Sound and Light Indication Operation Status Red LED Green LED Buzzer Standby Unlock the lock ON for 3 seconds One beep Key press under Program Mode One beep Enter into Program Mode Shines per 1.5 seconds One long beep Invalid PIN Exit from the Program Mode One beep Low battery reminding (Keypad)
- Page 4 Programming Step Keystroke Combination 1. Enter Program Mode * (Master Code) # 2. Add Card: Using Auto ID 1 (Read Card) # (Allows VIS-3200 to assign Card to next The cards can be added continuously. available User ID number) 2. Add Card: Select Specific ID 1 (User ID) # (Read Card) # (Allows Master to define a specific User ID to associate the card to)
- Page 5 Set Relay Configuration The relay configuration sets the behavior of the output relay on activation. Programming Step Keystroke Combination 1. Enter Program Mode * (Master Code) # 2. Pulse Mode 4 (1-99) # (factory default) The relay time is 1-99 seconds. (1 is 50mS.) (Default is 5 seconds) 2.
- Page 6 PIN/card input a day. If low battery of the wireless keypad, there will be 3 beeps when every key is pressed, and the LED will stay in Orange, then please replace the batteries within one week. VIS-8009 - Simplified Instruction Function description Operation...
