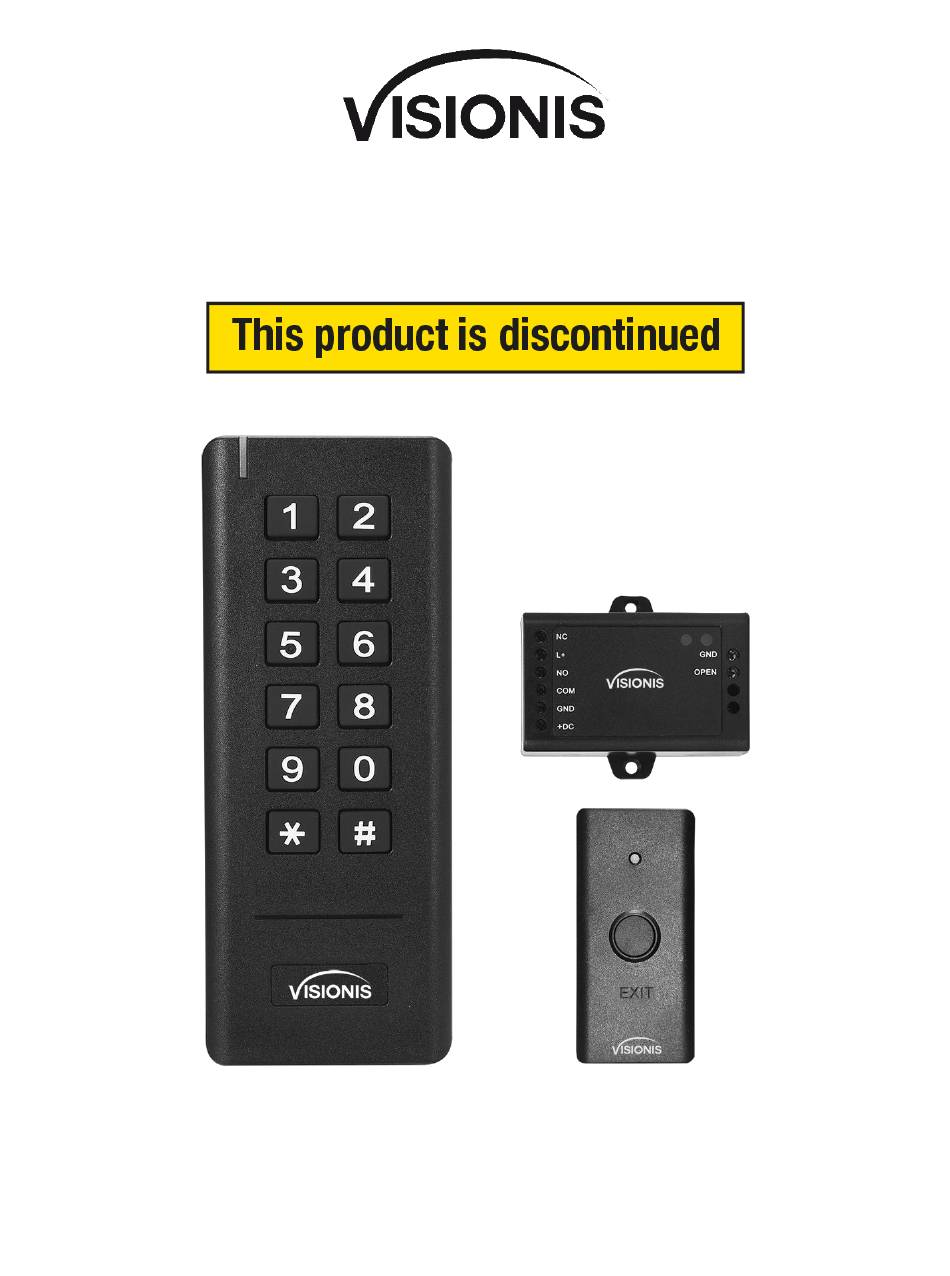

- Page 1 2.4GHz Indoor Black Wireless Exit Button Receiver Keypad / Reader Access Control 500 Users Range of 50 Feet Delay and On/Off Toggle Mode Battery Operated Standalone No Software VIS-3200 / VIS-3201 User Manual...
-
Page 2: Specifications
INTRODUCTION The VIS-3200 and VIS-3201 is a single door wireless access control, consists of a wireless keypad, a mini controller and a wireless exit button. TEA + Rolling Code of encryption algorithm and the split design guarantees higher-secure. The keypad can store 500 PIN / card users. Because of ultra-low power consumption, the keypad and the exit button can work as long as one year (based on 30 times a day), with just 3 units of AAA batteries for the keypad (NOT INCLUDED) and 1 unit Li-battery for the Exit Button (INCLUDED). -
Page 3: Carton Inventory
Carton Inventory Wireless Keypad Mini Controller Wireless Exit Button 3M Stickers Diode IN4004 (For relay circuit protection) Self Tapping Screws: Φ3*25mm (0.11*0.98in.) Self Tapping Screws: Φ4*25mm (0.15*0.98in.) Wall Anchors Screw Driver Screw Driver INSTALLATION Attention: there is a battery spacer inside the Wireless Exit Button, please take it off before installation. -
Page 4: Sound And Light Indication
Method 2: Install by screws Sound and Light Indication Operation Status Red LED Green LED Buzzer Standby Unlock the lock ON for 3 seconds One beep Key press under Program Mode One beep Enter into Program Mode Shines per 1.5 seconds One long beep Invalid PIN Exit from the Program Mode... - Page 5 1. Enter Program Mode * (Master Code) # 2. Add Card: Using Auto ID 1 (Read Card) # (Allows VIS-3200 to assign Card to next The cards can be added continuously. available User ID number) 2. Add Card: Select Specific ID...
-
Page 6: Set Relay Configuration
Delete Users Programming Step Keystroke Combination 1. Enter Program Mode * (Master Code) # 2. Delete user 2 (User ID) # The users can be deleted continuously 2. Delete Card 2 (Read Card) # 2. Delete all users 2 (Master Code) # 3. -
Page 7: Reset To Factory Default
OTHERS Users Operation Programming Step Keystroke Combination PIN User Access (PIN) # Card User Access # (Read Card) PIN + Card User Access # (Read Card) (PIN) # Pair Wireless Keypad / Exit Button and Mini Controller 1) They all are already paired when out of factory, if no problem, the users do not need to do this operation in using. 2) One Mini Controller can be connected by five pcs of Wireless Keypad and Exit Button maximum. -
Page 8: Function Description
VIS-3200 - Simplified Instruction Function description Operation * (123456) # Enter the Program Mode then you can do the programming (123456 is the factory default master code) 0 (New Code) # (Repeat the New Code) # Change the Master Code...
