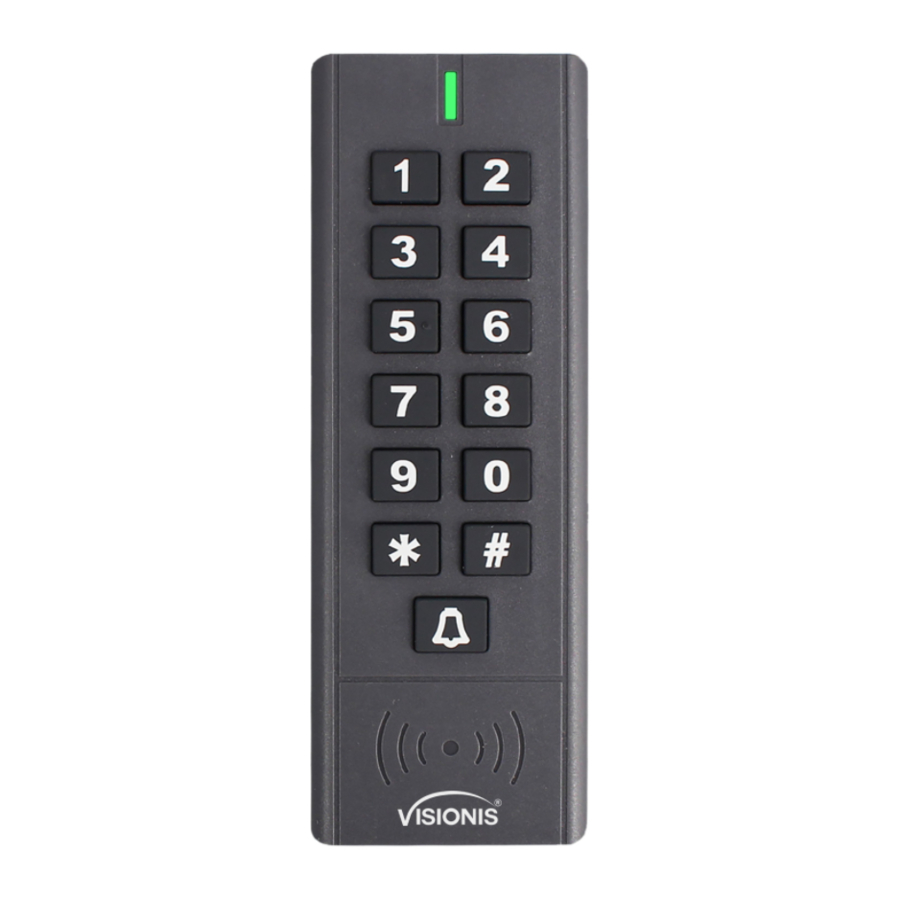

- Page 1 433MHz Outdoor Wireless Keypad / Reader Access Control 500 Users Range of 165 Feet Delay and On/Off Toggle Mode Battery Operated Standalone No Software VIS-8009 User Manual www.visionistech.com...
-
Page 2: Specifications
INTRODUCTION The keypad is wireless ABS keypad, which operated by 3units of AAA batteries, it can work as long as one year (bases on 30 times/day). SPECIFICATIONS Operating Voltage 3 units of AAA batteries (Included) Current ≤10uA Idle Current ≤80mA Working Current Communication Frequency 244MHz... -
Page 3: Sound And Light Indication
Method 2: Install by screws Sound and Light Indication Operation Status Red LED Green LED Buzzer Standby Unlock the lock ON for 3 seconds Key press under Program Mode One beep Enter into Program Mode Shines per 1.5 seconds One long beep Invalid PIN 3 beeps Exit from the Program Mode... - Page 4 Set Master Code Programming Step Keystroke Combination 1. Enter Program Mode * (Master Code) # 0（New Master Code）#（Repeat New 2. Update Master Code Master Code）# Master code is any 6 digits 3. Exit Add User PIN(s) User ID: 0~499 PIN length: 4~8 digits Programming Step Keystroke Combination 1.
- Page 5 The cards can be added continuously. 3. Exit Note: Number of times is 1~9 Visitor PIN/card must be unique, should be distinguished from common PIN/card Change PIN Users Programming Step Keystroke Combination Note: Below is done outside programming mode, users can undertake this themselves 2.
- Page 6 Set Relay Configuration The relay configuration sets the behavior of the output relay on activation. Programming Step Keystroke Combination 1. Enter Program Mode * (Master Code) # 2. Pulse Mode 4 (1-99) # (factory default) The relay time is 1-99 seconds. (1 is 500mS.) (Default is 5 seconds) 2.
- Page 7 Remarks: When anti-tamper alarm is triggered, keypad alarm, mini controller alarm and external alarm will trigger and alarm. User can close the cover / Master Code # / Valid PIN or Card # to release the alarm, or wait until the alarm time (1 minute) is finished. Set Door Open Detection Door Open Too Long (DOTL) Detection When used with an optional magnetic contact or built-in magnetic contact of the lock, if the door is opened...
-
Page 8: Users Operation
Remarks: 1. Reset cards cannot access the door; it can only reset the Wireless Keypad. 2. Reset cards can be 2 units maximum, any 2 new added will replace the previous two. 3. Pairing is necessary after resetting the device. OTHERS Users Operation Programming Step... - Page 9 YELLOW; if the wireless button has a low battery, the LED will shine in RED and GREEN twice alternately; then please replace the batteries for the keypad and the button within one week. VIS-8009 - Simplified Instruction Function description Operation...
