Summary of Contents for holzhandlung raters PATIO XXS

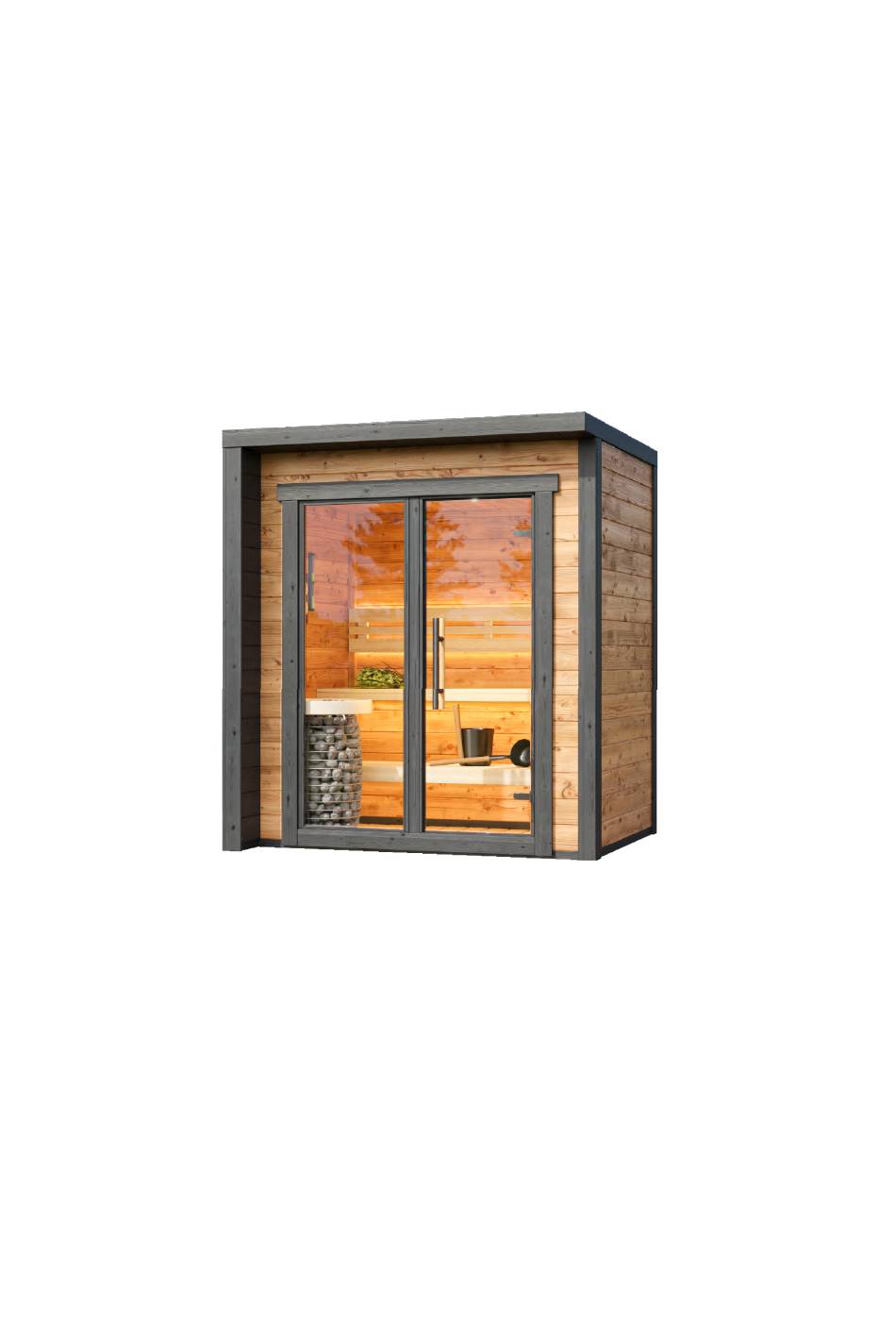

- Page 1 PATIO XXS THERMO SAUNA INSTALLATION MANUAL...
-
Page 2: Required Tools
PATIO XXS THERMO SAUNA Instructions It is recommended to install the sauna above ground level to prevent the base frame of the sauna from coming into direct contact with the ground. Install a water-resistant material, such as bitumen strips, between the base frame and the base surface. -
Page 3: Floor Plan
PATIO XXS THERMO SAUNA Floor plan WALL 1 (back) 2080 2000 1920 690x1860 690x1860 WALL 2 (front) Cross section... -
Page 4: Step 1 - Base Frame
PATIO XXS THERMO SAUNA STEP 1 - Base frame Marking Detail Image Note Length Pcs. AR-1 45x95 Base Frame 1900 AR-2 45x95 Base Frame 1825 AR-3A 45x95 Base Frame Cutout! 1570 AR-3A VR-1 Drainage detail 2000 Marking Detail Image Note Length Pcs. - Page 5 PATIO XXS THERMO SAUNA STEP 2 - Walls Marking Detail Image Note Length Pcs. 40x138 Wall Log Thermo 1920 EXTRA 40x138 Wall Log Thermo 1920 40x96 Wall Log Thermo Height: 96 mm 1920 40x34 Wall Log Thermo Height: 34 mm...
- Page 6 PATIO XXS THERMO SAUNA STEP 2 - Walls Place the first row of wall logs on the base frame according to Scheme 2.1. Make sure that the wall logs protrude 5 mm outward from the base frame on all sides. Use 6x180 screws to fix the wall logs to the base frame.
- Page 7 PATIO XXS THERMO SAUNA STEP 2 - Walls Continue to install the wall logs on top of each other according to the "Wall Layout" scheme on page 7. Use 6x180 screws to connect all wall logs to each other and 4.5x70 screws to fix all logs to corner posts, like shown in Scheme 2.3.
- Page 8 PATIO XXS THERMO SAUNA WALL LAYOUT * Connect all wall logs together using 6x180 screws. * Connect all wall logs to corner posts using 4.5x70 screws Wall 2 (front) Wall A (left) View from the outside View from the outside...
- Page 9 PATIO XXS THERMO SAUNA STEP 3 - Roof boards and ceiling Marking Detail Image Note Length Pcs. KL-1 24x120 Roof Board 1850 18+2 40x30 Roof Block 1920 45x95 Ceiling Beam 1918 45x95 Ceiling Beam 1825 DI-2 15x55 Ceiling Distance Board...
- Page 10 PATIO XXS THERMO SAUNA STEP 3 - Roof boards and ceiling Temporarily lay one KL-1 roof board or some other straight detail on top of the front and back walls. Mark the diagonal that forms under the detail on the side walls with a pencil. These markings will determine the installation height of the T-1 ceiling beam.
- Page 11 PATIO XXS THERMO SAUNA STEP 3 - Roof boards and ceiling Install the roof boards flush with the side walls, starting from the right. Fix the roof boards with 70 mm nails to the beams (6 nails per every roof board) with a hammer or a nailgun. Cut the last roof board to width using a circular saw.
- Page 12 PATIO XXS THERMO SAUNA STEP 3 - Roof boards and ceiling Place the DI-2 and DI-3 ceiling distance boards on top of the insulation panels and fasten them to the ceiling beams using 4.5x70 screws. Install the ceiling lining boards. Leave ~3 mm gap between the ceiling boards and walls on all sides. Use 40 mm lost-head nails (3 per every ceiling board) and a hammer or nail gun for fixing.
-
Page 13: Step 5 - Doors And Windows
PATIO XXS THERMO SAUNA STEP 4 - Floor Install the floor boards starting from the right. Leave ~3 mm gap between the floor boards and walls at all sides. Cut the last floor board to width using a circular saw. Use 3.5x50 screws to fix the floor boards in place (Scheme 4.2). - Page 14 PATIO XXS THERMO SAUNA STEP 6 - Ventilation Marking Detail Image Note Length Pcs. Ventilation Valve Ø100 wood Ventilation Grid Ø100 metal Screw 3x40 Black Cut the ventilation holes in the walls with a diameter of 100 mm using a hole saw or a jigsaw.
- Page 15 PATIO XXS THERMO SAUNA STEP 7 - Outer lining and moldings Marking Detail Image Note Length Pcs. DI-1 15x55 Distance Board for Outer Lining 2250 STP-2 14x121 Outer Lining Board 21+1 18x95 Corner Molding Cut to length! 2400 EXTRA 18x95 Corner Molding...
- Page 16 PATIO XXS THERMO SAUNA STEP 7 - Outer lining and moldings First, fix the L-3 roof moldings to the side walls. The moldings must be installed flush with the upper edges of the side walls. Cut the moldings to length and fasten using 3x40 black screws.
- Page 17 PATIO XXS THERMO SAUNA STEP 8 - Sauna benches Marking Detail Image Note Length Pcs. Bench Module 600 mm Top bench 1913 Bench Module 400 mm Bottom bench 1913 Bench Skirt 1913 Bench Horizontal Support Set 45x45 Marking Detail Image...
- Page 18 PATIO XXS THERMO SAUNA STEP 8 - Sauna benches Lift and place the top benches on top of the supports. Leave ~4 mm gap on the sides. See Scheme 8.3. Fix all the benches to the horizontal supports through the bottom frame using 4.5x70 screws.
- Page 19 PATIO XXS THERMO SAUNA STEP 9 - Interior moldings Marking Detail Image Note Length Pcs. DI-0 50X50 Corner Post Molding Cut to length! 2100 DI-00 21x21 Ceiling and Floor Molding Cut to length! ~2100 Marking Detail Image Note Length Pcs.
- Page 20 PATIO XXS THERMO SAUNA STEP 10 - Roof covering and moldings Marking Detail Image Note Length Pcs. EPDM Rubber Roof Cover 2x3.05 m EPDM Glue 2.5 l EPDM Quickprime 125 ml Paint roller + Handle Metal roofing sheet for back wall...
- Page 21 PATIO XXS THERMO SAUNA STEP 10 - Roof covering and moldings 10.9 Cut 58 mm off the side metal profiles at one end, like shown in Scheme 10.2. Use sheet metal scissors, pliers and protective gloves to prepare metal roofing sheets for installation.
-
Page 22: Maintenance
PATIO XXS THERMO SAUNA Congratulations on a job well done! You have successfully completed the installation and can soon start enjoying your new sauna. Before the first use, please read the maintenance and warranty guide and perform the necessary actions.
