Patio S Sauna

Advertisement

loading
Need help?

Need help?

Do you have a question about the Patio S and is the answer not in the manual?

Questions and answers

Related Manuals for holzhandlung raters Patio S

Summary of Contents for holzhandlung raters Patio S

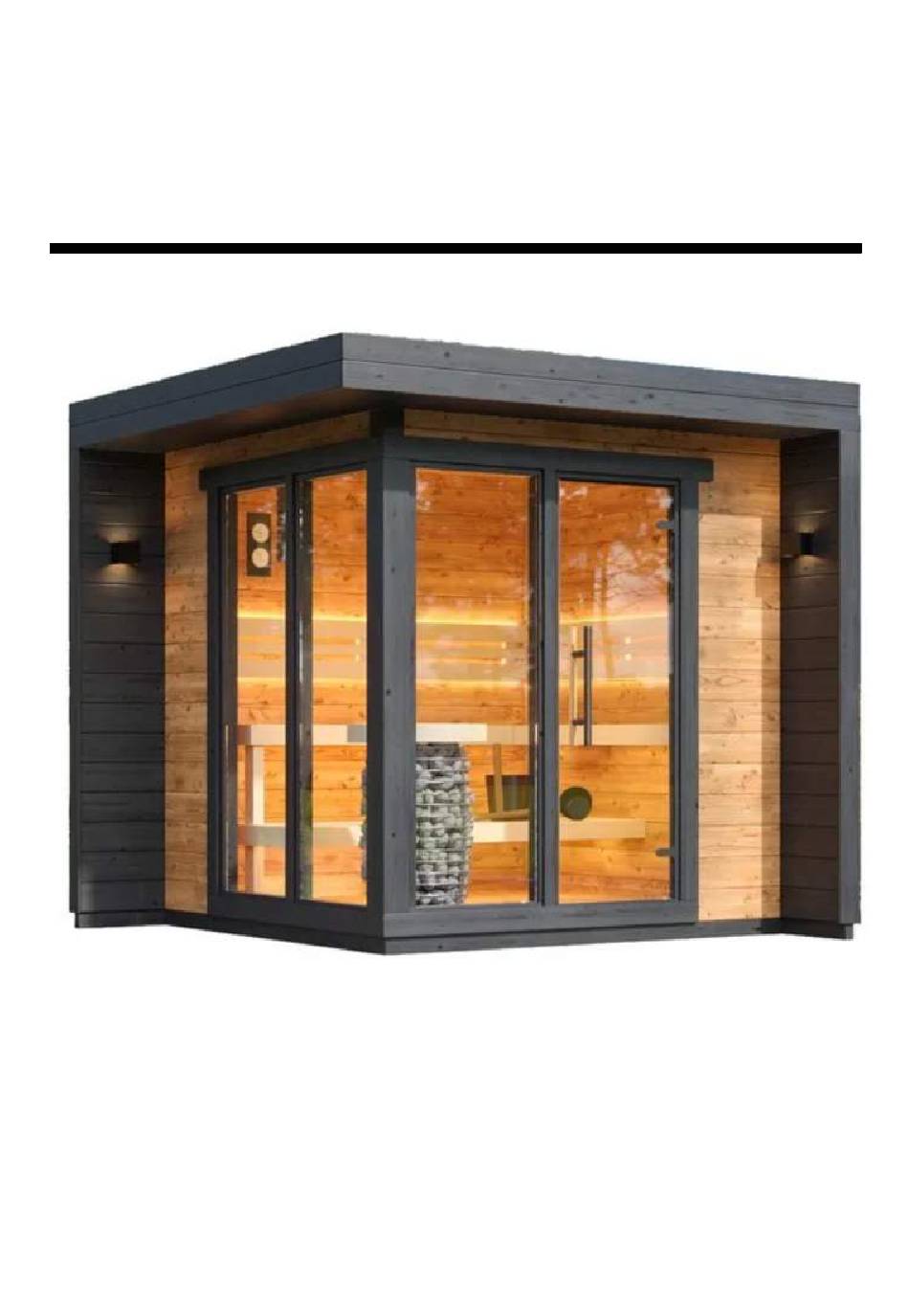

  • Page 1 Patio S Sauna...
  • Page 2 2,500 2,536 PATIO S 2,000 Patio S Patio S Installation Manual GSPublisherVersion 0.4.100.100...
  • Page 3 PATIO S Marking Note Lenght 90x90 POST 2240 Hundegger 410.bvn PATIO S Marking Note Lenght 40x146 WALL LOG 2500 40x146 WALL LOG EXTRA 2500 40x146 WALL LOG Width 136 (drawing) 2500 40x146 WALL LOG Block 30x40 for roof 2500 40x146 WALL LOG...
  • Page 4 PATIO S CUTOUT DRAWINGS Width 136 2500 Width 136 2460 Width 68 2420 Block 30x40 for roof Window Cutout 2040 Window Cutout 2000 For roof width 68 2000 Window Cutout 1950...
  • Page 5 PATIO S Marking Note Lenght 45x95 FLOOR FRAME Cutout (drawing) AR-1A 2495 45x95 FLOOR FRAME AR-2 2450 45x95 FLOOR FRAME AR-3 2025 AR-4 45x95 FLOOR FRAME 1980 AR-5 45x70 FLOOR FRAME 45x70! 1980 PATIO S KL-1 24x120 ROOF BOARD 2530...
  • Page 6 PATIO S Marking Note Lenght 18x120! OVERSIZE 2185 30mm 18x120 CORNER MOULDING EXTRA 18x95 MOULDING/ TEMPORARY SUPPORT 2550 18x95 ROOF MOULDING 2540 18x95 ROOF MOULDING 2520 18x95 CORNER MOULDING 2345 18x95 CORNER MOULDING 2150 UL-1 18x95 DOOR MOULDING 1810 UL-2...
  • Page 7 PATIO S Marking Note Lenght SAUNA BENCH 600x1874 SAUNA BENCH 600x1874 SAUNA BENCH 500x1400 BENCH SUPPORT SET 45x45 SAUNA SIDE SET 1001x829mm + 3pcs 20mm adjustable legs GLASS DOOR 88x690x1860 BRONZE WITHOUT FRAME PREMIUM HANDLE WINDOW 88x690x1860 BRONZE WITHOUT FRAME...
  • Page 8 ROOF COVER Marking Note Lenght SCREW FOR ROOF DETAILS EPDM ROOF COVER 2.72x3.05m EPDM GLUE 2l EPDM QUICKPRIME (little container) EPDM SPLICE TAPE 2500 PAINT ROLLER + HANDLE METAL ROOFING SHEET 2418mm METAL ROOFING SHEET 68mm WIDTH 2720 METAL ROOFING SHEET 68mm WIDTH 2520...
  • Page 9 PATIO S MAIN FLOOR 2,500 2,000 690 x 1,860 690 x 1,860 1,390 GSPublisherVersion 0.4.100.100...
  • Page 10 Floor frame PATIO S Cutout for water drainage 45x22mm 2,495 1,982 AR-1A AR-3 2,025 * Check floor frame diagonals AR-1A = 2495mm 1pcs AR-2=2450mm 1pcs AR-1A AR-3=2025mm 1pcs AR-4=1980mm 8pcs AR-5=1980mm (45x70) 1pcs GSPublisherVersion 0.4.100.100...
  • Page 11 Floor frame PATIO S *Use 90mm screws and battery drill Water drainage detail Screws 90mm Take care! Sharp edges! *Install water drainage detail before first log wall row GSPublisherVersion 0.4.100.100...
  • Page 12 First log row PATIO S Fix first log wall row to the floor frame with 180mm screws (Suggestion: drill hole before inserting the screws) Screws 180mm Leave 5mm gap outside with floor frame and 1st wall row GSPublisherVersion 0.4.100.100...
  • Page 13 Corner Post PATIO S Fix the Corner post to the Floor frame with 180mm screws . Install the screws on an angle and use level tool to level the corner post. Fix the first log wall row with the Corner Post with 70mm screws.
  • Page 14 Wall layouts PATIO S Fix every wall log vertically with 180mm screws Wall 2 (view from outside) Wall 1 (view from outside) Ventilation Grid hole 1,390 Window Window 690x1860 690x1860 Ventilation Grid hole 1,950 2,040 2,460 2,420 Wall A (view from outside)
  • Page 15 Last row PATIO S *Fix log walls with 180mm screws. To install wall logs use rubber hammer and hammer block GSPublisherVersion 0.4.100.100...
  • Page 16 Outside framing PATIO S INSTALL THE OUTSIDE FRAMING BEFORE ROOF BOARDS! Metal angle bracket T-1 (45x95mm) T-4 (45x45mm) T-3 (40x145mm) Install the 45x45 beam T-4 to the last log wall row with 70mm screws T-4 (45x45mm) Screws 70mm GSPublisherVersion 0.4.100.100...
  • Page 17 Outside framing PATIO S INSTALL THE OUTSIDE FRAMING BEFORE ROOF BOARDS! Install the 40x145 beam T-3 to beam T-4 and log wall with 70mm screws. Fix the back end to the log wall with 180mm screws Screw 180mm Screws 70mm...

  • Page 18: Top View

    Temporarily attach roof board on top of the walls. Measure out 95mm from roof board CELING BEAMS Top view (downward) and 547mm from the walls for the joist hanger Ceiling beams and joist hanger PATIO S Ceiling beams and joist hanger PATIO XS 1,830 1,830 Temporarily attach roof board on top of the walls.
  • Page 19 Roof boards PATIO XS PATIO S Roof boards 2.09 Roof boards PATIO M 2.09 Roof boards PATIO M 1,98 1,98 Cut the last roof board to lenght T-1 =2215mm 3,210 2,420 SUGGESTION: Start with half Cut the last roof board to lenght...
  • Page 20 PATIO S Sauna Ceiling Ceiling PATIO M Ceiling PATIO M Ceiling lining boards STP-1 Outside lining boards STP-2 Distance board 15mm Ceiling lining boards STP-1 Insulation Kingspan 30mm Distance board 15mm Ceiling board ams/ rafters with the distance board and 70mm screws...
  • Page 21 1 900 AR-1 Floor Boards AR-1 PATIO M 1 900 AR-1 Floor Frame PATIO S Floor boards Floor Boards AR-1 PATIO M Cutout AR-3 AR-1 AR-1 1 900 Cutout AR-3 Floor Boards *Apply plywood (3/6mm) on floor frame before floor boards...
  • Page 22 Windows PATIO S Windows and door 1. Attach the bottom, top and one side frame 45x45mm to the window leaf with 70mm screws. GSPublisherVersion 0.4.100.100 GSPublisherVersion 0.9.100.100...
  • Page 23 PATIO S Windows and door Lift the windows to place Fix the window frame with log wall with 70mm screws. (Screws will be covered with window mouding) Fix the windows to the corner post with 70mm screws GSPublisherVersion 0.4.100.100...
  • Page 24 PATIO S Outer lining boards Outer lining boards PATIO M Roof lining boards Fix the diagonal detail to the log Fix the diagonal detail to the log wall with 70mm screws and 30 or wall with 70mm screws and 30 or...
  • Page 25 PATIO S Mouldings *Attatch the mouldings with 40mm screws *Corner moulding cutoff GSPublisherVersion 0.4.100.100...
  • Page 26 Sauna Benches PATIO M PATIO S Sauna Benches Sauna Benches INSTALL SAUNA Sauna Benches BENCHES AFTER THE DOOR/ WINDOW IS IN +850 PLACE! INSTALL SAUNA Sauna Benches BENCHES AFTER THE Upper bench DOOR/ WINDOW IS IN +850 PLACE! +400 570mm...

  • Page 27: Side View

    PATIO S Sauna Benches SUPPORTS: UPPER BENCH 560 - 2pcs 515 - 1pcs Cutout 45x45 1,874 465 - 1pcs 415 - 1pcs LOWER BENCH 1,874 UPPER BENCH CUTOUT 45x45 1,399 BENCH FRAME 45x45 SIDE VIEW 1,001 Ajustable leg 20mm GSPublisherVersion 0.4.100.100...
  • Page 28 Ventilation louvre and grids PATIO M PATIO S PATIO S Vent louvre and grids Vent louvre and grids Install ventilation louvre (1pcs) and ventilation grids (3pcs) Install ventilation louvre (1pcs) and ventilation grids (3pcs) =15cm =15cm Use saw or diamond drill bit...
  • Page 29 PATIO S EPDM roof cover Tools: SAFETY FIRTS! EPDM roof cover IT IS RECOMMENDED TO USE GLOVES, SAFETY GLASSES AND RESPIRATOR WHEN APPLYING THE GLUE. ALSO APPLYING OF THE GLUE SHOULD BE DONE IN WELL VENTILATED AREA OR OUTSIDE! Tools: 1.
  • Page 30 PATIO S EPDM roof cover *Optional roof cover Roof cover PATIO XS Back metal profile and rubber roof cover: Splice tape Back profile Roof cover Metal profile *Attach back profile plate before roof cover Use Quickprime plus glue and apply it on the rubber...
  • Page 31 PATIO S Patio metal roof profiles Side and front profile Back profile *If there is 2 pieces of back profile, leave about 10-20mm overlap and fix with screws Back corner: Side profile Cutout 90 Side profile Front corner: Log wall GSPublisherVersion 0.4.100.100...
