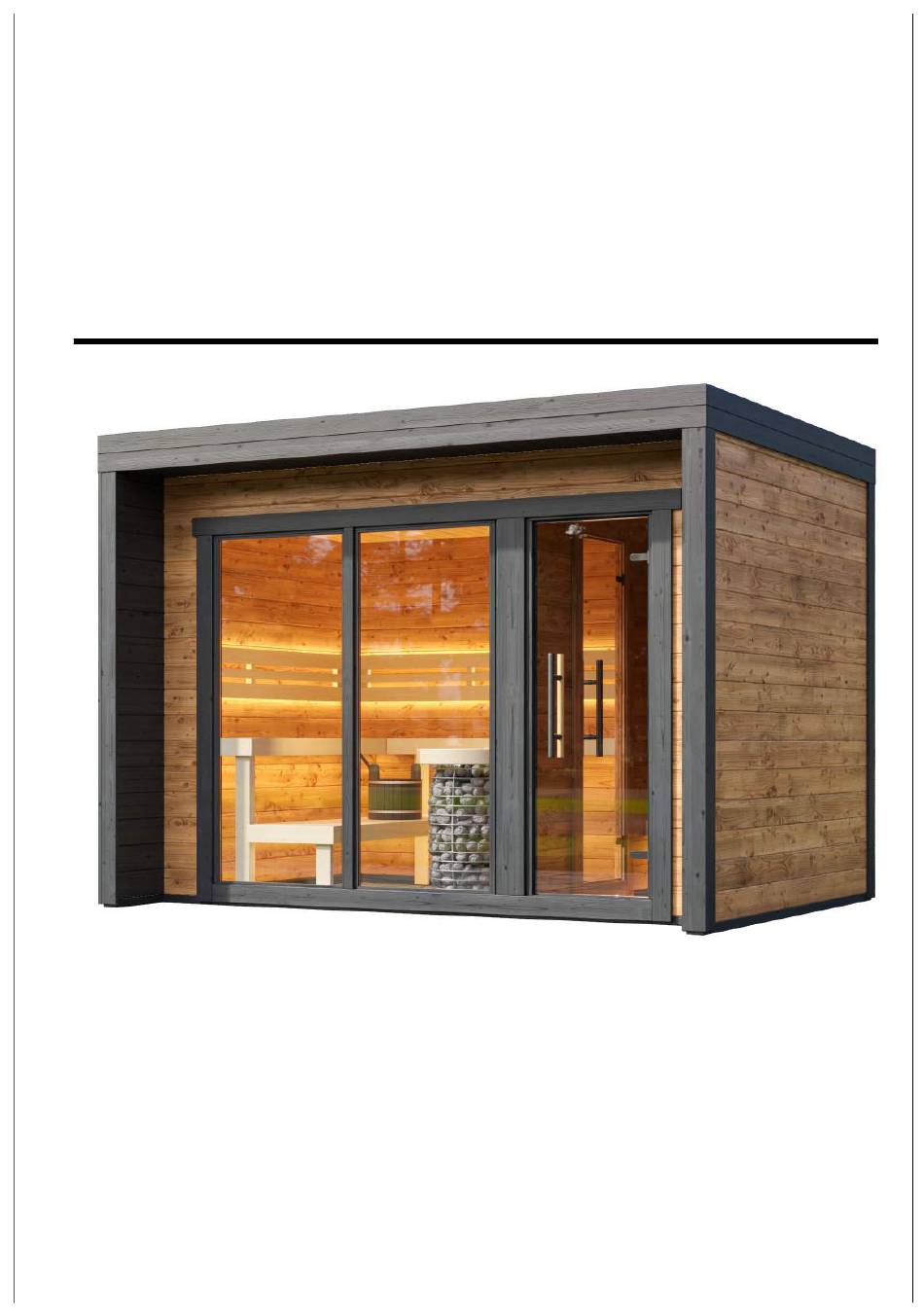

- Page 1 PATIO M Patio M Sauna GSPublisherVersion 0.12.100.100...
- Page 2 3,326 3,290 PATIO M 2,085 1,085 Patio M Patio M Installation Manual GSPublisherVersion 0.12.100.100...
- Page 3 PATIO M Marking Note Lenght 40x146 WALL LOG 3210 40x146 WALL LOG EXTRA 3210 40x146 WALL LOG Width 136 (drawing) 3210 40x146 WALL LOG Width 68 (drawing) 3210 40x146 WALL LOG Cutout (drawing) 3210 40x146 WALL LOG Cutout (drawing) 3210...
- Page 4 PATIO M CUTOUT DRAWINGS Width 136 3210 Width 68 Half log 3210 3210 3210 30x40 Block For roof 3210 Width 136 2400 1920 1920 1920 Width 120 1875...
- Page 5 PATIO M Marking Note Lenght 45x95 FLOOR FRAME AR-1 3190 45x95 FLOOR FRAME AR-2 2395 45x95 FLOOR FRAME Cutout (drawing) AR-2A 2395 AR-3 45x95 FLOOR FRAME 2075 AR-4 45x95 FLOOR FRAME 1810 AR-5 45x95 FLOOR FRAME 1070 AR-6 45x70 FLOOR FRAME...
- Page 6 PATIO M Marking Note Lenght EXTRA 18x95 MOULDING 3400 18x95 ROOF MOULDING 3326 18x95 ROOF MOULDING 3136 UL-1 18x95 DOOR MOULDING 2710 UL-2 18x95 DOOR MOULDING 2460 18x95 ROOF MOULDING 2400 18x95 CORNER MOULDING Oversize 30mm 2350 18x95 CORNER MOULDING...
- Page 7 PATIO M Marking Note Lenght SAUNA BENCH 600x1787 SAUNA BENCH 600x1787 SAUNA BENCH 500x1485 SAUNA BENCH 500x1080 SAUNA BENCH 200x1075 BENCH SUPPORT SET 45x45 BENCH SUPPORT SET (SIDE) 45x45 GLASS DOOR 88x690x1860 BRONZE WITHOUT FRAME! PREMIUM HANDLE GLASS DOOR 88x690x1860 BRONZE...
- Page 8 ROOF COVER SCREWS FOR ROOF DETAILS EPDM ROOF COVER 3.4x3.05 EPDM GLUE 2.5l EPDM QUICKPRIME (LITTLE CONTAINER) EPDM SPLICE TAPE 3300 PAINT ROLLER+ HANDLE METAL ROOFING SHEET 1615mm METAL ROOFING SHEET 63mm WIDTH 2600 1900...
- Page 9 Floor Frame PATIO M 3,190 Cutout for water drainage 2,075 1,070 45x25mm AR-1 AR-1 +3mm AR-6 (45x70) AR-3 AR-5 AR-3 AR-5 +3mm AR-3 AR-5 +6mm AR-3 AR-5 +9mm AR-3 AR-1 +12mm AR-1 *Check floor frame diagonals AR-1 = 3190mm 4pcs...
- Page 10 Floor Frame PATIO M *Install water drainage detail before first log wall row Screws 90mm Water drainage detail Take care! Sharp edges! *Use 90mm screws and battery drill GSPublisherVersion 0.12.100.100...
- Page 11 First log row PATIO M Fix first log wall row to the floor frame with 180mm screws (Suggestion: drill hole before inserting the screws) Screws 180mm Leave 5mm gap outside with floor frame and 1st wall row GSPublisherVersion 0.12.100.100...
- Page 12 Posts PATIO M *Install 70mm screws as shown in scheme: * Use level tool and battery drill to fix walls to posts Screws 70mm *2 screws per wall log connection GSPublisherVersion 0.12.100.100...
- Page 13 Wall layouts PATIO M *Fix all wall logs with 180mm and 70mm screws Wall A (view from outside): Wall B: Wall C (view from outside): Wall A (view from outside) Wall C (view from outside) Wall B Door 690x1860 2,400...
- Page 14 Last row PATIO M * To install wall logs use rubber hammer and hammer block Install last wall detail to the second to last wall detail with 180mm/ 90mm screws (Suggestion: drill hole before inserting the screws) Screws 180mm Screws 90mm (only wall 2) GSPublisherVersion 0.12.100.100...
- Page 15 Top view Ceiling beams and joist hanger PATIO M Temporarily attach roof board on top of the walls. Measure out 95mm from roof board CELING BEAMS (downward) and 547mm from the walls for the joist hanger 1,830 1,830 Temporarily attach roof board on top of the walls. Measure out 95mm from roof board (downward).
- Page 16 2.09 Roof boards PATIO M 1,98 Cut the last roof board to lenght T-1 =2215mm 3,210 SUGGESTION: Start with half roof board, otherwise the final board will be too small Cut the last roof board to lenght T-1 =2215mm 2,220 Use 8 nails (75mm) per roof board GSPublisherVersion 0.4.100.100...
- Page 17 Ceiling PATIO M Outside lining boards STP-2 Ceiling lining boards STP-1 Insulation Kingspan 30mm Distance board 15mm Ceiling board 15x55mm Install the SPU insulation to the beams/ rafters with the distance board and 70mm screws Screw 70mm Insulation Kinspan 30mm...
- Page 18 1 900 Floor Boards AR-1 PATIO M AR-1 Cutout AR-3 AR-1 *Apply plywood (3/6mm) on floor frame before floor boards AR-1 Floor board cutoff (cut in site) AR-1 Floor boards 45x45mm in corners Section AR-1 AR-1 Cutout AR-3 +6mm *Apply plywood (3/6mm) on floor frame before floor boards...
- Page 19 Windows PATIO M REMOVE GLASS FROM WINDOW FRAME WHEN INSTALLING!!! Top view 45x45 Post 1. Lift the window in sideways. Fix the window leaf to the door frame post with 70mm screws. 2. Fix the second window to the first window with 55mm screws.
- Page 20 Doors PATIO M REMOVE GLASS FROM WINDOW FRAME WHEN INSTALLING!!! 1. Lift the door in sideways. Fix the door leaf to the door frame post with 70mm screws. Fix the door frame to the door leaf. Fix with 70mm screws.
- Page 21 Outer lining boards PATIO M Roof lining boards Nails 40mm Outer lining boards Base board 15mm Nails 40mm STP-2 WALL LINING BOARDS 14mm Distance board 15mm Wall lining boards Nails 40mm Distance board 15mm STP-2 WALL LINING BOARDS 14mm GSPublisherVersion 0.12.100.100...
- Page 22 Mouldings PATIO M *Corner moulding cutoff GSPublisherVersion 0.12.100.100...
- Page 23 Sauna Benches PATIO M INSTALL SAUNA Sauna Benches BENCHES AFTER THE DOOR/ WINDOW IS IN +850 PLACE! Upper bench +400 570mm Check that heater safety distance is acquired. Lower bench If neccesary move lower bench back 1. First fix the bench supports to the wall 2.
- Page 24 Sauna Benches PATIO M Upper Bench Upper Bench Post cutoff 45x45 Post cutoff 45x45 Post cutoff 45x45 1,485 1,080 Bench support frame 45x45 1,008 Adjustable feet 20mm (3pcs) Post cutoff 45x45 Side view Lower Bench 1075 1,036 GSPublisherVersion 0.12.100.100...
- Page 25 Ventilation louvre and grids PATIO M Vent louvre and grids Vent louvre and grids Install ventilation louvre (1pcs) and ventilation grids (3pcs) Install ventilation louvre (1pcs) and ventilation grids (3pcs) =15cm =15cm Use saw or diamond drill bit Use saw or diamond drill bit...
- Page 26 EPDM roof cover Tools: SAFETY FIRTS! EPDM roof cover IT IS RECOMMENDED TO USE GLOVES, SAFETY GLASSES AND RESPIRATOR WHEN APPLYING THE GLUE. ALSO APPLYING OF THE GLUE SHOULD BE DONE IN WELL VENTILATED AREA OR OUTSIDE! Tools: 1. Clean the roof surface from dirt, dust, ice , snow etc... 2.
- Page 27 EPDM roof cover *Optional roof cover Roof cover PATIO X Back metal profile and rubber roof cover: Splice tape Back profile Roof cover Metal profile *Attach back profile plate before roof cover Use Quickprime plus glue and apply it on the rubber When installing the back profile apply Quicprime plus Side profile surface and on the metal roofing sheet...
- Page 28 Patio metal roof profiles Side and front profile Back profile *If there is 2 pieces of back profile, leave about 10-20mm overlap and fix with screws Back corner: Side profile Cutout 90 Side profile Front corner: Log wall...
