Summary of Contents for Jefftron EXTREME PROCESSOR UNIT

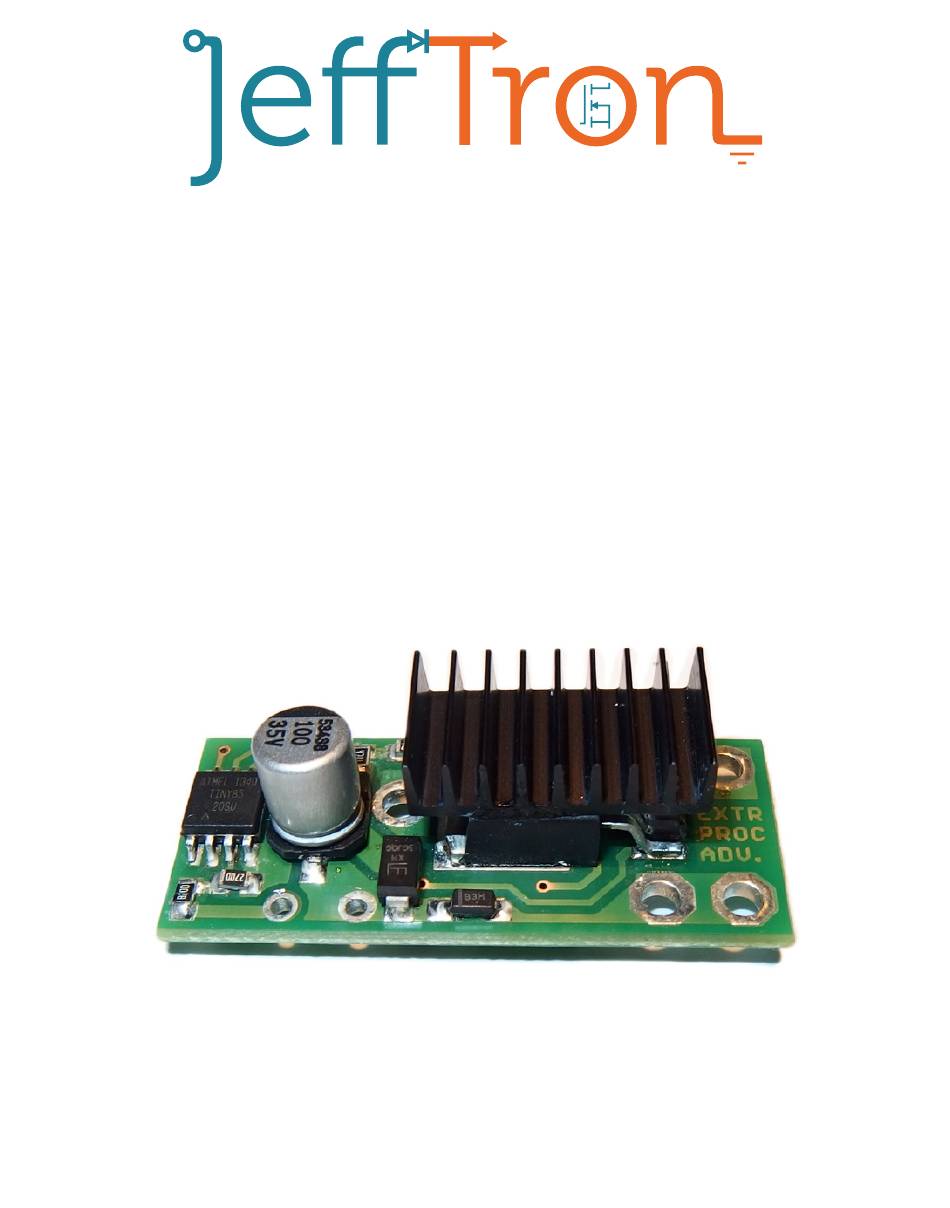

- Page 1 century electronics for AEG weapons EXTREME PROCESSOR UNIT GERMANY VERSION (no burst, no fullauto) Spring limit M190 Installation of this device leave to expert He must know how to solder and disassemble airsoft gun Never user soldering gun!
- Page 2 How connect device into the gun 1) Red cable with max. cross section 1,5qmm lead to the positive pole of battery. Add fuse between battery and device. (not included in package) 2) Black cable with max. cross section 1,5qmm lead to the negative pole of battery 3) Red cable with max.
- Page 3 Detailed programming scheme MODE - 1.attribute: same as normal AEG (without Processor unit) 2.attribute: in AUTO mode firstly shoot burst, after pause goes to full-auto if the trigger is held down. Delay is programmable ( 6.choice) 3.attribute: with selector on AUTO the gun fires only semi. 4.attribute: with selector on AUTO the gun fires only burst (default 3 shots) 5.attribute: with selector on AUTO the gun fires only semi with forced time delays between shots.
- Page 4 Brief programming scheme Connection battery 1 short vibration 1.choice MODE 1.attribute: Save - Semi – Full Push the trigger --> 2.attribute: Save - Semi - Burst/Full (hold trigger to change burst to full fire mode) 3.attribute: Save - Semi – Semi (factory default) 4.attribute: Save - Semi –...
- Page 5 Programming method Anything you set here will be remembered even if you disconnect the battery. Programming procedure: 1. Put the gun into SEMI and power up the gun. You will feel one short vibration. 2. Pull the trigger once (before the second longer vibration). 3.
- Page 6 Startup codes After connecting battery processor unit does a power up selfcheck, which lasts a few seconds. It results vibrating the motor with meaning: 1 vibration - All systems are OK. This vibration is about half second long. 2 vibrations - Battery voltage is less than 7.0 volts. 3 vibrations - Battery voltage is more than 14.0 volts.
