  • Page 1 INSTALLATION MANUAL FOR GEARBOX V3...

  • Page 2: Safety Warning

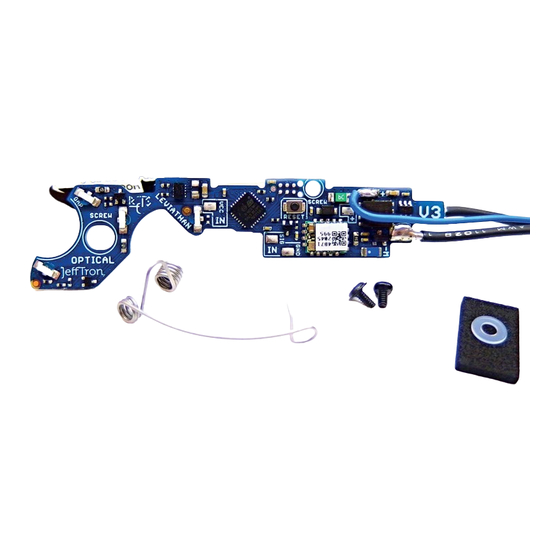

    Leviathan - V3 parameters - It is processor controlled electronic trigger unit with wireless communication. - Device paramethers are changed with smartphone via application (Android and iOS). - Device is fully integrated inside the gearbox V3 instead of the original trigger contacts. - The gearbox has to be compatible with Tokyo Marui standard or Tokyo Marui NGRS V3.

  • Page 3: Device Overview

    Device overview - Optical sensor for trigger pull detection is circle. in the - Cycle optical sensor for the sector gear circle) detects gear cam movement(green Yellow reset button hold for 2s, password is reset to 1234 after vibration from motor (settings are reset too).

  • Page 4: Input Terminal

    External ports Input terminal - Leviathan has 3 pads for connecting exter- nal button, virtual reload or sensor. - 3,1V is in the red area (for sensor only), it s covered by foil - partly remove it from right side and put it back after wire solder. - Signal is in the yellow area.
  • Page 5 Insertion procedure of Leviathan - V3 into the gearbox 1. Remove and open the gearbox according to the normal gun disassembly procedure. 2. Take out all the internals from the gearbox and clean the vaseline, oils after them. 3. Check the gearbox for edges. Grind for smooth surface to prevent Leviathan damage. 4.
  • Page 6 9. Remove metal part on the selector 8. If you want functions on SAFE pos., plate. It could make short circuit. remove G36 /grind AK part in red area. Mechanical locking will be disabled. 11. Insert Leviathan board first throu- 10.
  • Page 7 14. Insert the Leviathan - V3 instead of the original contacts: - Check if the Leviathan - V3 is laid flat on the gearbox shell. - Adjust the Leviathan position to the same distance from sector gear bearing (red line). - Use large screw with washer (blue arrow) from the package for tightening the board near the sector gear.
  • Page 8 Selector plate sticker installation 1. Choose sticker according your gun. 2. Clean selector plate by degreaser Take out one of 4 stickers by pliers. and place sticker on its right edge and Do not touch the sticker by hand! to the center of the selector plate. 3.
  • Page 9 RFTS spring installation optional feature, added spring simulates trigger resis- - Real feel trigger system (RFTS) is tance like in the real gun. It adds secondary resistance with reset after the fire. 2. Insert RFTS spring on the grinded 1. Grind tapped plated on selected area pin in gearbox - see pic.
  • Page 10 7. AK only: hold spring from the 8. G36 only: push spring to the bottom and bend it with pliers. bottom edge of the gearbox. Foam Installation for hair trigger (optional feature) - In the package are 2 types of foams (2pcs each), black has width 2mm, white width 1mm. - Foam is placed on the trigger, which interrupts the optical sensor beam with shorter pull.
  • Page 11 Sensors confi guration and testing 1. Install „Leviathan by Jeff Tron“ app from App store (iOS) or Google play (Android) into your smartphone. https://www.jeff tron.net/application Or use link (QR code). 2. Connect the battery to the Leviathan and pair it with your smartphone. 3.
  • Page 12 Optical selector calibration 7. Choose AK or G36 family and follow instructions in the calibration. 6. Tap on „Optical selector calibration“. Move the selector plate to Safe, its value should be in range 6% - 30% and press continue. Move selector to Semi (range 40%-70%) and press continue.
  • Page 13 Optical cycle calibration 11. After the shot, this page appears. Cycle detection point determines 9. Tap on „Optical cycle calibration“. when it detects cycle. Higher value de- tects cycle little bit sooner. Cycle range shows optical sensor re- ading for spinning sector gear. Ideal range is 10% - 90%.

  • Page 14: Sensor Troubleshooting

    Sensor troubleshooting 12. If cycle range has too high values, 13. If any selector position ends in the red move sensor slightly left to be closer to color, its value is too close to another one, the sector gear. so the position won‘t be set right. If cycle range has too low values, move This could be caused by wrong sticker po- sensor slightly right to be further from...

  • Page 15: Change Parameters

    Change parameters page 1/3 Orange stripe = not green stripe = paired paired, Paired = loads parameters from Leviathan. Change parameter -> shows „writting...„ in the green stripe. Text dissapear -> parameter is saved Fire modes with Selector on safe/semi/auto: - SAFE: no responding to the trigger pull.
  • Page 16 Change parameters page 2/3 Active Brake: It uses the excess energy from the motor to stop it. Spring is fully released, parts in gearbox aren‘t under strain. Higher braking is for weapons with high RoF. Braking eff ect is more powerful with torque motor. Note: Lower braking intensity spares the motor coils.
  • Page 17 Change parameters page 3/3 External input: see manual at page 3. Works with Input terminal - - OFF: Every signal to Input terminal is ignored. - External trigger: gun trigger is disabled and repla- ced by micro switch connected to Input (SIG and GND) - Burst-3 trigger: micro switch connected to Input (SIG and GND) make 3 burst fi re when it is pressed.
  • Page 18 Error log: shows errors made during the device life. Total shot counter value is saved when error happen. Error ex- pansion shows possible solution. Bin at top corner will reset all errors. Sensor check: Shows how the sensors respond. Grey color is OFF, blue is ON.
  • Page 19 Statistics Rate of fi re (sec): gun rate of fi re per second. Rate of fi re (min): gun rate of fi re per minute. Last trigger pull shots: the number of BBs fi red at the last trigger pull. Pre-cocking time: time to move piston to compre- ssed position (it will reduce Semi cycle time).
  • Page 20 Settings Language: text translation in the app to diff erent langu- age. Tacticool language is made up for your fun. Dark theme: choose white or black application interface Temperature: change mosfet and processor temperatu- re unit from °C to °F. Remember password: set automatic login to Leviathan.

  • Page 21: Startup Codes

    Startup codes After connecting battery the Leviathan does a power up self check, which lasts a 1s. It results the motor vibration or error beeps with the error log record: 1 short vibration - All systems are OK. This vibration is about half second long. 1 short beep - Trigger is pressed during battery connection (102) 2 short beeps - High current flow the mosfet (106) 3 short beeps - High temperature on the mosfet (104)

  • Page 22: Troubleshooting

    Troubleshooting ISSUE: Weapon doesn‘t react at all after battery connection. SOLUTION: Check if the battery is properly connected and charged. Also check motor contacts and motor functionality. Check if the safety fuse hasn’t been blown. ISSUE: Weapon doesn‘t make shots after trigger pull (start-up vibration was made). SOLUTION: Damaged or misplaced sensor for trigger, check it‘s proper function.
  • Page 23 SOLUTION: Best way is to do FACTORY RESET and start again. ISSUE: The gun does something strange or nothing. SOLUTION: STOP! Release trigger, disconnect battery and search for the problem before- something will be irreversibly damaged! Contact us at email support@jefftron.cz.
  • Page 24 MANUFACTURER Ing. Filip Němec Zahradní 599, 538 03 Heřmanův Městec ID: 87936062, TAX ID: CZ8503013475 Made in Czech Republic www.Jeff Tron.net VERSION 3.21 Warranty does not cover: water immersion, defects or damage from accident, misuse, opposite battery polarity, abuse, damaged wires, wrong installation, bad handling, any modifi cation by user, unusual physi- cal, electrical or electromechanical stress.
