- Page 1 Document Name User Manual Document No. TG-TPP-001 Theragun PRO PLUS Model User Manual Name Date Prepared by: Ice Zheng Reviewed by: Felix Chen Approve by: CJ Frederick Revision History Change description Modified by Modification date Initial release. 2023-4-24 Team Page 1 of 24...
-
Page 2: Table Of Contents
User Manual Document Name Document No. TG-TPP-001 Theragun PRO PLUS Model Table of Content Recommendation of Use....................3 Contraindications ....................4 Warnings ......................5 Precautions ....................6 1.5 Label & Symbols..................... 9 Intended Use & Indications for Use ................10 Device Description ...................... -
Page 3: Recommendation Of Use

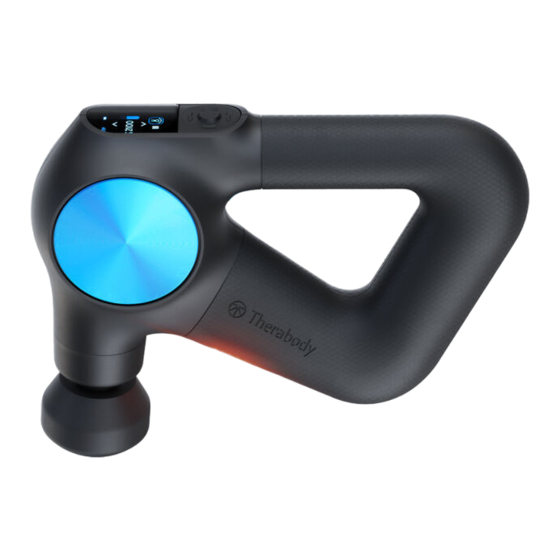

1. Recommendation of Use Device name :Theragun PRO PLUS model : Theragun PRO PLUS Read the full Warnings and Guidance prior to using the Theragun PRO PLUS. The Theragun THE DEVICE is equipped with 5 buttons and a color LCD screen, which acts as the main user interface between user and device. -
Page 4: Contraindications
Document Name User Manual Document No. TG-TPP-001 Theragun PRO PLUS Model data. This device is contraindicated against and should not be used by those with acute or severe cardiac, liver, or kidney disease/condition or other underlying conditions linked to these diseases. It is not recommended that this device is... - Page 5 Document Name User Manual Document No. TG-TPP-001 Theragun PRO PLUS Model · Pacemaker, ICD, or history of embolism For a full list of contraindications and additional warnings, please visit www.therabody.com. Patents & Pending Patents at www.therabody.com. Used to identify symptoms or medical conditions for a person to not receive a particular treatment or procedure because it may be harmful.
-
Page 6: Warnings
Do not use Theragun PRO PLUSabove the waist during pregnancy. Do not use Do not get hair caught in any moving part of the Theragun PRO PLUS. Theragun PRO PLUS above your Adam’s Apple or C4. Do not use t... - Page 7 7. DO NOT OVERCHARGE. Do not leave connect to the charger for more than an hour after the Theragun PRO PLUS has been fully charged. The Theragun PRO PLUS includes a protection system to avoid the risk of overcharging, however, overcharging the Theragun PRO PLUS may reduce its life over time.
- Page 8 17. DO NOT USE WHILE BATHING OR IN THE SHOWER, TUB, OR SINK. Do not place or store the Theragun PRO PLUS where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid. Do not reach for an appliance that has fallen into water.
-
Page 9: Label & Symbols
Available for immediate use when device cool from the maximun storage temperature between uses and Device warm from the minimum storage temperature between uses. 1.4 Label & Symbols The following labels and symbols appear on Theragun Theragun PRO PLUS: Symbols Description CE mark the Restriction of Hazardous Substances “WEEE (Waste Electrical and Electronic Equipment)”. -
Page 10: Intended Use & Indications For Use
Document Name User Manual Document No. TG-TPP-001 Theragun PRO PLUS Model 2. Intended Use & Indications for Use Provide a guided and non-guided in-dept therapy around the body with different therapies: relaxation therapy through physical feedback, cold therapy, heat therapy, vibration therapy, infrared light therapy, and percussive therapy. -
Page 11: Smart Features
F. Type-C Port 3.1 Smart Features Theragun device is smart device enabled with Bluetooth connectivity, designed to pair seamlessly with the Therabody app. When you download the app, you’ll be guided through a step-by-step setup and shown how to pair your device. -
Page 12: Getting Started
Dummy near bones attachment 3.3 Accessories A type-c (USB-C to USB-C PRO PLUS USB-A or Use C to C)Line is provided together with the Theragun device. 3.4 Getting started Step 1 Turn on and float Firmly press and hold the center button on the button pad, then float the Theragun device across areas in need. -
Page 13: Using The Theragun Pro Plus
HR value is displayed in the middle ). Holding down the middle button will turn off the device at any time 3.5 Using the Theragun device 1) To turn on the Theragun device, firmly press and hold the center button on the button pad . 2) Press the up ( ) and down (v) arrows to toggle between 5 preset speeds Λ... -
Page 14: Connecting The Attachments
3.7 Charging the Theragun device 1) Your device includes a USB-C to USB-C PRO PLUS USB-A cable so you can use a wider variety of adapters. The Battery capacity will show on the LCD screen. - Page 15 3.8 Discharging personal device from Theragun device 1) You can use the Theragun device to charge your personal device by connecting one end of the USB-C cable to the Thregun's Type c port, and then connecting the other end of the cable to the port that fits your personal device.
-
Page 16: Cleaning Instructions
Model 4. Cleaning Instructions For the most hygienic Theragun device experience, sanitize it after each use by: 1) Wiping the device with a disinfectant wipe to remove any residue. 2) Once the device is residue-free, use a new wipe to disinfect the surface area by wiping all sides in a downward motion. -
Page 17: Product Specification
Ship unit to the manufacturer in the original container with all accessories and information as required above. Service Life When used and maintained as instructed, the expected service life of Theragun Theragun PRO PLUS two years. 7. Product Specification... -
Page 18: Safety, Emc
Document Name User Manual Document No. TG-TPP-001 Theragun PRO PLUS Model level LED module Wavelength: IR=840~860nm; RED=650~670nm; Level=ON/OFF. 8. Safety, EMC This device is Class II equipment with type BF applied. It complies with Medical Electrical Safety Standards (IEC 60601-1). - Page 19 Document Name User Manual Document No. TG-TPP-001 Theragun PRO PLUS Model Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 20 Document Name User Manual Document No. TG-TPP-001 Theragun PRO PLUS Model Table 1 declaration - electromagnetic emission Emissions test Compliance RF emissions Group 1 CISPR 11 RF emissions Class B CISPR 11 Harmonic emissions Not applicable IEC 61000-3-2 Voltage fluctuations/...
- Page 21 Document Name User Manual Document No. TG-TPP-001 Theragun PRO PLUS Model Table 2 declaration - electromagnetic immunity Immunity test IEC 60601 test level Compliance level ± 8 kV contact ± 8 kV contact Electrostatic discharge ± 2 kV, ± 4 kV, ± 8 kV, ±...
- Page 22 Document Name User Manual Document No. TG-TPP-001 Theragun PRO PLUS Model Table 3 declaration - electromagnetic immunity Immunity test IEC 60601 test Compliance level level Conducted Not applicable 0.15 MHz to 80 IEC 61000-4- 6 V in ISM bands between 0.15...
- Page 23 Document Name User Manual Document No. TG-TPP-001 Theragun PRO PLUS Model Table 4 declaration - IMMUNITY to proximity fields from RF wireless communications equipment Immunity IEC60601 test level Compliance level test Test Modulation Maximum Immunity frequency level power Radiated 385 MHz **Pulse 1.8W...
-
Page 24: Manufacturer Information
Attn: Customer Service Therabody, Inc. 6100 Wilshire Blvd. Suite 200 Los Angeles, CA 90048-5107, USA Please note, this is not a return address or a retail location. No Theragun Products or packages will be accepted at this location. Page 24 of 24...
