L2 LRT18S4AWWC Instruction Manual page 15

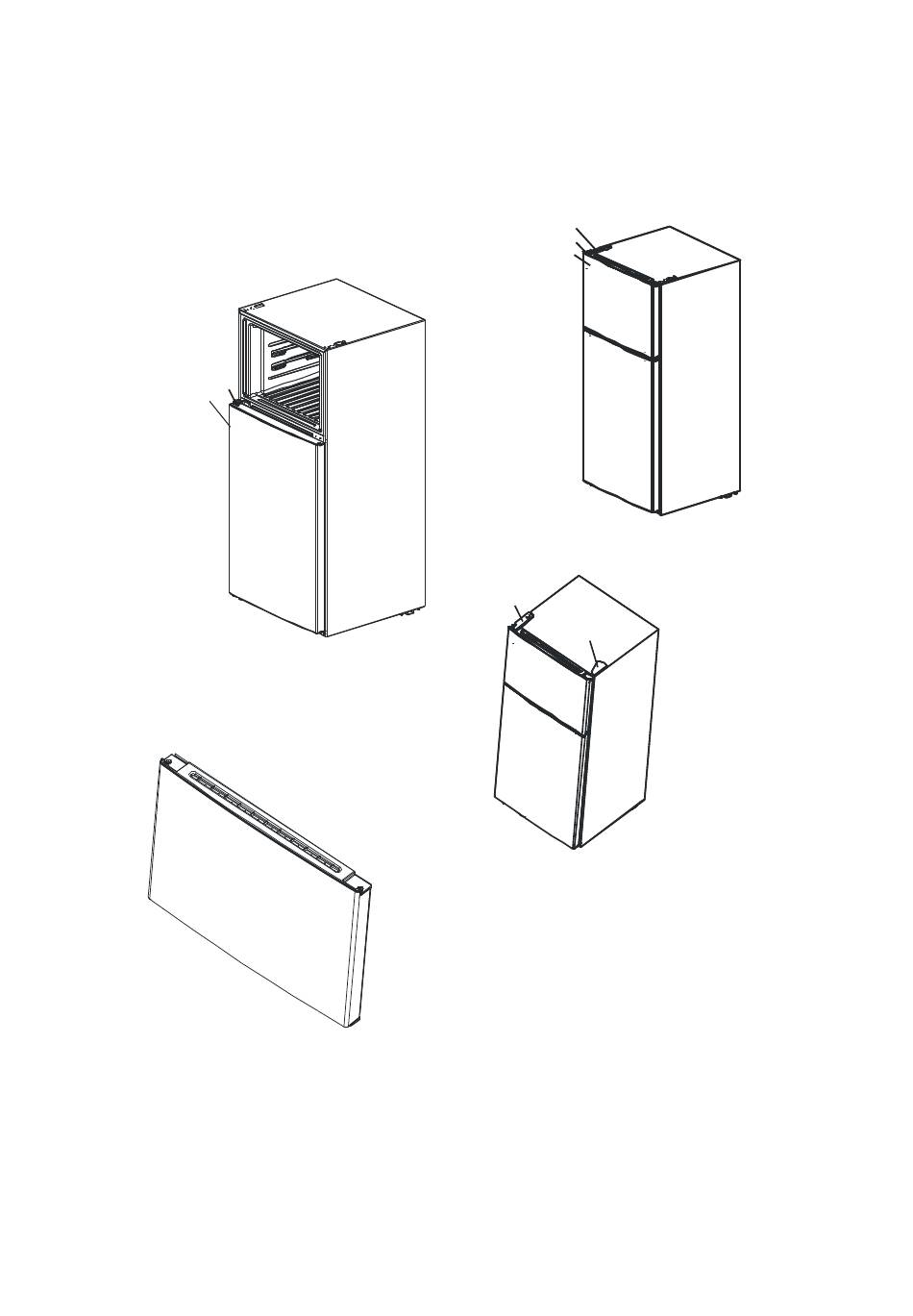

8. Install the door of refrigerating chamber
onto the chamber, keep the axle center of
bushing aligned to the center of screw
bolt of bottom hinge, and then put down
the door naturally. Install the middle
hinge on the left side of chamber and
fasten it with three screws.
Middle hinge subassembly
Door of refrigerating
chamber
9. Take off the top and bottom bushing from
the door of freezing chamber, and install
them into the axle holes aligned to the
axle center on the left side of the door.
10. Align and install the center of left top
hinge onto the axle center on the left side
of the door, and fasten the left top hinge
with 3 screws after the door of freezing
chamber is fastened.
Left top hinge
Top hinge bushing
Door of freezing
chamber
11. Install the left hinge guard and hinge
stopple cover onto the chamber.
Left hinge guard
H inge s topple cover
15
