L2 LRT18S4AWWC Instruction Manual page 10

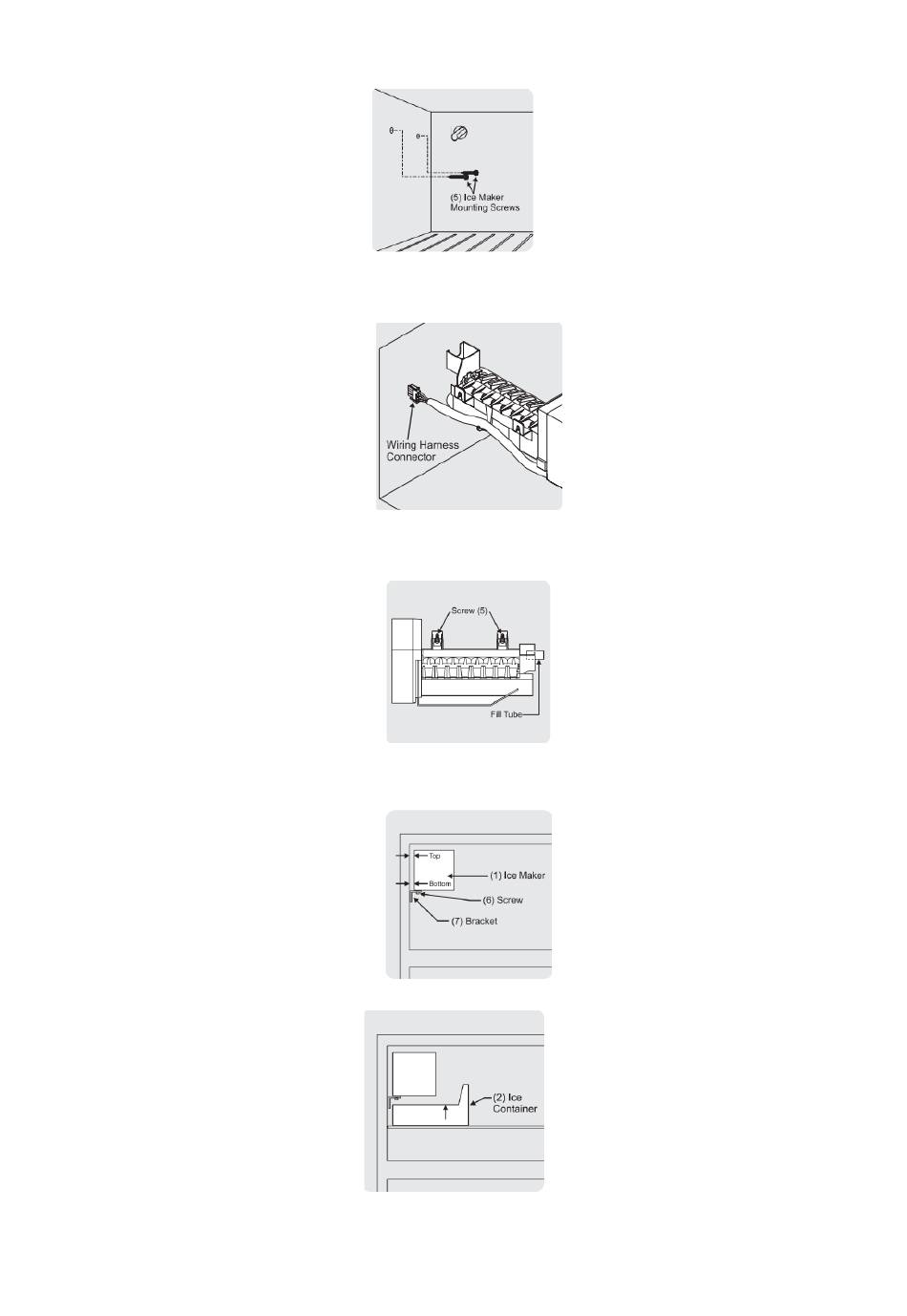

11) With ice maker in one hand, plug ice maker connector into connector mounted on top
freezer panel. Make sure connection is tight.
12) Mount ice maker onto two screws (5) you installedn Step 12. Tighten screws. Make sure water
inlet tube (11) is sitting inside fill cup.
13) Adjust leveling bracket (7) to level ice maker (1). Ice maker is level when gap between freezer
wall and ice maker is same at top and bottom. Tighten screw(6) when level.
14) Reinstall freezer shelf in lower position. Set ice container (2) on shelf.
15) Locate factory punched holes at bottom right corner of rear panel. Holes are only drilled
