HANYOUNG NUX RLA-WX Series Instruction Manual

Turn Light
RLA-WX/WXB
INSTRUCTION MANUAL
Thank you for purchasing HANYOUNG product.
Please check whether the product is the exactly same as you ordered.
Before using the product, please read this instruction manual carefully.
Please keep this manual where you can view at any time
Safety information
Before using the product, please read the safety information thoroughly and use it properly.Alerts
declared in the manual are classified to Danger, Warning and Caution by their criticality
DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury
WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury
CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury
Danger
•Be sure to turn off power before connecting wires or changing a bulb. It can cause a electric shock.
Warning
•If there is a concern about a serious accident caused by a malfunction or abnormality of
this product, please install a protection circuit outside to prevent from accident.
•Overvoltage will cause a product to be broken down.
•You must use the rated voltage. Overvoltage can cause a product to be broken down and
it can also makes the product and the xenon lamp unit to be fragile.
•If you are concerned about serious accident due to the malfunction of products, please
install the external safety equipment.
Caution
• The contents of this manual may be changed without prior notification.
•If the user does not follow the methods specified by manufacturing company,
it will cause a bodily injuries or property damage.
•This product is only suitable for indoor use. Please use it in a place where there is no water.
•Please refer to the "Wiring Diagram" when you wire it to the product. Incorrect wiring will
cause a product to be broken down.
•When applying a strong shock to the product, it may cause the product to be broken down.
•Please be cautious that contacting with chemicals such as thinner or benzene can cause
the product's color to be changed and it can also cause a product to be broken down.
•End of unused lead wire must be insulated.
•When installing, choose a place that has sufficient strength and low vibration.
•Please use a fuse (250 V 0.2 A) for the power line.
•When separating from a product or connecting to a product, you must block the power that
is connected to a main equipment and then operate it.
•When user does not follow the methods specificed by manufacturing company, it will cause
a product to be broken down so, please follow the manual.
•The warning symbol for safety is attached to the main product and wiring.
•Do not use it when a covering is separated from the product.
•Do not use when a cover is separated from the product.
Suffix code
Model Code
RLA-    Signal light (XENON Lamp)
WX Strobe light
Function
WXB Strobe light and buzzer built in type
01 12 V DC
02 24 V DC
10 110 V AC
Power supply
20 220 V AC
voltage
and
10M 110 V AC
Installation method
20M 220 V AC
01A 12 V DC
02A 24 V DC
R Red
Cap color
B Blue
Usage method
•The way to install it is easy and for automotive type, it can prevent from the scratch
because a permanent magnet is covered by a rubber covering and it is attached to the car.
•For 12 V DC 24 V DC, it is easy to use power supply by using the automotive cigar jack
•Never separate a covering from the product while the power is on. Since high voltage is
charged, it can cause an electric shock.
•For direct installing type, it is comfortable if supporter is used. (Option)
HEAD OFFICE
INDONESIA
FACTORY
Information
※ Direct installing type
※ Magnet supporter
※ Magnet supporter that is attached
by automotive cigar jack
HANYOUNGNUX CO.,LTD
28, Gilpa-ro 71beon-gil, Nam-gu, Incheon, Korea
TEL : (82-32)876-4697 FAX : (82-32)876-4696
http://www.hynux.com
PT. HANYOUNG ELECTRONIC INDONESIA
JL.CEMPAKA BLOK F 16 NO.02 DELTA SILICON II INDUSTRIAL PARK
LIPPO CIKARANG CICAU, CIKARANG PUSAT, BEKASI INDONESIA 17550
TEL : 62-21-8911-8120~4 FAX : 62-21-8911-8126

Specification

Model RLA-WX  
Function
Ø118 rectangular cap (Direct installation, Magnet attachment type
Dimension
supporter, Magnet attachment type supporter and cigar jack)
Power supply 12 V DC, 24 V DC, 110 V AC, 220 V AC 50/60 ㎐, Selected by the
voltage
Power consumption
Strobe speed
Light source
Buzzer volume
Material
Cap color
Degree of protection

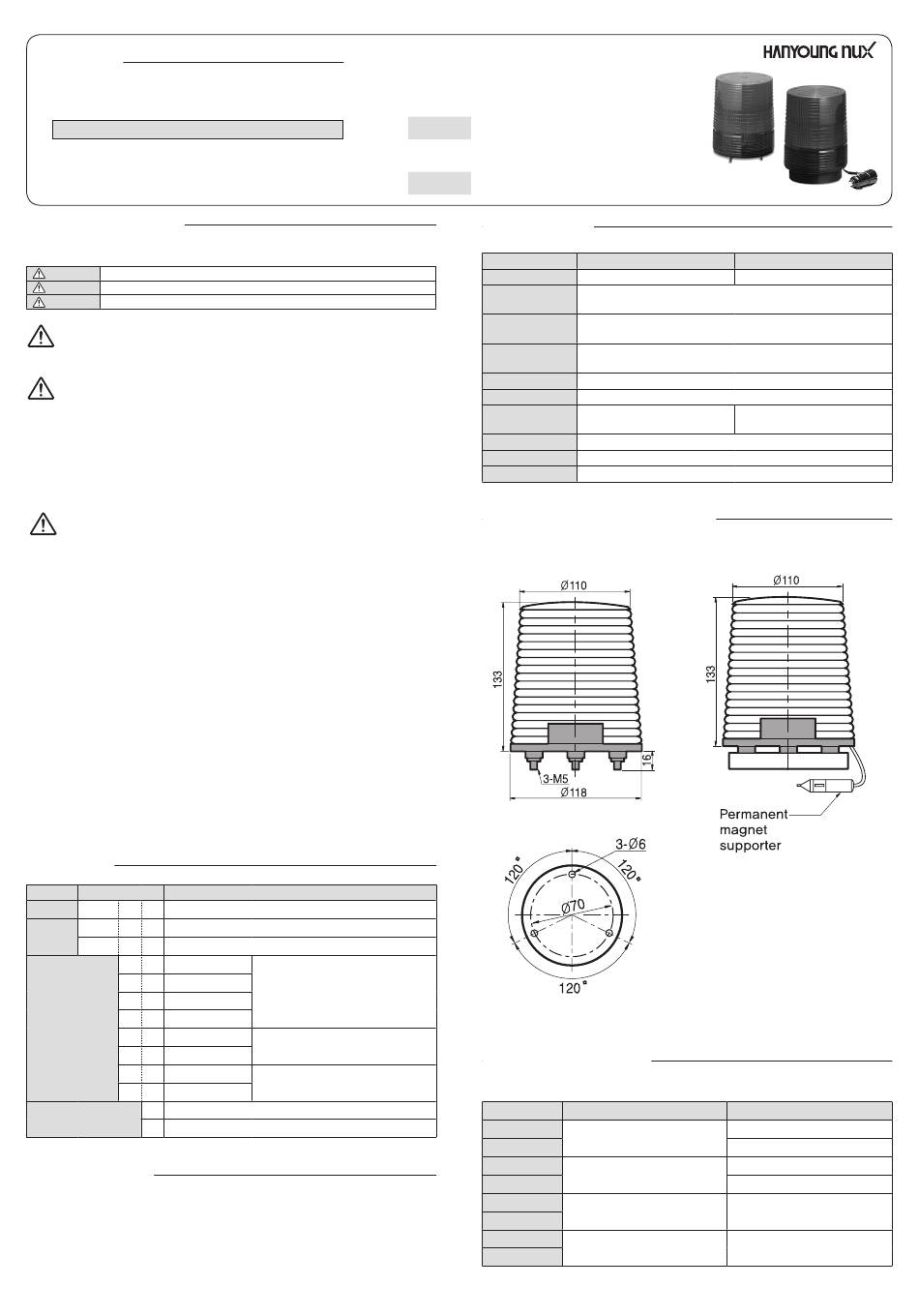

Dimension and panel cutout
█ RLA-WX (Normal type)
Connection diagram
Buzzer (buzzer built in type) is connected to the power wire
Model Power supply voltage
RLA-  0 1 
12 V DC
RLA-  0 1A 
RLA-  0 2 
24 V DC
RLA-  0 2A 
RLA-  1 0 
110 V AC 50/60 ㎐
RLA-  1 0M 
RLA-  2 0 
220 V AC 50/60 ㎐
RLA-  2 0M 
2
MN0110KE140903
RLA-WXB  
Strobe only Strobe only·Buzzer
suffix code
7.2 W (when power supply voltage is 24 V DC),
12 W (when power supply voltage is 220 V AC)
Approx 60 times/min
Xenon tube Strobe light
Buzzer built in
-
(approx 90 ㏈ from distance 1m)
Cap : acryl resin, Body : ABS resin
Red, Blue, White
IP54
█ RLA-WXB (Automotive type)
Wire color
Blue (+), Brown (-)
Cigar jack
Blue (+), Brown (-)
Cigar jack
Blue - Brown (2P)
Blue - Brown (2P)
[Unit : mm]
